The Slanted Mini – Angled Canopy Exhaust Vent

The Slanted Mini is an angular filtered canopy air vent for vertical mounting on the rear of a ute canopy or structure. A passive vent that lets hot air out, in a low, sleek profile that sits close to the panel.

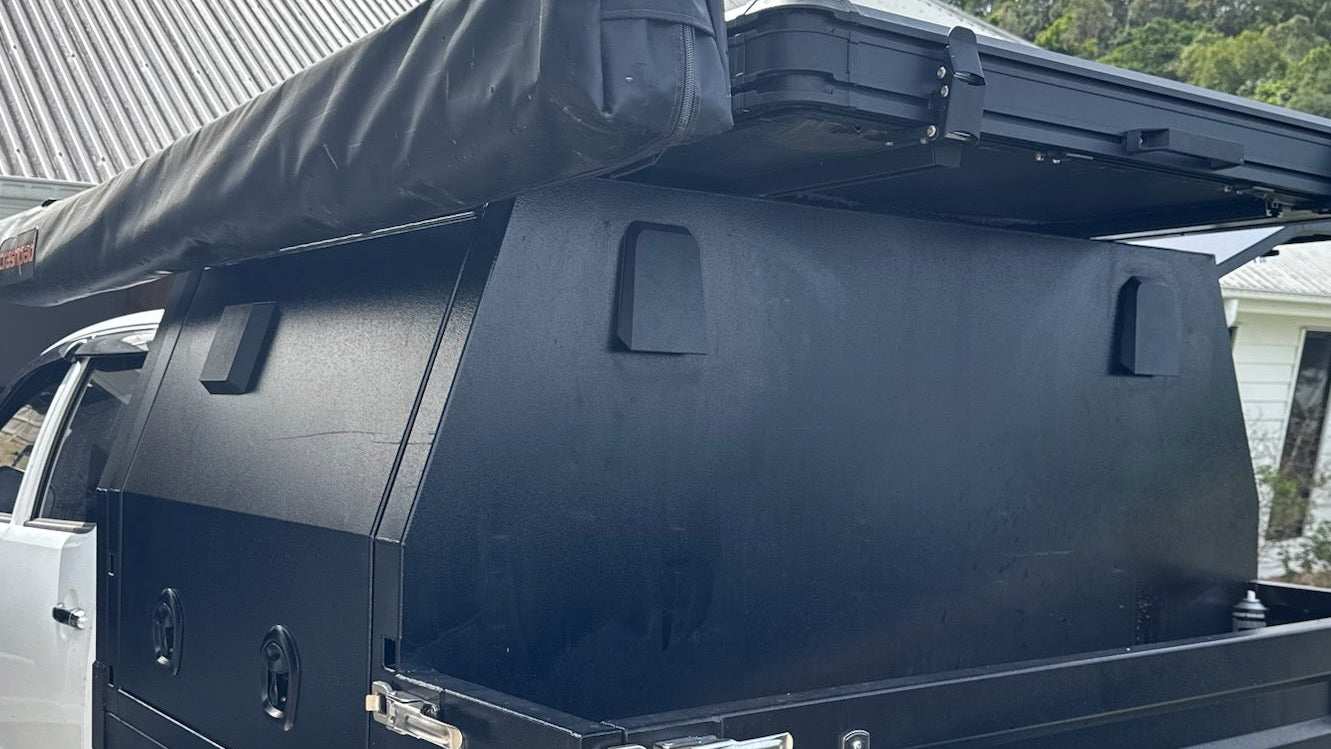

The Slanted Mini is an exhaust vent. It works best paired with a side intake such as The Original or The Crossflow, so air is drawn through the canopy rather than sitting still.

Features

• Ultra-tough, UV-resistant ASA-Glass Fibre built for the Australian sun
• Angular, low-profile design — 30 mm at its deepest point
• Light but tough — just 139 g, with the strength coming from glass fibre reinforced ASA rather than bulk

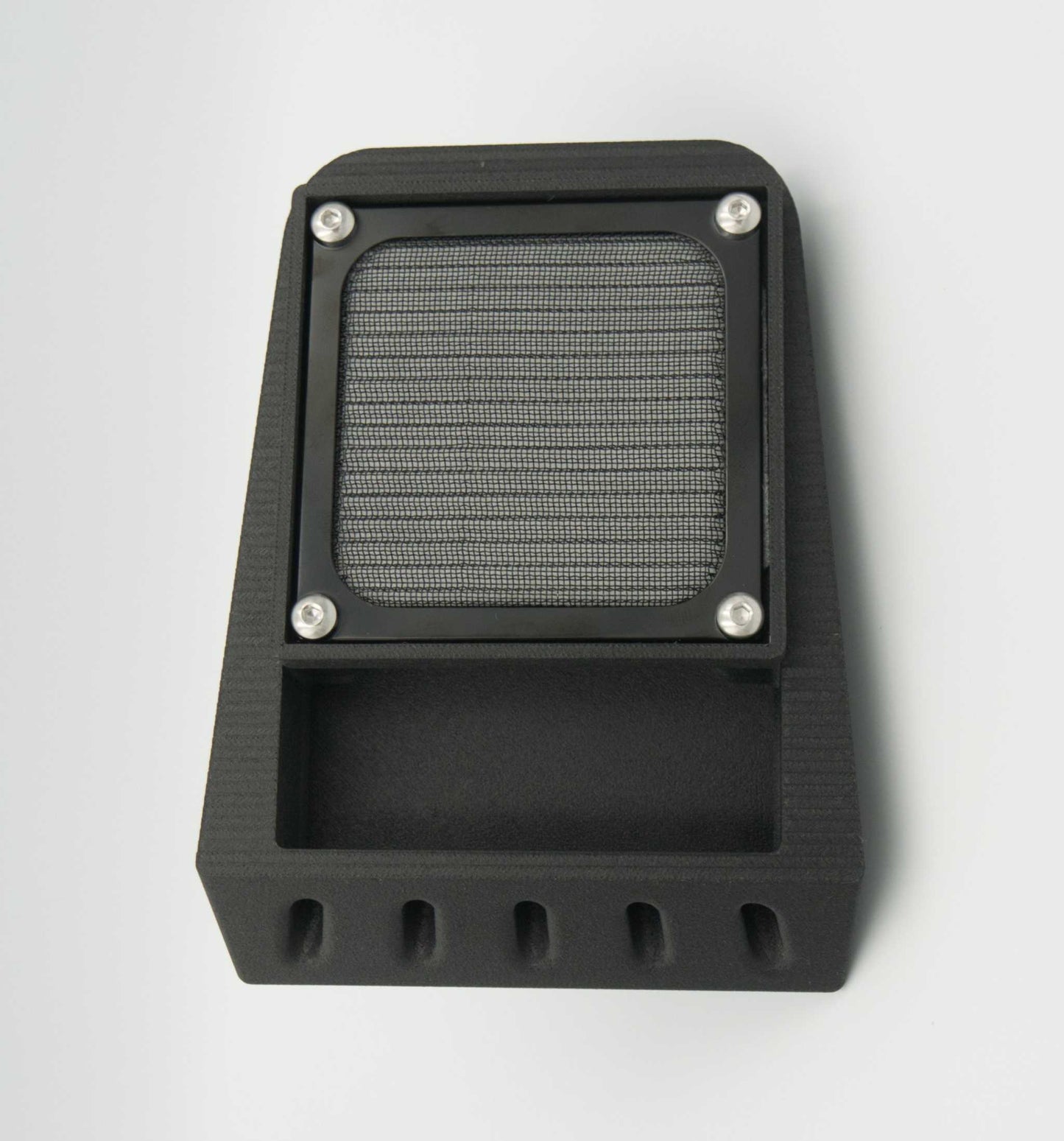

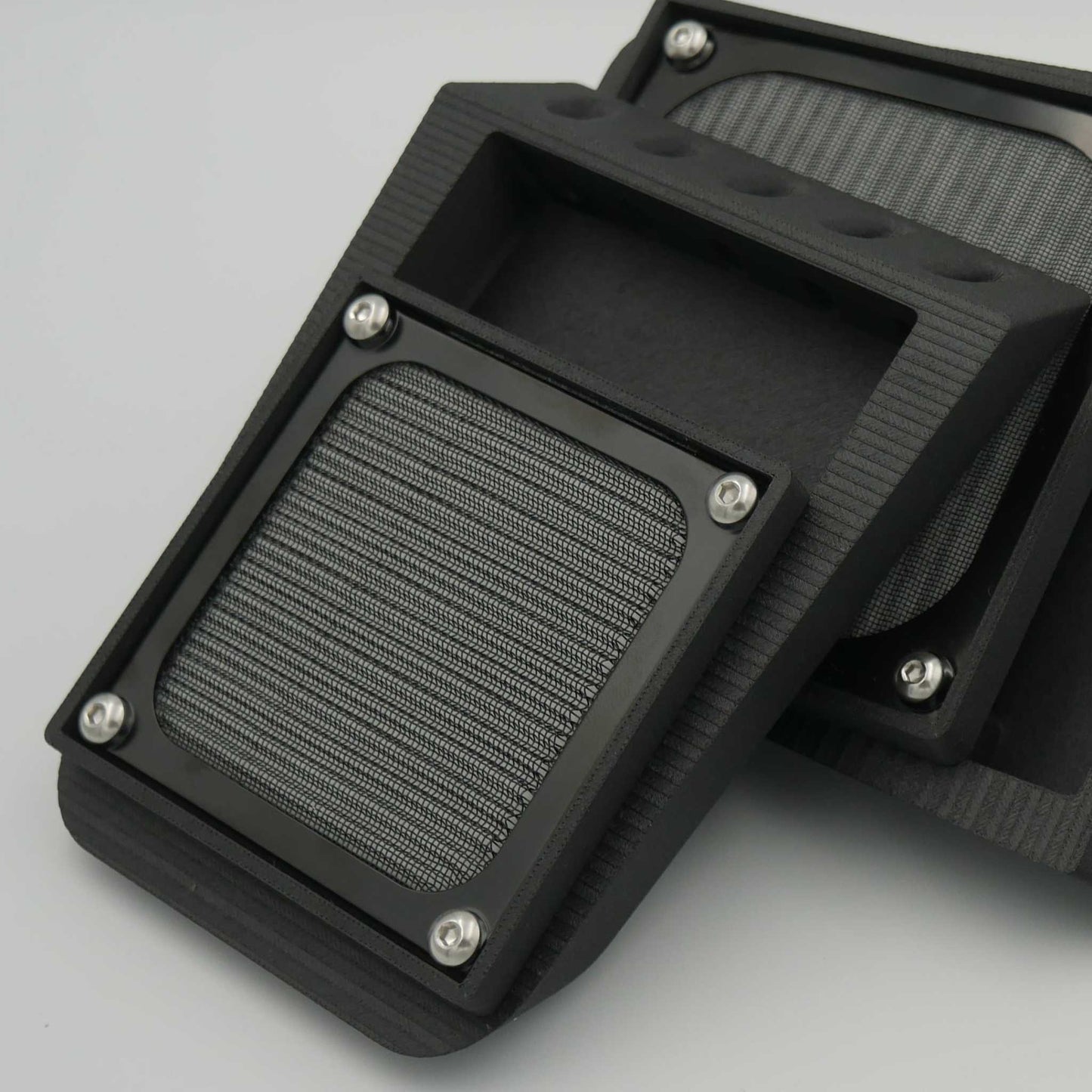

• Filter and screen are removable from inside the canopy for cleaning or replacement

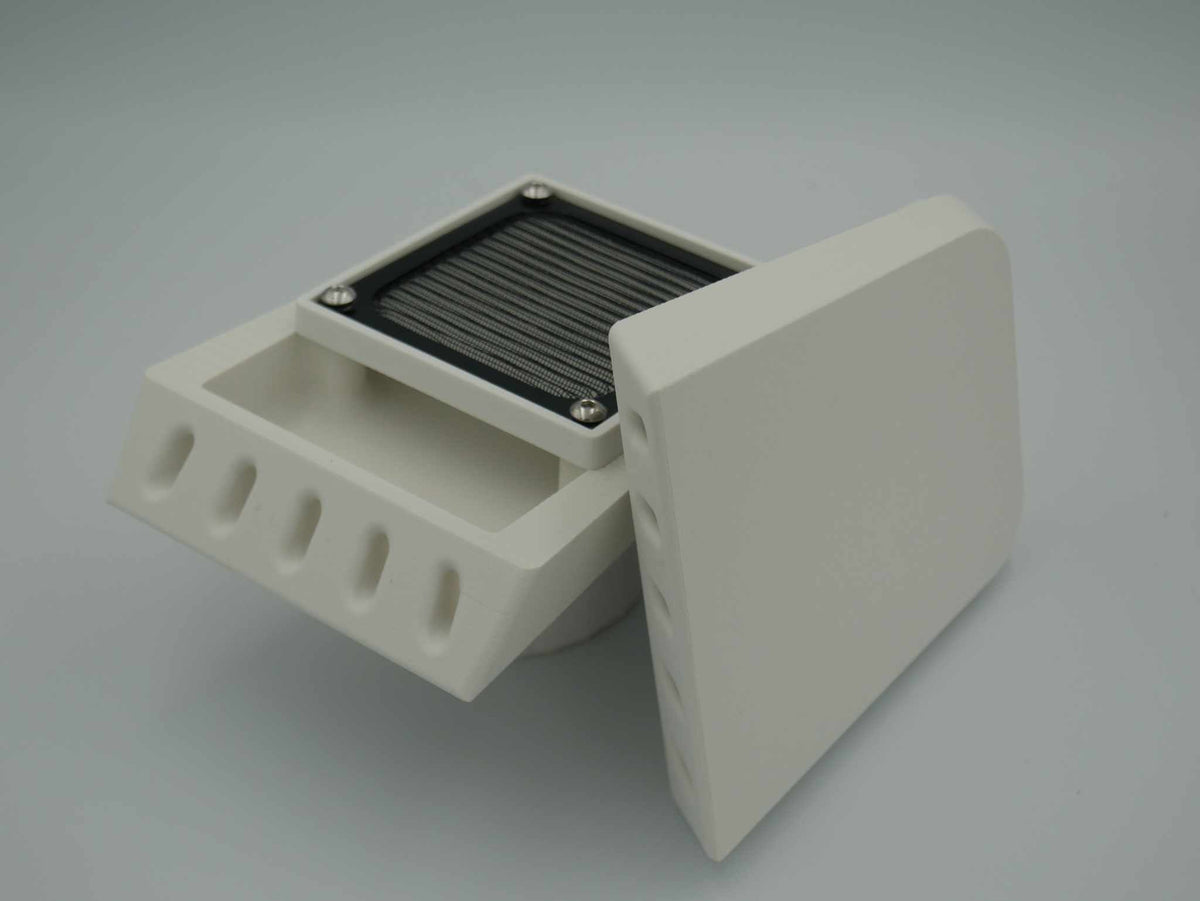

• Choice of colour — black or white
• A single 76 mm round cutout — a standard hole saw size
• Australian made, with free postage Australia-wide

How it works

Warm air rises and collects at the top of a closed canopy. The Slanted Mini gives it a way out: air passes through the filter and screen and exits through the angled face, while the filter keeps dust and insects from tracking back in. The slanted profile sheds water off the face rather than letting it pool against the opening. Because it is passive, airflow depends on having an intake elsewhere in the canopy.

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black or White

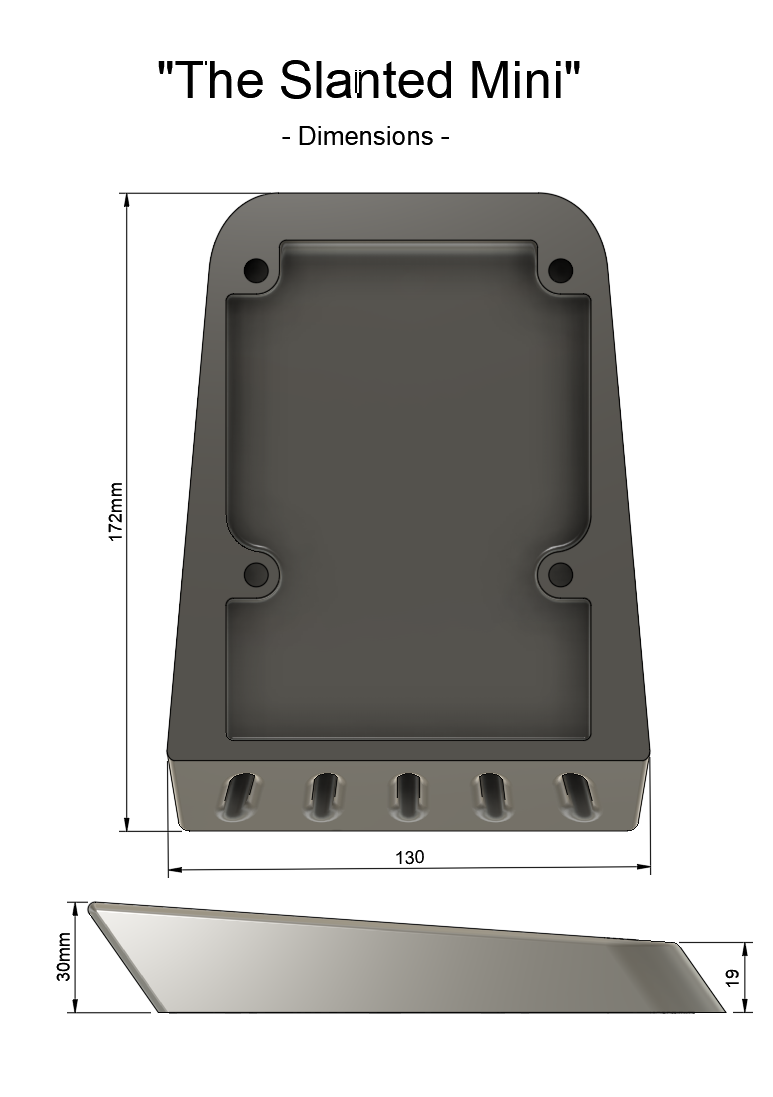

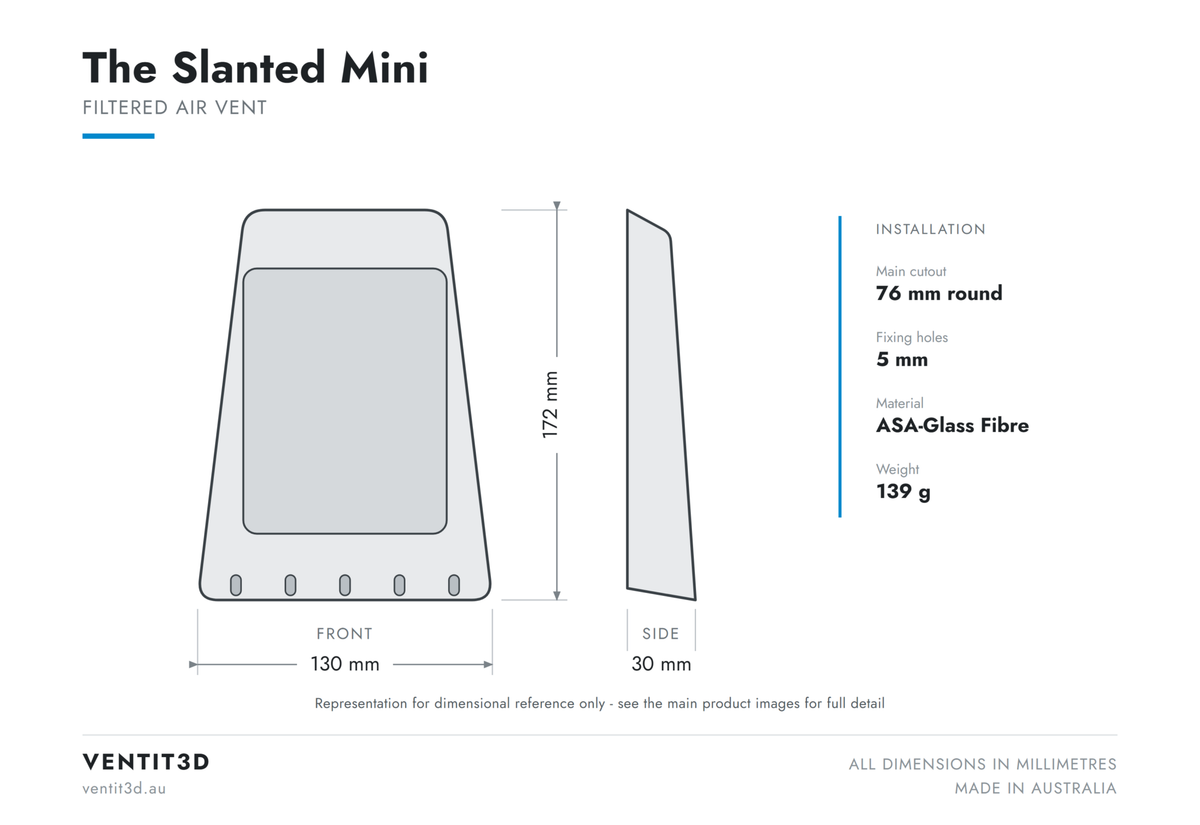

• External dimensions: 172 x 130 x 30 mm (maximum dimensions — see the drawing below)
• Main cutout: 76 mm diameter, round
• Fixing holes: 5 mm
• Weight: 139 g, including filter and screen
• Fixings: 4 x stainless steel M5 bolts
• Housing version: v3 filter and screen housing
• Type: passive exhaust vent, rear mount

What's included

• 1 x air vent for rear mounting on a canopy or structure
• 1 x screen
• 1 x filter

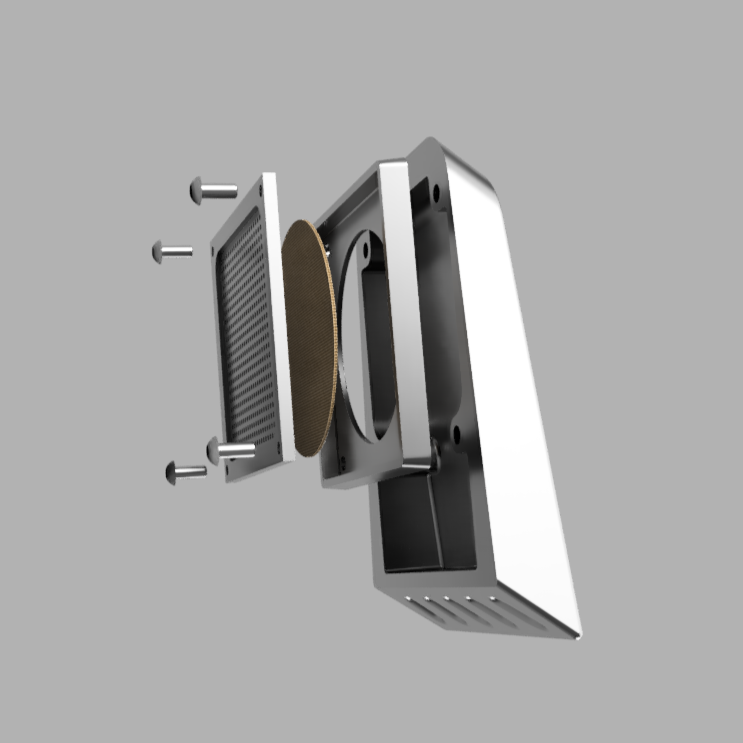

• 1 x filter and screen housing (v3)
• 4 x stainless steel M5 bolts
• 1 x template for hole marking
• Instructions

Fitting

A hole-marking template is supplied, so the 76 mm round cutout and the 5 mm bolt holes can be marked accurately before you cut. A standard 76 mm hole saw suits the main opening. Printed instructions are included in the box.

Often bought with

• The Original — side-mount intake pair to complete the cross-flow
• The Slanted Maxi — the next size up in the same angular style
• The Mini — same size, flat profile

Important to note

Any opening cut into a canopy has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

How does the Slanted Mini - Filtered Air Vent improve airflow in my vehicle or structure?

The Slanted Mini - Filtered Air Vent facilitates better airflow by allowing hot air to be passively circulated out of your vehicle or structure, especially when combined with other vents, helping to keep the interior cooler and breathable.

What is the Slanted Mini - Filtered Air Vent made from, and how does it hold up outdoors?

The Slanted Mini is made from ASA-Glass Fibre. ASA is highly UV-resistant, which makes it well suited to permanent outdoor mounting, and the glass fibre reinforcement adds stiffness and heat resistance.

What colours does the Slanted Mini come in?

The Slanted Mini is available in black or white ASA-Glass Fibre.

How does the size of the Slanted Mini filtered air vent fit my canopy or structure?

The vent measures a maximum of 172x130x30mm, making it a sleek and compact option for vertical mounting on the rear of canopies or structures, ensuring a good fit without protruding excessively.

What components are included with the purchase of the filtered air vent?

Your purchase includes one filtered air vent, a screen, a filter, a filter and screen housing (v3), four stainless steel M5 bolts for installation, a template for hole marking, and instructions for easy setup.

Can I install the Slanted Mini filtered air vent myself?

Yes, the product comes with detailed instructions, a template for hole marking, and all necessary hardware, making it suitable for DIY installation on your canopy or structure.

Is shipping free for the Slanted Mini filtered air vent within Australia?

Yes, we offer free postage Australia-wide, making it convenient and cost-effective to purchase the filtered air vent for your vehicle or structure.
