Single 120mm 12V Powered Ute Canopy Vent

The Single 120mm 12V Powered Canopy Vent is a purpose-built, filtered powered exhaust vent for the rear of a 4x4 canopy — and just as at home in a caravan, camper trailer or van. Not a fan bolted onto a hole — a two-part housing, designed as one assembly, that pulls hot stagnant air out while keeping dust and water from coming back in.

It is the vent most Ventit3D customers start with, and the one most builds only ever need.

This is an exhaust vent. It works best with an intake elsewhere, so air has somewhere to come from — see The Original. A powered exhaust drawing against a passive intake gives you a genuine push-pull cross-flow rather than just stirring the air around.

Features

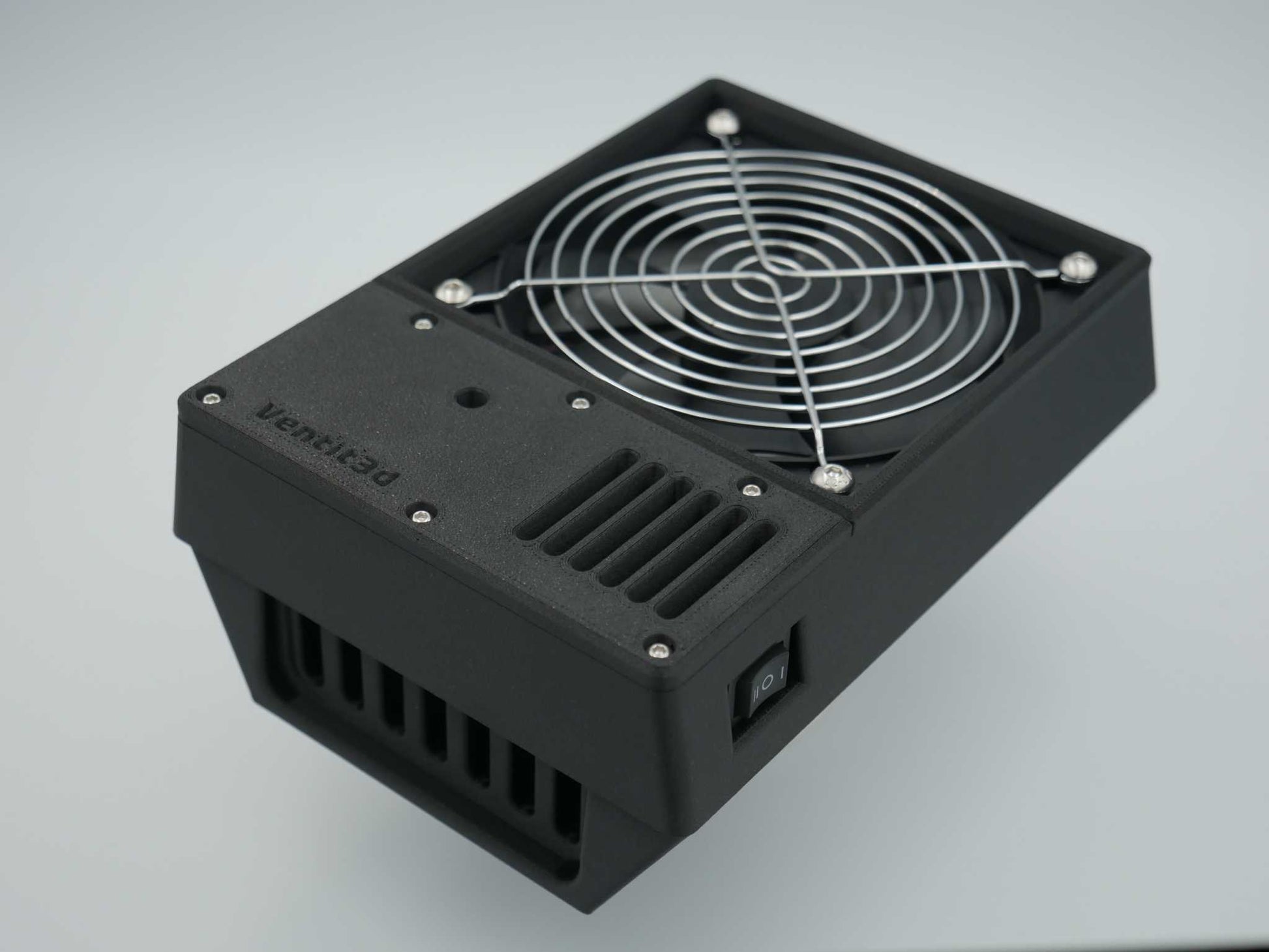

• Three-way control — always on, temperature activated with an adjustable thermostat, or fully off to conserve battery

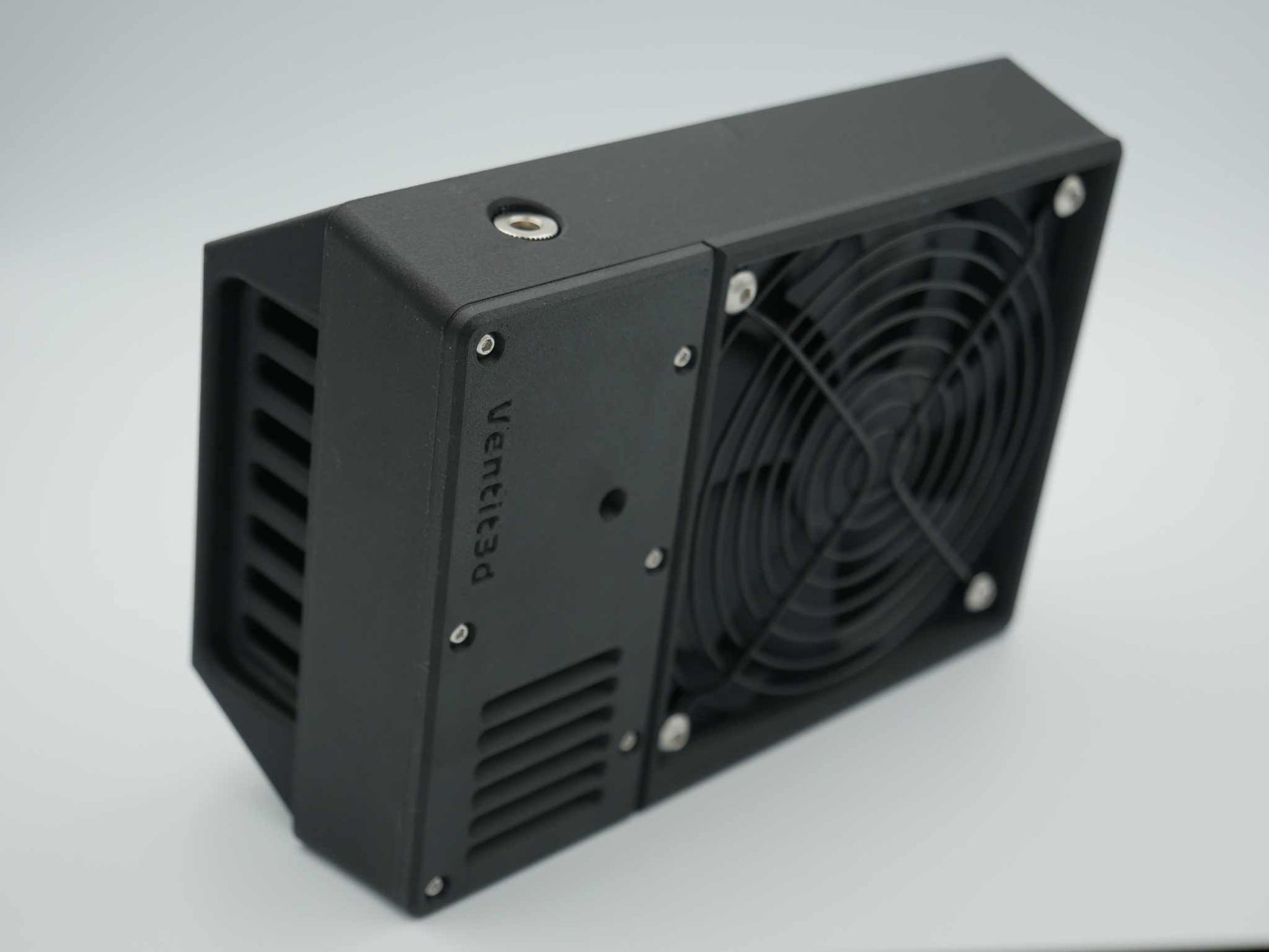

• Plug and play — built-in 5.5 x 2.1 mm DC power jack, no wiring loom to make up
• Low profile — the outer housing tapers to 27 mm at its thinnest, so it won't snag on branches
• Downward-facing louvres on the outer housing, so rain and dust are not driven straight into the opening
• Light but tough — just 528 g for both housings, with the strength coming from glass fibre reinforced ASA rather than bulk
• Tough, UV-resistant ASA-Glass Fibre — heavily glass-reinforced, UV stable, and heat resistant enough not to warp inside a closed canopy in summer

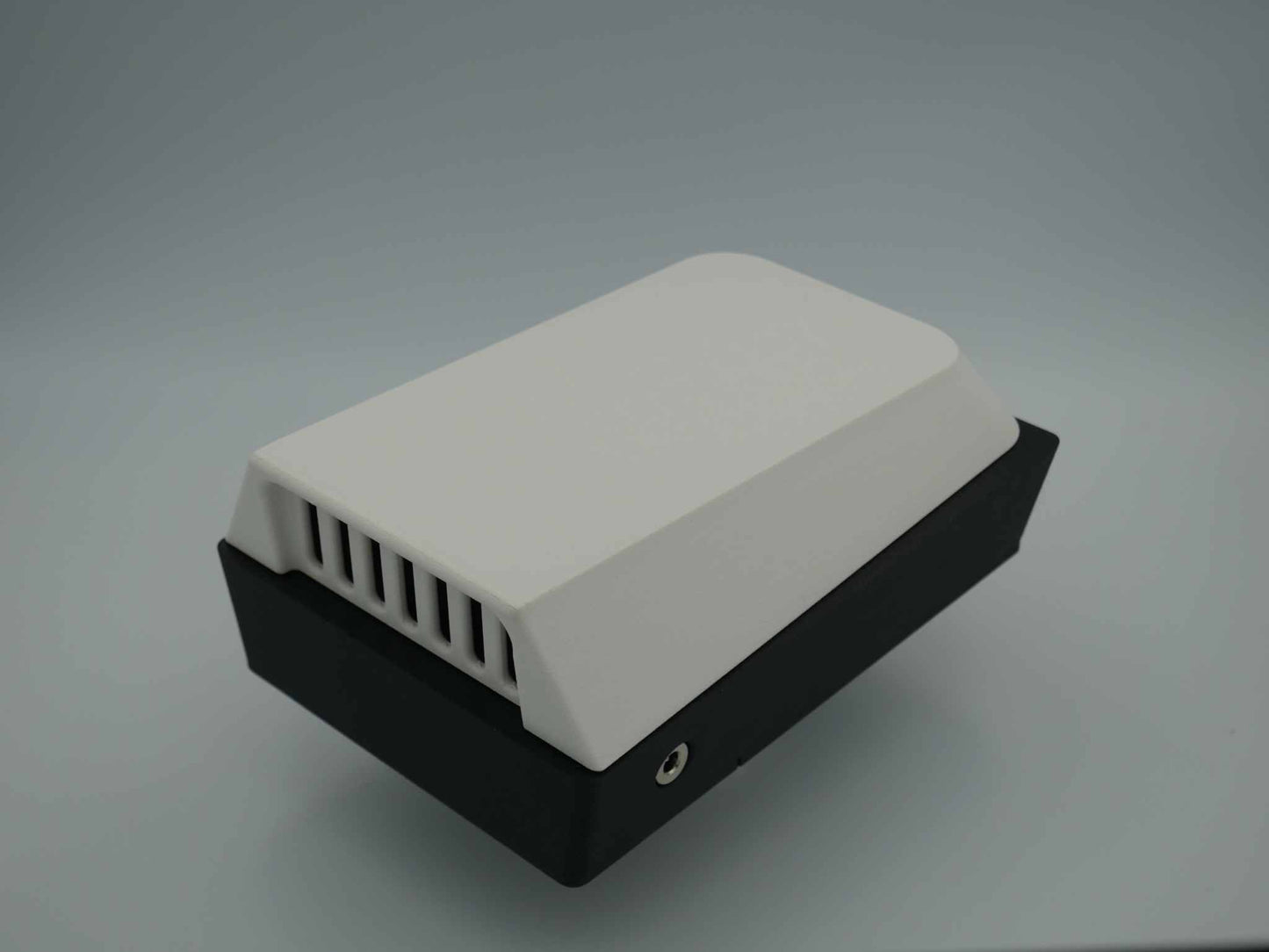

• Choice of colour — black or white
• A single 105–108 mm round cutout — both are standard hole saw sizes
• Suits 4x4 canopies, caravans, camper trailers, vans, trailers and fixed structures
• Australian made, with free postage Australia-wide

How it works

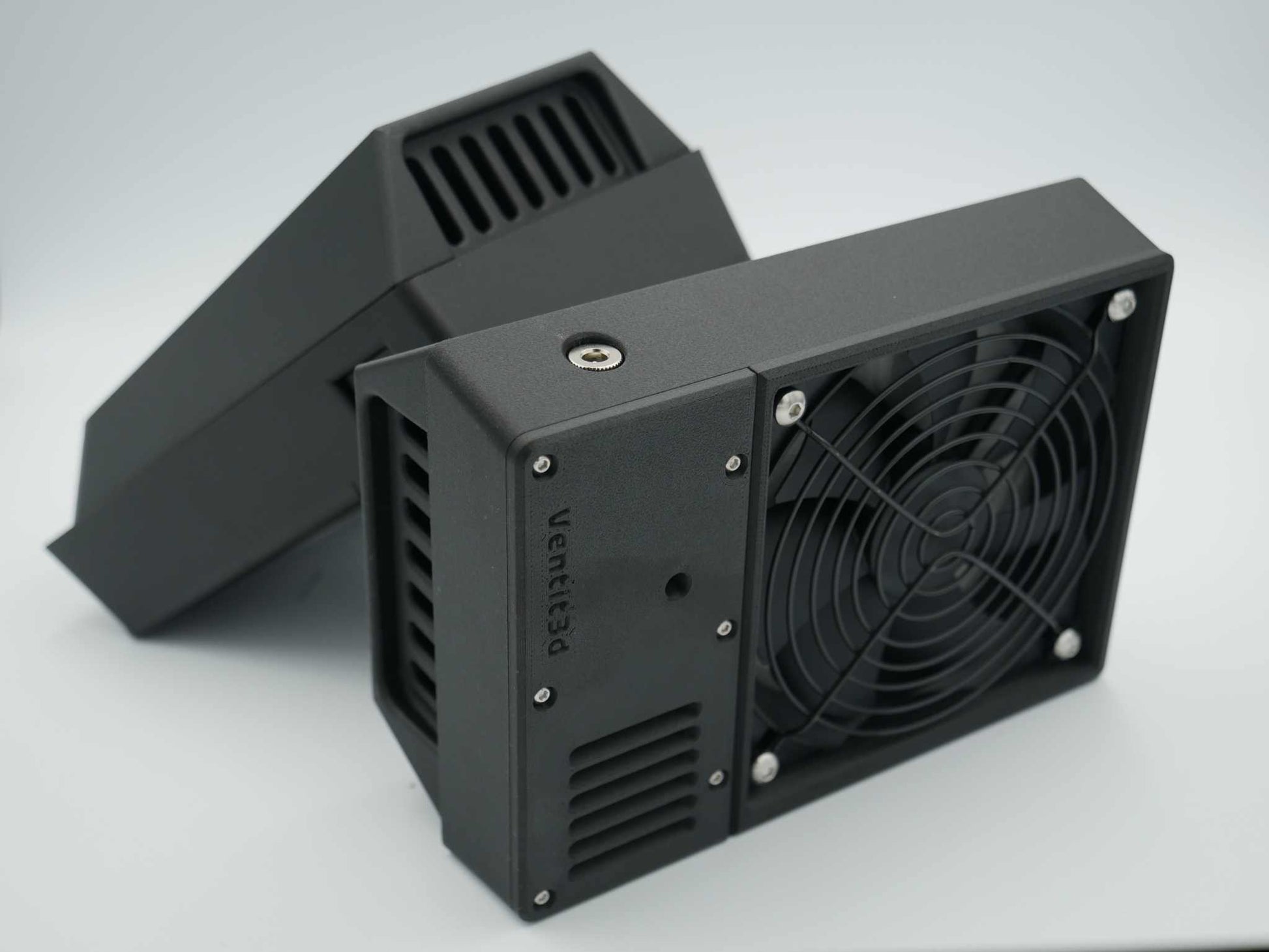

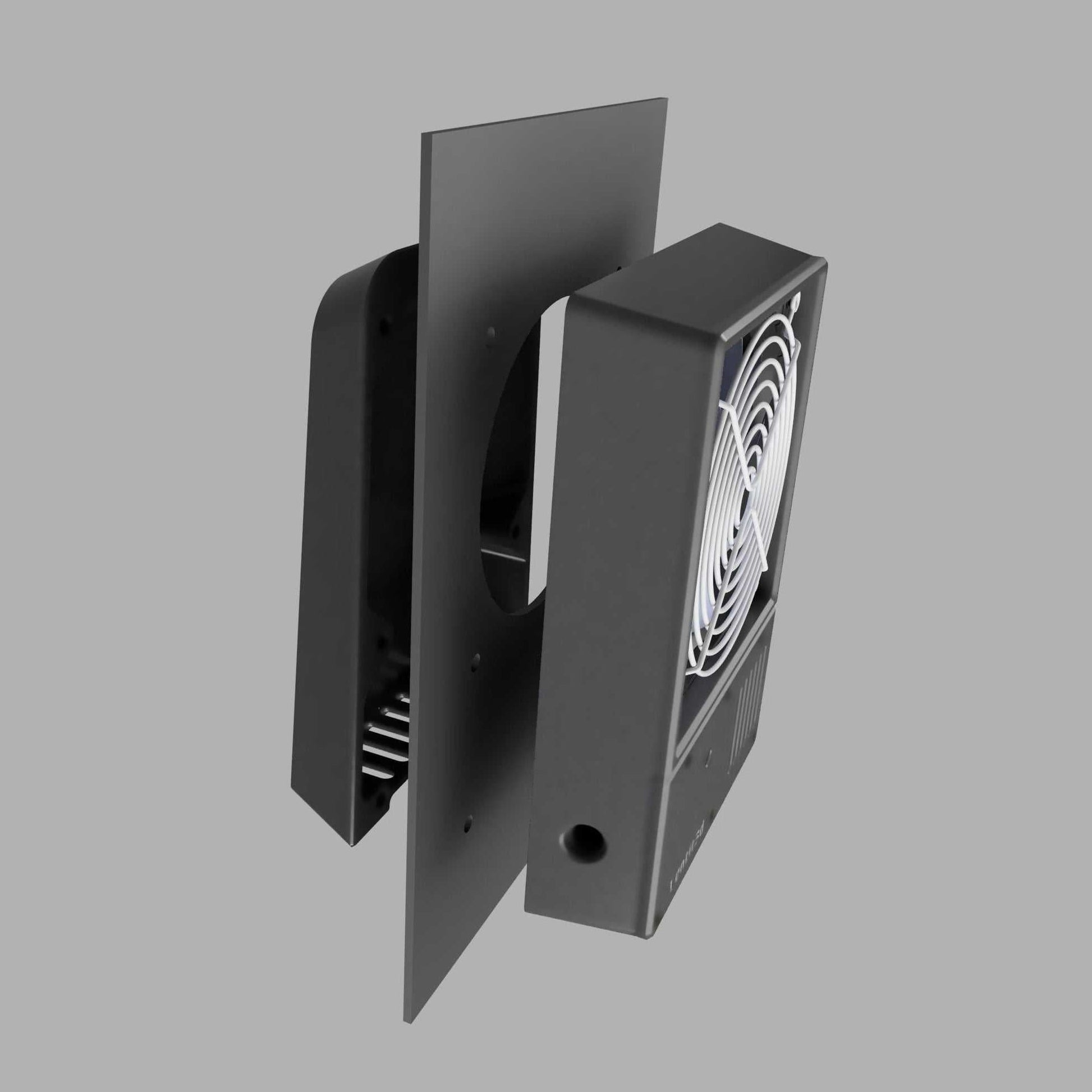

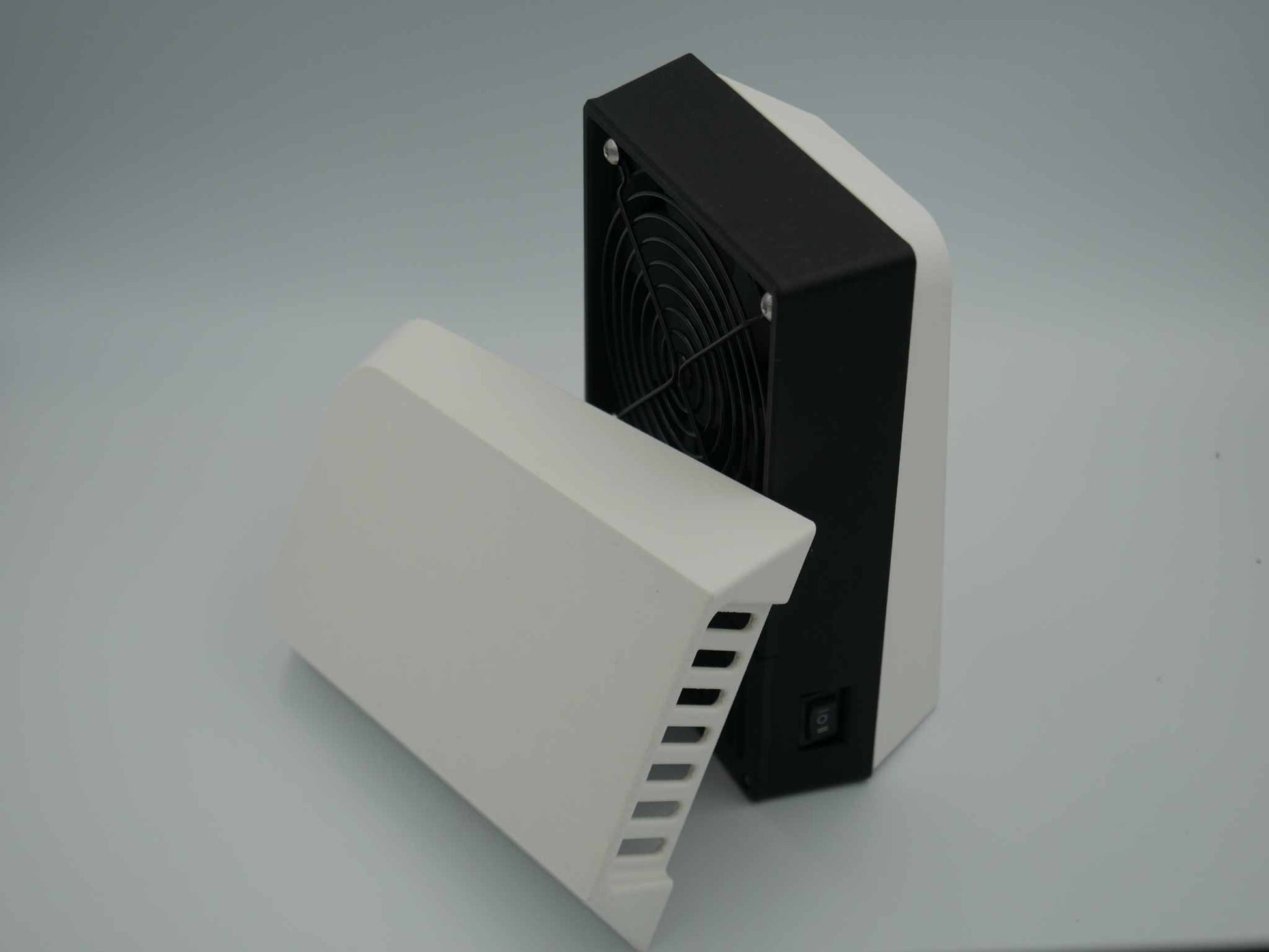

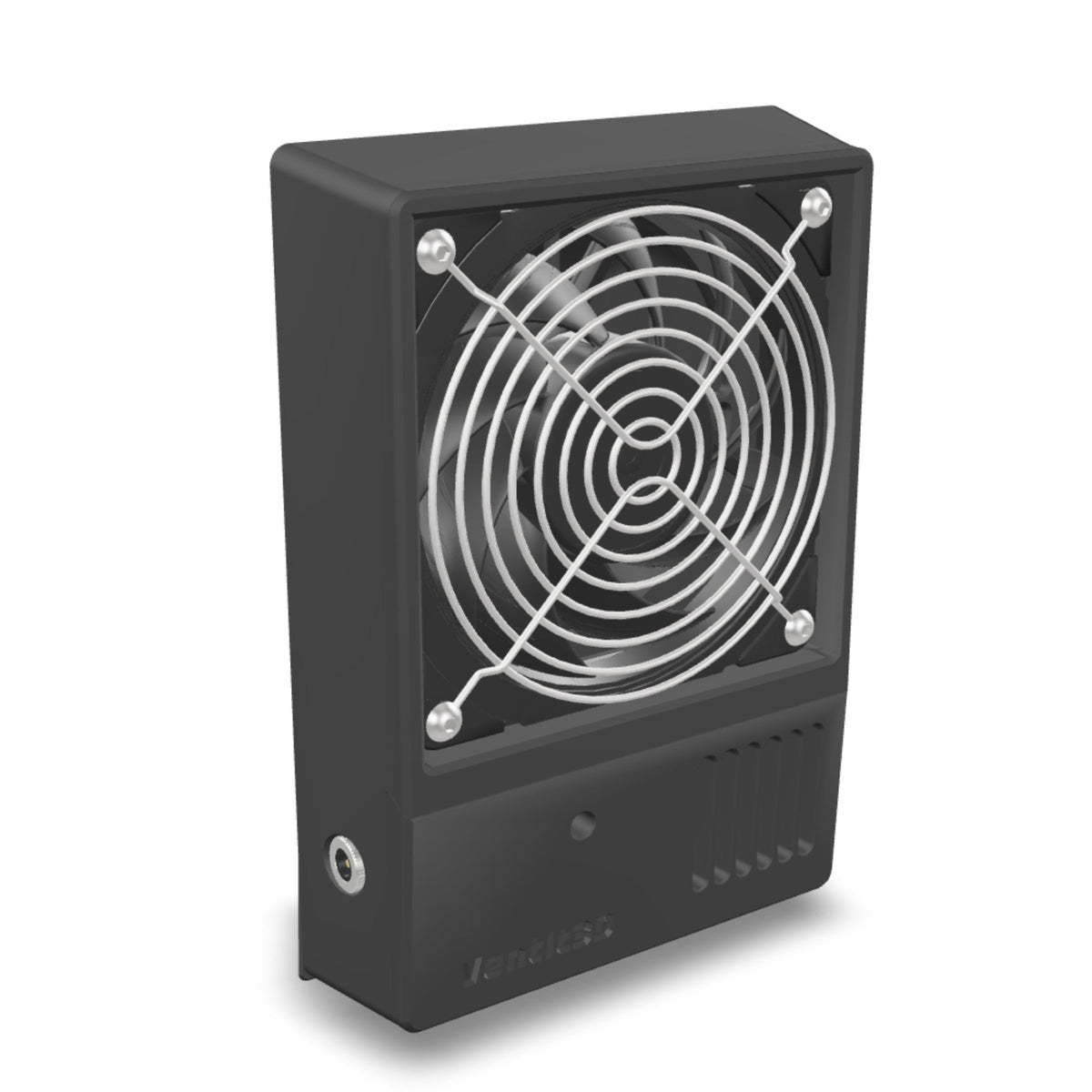

The assembly is in two parts. The fan housing mounts inside and carries the 120 mm fan, the filtration and the control electronics. The outer housing sits on the outside of the panel and stays flush and low-profile.

The fan draws air out, through the filter, and pushes it out through the outer housing. Because the outer housing's louvres face downward, water running down the panel and dust thrown up off the road are far less likely to be driven into the opening than they would be with forward or side-facing holes.

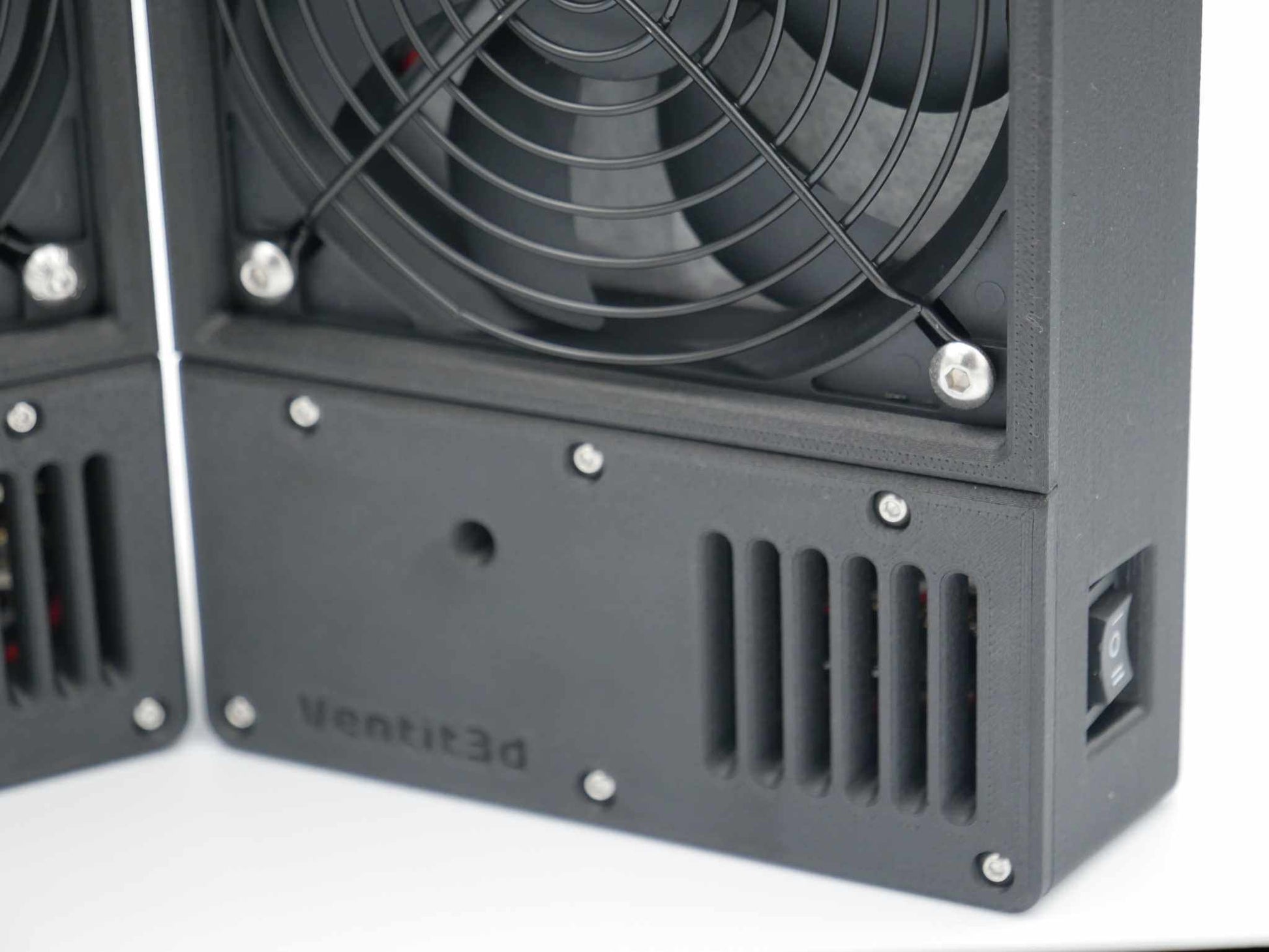

Set the switch to always on for constant extraction, or to temperature activated and the adjustable thermostat will cycle the fan as things heat and cool. Switch it off entirely when you are parked up and want to protect the battery.

Who it's for

Any closed box sitting in the Australian sun becomes an oven, and everything inside it suffers. This vent is worth fitting if you are:

• Running a fridge — a fridge working against trapped heat draws more current and cycles harder
• Fitting out a caravan, camper trailer or van — storage tunnels, boots and front boxes trap heat and stale air exactly the way a canopy does, and the low 40 mm profile suits a van wall as well as a canopy
• Carrying tools, tooling and consumables that don't appreciate being cooked day after day
• Storing camping and recovery gear long-term, where trapped warm air and moisture are the problem rather than heat alone
• Getting into the canopy at the end of a hot day and wanting it liveable rather than stifling

Single or Dual?

The Single suits most ute canopies and caravan storage areas, and is the right starting point for a standard build. Step up to the Dual 120mm if you have a long or high canopy, a larger van or caravan, a particularly heat-loaded setup, or you want variable fan speed rather than simple on-off cycling. The Dual needs two cutouts instead of one.

Specifications

Feature	Specification
Brand	Ventit3D
Product type	Filtered powered exhaust vent
Material	ASA-Glass Fibre — Black or White
Fan size	120 mm
Operating voltage	12V DC
Power connection	5.5 x 2.1 mm DC power jack (right-angle)
Recommended fuse	5 A
Control	Three-way — always on / temperature activated (adjustable) / off

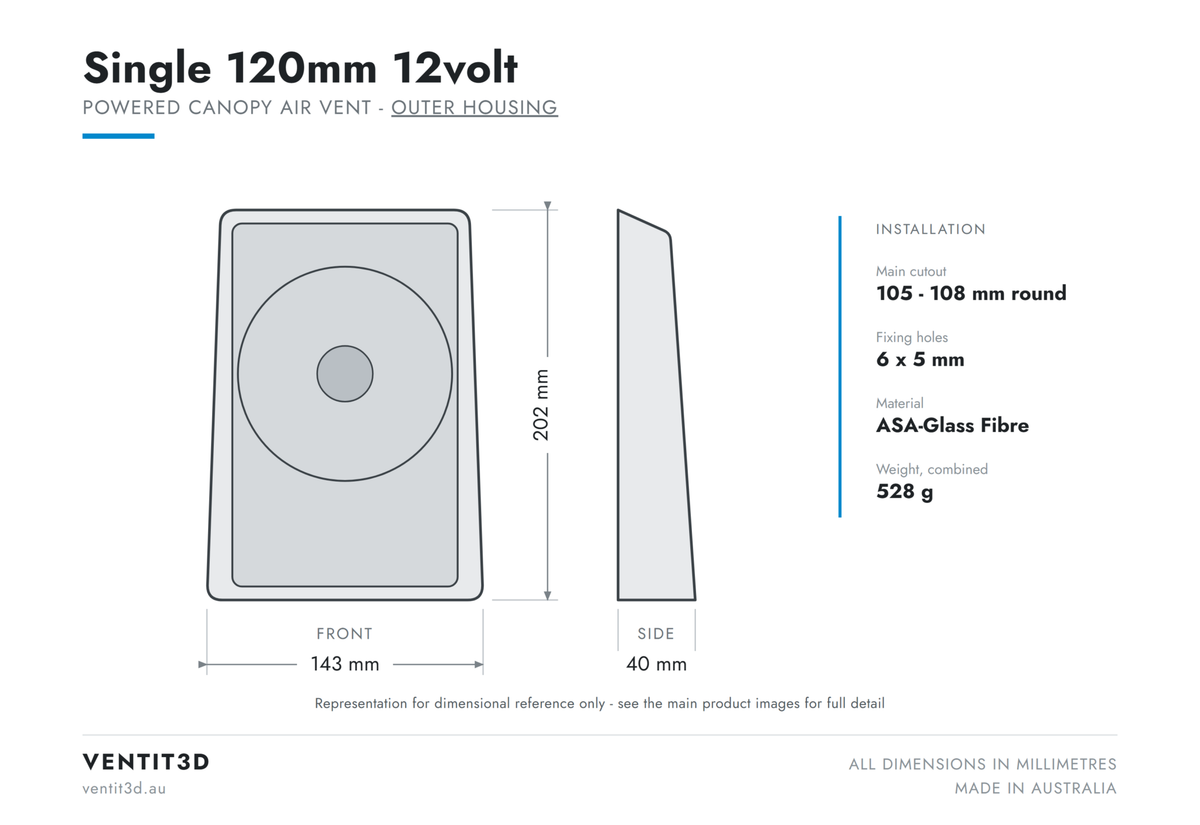

Outer housing	202 x 143 mm, tapering 40 mm to 27 mm deep

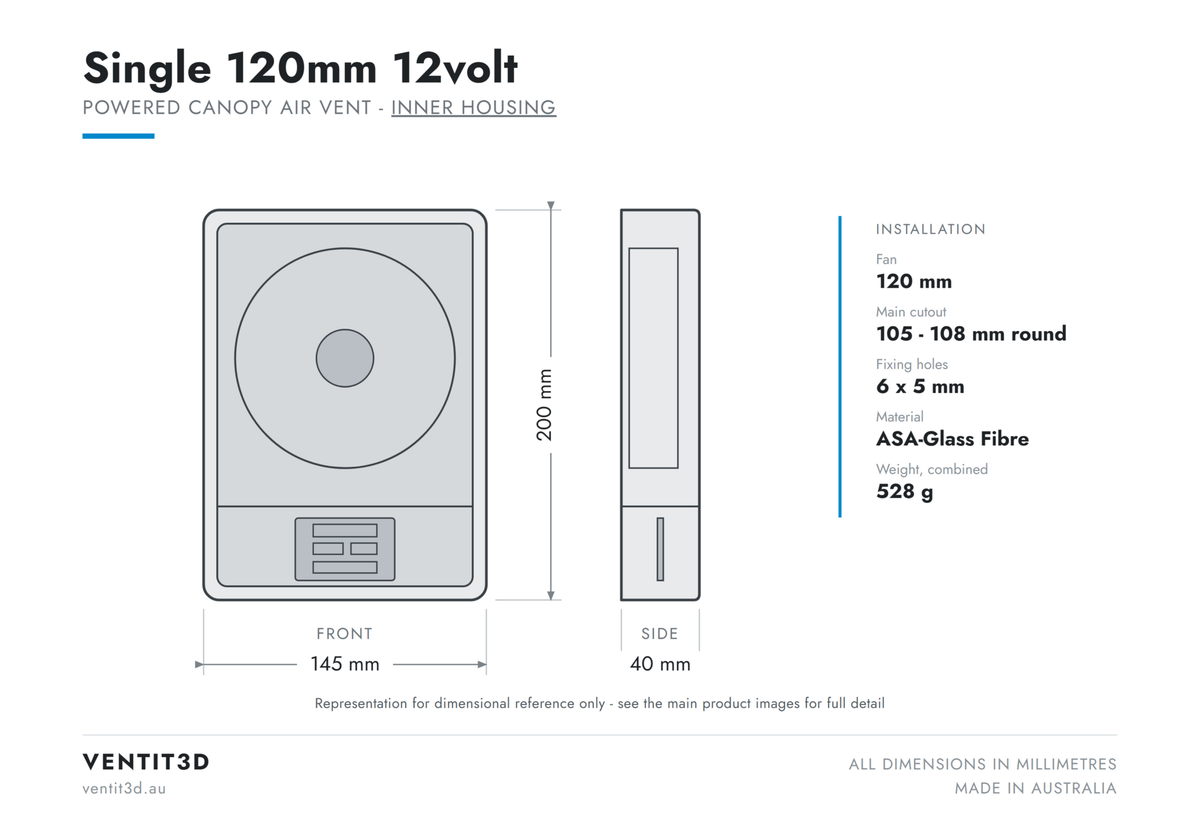

Inner fan housing	200 x 145 mm
Main cutout	105–108 mm diameter, round
Fixing holes	6 x 5 mm
Weight	528 g, inner and outer housings combined
Louvre orientation	Downward facing
Suits	4x4 canopies, caravans, camper trailers, vans, trailers, structures
Primary use	Rear canopy exhaust

What's included

• 1 x Ventit3D Single 120mm 12V powered vent (inner fan housing and outer housing)
• 1 x right-angle DC power connector
• 1 x set of stainless steel mounting bolts
• 1 x installation and temperature adjustment guide

Fitting

One 105–108 mm round cutout and six 5 mm bolt holes, so either a 105 mm or a 108 mm hole saw will do. Mount the fan housing inside and the outer housing outside, with the louvres facing downward — fitting the outer housing the wrong way up will let water in.

Power is plug and play through the DC jack. As with every electrical component in a canopy or caravan, fuse it — we recommend a 5 A fuse. A full installation and temperature adjustment guide is included in the box.

Often bought with

• The Original — side-mount intake pair, for a true push-pull cross-flow
• Dual 120mm 12volt — twin-fan version with variable speed, for bigger canopies and caravans
• Dual Cable Inlet — weatherproof cable pass-through for the power feed

Important to note

Any opening cut into a canopy, caravan or structure has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What are the main features of the Single 120mm 12volt Canopy Air Vent?

The Single 120mm 12volt Canopy Air Vent is a purpose-built exhaust fan designed for rear canopy ventilation, featuring a built-in 3-way switch for always-on, temperature-activated, or off modes. It includes a stainless steel mounting system, a standard 5.5x2.1mm DC power jack with a right-angle connector, and is easy to install with a sleek, low-profile design.

What materials is the 12volt Canopy Air Vent made from, and how durable are they?

It is made from ASA-Glass Fibre, a high-performance composite known for its UV resistance, impact resistance, and ability to withstand harsh outdoor conditions, ensuring long-lasting durability.

How do I install and set up the Single 120mm 12volt Canopy Air Vent?

The vent is straightforward to install, with a secure mounting inside your canopy and a standard DC power connection. It comes with stainless steel bolts, a comprehensive installation guide, and an adjustable thermostat to control when the fan activates, ensuring a simple setup process.

Do I need a fuse?

Yes, all electrical components in a 4x4 canopy should be fused. Even though the Single 120mm powered canopy air vent draws very little power, it is no exception. We recommend using a 5-amp fuse.

What is the primary function of the 12volt Canopy Air Vent?

The 12volt Canopy Air Vent is designed to extract hot, stagnant air from your vehicle's canopy, helping to maintain a cooler interior and protect your gear.

How does the temperature and airflow control feature work on the canopy vent?

The vent includes a built-in 3-way switch allowing you to choose always on, temperature-activated, or off settings, giving you control over the ventilation based on your needs.

How easy is it to install the 12volt Canopy Air Vent?

Installation is straightforward with a secure mounting inside your canopy and a plug-and-play power connection using the included 5.5x2.1mm DC power jack, requiring minimal tools and effort.
