The Original – Filtered Ute Canopy Side Vents (Pair)

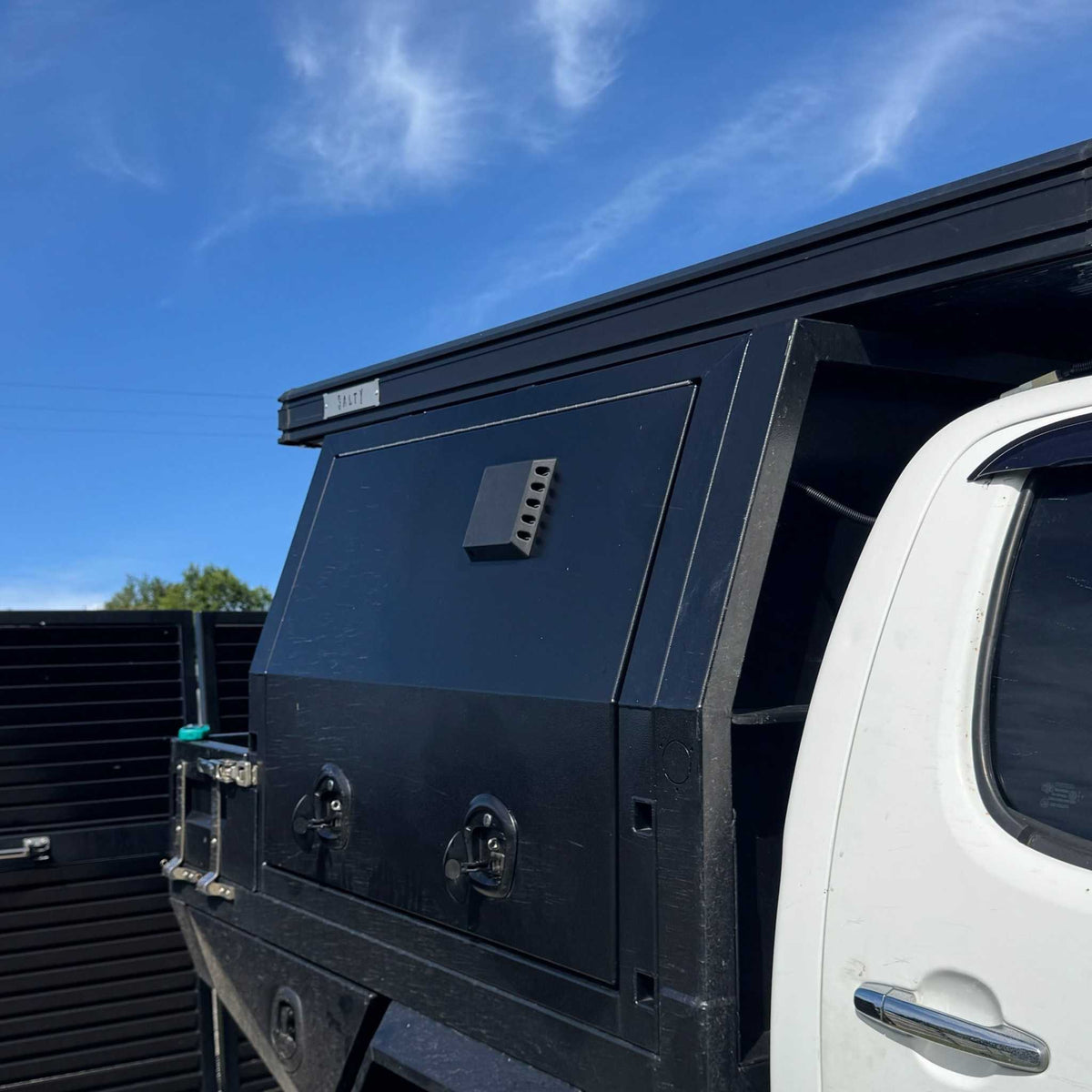

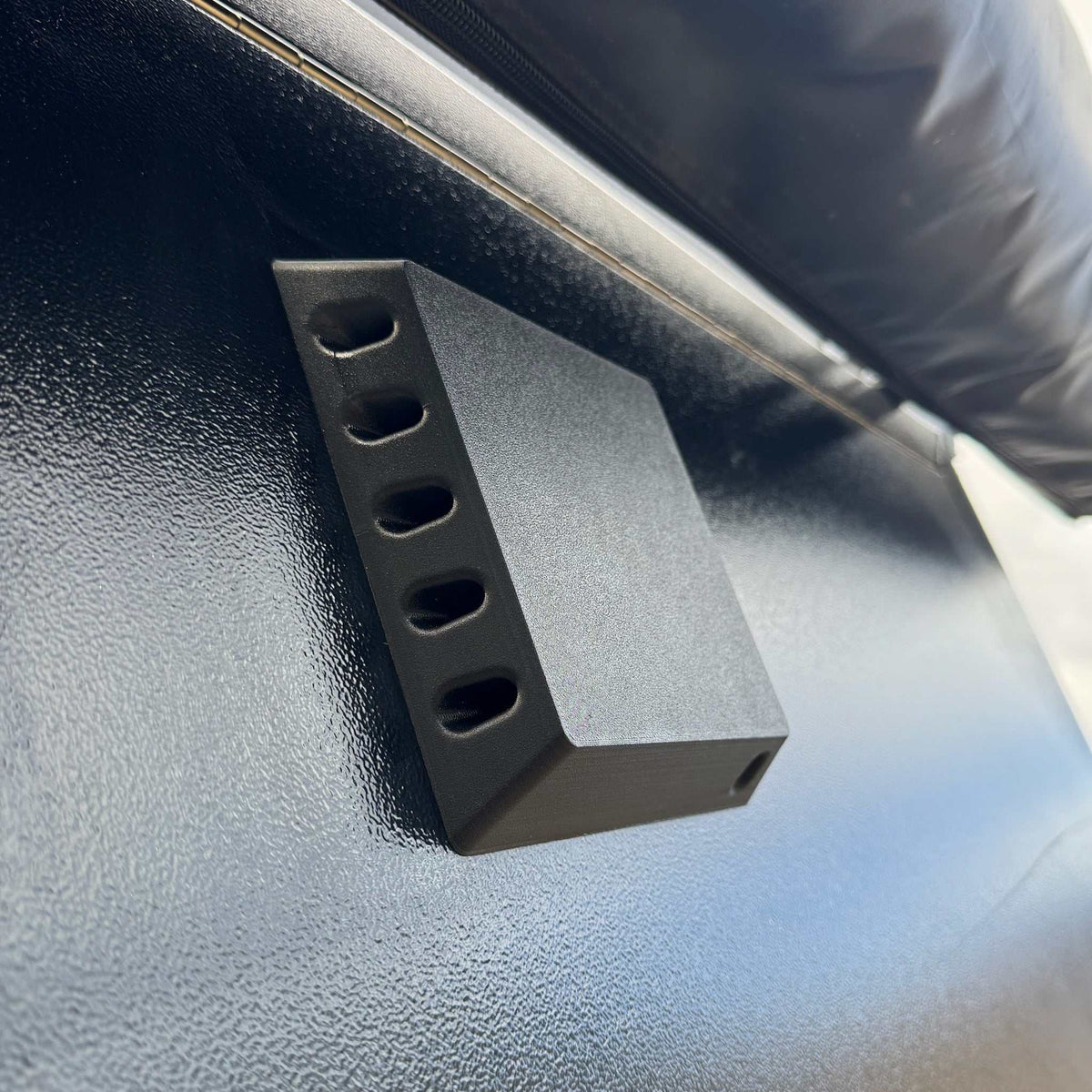

The Original is a directional 4x4 canopy air vent for the sides of a ute canopy, supplied as a matched driver's side and passenger's side pair. Angled oval intakes force air in as you drive while built-in drainage sheds water back out, so the canopy gets positive airflow on the move without taking on dust or rain.

The Original is an intake vent. For a full cross-flow it pairs with a rear exhaust — see The Mini or The Maxi.

What's new in Version 2.0

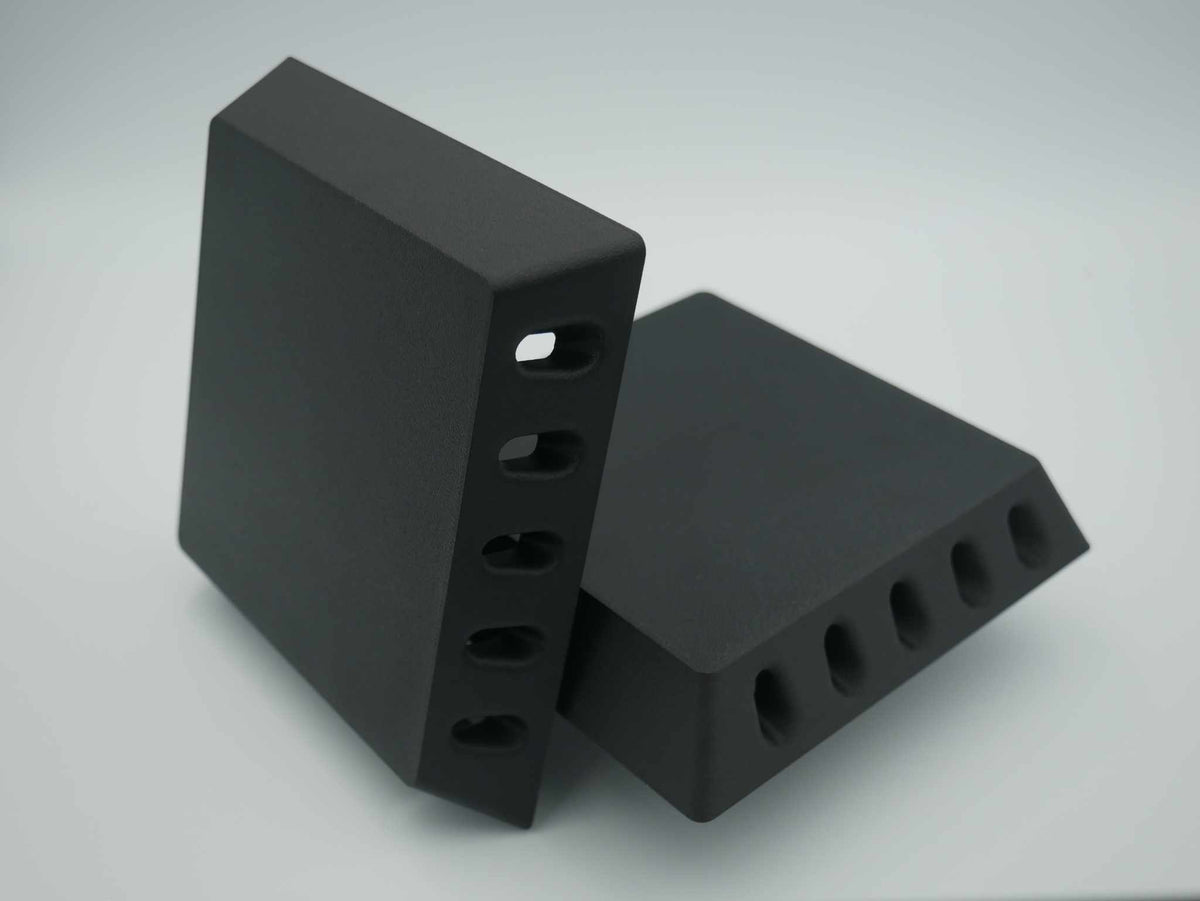

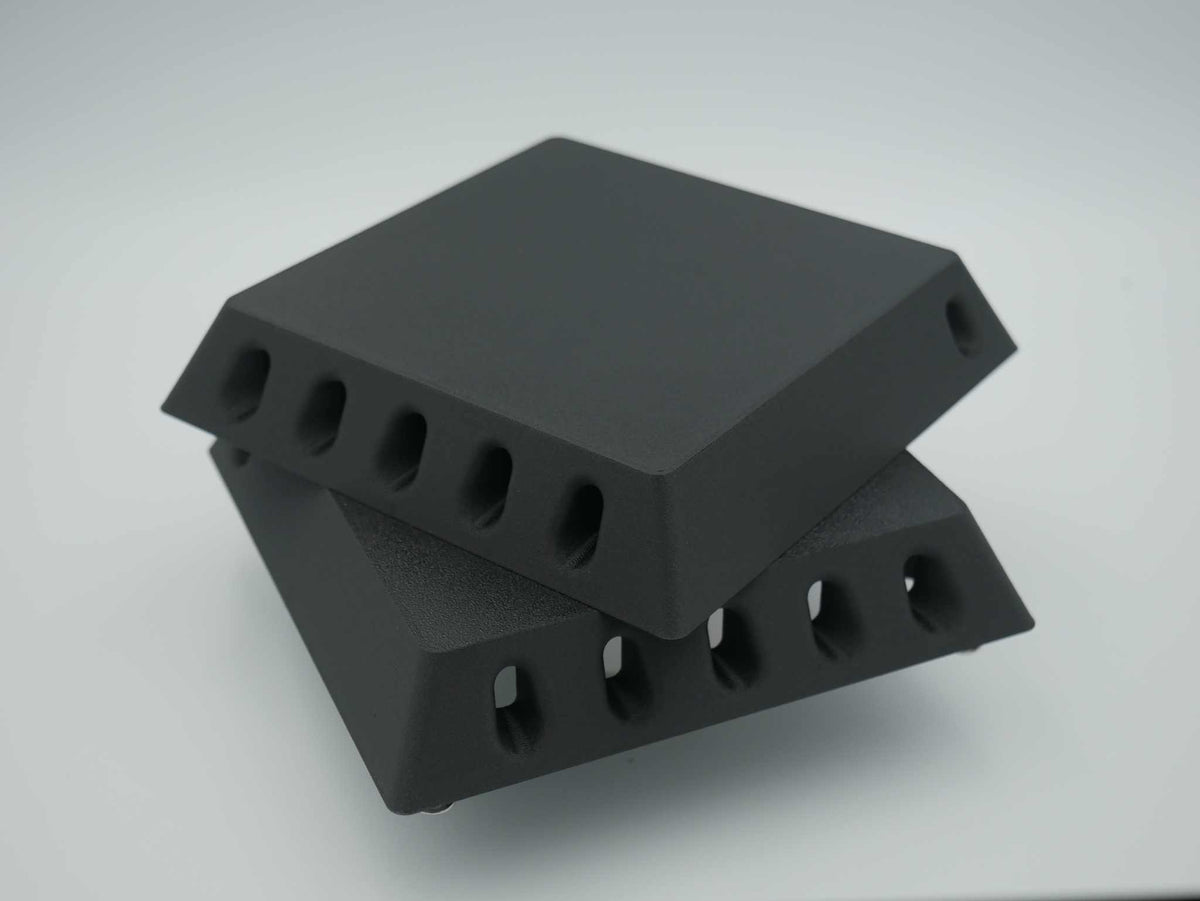

• Oval intake holes replace the previous round profile
• Intake holes are now set at fixed angles of 0°, 5°, 10°, 15° and 20°, where v1 was 0° throughout

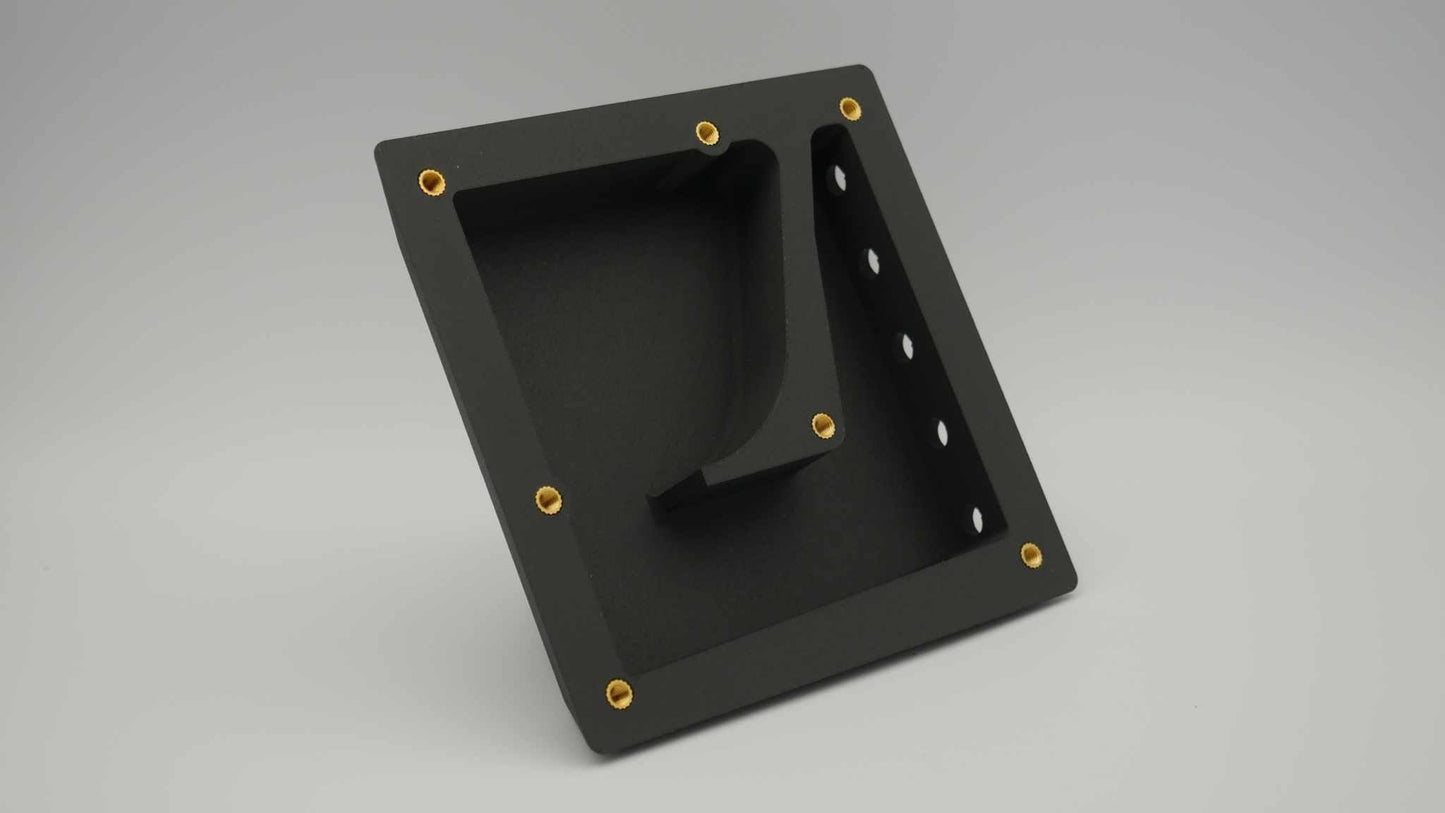

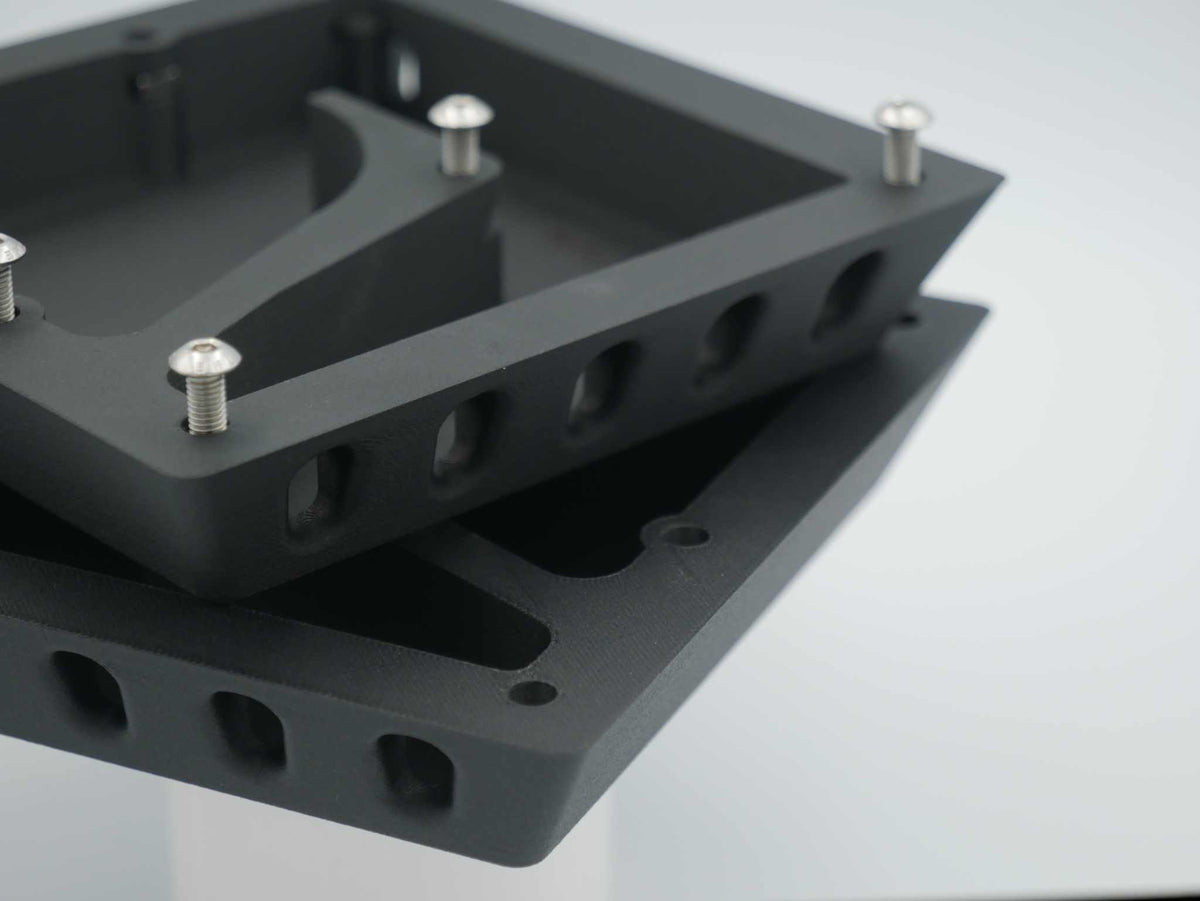

• Stainless steel M5 square nuts replace the previous heat inserts for a mount that won't strip

Same vent, just better.

Features

• Tough, lightweight, UV-resistant ASA-Glass Fibre built for the Australian sun
• Directional intakes drive air in while draining water out
• Light but tough — just 373 g for the pair, with the strength coming from glass fibre reinforced ASA rather than bulk

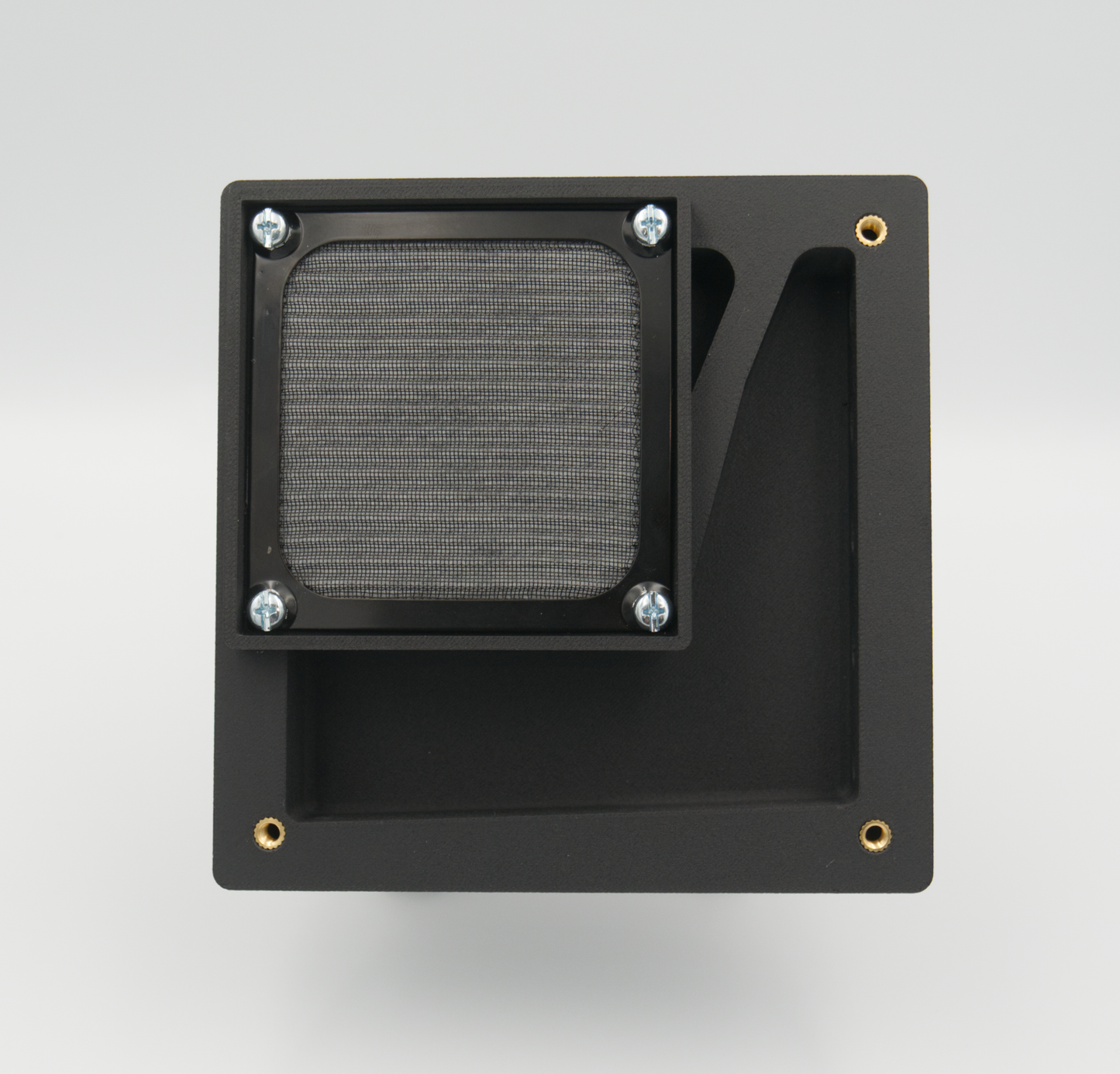

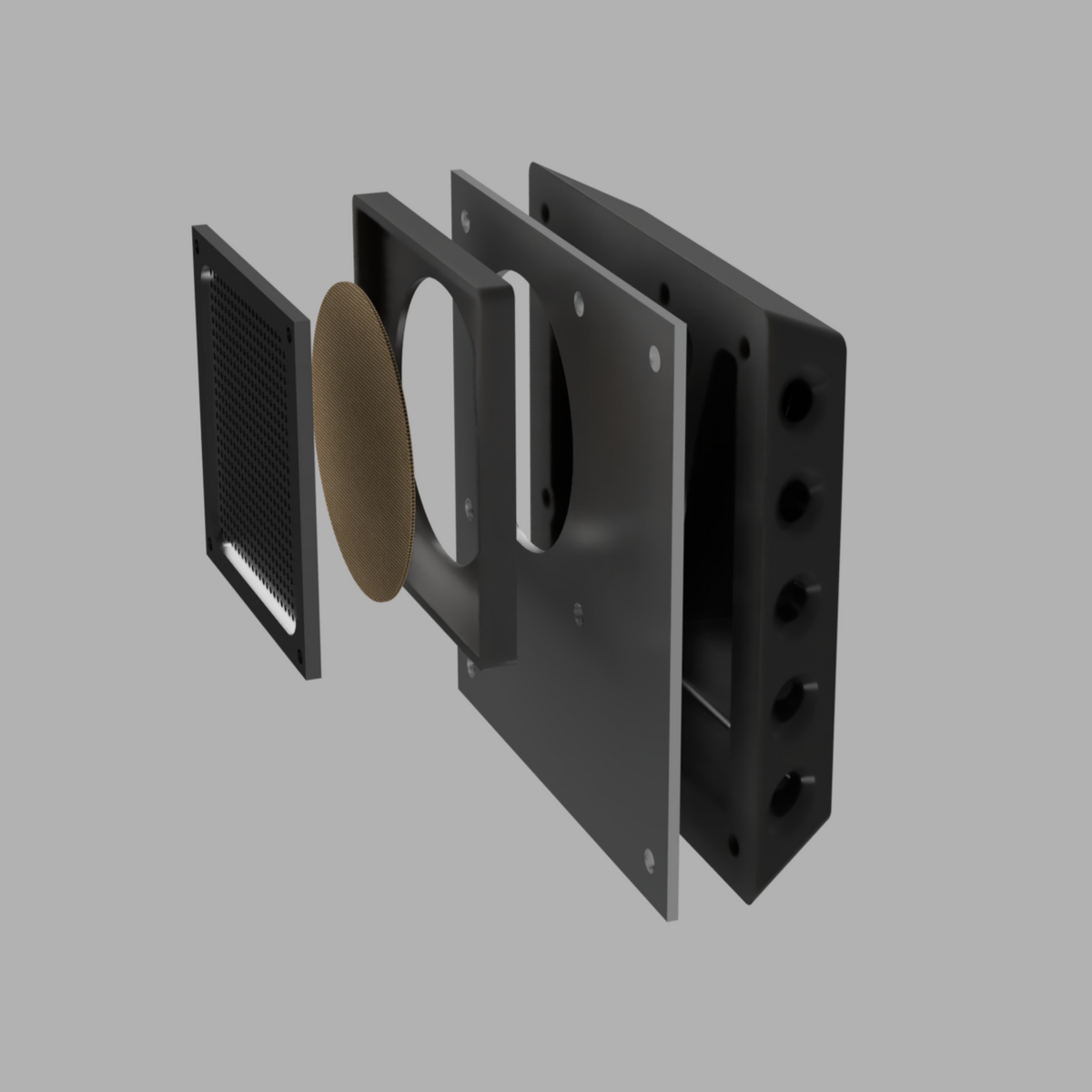

• Filter and screen are removable from inside the canopy for cleaning or replacement

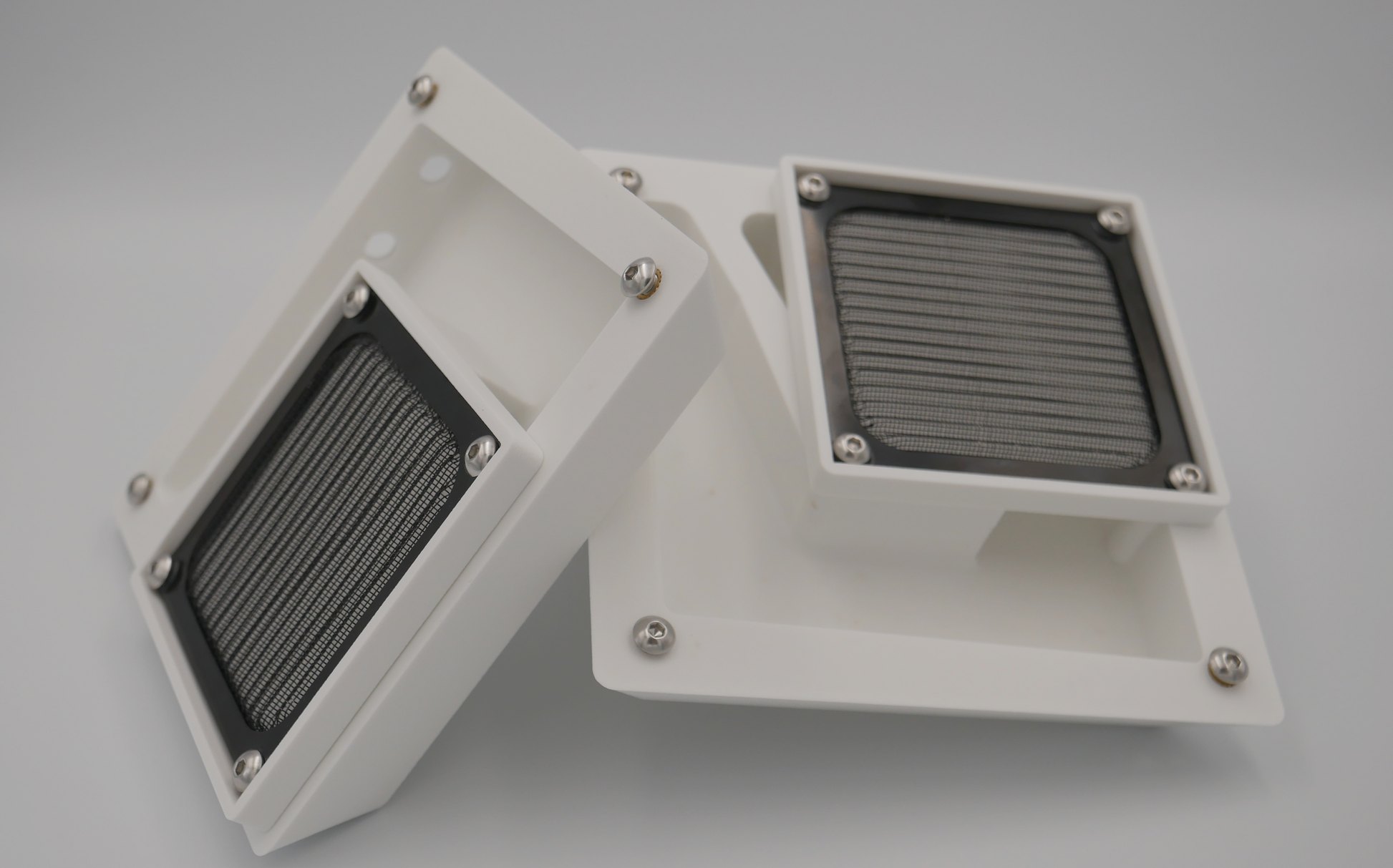

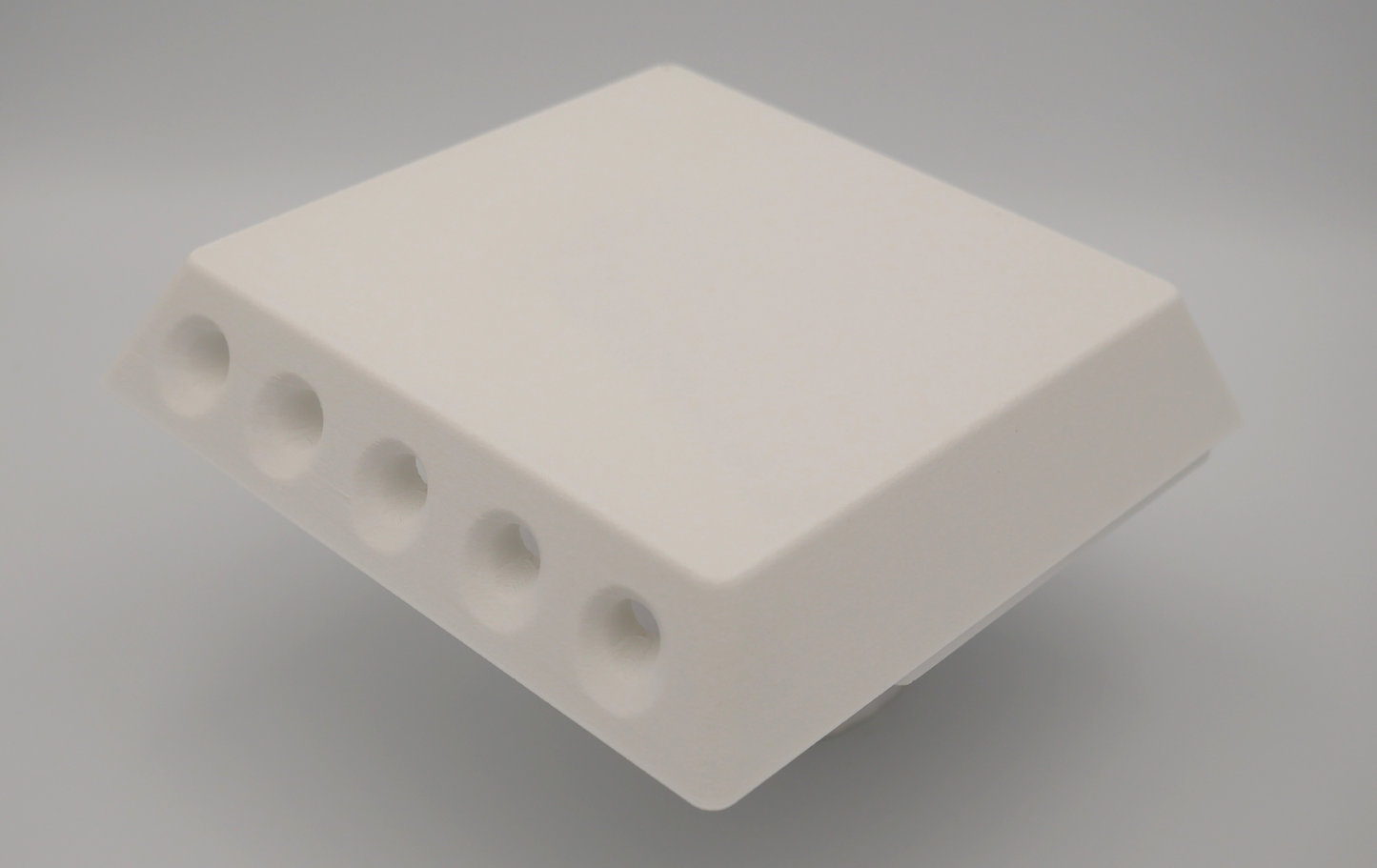

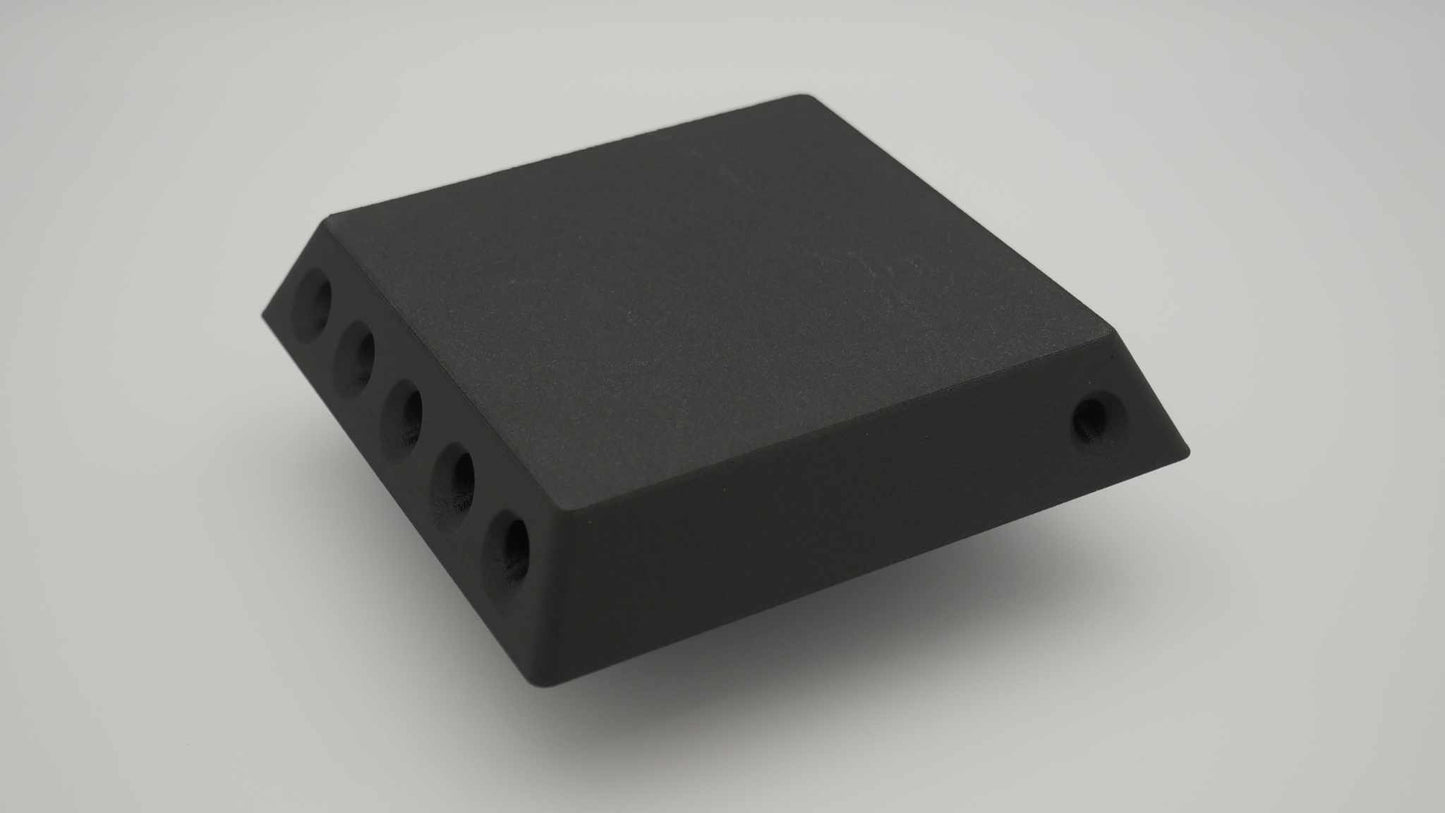

• Choice of colour — black or white
• A single 76 mm round cutout per vent — a standard hole saw size
• Australian made, with free postage Australia-wide

How it works

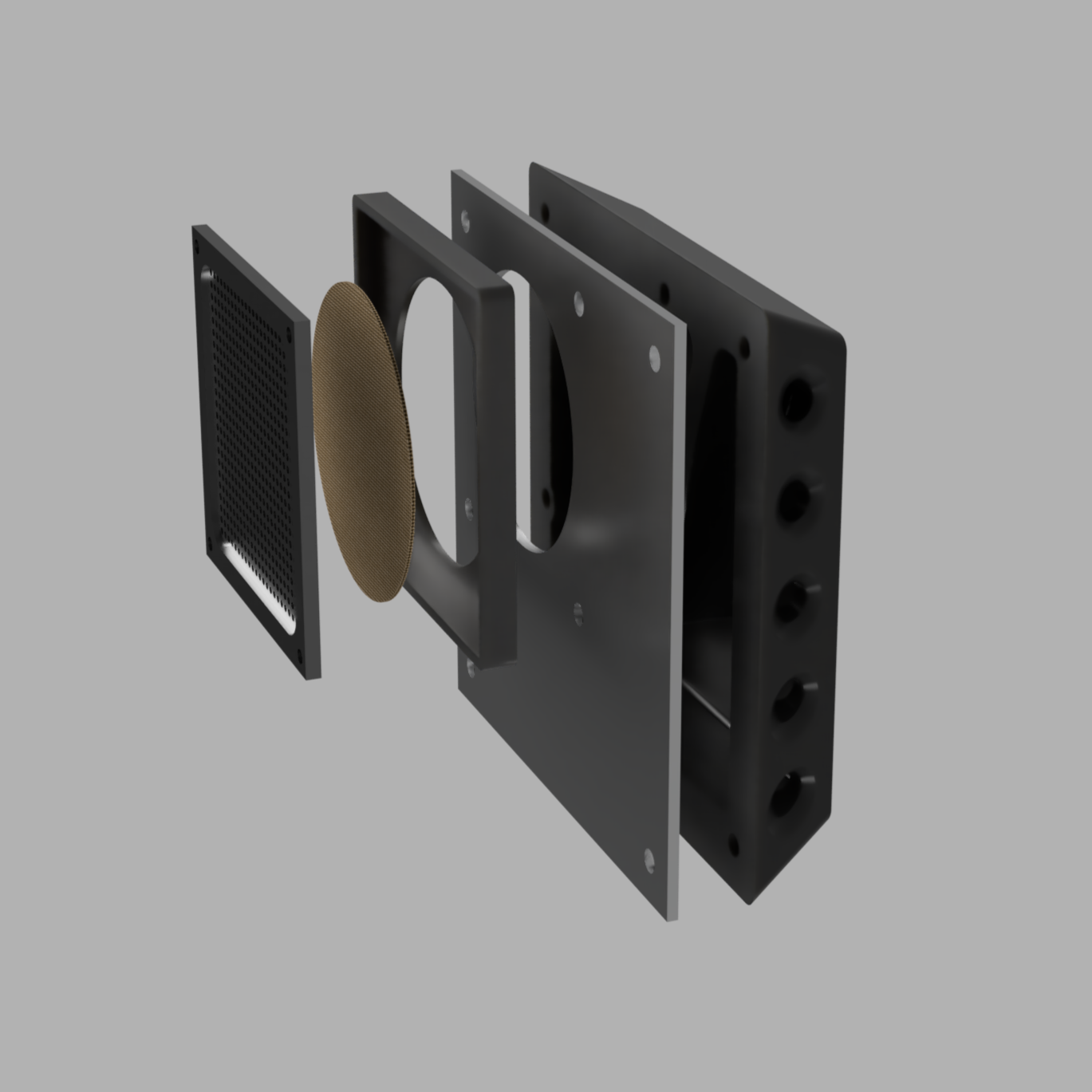

The intake holes are angled rather than straight through, and each is fixed at a set angle — 0°, 5°, 10°, 15° and 20° across the face. The angled geometry separates out most of the road dust and water before air reaches the screen. The screen then catches larger debris and insects, and the filter behind it takes out the fine dust. Anything that does collect drains back out through the intakes rather than running into the canopy.

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black or White

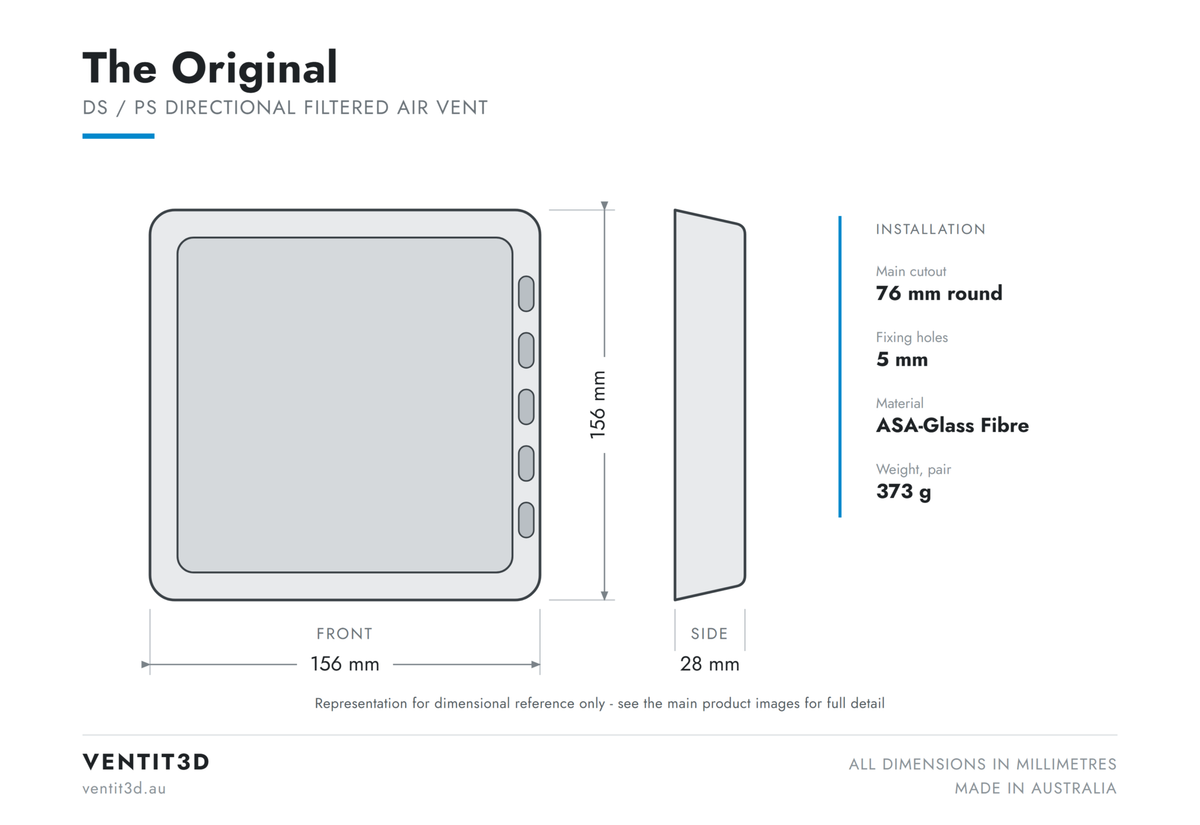

• External dimensions: 156 x 156 x 28 mm (each vent)
• Main cutout: 76 mm diameter, round
• Fixing holes: 5 mm
• Weight: 373 g for the pair, including filters and screens

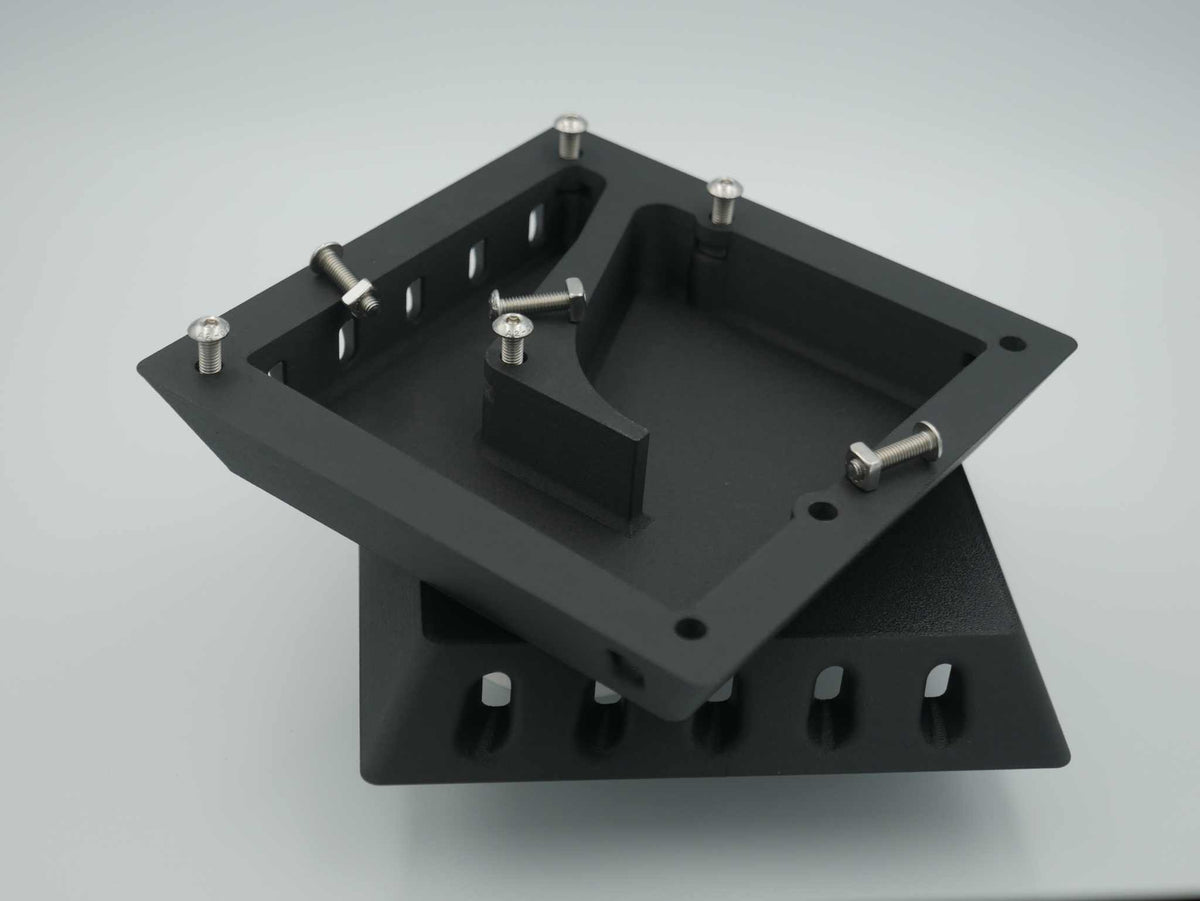

• Fixings: stainless steel M5 bolts with M5 square nuts
• Supplied as: a driver's side and passenger's side pair

What's included

• 1 pair (driver's side and passenger's side) air vents
• 2 x screen
• 2 x filter
• 2 x screen and filter housing
• 14 x stainless steel M5 bolts
• 2 x templates for hole marking
• Instructions

Fitting

Two hole-marking templates are supplied, so the 76 mm round cutout and the 5 mm bolt holes can be marked accurately before you cut. A standard 76 mm hole saw suits the main opening. Printed instructions are included in the box.

Often bought with

• The Mini — rear-mount exhaust to complete the cross-flow
• The Maxi — larger rear-mount exhaust for bigger canopies
• The Crossflow — directional vent for higher airflow builds

Important to note

Any opening cut into a canopy has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What are the key features of The Original 4x4 Canopy Air Vent Version 2.0?

The Original 4x4 Canopy Air Vent Version 2.0 features improved intake hole shapes - oval rather than round - and angled intake options from 0 to 20 degrees, enhancing airflow performance. It is made from durable, UV-resistant ASA-Glass Fibre, ensuring longevity in harsh conditions. These design refinements make it a more efficient and reliable vent for your Ute canopy.

How does the installation process work for this 4x4 Canopy Air Vent?

The installation includes two templates for precise hole marking, along with 14 stainless steel M5 bolts, making it straightforward to secure the vents on your canopy sides. Detailed instructions are provided to ensure proper fit and sealing for optimal water drainage and airflow.

What is a 4x4 Canopy Air Vent and how does it improve ventilation?

A 4x4 Canopy Air Vent, like The Original - Ds/Ps Directional Filtered Air Vent, allows fresh air to be forced into your Ute canopy while draining out water, improving airflow and reducing moisture buildup.

What materials are used in the construction of this 4x4 Canopy Air Vent?

The vent is made from tough, lightweight, and UV resistant ASA-Glass Fibre, ensuring durability and heat resistance in harsh Australian conditions.

How do I install the 4x4 Canopy Air Vent?

The package includes 2 templates for hole marking, stainless steel M5 bolts for installation, and detailed instructions, making it straightforward to install on the sides of your canopy.

What colours does the 4x4 Canopy Air Vent come in?

The Original is made from UV-resistant ASA-Glass Fibre and comes in black or white, so you can match it to your canopy.

What are the improvements in Version 2.0 of this 4x4 Canopy Air Vent?

Version 2.0 changes the intake hole shape from round to oval, improves the intake hole angles to 0, 5, 10, 15 and 20 degrees, and replaces the heat inserts with stainless M5 square nuts for a stronger mount.
