Crossflow – Filtered Ute Canopy Intake & Exhaust Vent

The Crossflow is a directional filtered air vent for ute canopies and caravan storage tunnels where there is no room to mount a rear vent. Supplied as a driver's side and passenger's side pair, it creates a complete cross-flow on its own: air in one side, out the other.

It came directly out of listening to customers who had nowhere left to put an exhaust vent.

How it differs from The Original

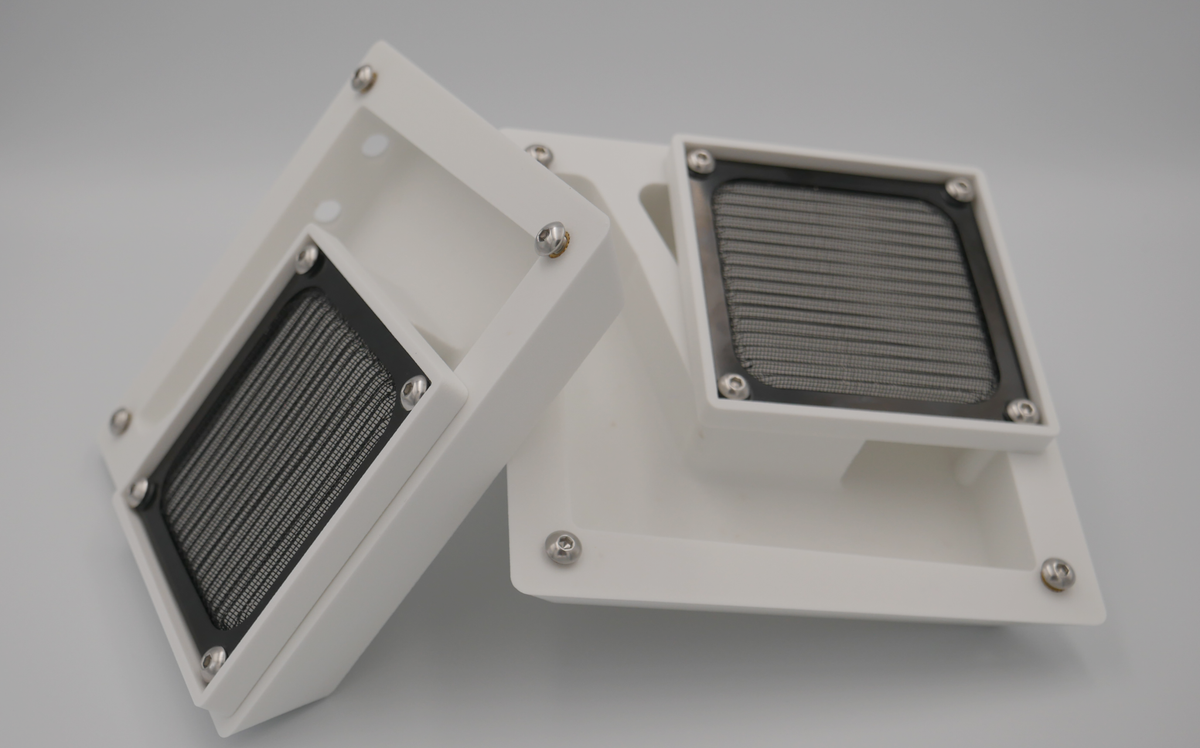

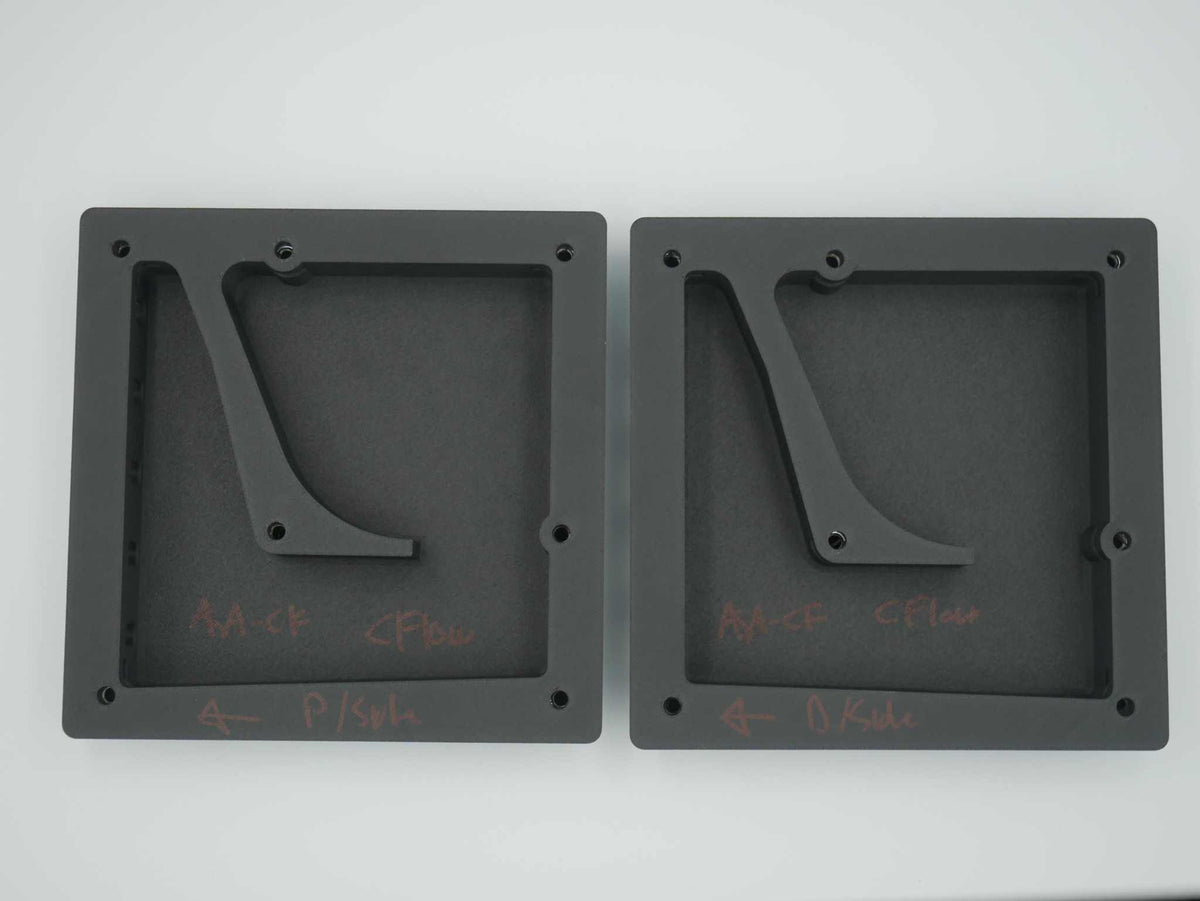

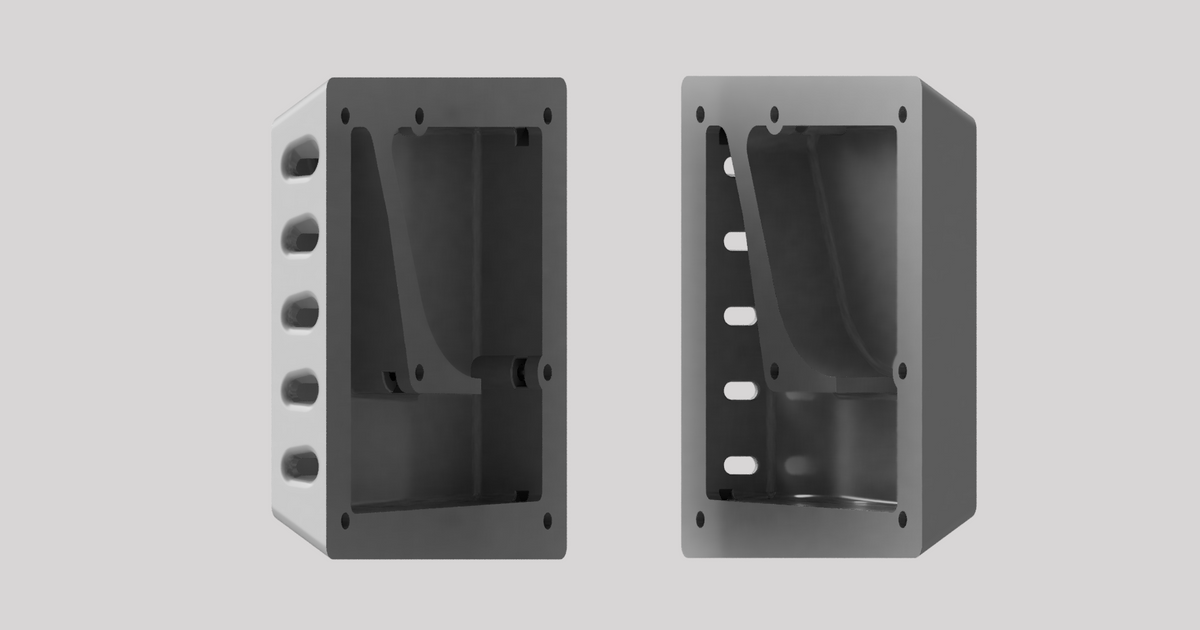

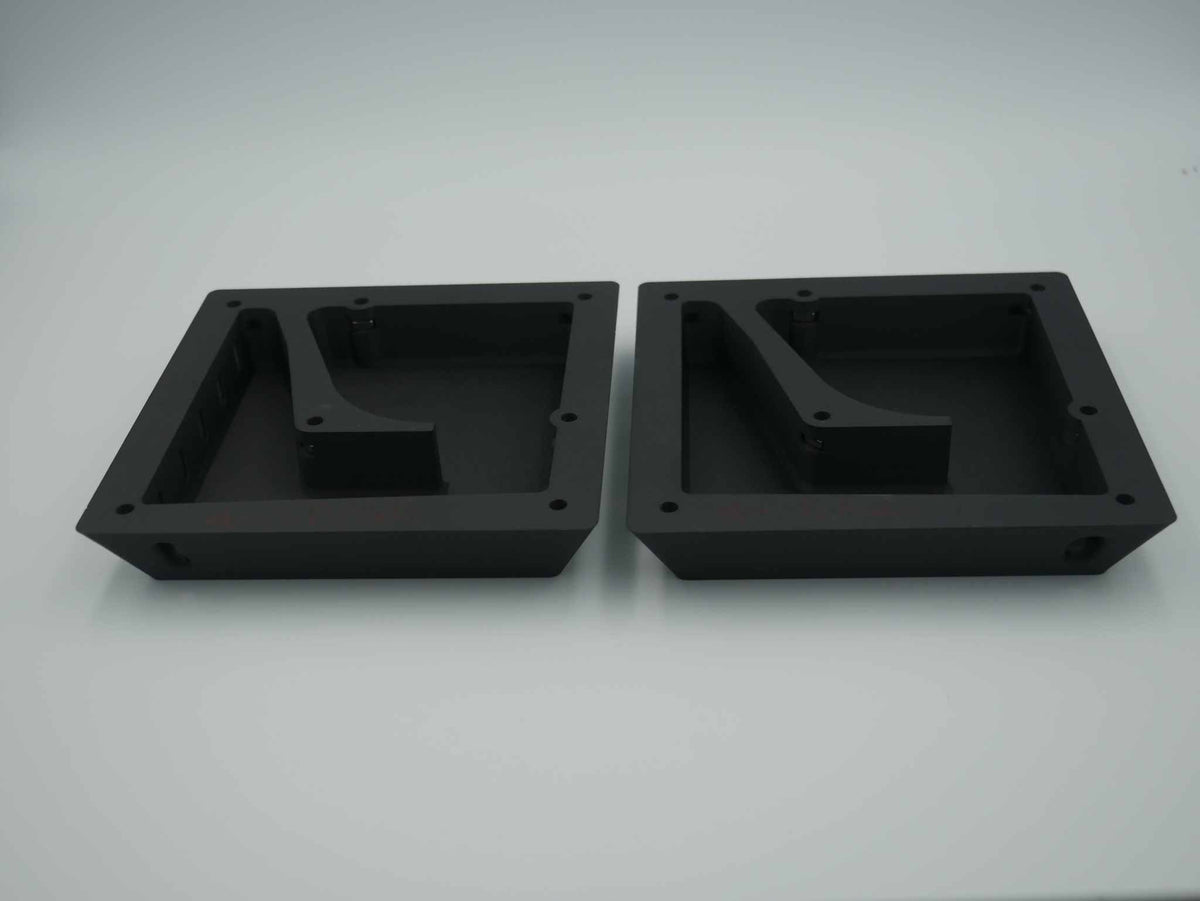

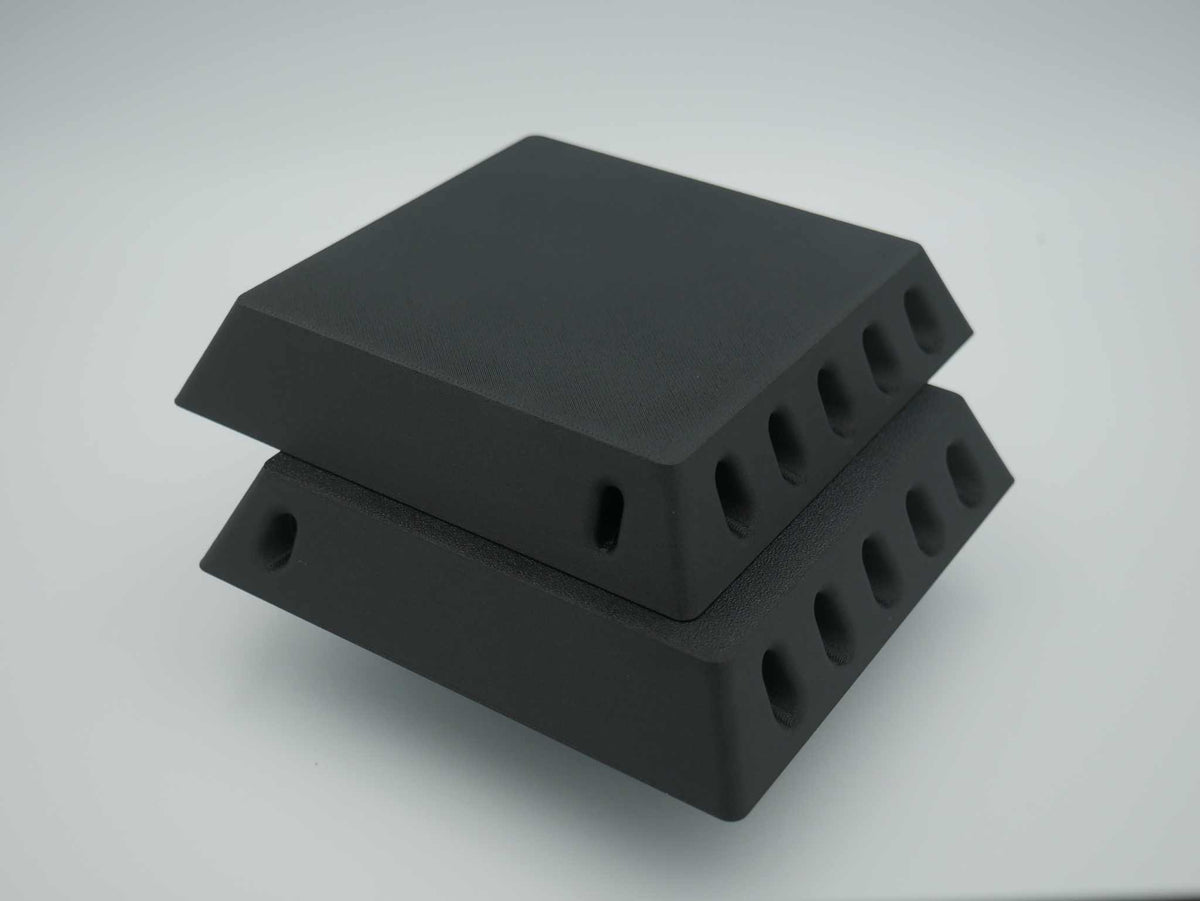

The driver's side keeps The Original design, with intake holes facing forward. The passenger's side is the modified one:

• Exhaust holes face rearward, creating a venturi effect that draws air out as you drive
• The angled internal bottom is reversed so drainage still works with the holes facing the other way
• The drain hole is relocated to suit that reversed geometry

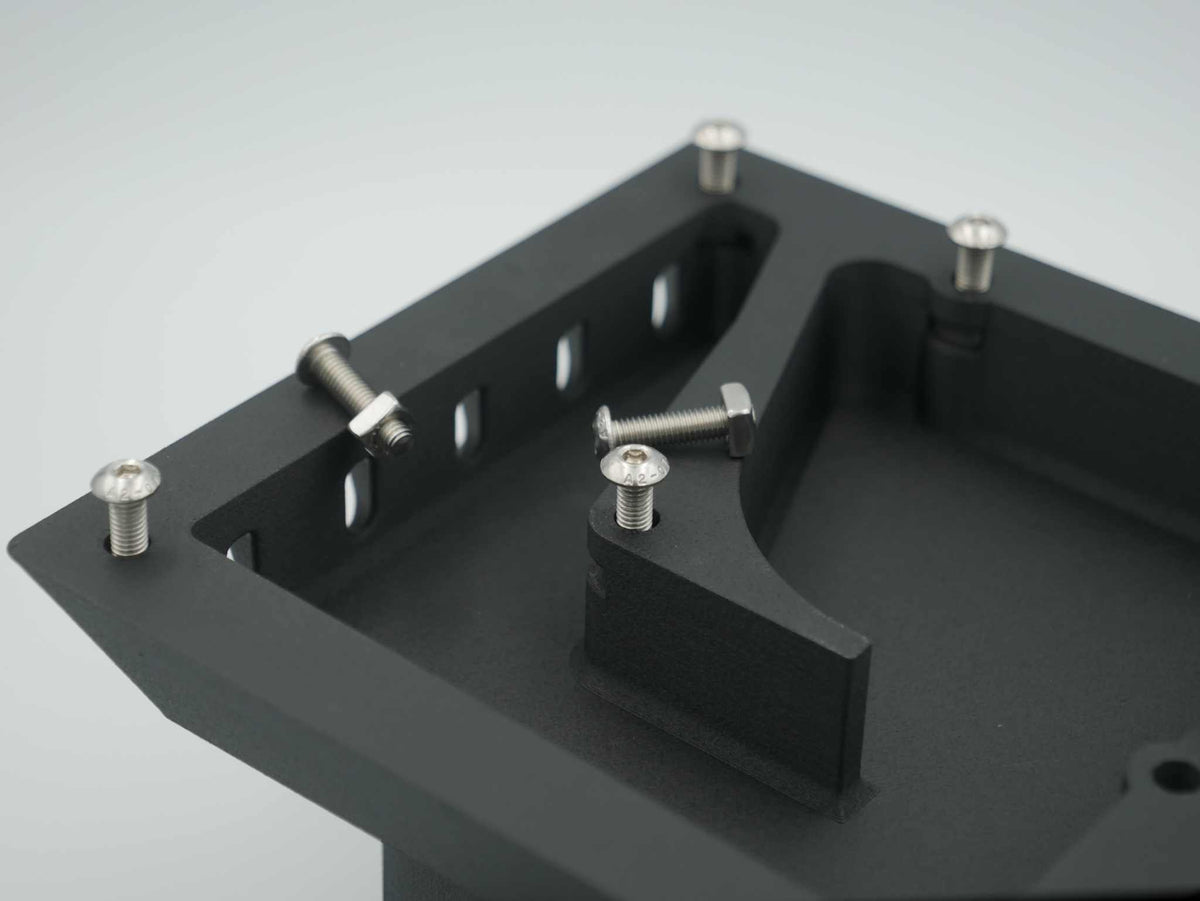

• Internal slip-in square nuts replace heat inserts

Features

• A complete cross-flow from one pair — no rear vent required
• Tough, UV-resistant ASA-Glass Fibre built for the Australian sun
• Light but tough — just 373 g for the pair, with the strength coming from glass fibre reinforced ASA rather than bulk
• Filters and screens are removable from inside the canopy for cleaning or replacement
• Choice of colour — black or white
• A single 76 mm round cutout per vent — a standard hole saw size
• Australian made, with free postage Australia-wide

How it works

The driver's side vent faces forward. As the vehicle moves, air is forced through its angled intake holes, past the screen and filter, and into the canopy.

The passenger's side vent faces rearward. Air moving past those openings creates a low-pressure area behind them — the venturi effect — which pulls air out of the canopy rather than pushing it in. The result is a continuous circuit: fresh air enters on the driver's side, stale hot air leaves on the passenger's side, and the canopy keeps turning its air over without a rear vent anywhere in the build.

Because the passenger's side runs in reverse, its internal floor angle is flipped and the drain hole moved, so water still finds its way out instead of pooling inside the housing.

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black or White

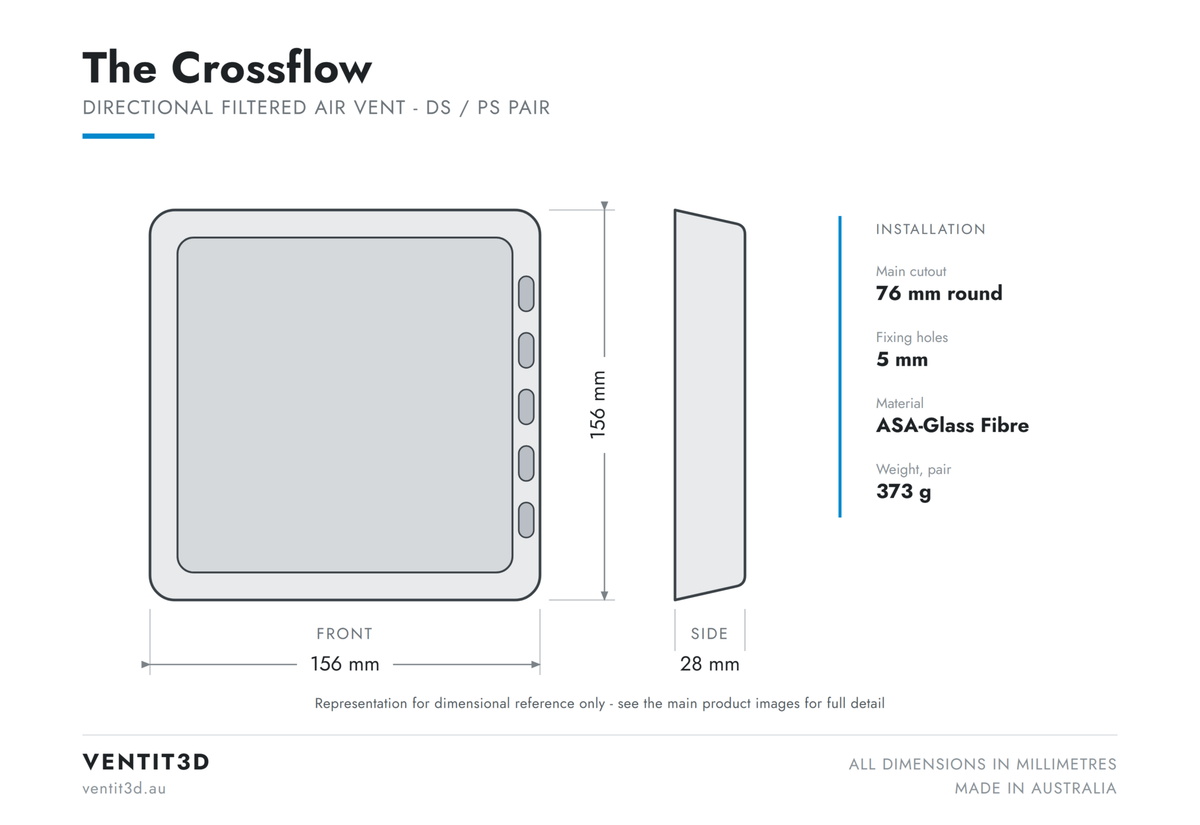

• External dimensions: 156 x 156 x 28 mm (each vent)
• Main cutout: 76 mm diameter, round — both sides
• Fixing holes: 5 mm
• Weight: 373 g for the pair, including filters and screens
• Fixings: stainless steel M5 bolts with internal slip-in square nuts
• Supplied as: a driver's side (intake) and passenger's side (exhaust) pair

What's included

• 1 pair (driver's side and passenger's side) Crossflow air vents
• 2 x screen
• 2 x filter
• 2 x screen and filter housing
• 14 x stainless steel M5 bolts
• 2 x templates for hole marking
• Instructions

Fitting

Two hole-marking templates are supplied, so the 76 mm round cutout and the 5 mm bolt holes can be marked accurately before you cut. A standard 76 mm hole saw suits the main opening on both sides. Fit the driver's side vent with its intakes facing forward and the passenger's side with its exhausts facing rearward — the pair only works as a cross-flow if they are oriented correctly. Printed instructions are included in the box.

Often bought with

• The Original — add a second intake pair on a longer canopy
• The Mini — extra rear-mount exhaust if you do have the room
• Dual Cable Inlet — weatherproof cable pass-through for the same build

Important to note

Any opening cut into a canopy has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What are the main benefits of using the Crossflow Directional Filtered Air Vent for my vehicle?

The Crossflow Directional Filtered Air Vent offers improved airflow with its innovative venturi effect, helps maintain proper ventilation in tight spaces like caravans and 4x4 canopies, and provides durable, UV-resistant performance that withstands harsh conditions.

How easy is it to install the Crossflow Directional Filtered Air Vent on my vehicle?

The installation is straightforward with the included templates, stainless steel M5 bolts, and detailed instructions, making it suitable for DIY installation on driver and passenger sides without specialised tools.

How does the Crossflow vent's design improve airflow compared to traditional vents?

The Crossflow vent's angled internal bottom and rearward-facing holes on the passenger side create a venturi effect, increasing airflow efficiency and ensuring better ventilation with minimal obstruction, ideal for vehicles with limited mounting options.

What is the main benefit of the Crossflow - Directional Filtered Air Vent for my vehicle?

The Crossflow vent provides improved ventilation by allowing directional airflow, helping to maintain optimal air circulation in caravans, tunnels, or 4x4 canopies where mounting options are restricted.

How does the design of the passenger side vent differ from the driver's side?

The passenger side vent has been modified to feature intake holes facing rearward for a venturi effect, an angled internal bottom for drainage, relocated drain hole, and internal square nuts instead of heat inserts, enhancing airflow and functionality.

What materials are used to make the Crossflow air vent and how do they withstand harsh conditions?

The Crossflow vent is made from tough, lightweight, UV-resistant ASA-Glass Fibre, ensuring durability and resistance to the harsh Australian sun while maintaining strength.

What components are included in the package when I purchase the Crossflow directional filtered air vent?

The package includes a pair of vents (driver and passenger side), 2 screens, 2 filters, housing for screens and filters, 14 stainless steel M5 bolts, 2 templates for hole marking, and installation instructions.

Is the Crossflow vent easy to install on my vehicle, and what tools will I need?

Yes, the Crossflow vent is designed for straightforward installation using the included templates and stainless steel bolts. You will need basic tools such as a drill and screwdriver to complete the installation.
