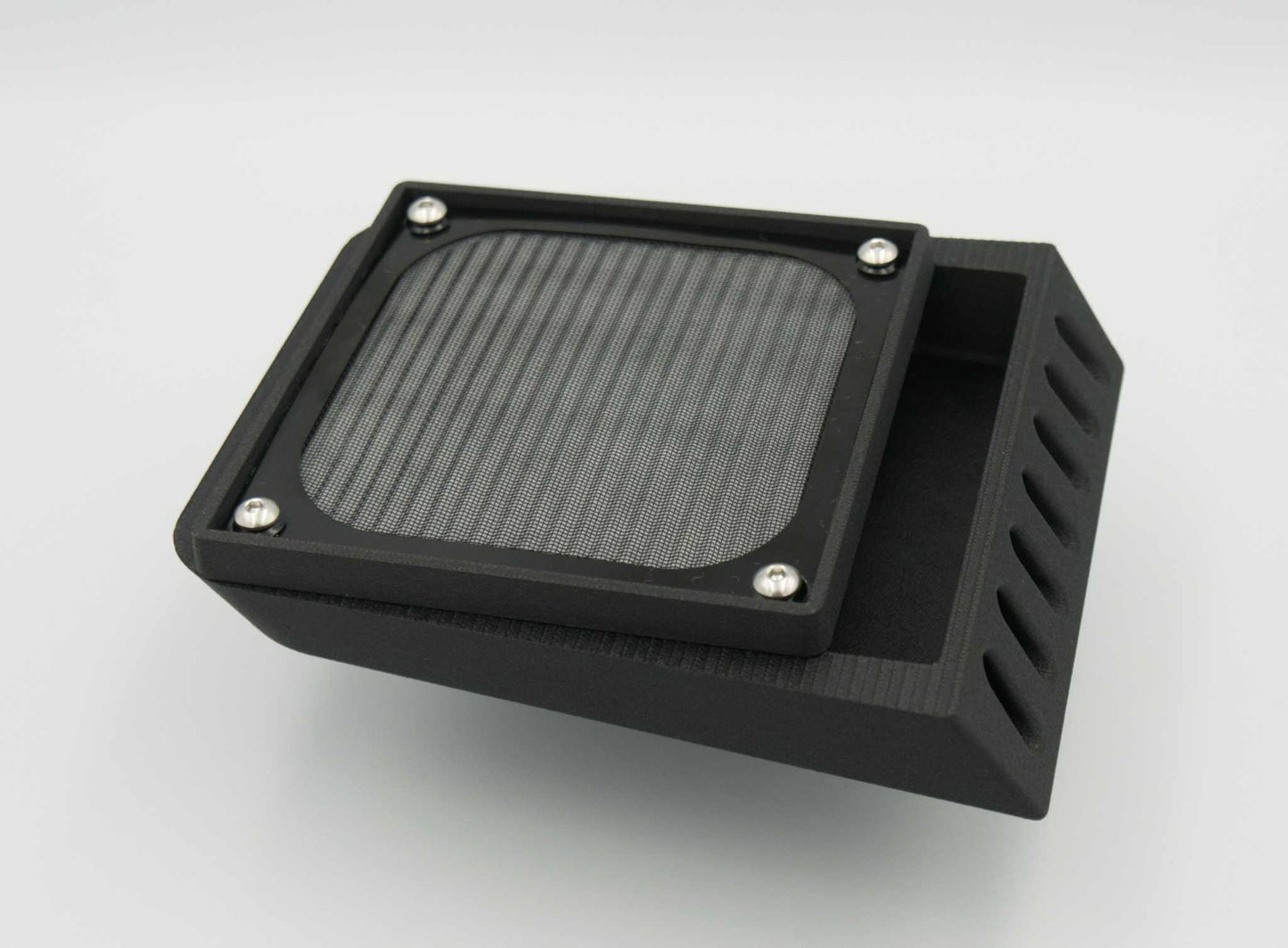

The Slanted Maxi – Angled Canopy Exhaust Vent (Large)

The Slanted Maxi is an angular filtered canopy air vent for vertical mounting on the rear of a ute canopy or structure — the largest of the slanted range. A passive vent that lets hot air out, in a sleek profile that sits close to the panel.

The Slanted Maxi is an exhaust vent. It works best paired with a side intake such as The Original or The Crossflow, so air is drawn through the canopy rather than sitting still.

Features

• Ultra-tough, UV-resistant ASA-Glass Fibre built for the Australian sun
• Maximum passive airflow of the slanted range, at 31 mm deep
• Light but tough — just 178 g, with the strength coming from glass fibre reinforced ASA rather than bulk

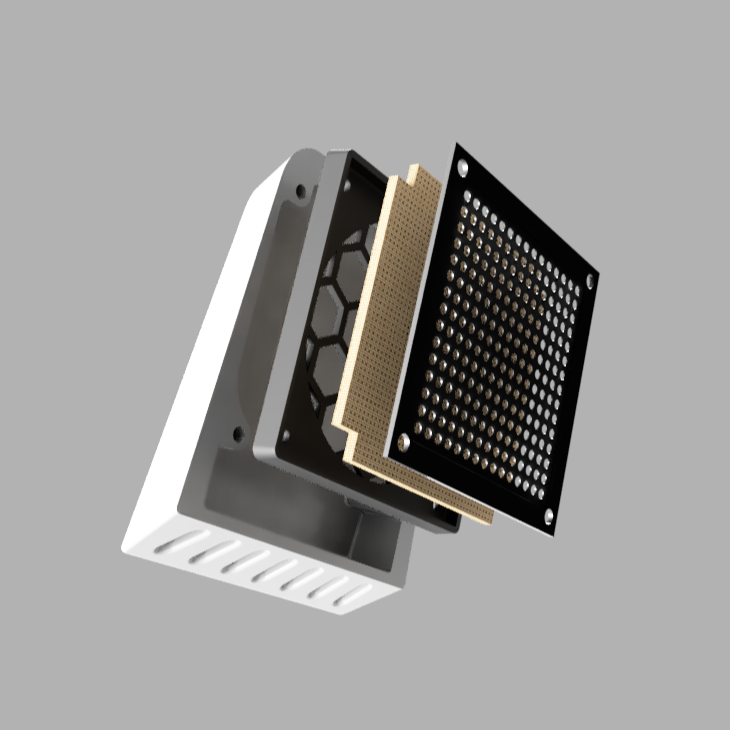

• Filter and screen are removable from inside the canopy for cleaning or replacement
• A single round cutout, 105–108 mm — both are standard hole saw sizes
• Australian made, with free postage Australia-wide

How it works

Warm air rises and collects at the top of a closed canopy. The Slanted Maxi gives it a way out: air passes through the filter and screen and exits through the angled face, while the filter keeps dust and insects from tracking back in. The slanted profile sheds water off the face rather than letting it pool against the opening, and the larger opening moves more air than the Slanted Mini. Because it is passive, airflow depends on having an intake elsewhere in the canopy.

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black

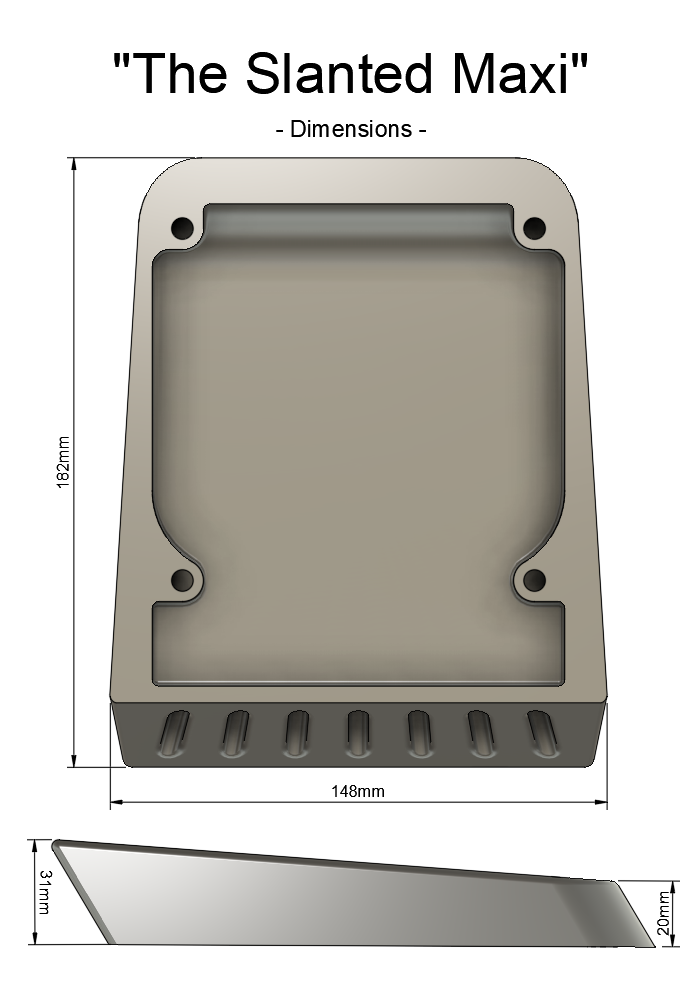

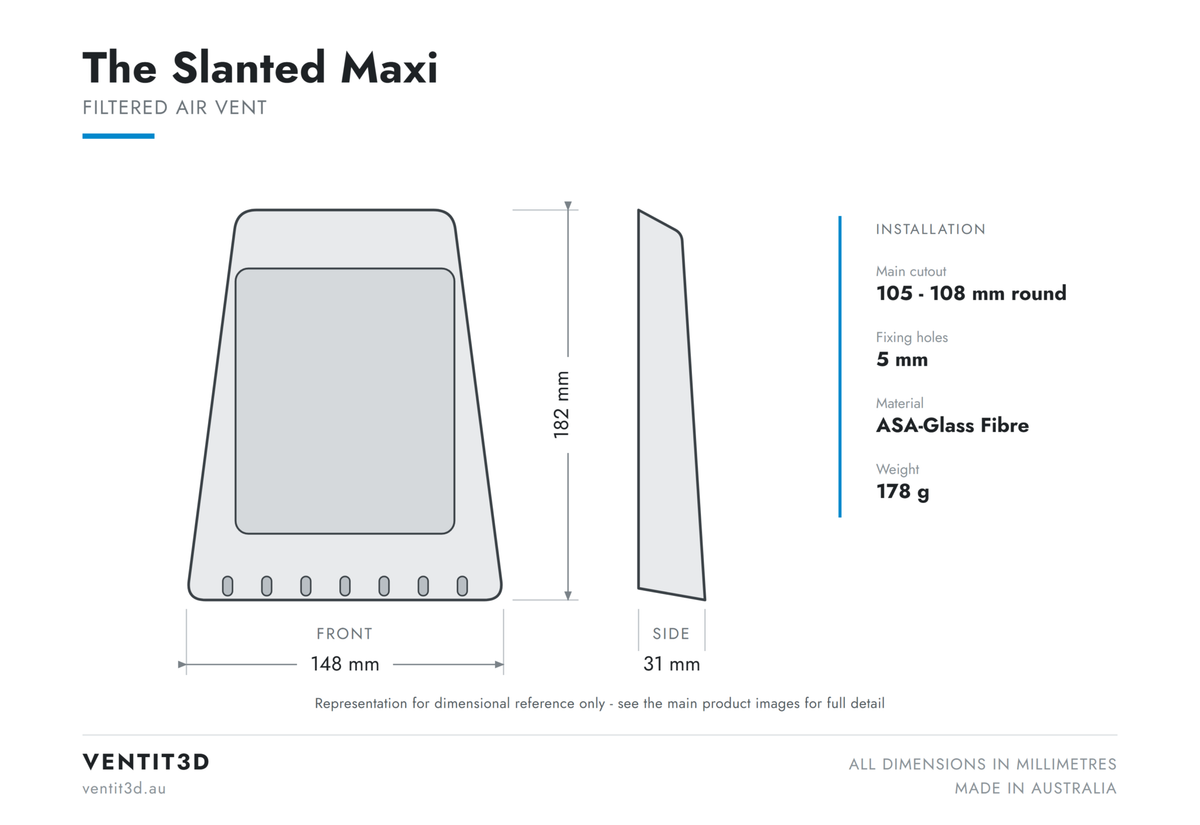

• External dimensions: 182 x 148 x 31 mm (maximum dimensions — see the drawing below)
• Main cutout: 105–108 mm diameter, round
• Fixing holes: 5 mm
• Weight: 178 g, including filter and screen
• Fixings: 4 x stainless steel M5 bolts
• Housing version: v2 filter and screen housing
• Type: passive exhaust vent, rear mount

What's included

• 1 x air vent for rear mounting on a canopy or structure
• 1 x screen
• 1 x filter
• 1 x filter and screen housing (v2)
• 4 x stainless steel M5 bolts
• 1 x template for hole marking
• Instructions

Fitting

A hole-marking template is supplied, so the round cutout and the 5 mm bolt holes can be marked accurately before you cut. The main cutout can be anywhere from 105 mm to 108 mm, so either a 105 mm or a 108 mm hole saw will do. Printed instructions are included in the box.

Often bought with

• The Original — side-mount intake pair to complete the cross-flow

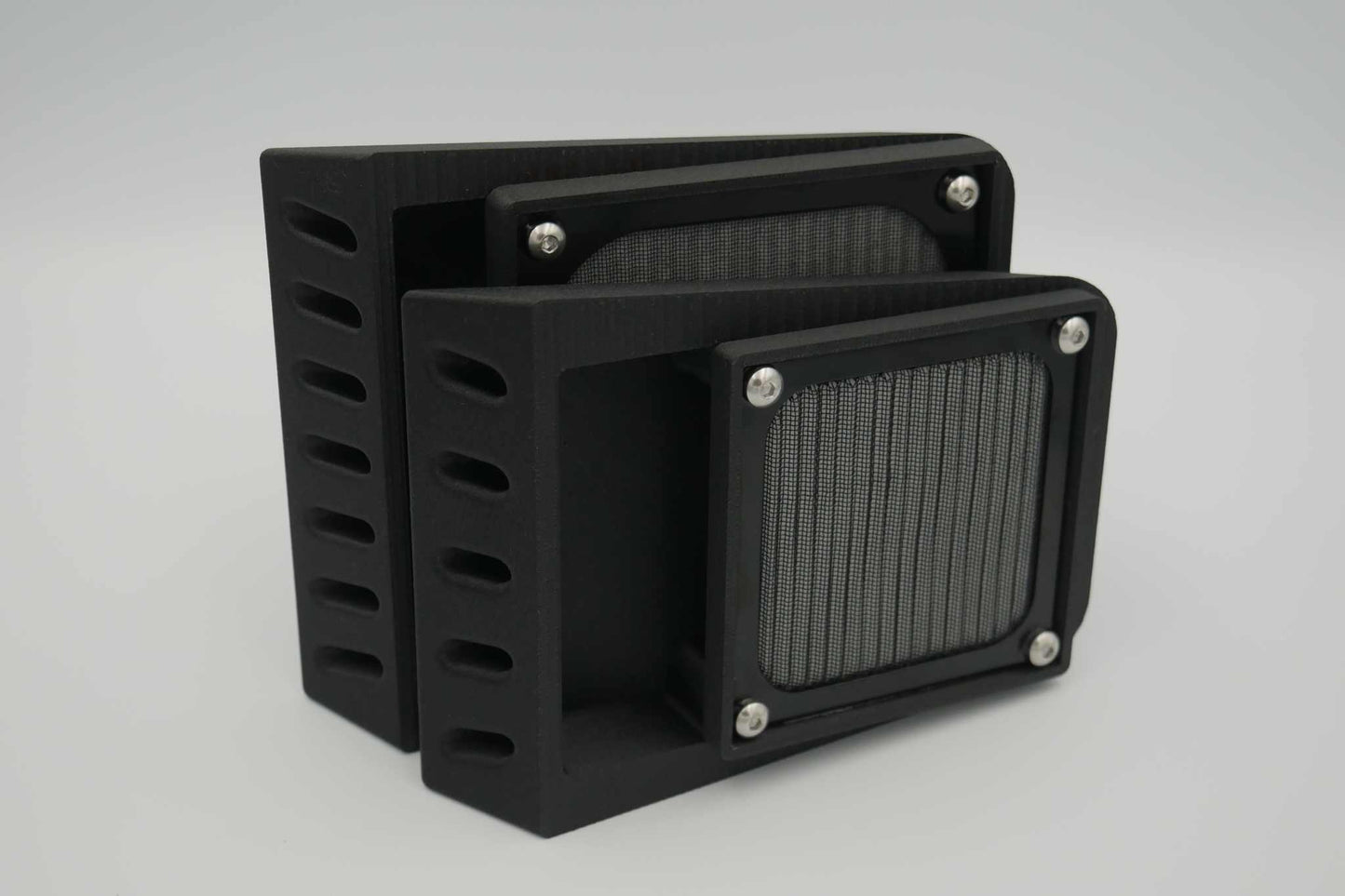

• The Slanted Mini — the smaller version, for a 76 mm cutout
• The Maxi — same capacity, flat profile

Important to note

Any opening cut into a canopy has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

How does the Slanted Maxi filtered air vent improve airflow on my vehicle or canopy?

The Slanted Maxi filtered air vent is designed to facilitate better airflow by allowing hot air to escape passively through its angled, filtered opening, especially when combined with other vents. Its sleek size and design help optimise ventilation without compromising the appearance of your vehicle or structure.

What is the Slanted Maxi made from, and how does it hold up outdoors?

The Slanted Maxi is made from ASA-Glass Fibre in black. ASA is highly UV-resistant so it keeps its finish under permanent sun exposure, and the glass fibre reinforcement adds stiffness and heat resistance.

What is the purpose of the Slanted Maxi Filtered Air Vent?

The Slanted Maxi filtered air vent is designed to facilitate better airflow by allowing hot air to circulate out of your canopy or structure, helping to improve ventilation.

What colour is the Slanted Maxi filtered air vent?

The Slanted Maxi is available in black ASA-Glass Fibre.

How do I install the filtered air vent on my vehicle or structure?

The vent comes with a template for hole marking, stainless steel M5 bolts, and instructions, making the installation process straightforward for mounting on the rear of a canopy or structure.

What are the dimensions of the Slanted Maxi filtered air vent?

The vent's maximum dimensions are 182mm by 148mm by 31mm, providing a sleek and compact size suitable for various applications.

Does the package include all necessary components for installation?

Yes, the package includes the air vent, a screen, a filter, filter and screen housing (version 2), bolts, a template, and instructions, offering a complete setup for your filtered air vent.
