The Mini – Filtered Canopy Rear Exhaust Vent

The Mini is a compact filtered canopy air vent for vertical mounting on the rear of a ute canopy or structure. No bells and whistles — just a passive vent that lets hot air out, and a simple way to add airflow to a build that already has an intake.

The Mini is an exhaust vent. It works best paired with a side intake such as The Original or The Crossflow, so air is drawn through the canopy rather than sitting still.

Features

• Tough, UV-resistant ASA-Glass Fibre built for the Australian sun
• Compact 110 x 110 mm footprint, only 24 mm deep
• Light but tough — just 108 g, with the strength coming from glass fibre reinforced ASA rather than bulk
• Filter and screen are removable from inside the canopy for cleaning or replacement

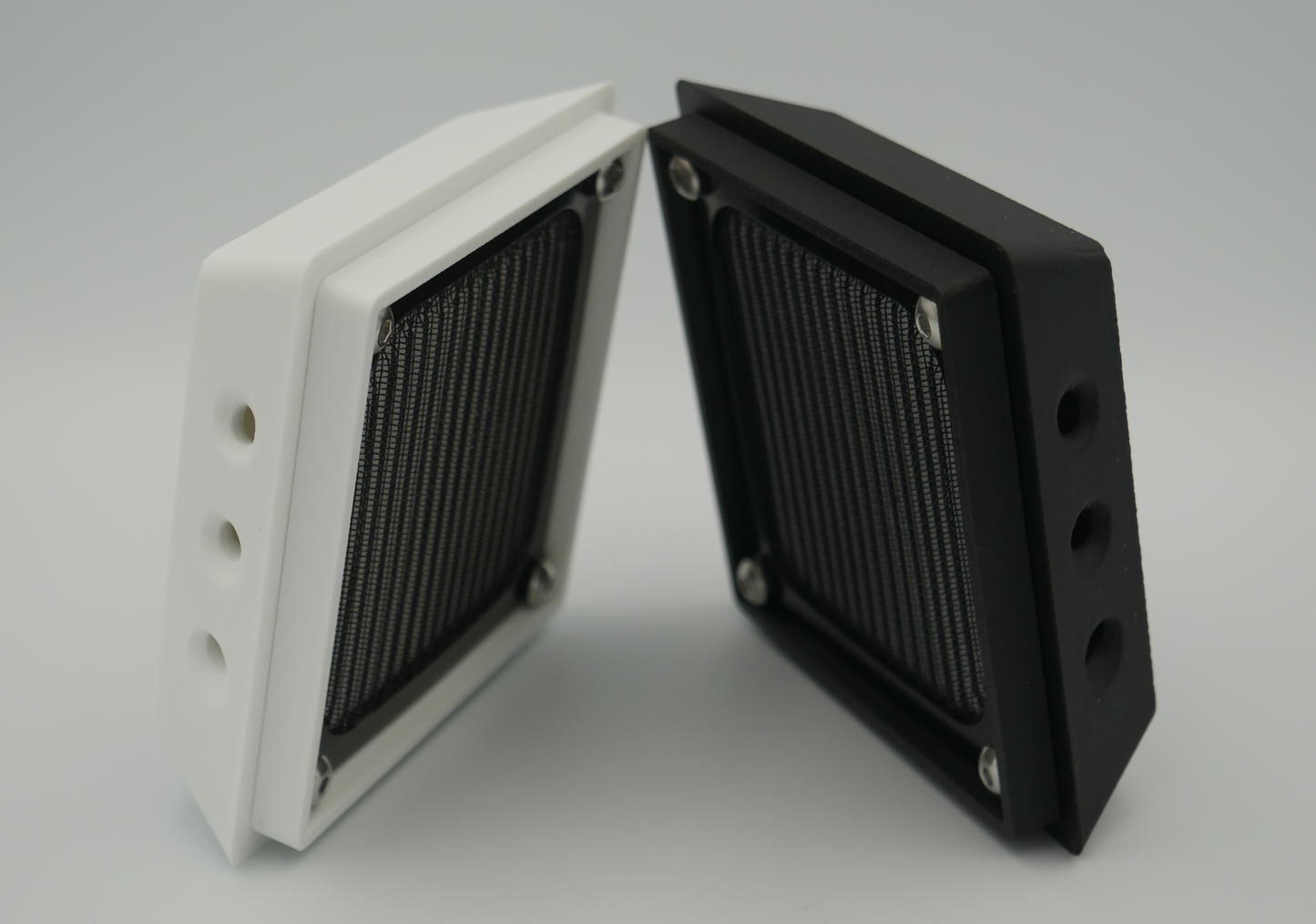

• Choice of colour — black or white
• A single 76 mm round cutout — a standard hole saw size
• Australian made, with free postage Australia-wide

How it works

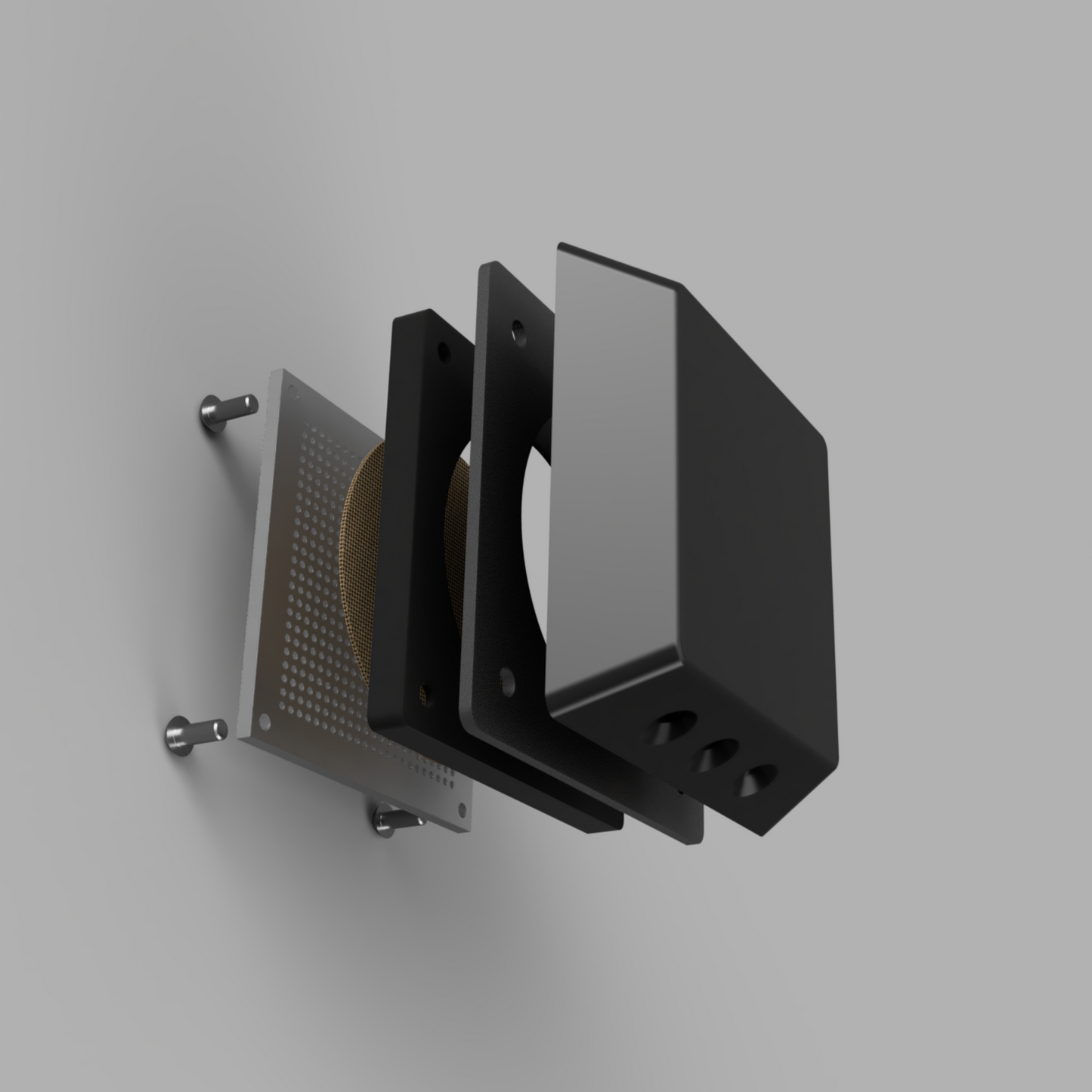

Warm air rises and collects at the top of a closed canopy. The Mini gives it a way out: air passes through the filter and screen and exits through the vent face, while the filter keeps dust and insects from tracking back in. Because it is passive, airflow depends on having an intake elsewhere in the canopy — on its own it will vent slowly, but paired with a side intake it completes a cross-flow.

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black or White

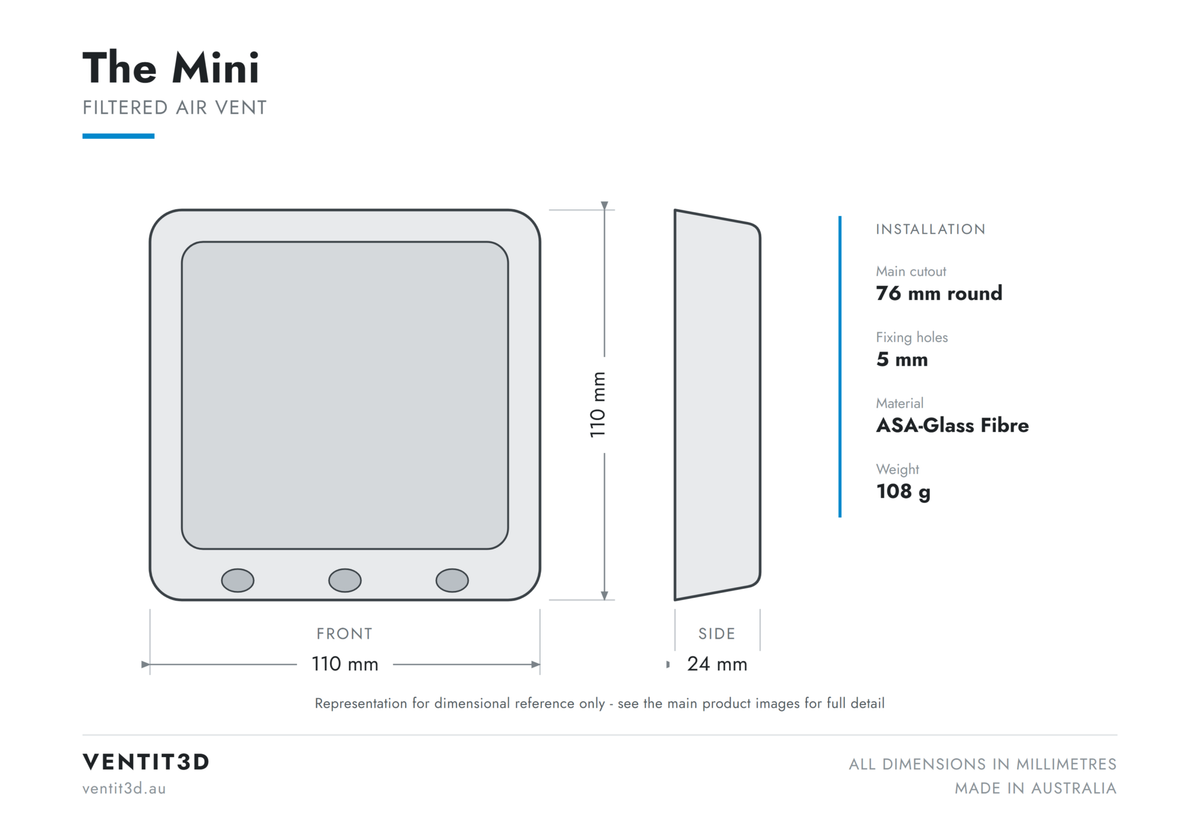

• External dimensions: 110 x 110 x 24 mm
• Main cutout: 76 mm diameter, round
• Fixing holes: 5 mm
• Weight: 108 g, including filter and screen
• Fixings: 4 x stainless steel M5 bolts
• Housing version: v3 filter and screen housing
• Type: passive exhaust vent, rear mount

What's included

• 1 x air vent for rear mounting on a canopy or structure
• 1 x screen
• 1 x filter
• 1 x filter and screen housing (v3)
• 4 x stainless steel M5 bolts
• 1 x template for hole marking
• Instructions

Fitting

A hole-marking template is supplied, so the 76 mm round cutout and the 5 mm bolt holes can be marked accurately before you cut. A standard 76 mm hole saw suits the main opening. Printed instructions are included in the box.

Often bought with

• The Original — side-mount intake pair to complete the cross-flow
• The Maxi — the next size up, for larger canopies
• The Slanted Mini — same idea in an angular, lower profile

Important to note

Any opening cut into a canopy has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What makes The Mini - Filtered Air Vent a good choice for improving airflow on my vehicle?

The Mini - Filtered Air Vent is a simple yet effective passive air vent designed to circulate hot air out of your vehicle's canopy or structure. Its compact size and easy installation make it a reliable addition to enhance airflow when combined with other vents, promoting better ventilation and temperature control.

What is The Mini - Filtered Air Vent made from?

The Mini is made from UV-resistant ASA-Glass Fibre. ASA holds its colour and finish under permanent sun exposure instead of chalking or going brittle, and the glass fibre reinforcement keeps it stiff and heat resistant.

What is the purpose of The Mini - Filtered Air Vent?

The Mini - Filtered Air Vent is designed as a passive air vent for vertical mounting on the rear of a canopy or structure, allowing hot air to circulate out and facilitate better airflow when used with other vents.

What colours does The Mini come in?

The Mini is available in black or white ASA-Glass Fibre.

How do I install The Mini - Filtered Air Vent?

Installation requires four stainless steel M5 bolts, and the product includes a template for hole marking, instructions, and all necessary components like the screen, filter, and housing for easy setup.

What are the dimensions of The Mini - Filtered Air Vent?

The compact size of the vent is 110x110x24mm, making it suitable for areas where space is limited while still providing effective airflow.

Does the product include all necessary parts for installation?

Yes, the package includes one air vent for rear mounting, a screen, a filter, filter and screen housing (v3), a template for hole marking, and instructions, ensuring a complete and easy installation.
