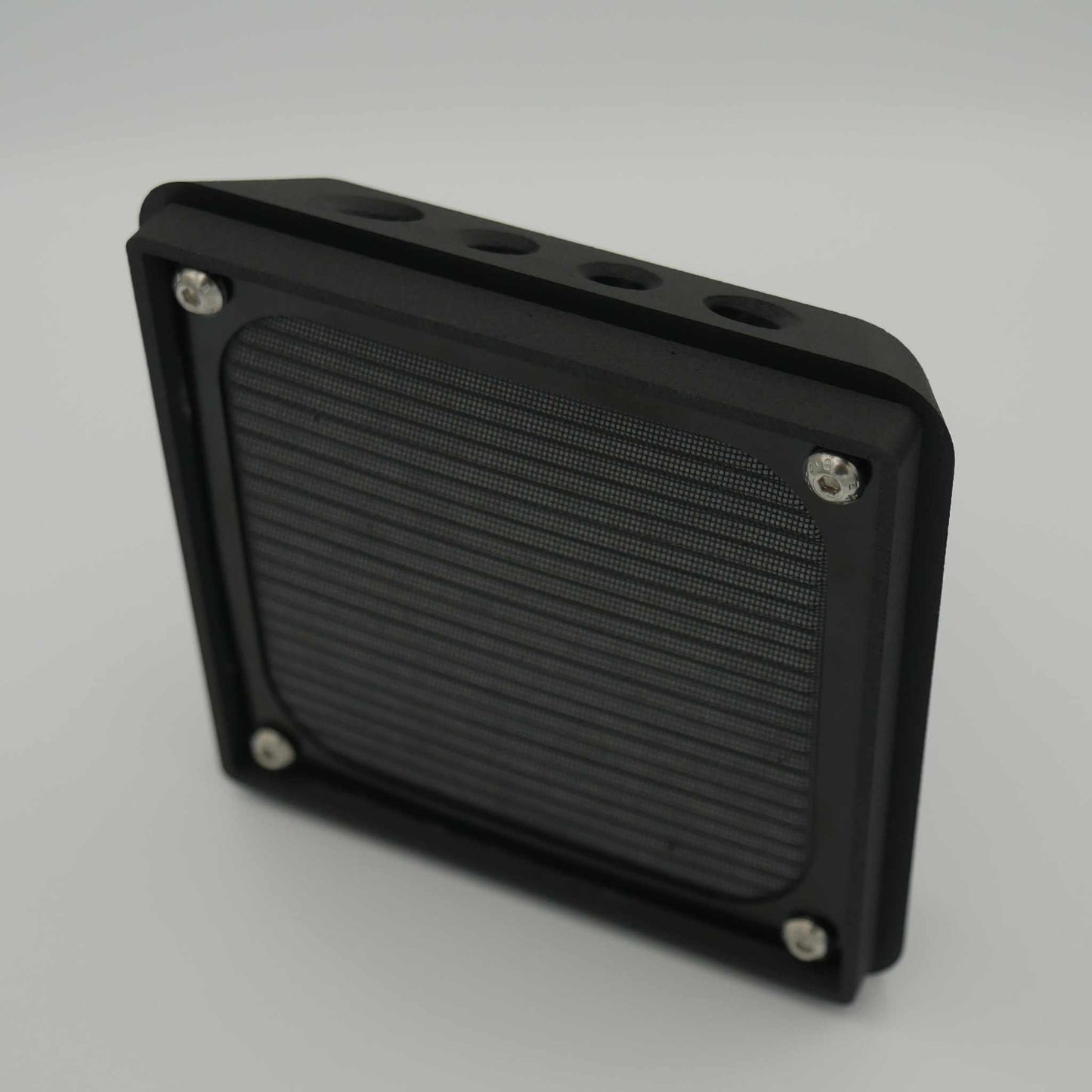

The Maxi – Filtered Canopy Rear Exhaust Vent (Large)

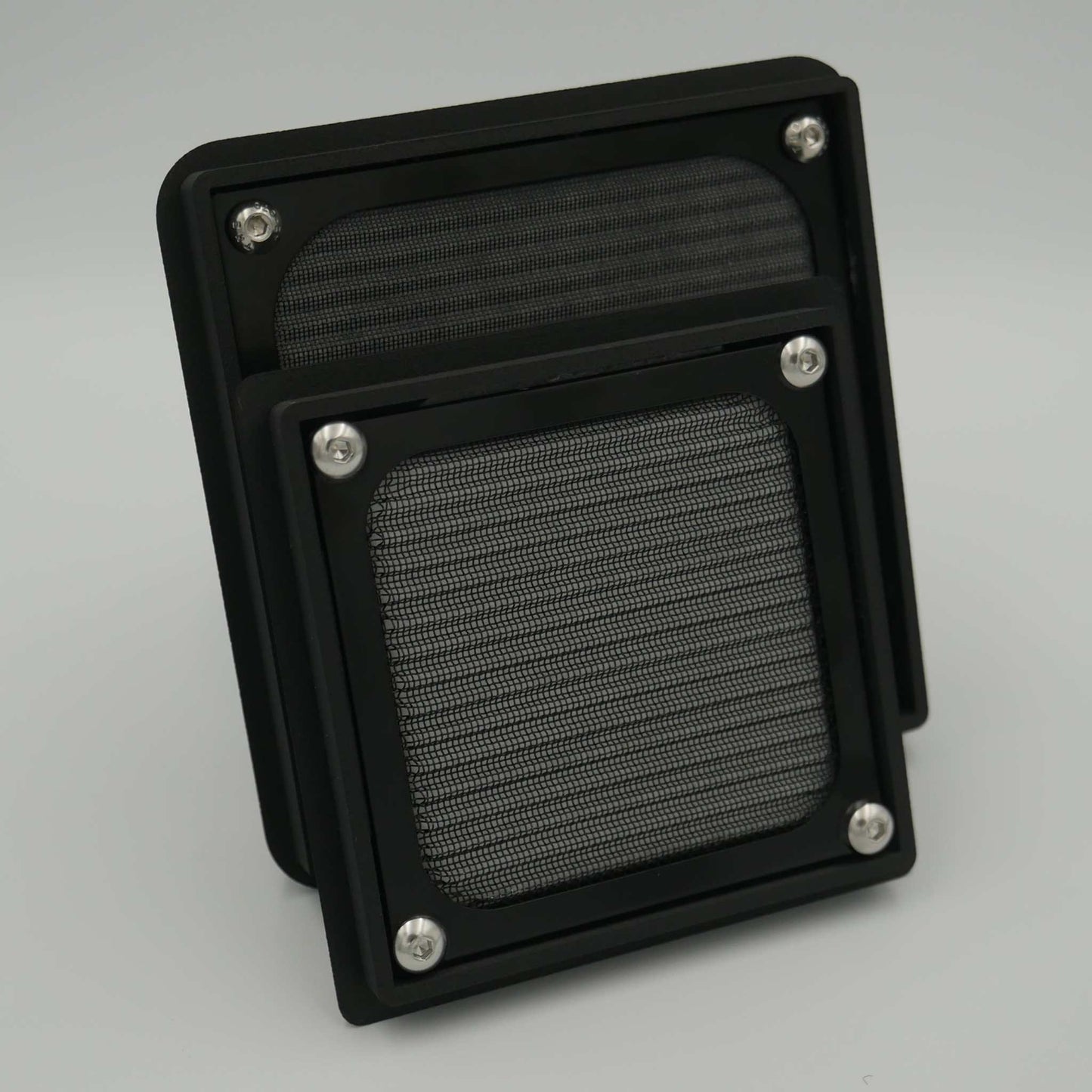

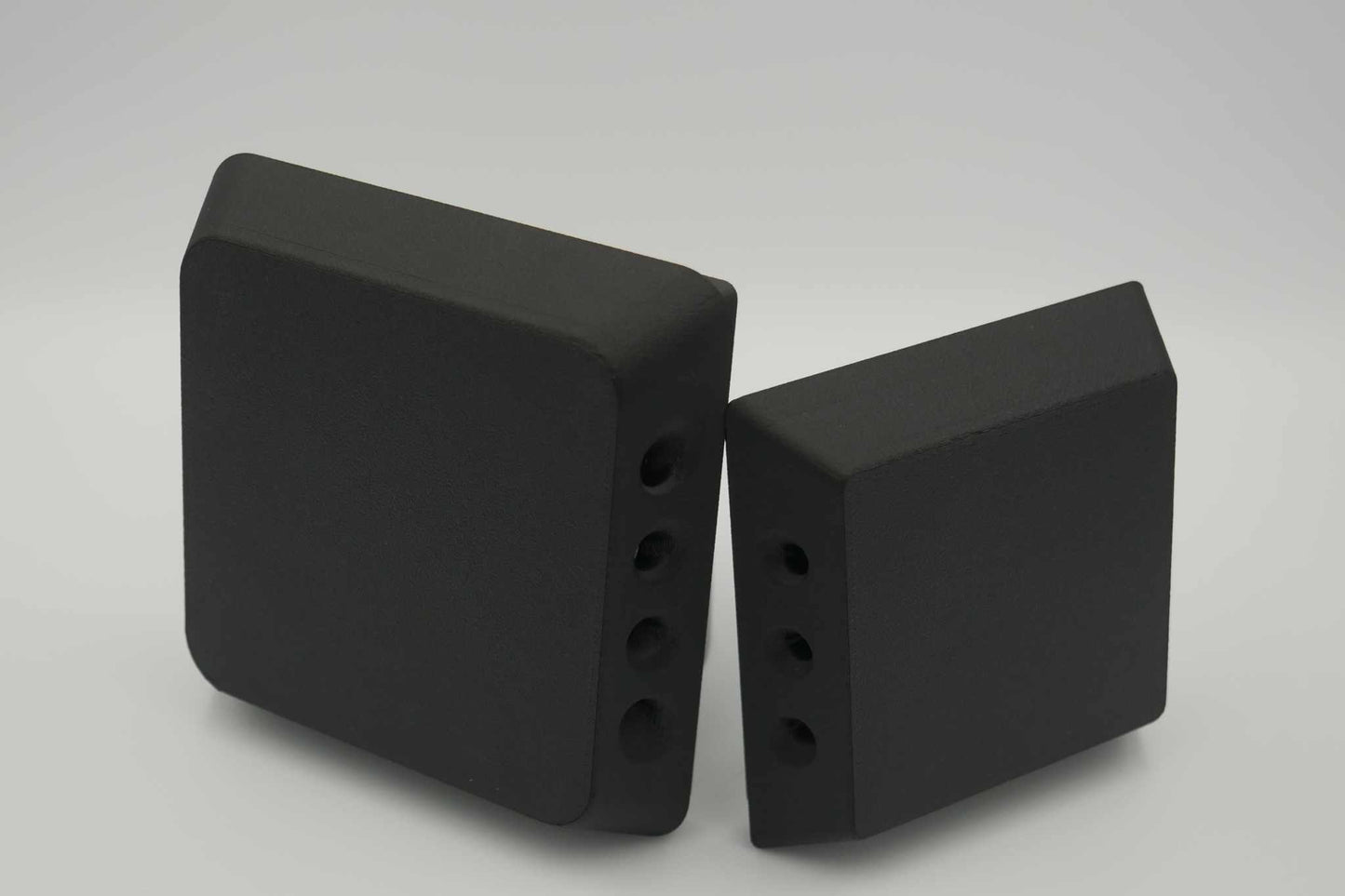

The Maxi is a filtered canopy air vent for vertical mounting on the rear of a ute canopy or structure — the next size up from The Mini. No bells and whistles, just a passive vent that lets hot air out, with more open area for builds that need it.

The Maxi is an exhaust vent. It works best paired with a side intake such as The Original or The Crossflow, so air is drawn through the canopy rather than sitting still.

Features

• Tough, UV-stable ASA-Glass Fibre built for the Australian sun
• More open area than The Mini, in a 136 x 136 mm footprint only 24 mm deep
• Light but tough — just 145 g, with the strength coming from glass fibre reinforced ASA rather than bulk
• Filter and screen are removable from inside the canopy for cleaning or replacement
• A single round cutout, 105–108 mm — both are standard hole saw sizes
• Australian made, with free postage Australia-wide

How it works

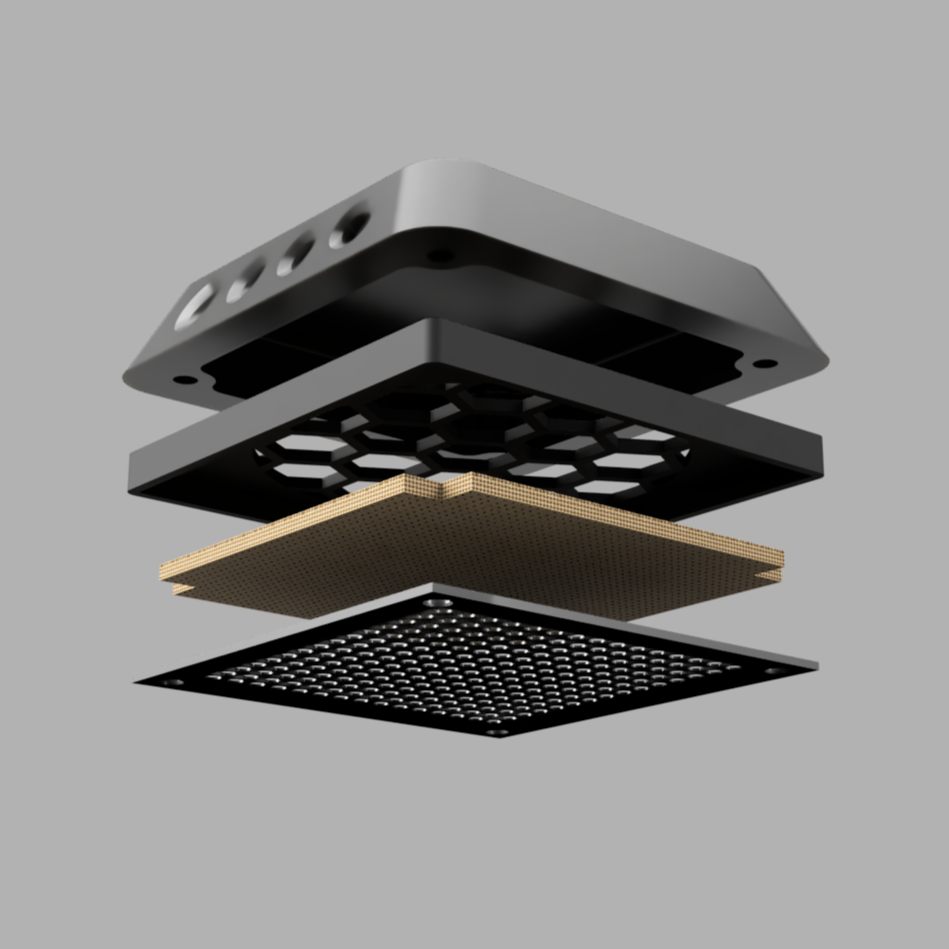

Warm air rises and collects at the top of a closed canopy. The Maxi gives it a way out: air passes through the filter and screen and exits through the vent face, while the filter keeps dust and insects from tracking back in. The larger opening moves more air than The Mini for the same passive setup. Because it is passive, airflow depends on having an intake elsewhere in the canopy.

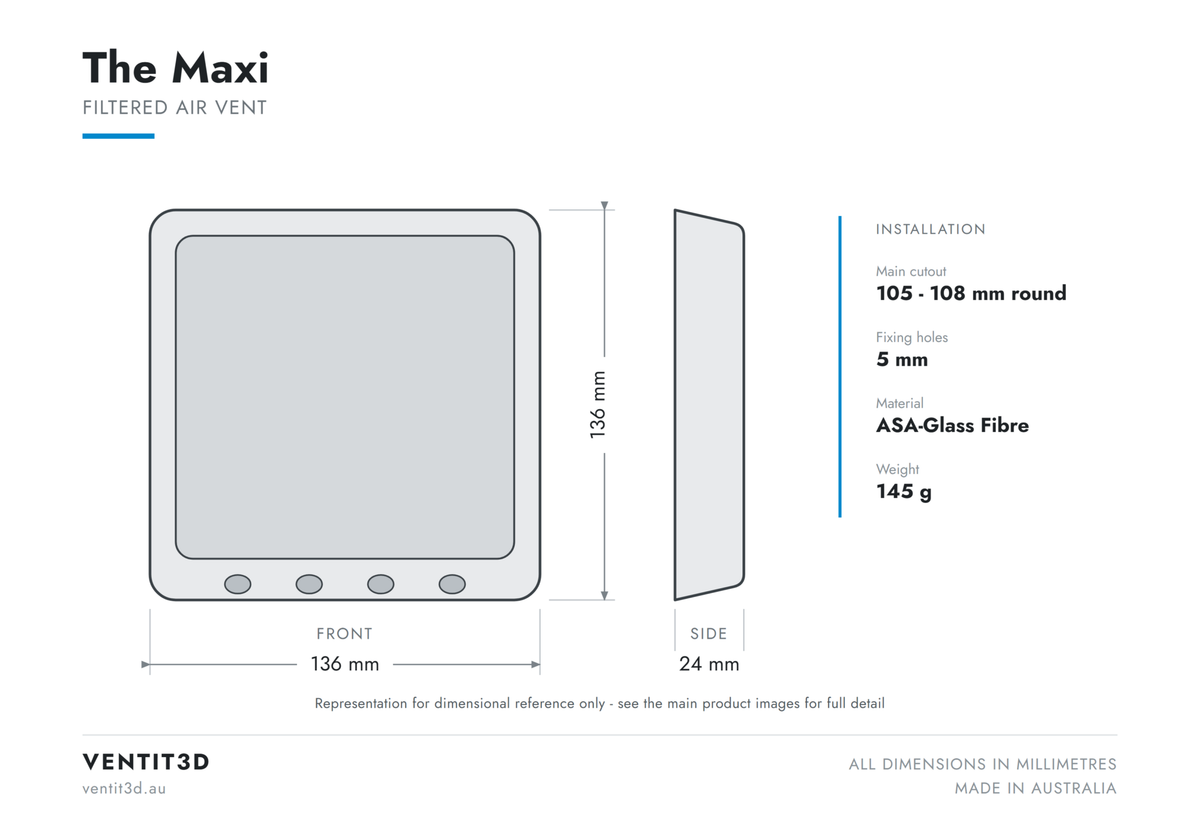

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black

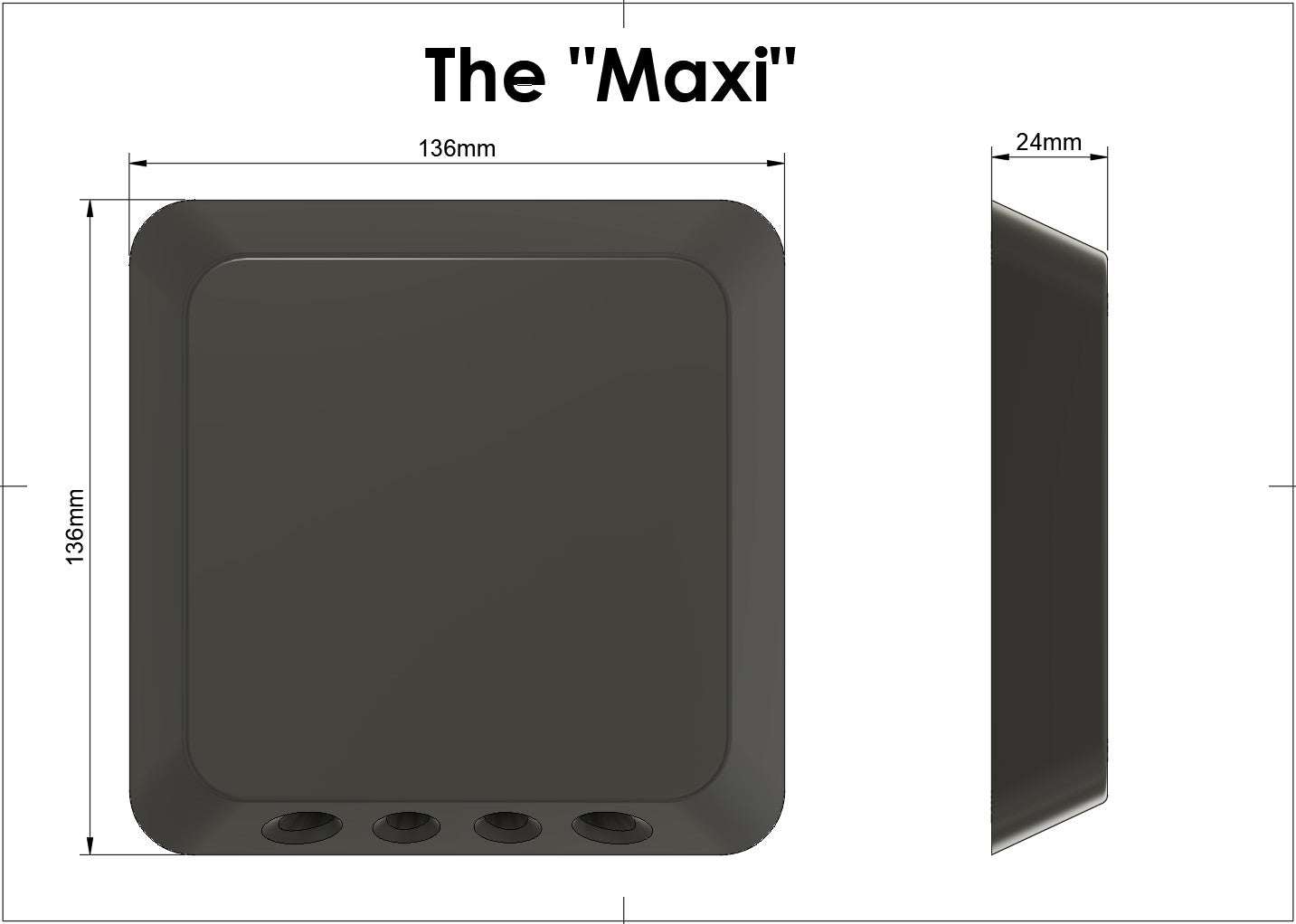

• External dimensions: 136 x 136 x 24 mm
• Main cutout: 105–108 mm diameter, round
• Fixing holes: 5 mm
• Weight: 145 g, including filter and screen
• Fixings: 4 x stainless steel M5 bolts
• Housing version: v2 filter and screen housing
• Type: passive exhaust vent, rear mount

What's included

• 1 x vent for rear mounting on a canopy or structure
• 1 x screen
• 1 x filter
• 1 x filter and screen housing (v2)
• 4 x stainless steel M5 bolts
• 1 x template for hole marking
• Instructions

Fitting

A hole-marking template is supplied, so the round cutout and the 5 mm bolt holes can be marked accurately before you cut. The main cutout can be anywhere from 105 mm to 108 mm, so either a 105 mm or a 108 mm hole saw will do. Printed instructions are included in the box.

Often bought with

• The Original — side-mount intake pair to complete the cross-flow
• The Mini — the smaller version, for a 76 mm cutout
• The Slanted Maxi — same capacity in an angular, lower profile

Important to note

Any opening cut into a canopy has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What are the main benefits of installing the Maxi filtered air vent on my vehicle or structure?

The Maxi filtered air vent helps improve airflow by allowing hot air to circulate out efficiently, reducing heat build-up and enhancing ventilation. Its simple passive design makes it a reliable and low-maintenance addition to your vehicle or structure.

How do I install the Maxi filtered air vent, and what parts are included in the package?

The installation involves mounting the vent on the rear of your canopy or structure using the included stainless steel M5 bolts and the provided template for accurate hole marking. The package includes the vent, screen, filter, filter and screen housing, mounting hardware, a template, and instructions for easy setup.

What is The Maxi filtered air vent made from?

The Maxi is made from UV-resistant ASA-Glass Fibre in black, chosen for durability and a clean finish on canopies and structures.

How does The Maxi filtered air vent improve airflow on my vehicle?

The Maxi vent facilitates more airflow by allowing hot air to circulate out through a passive, filtered vent, making it an effective addition to your vehicle's ventilation system when combined with other vents.

What is included with The Maxi - Filtered Air Vent purchase?

The package includes one filtered air vent, a screen, a filter, a housing for the filter and screen (v2), four stainless steel M5 bolts for installation, a template for hole marking, and easy-to-follow instructions.

Can The Maxi filtered air vent be installed on any type of canopy or structure?

Yes, The Maxi is designed for vertical mounting on the rear of canopies or structures, providing a straightforward solution to improve ventilation in various vehicle and structure applications.

What are the dimensions of The Maxi filtered air vent, and is installation complex?

The Maxi vent measures 136x136x24mm, and its installation is simplified by the included template and instructions, making it suitable even for those with basic DIY skills.
