The Round One – Round Filtered Ute Canopy Side Vent

The Round One is a circular filtered canopy air vent for the sides of a ute canopy, supplied as a driver's side and passenger's side pair. Same job as The Original — air forced in, water drained out — in a round profile for builds where a circle suits the panel better than a square.

The Round One is an intake vent. For a full cross-flow it pairs with a rear exhaust — see The Mini or The Maxi.

Features

• Circular 166 mm face, only 28 mm deep
• Tough, UV-resistant ASA-Glass Fibre built for the Australian sun
• Light but tough — just 308 g for the pair, with the strength coming from glass fibre reinforced ASA rather than bulk

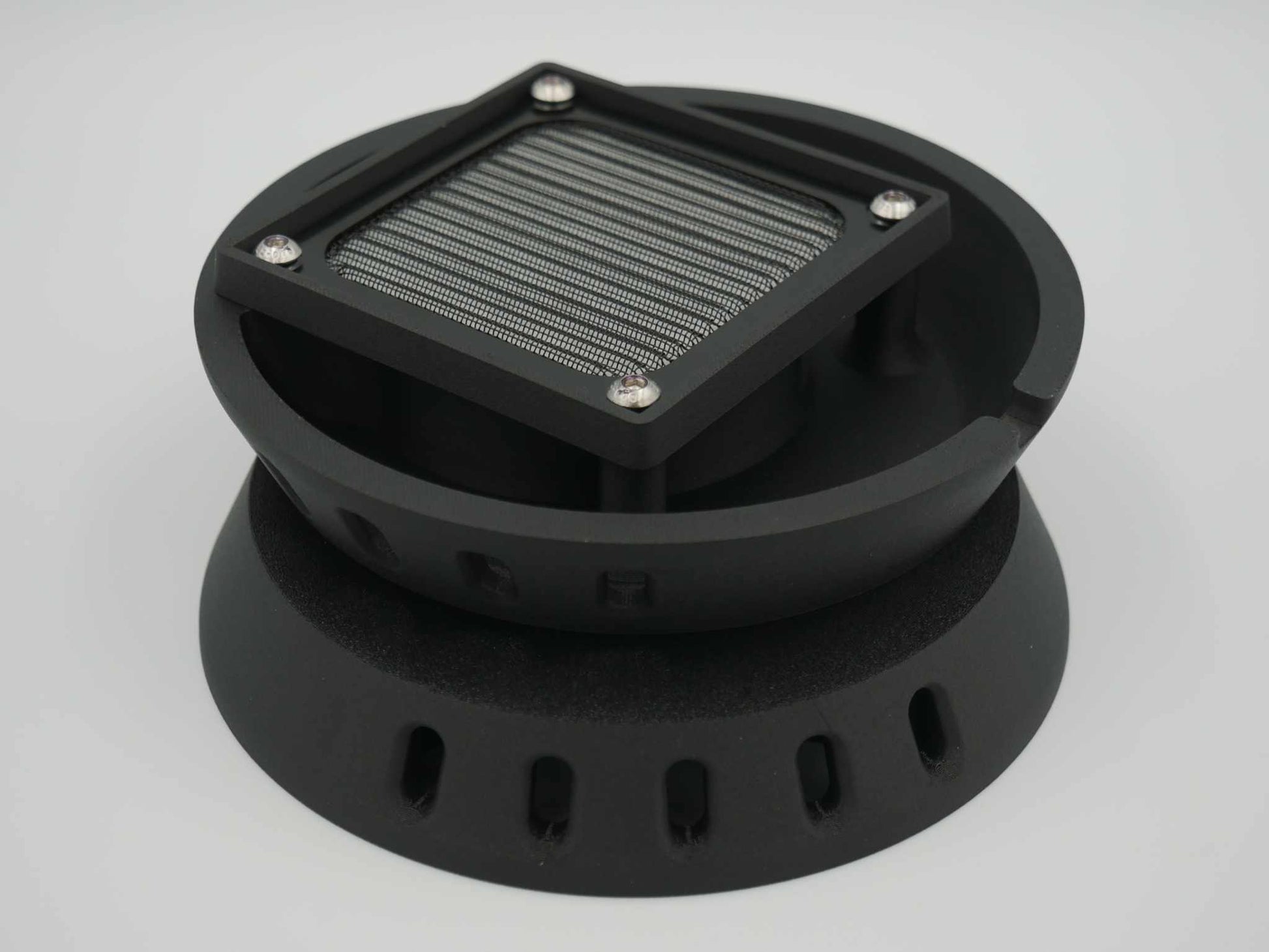

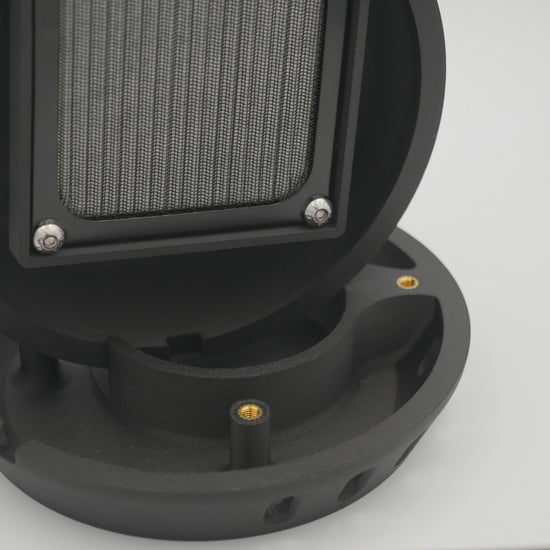

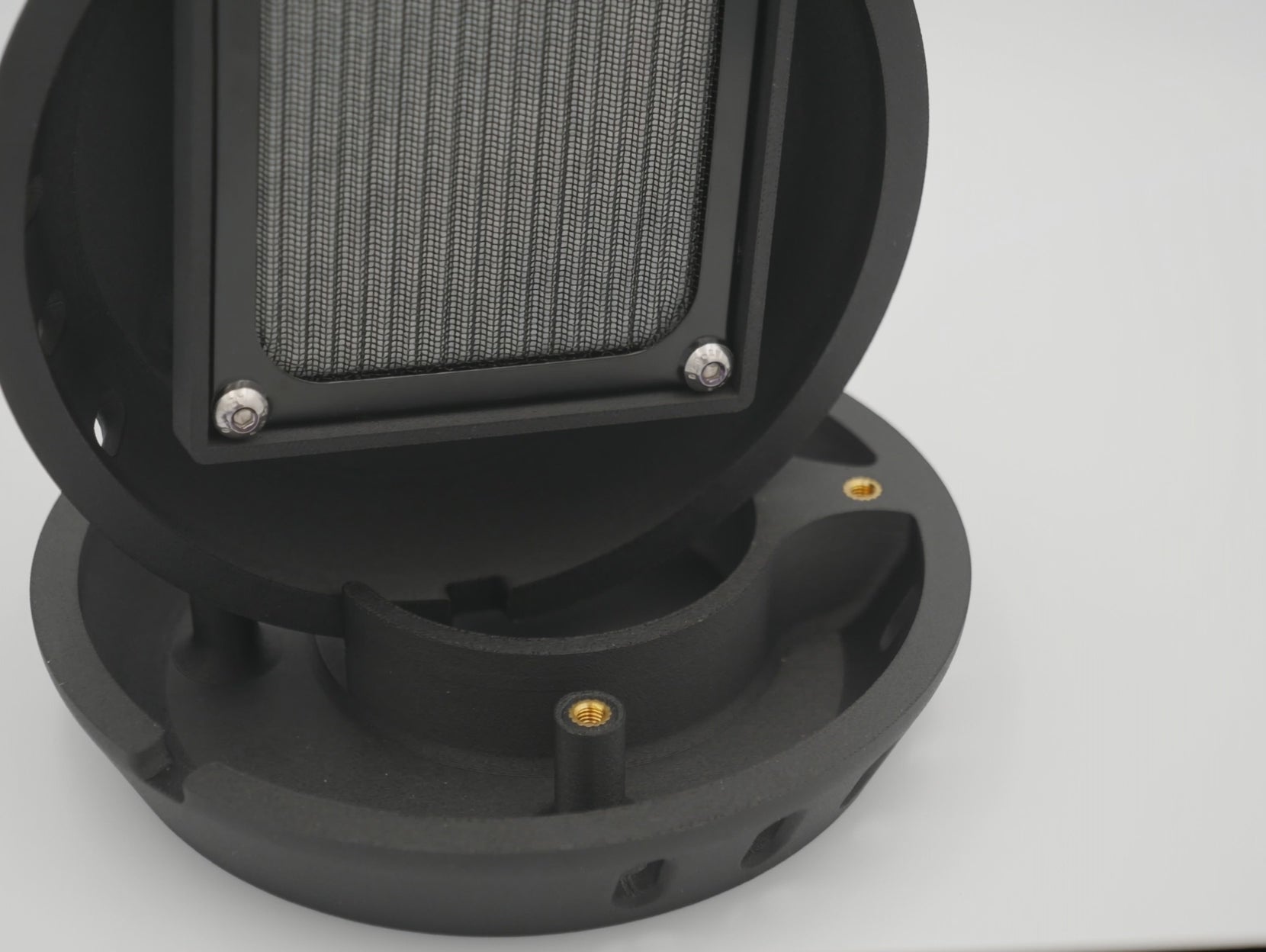

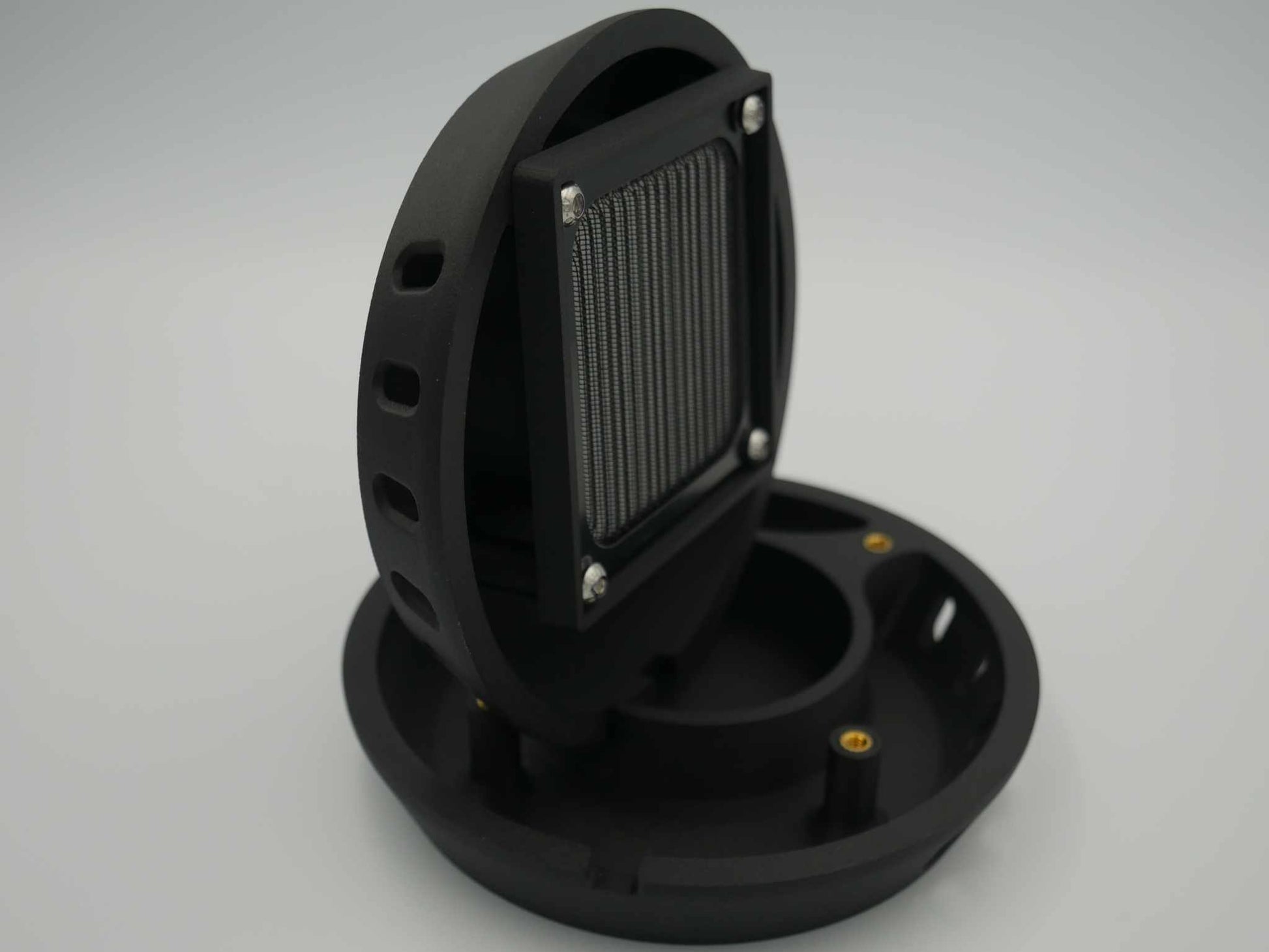

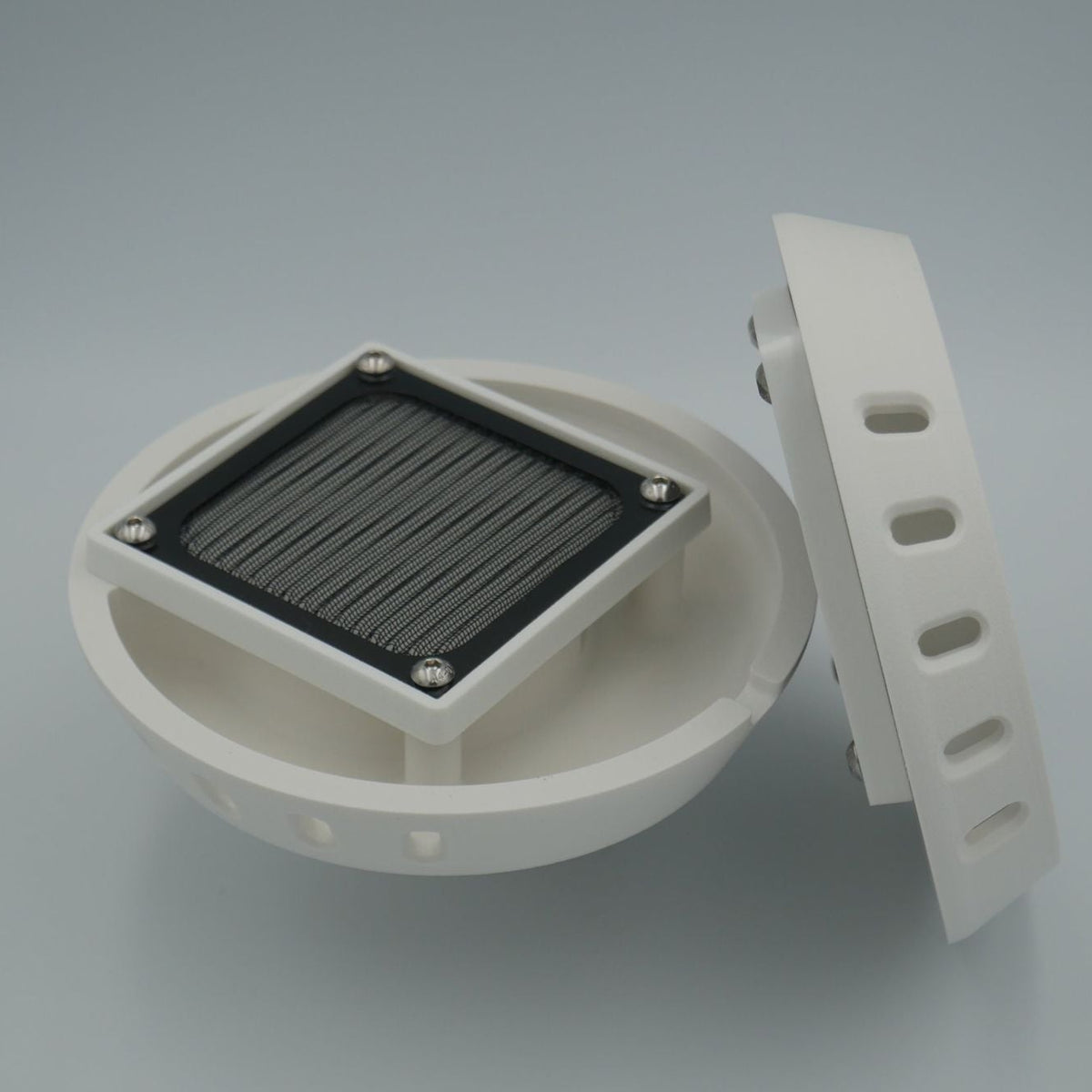

• Filters and screens are removable from inside the canopy for cleaning or replacement
• A single 76 mm round cutout per vent — a standard hole saw size
• One reversible template covers both the driver's and passenger's side
• Australian made, with free postage Australia-wide

How it works

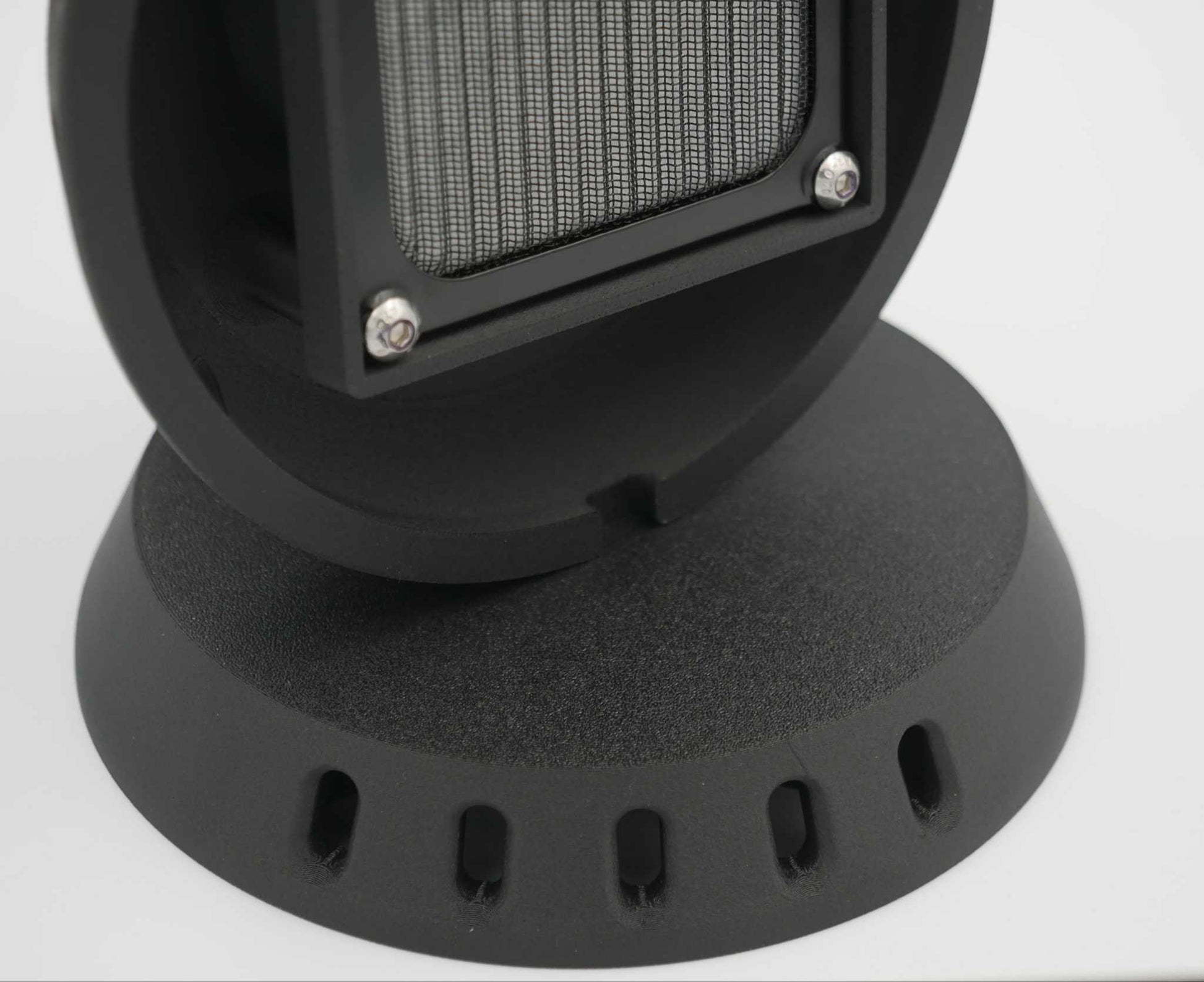

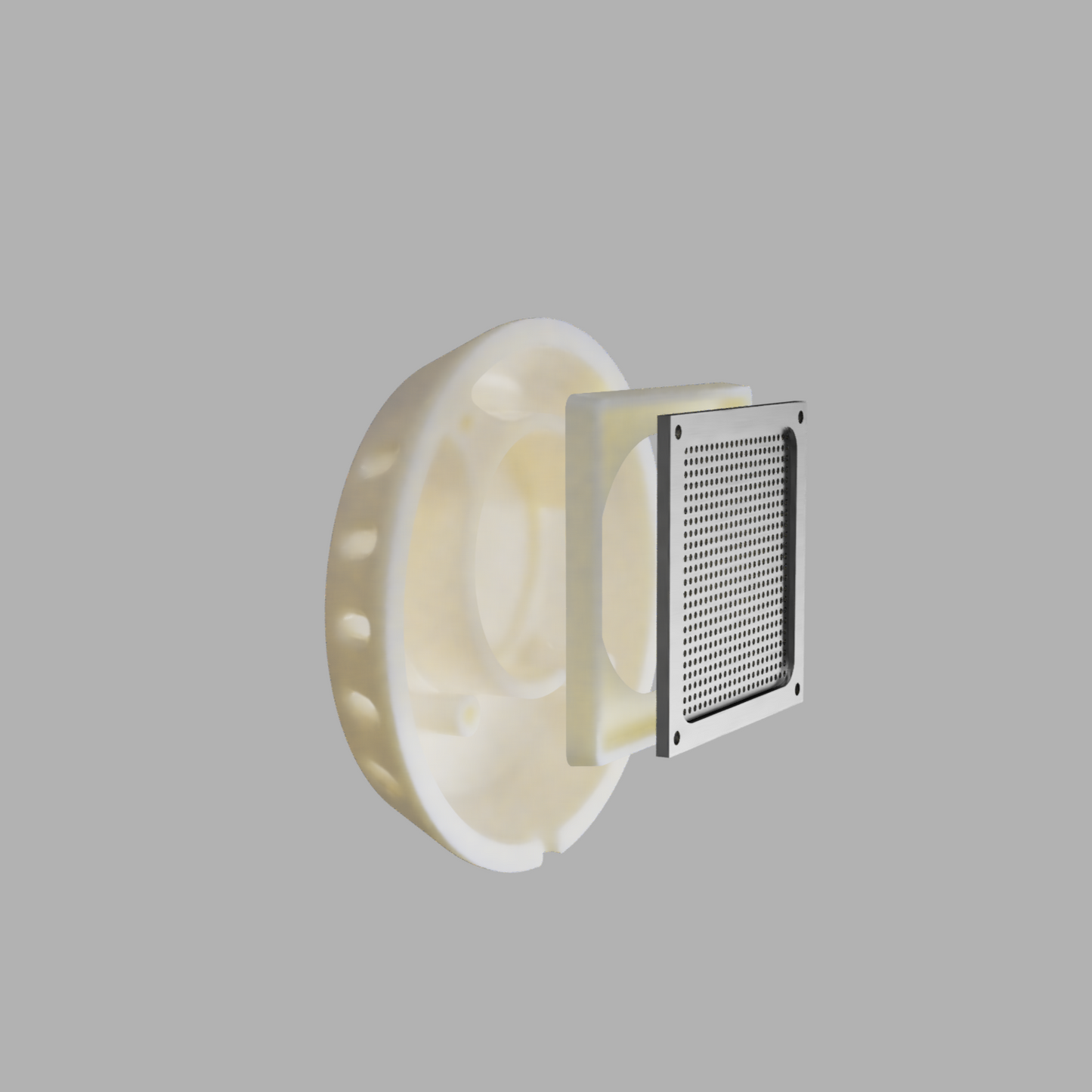

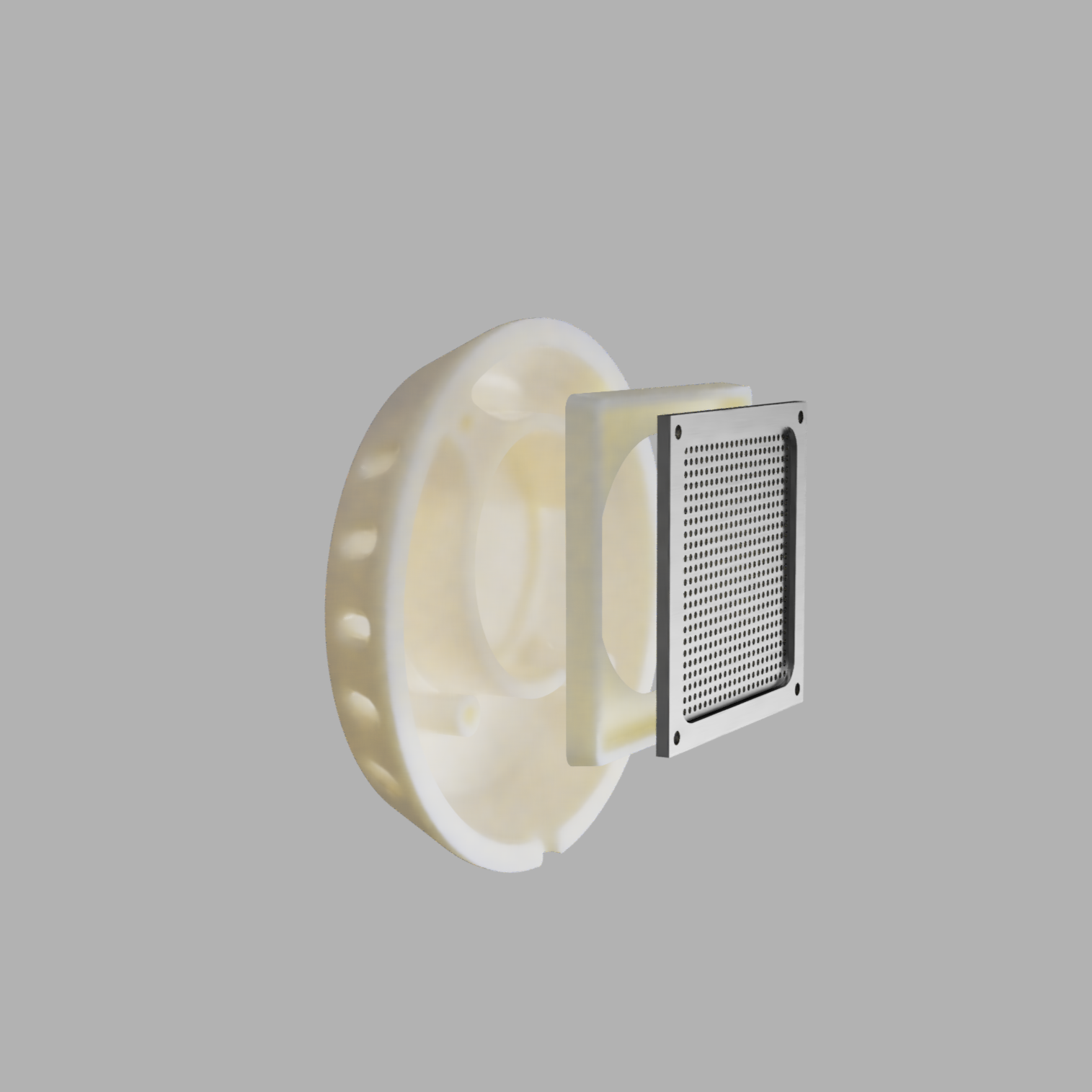

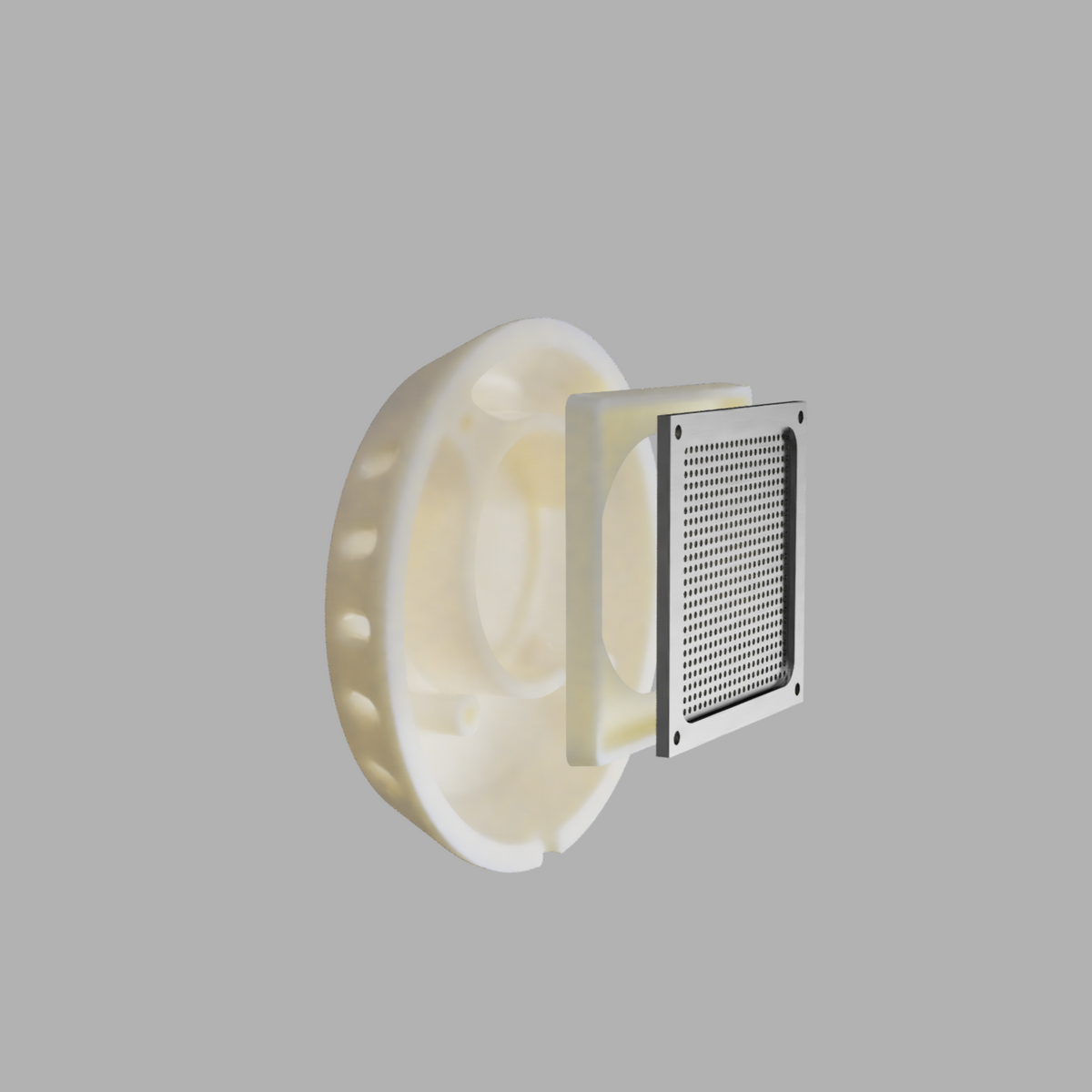

The intake holes sit around the outer edge of the circular face. As the vehicle moves, air is forced through them, past the screen and filter, and into the canopy. The screen catches larger debris and insects while the filter takes out fine dust, and anything that collects drains back out rather than running inside.

Because it is an intake, it works best with an exhaust elsewhere in the canopy so air has somewhere to go.

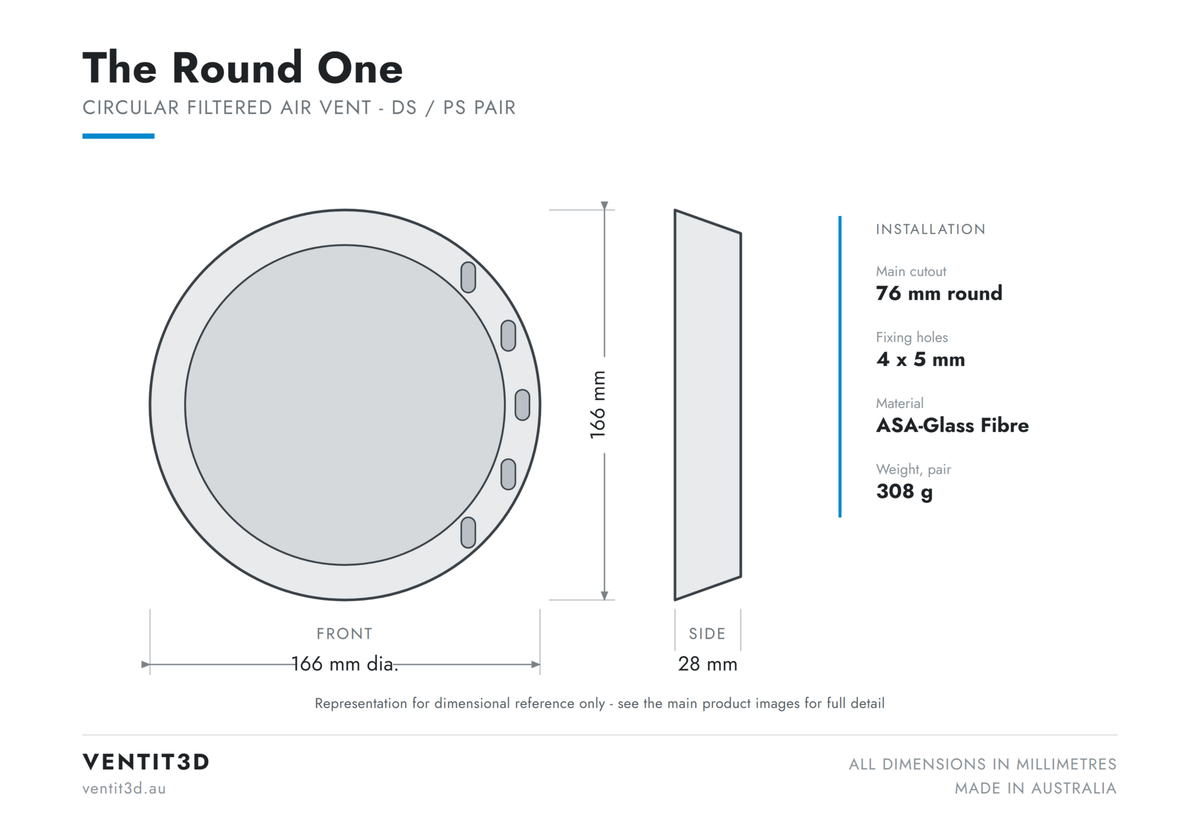

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black, or white by request
• External dimensions: 166 mm diameter x 28 mm deep
• Main cutout: 76 mm diameter, round
• Fixing holes: 4 x 5 mm per vent
• Weight: 308 g for the pair, including filters and screens
• Fixings: 8 x stainless steel M5 bolts

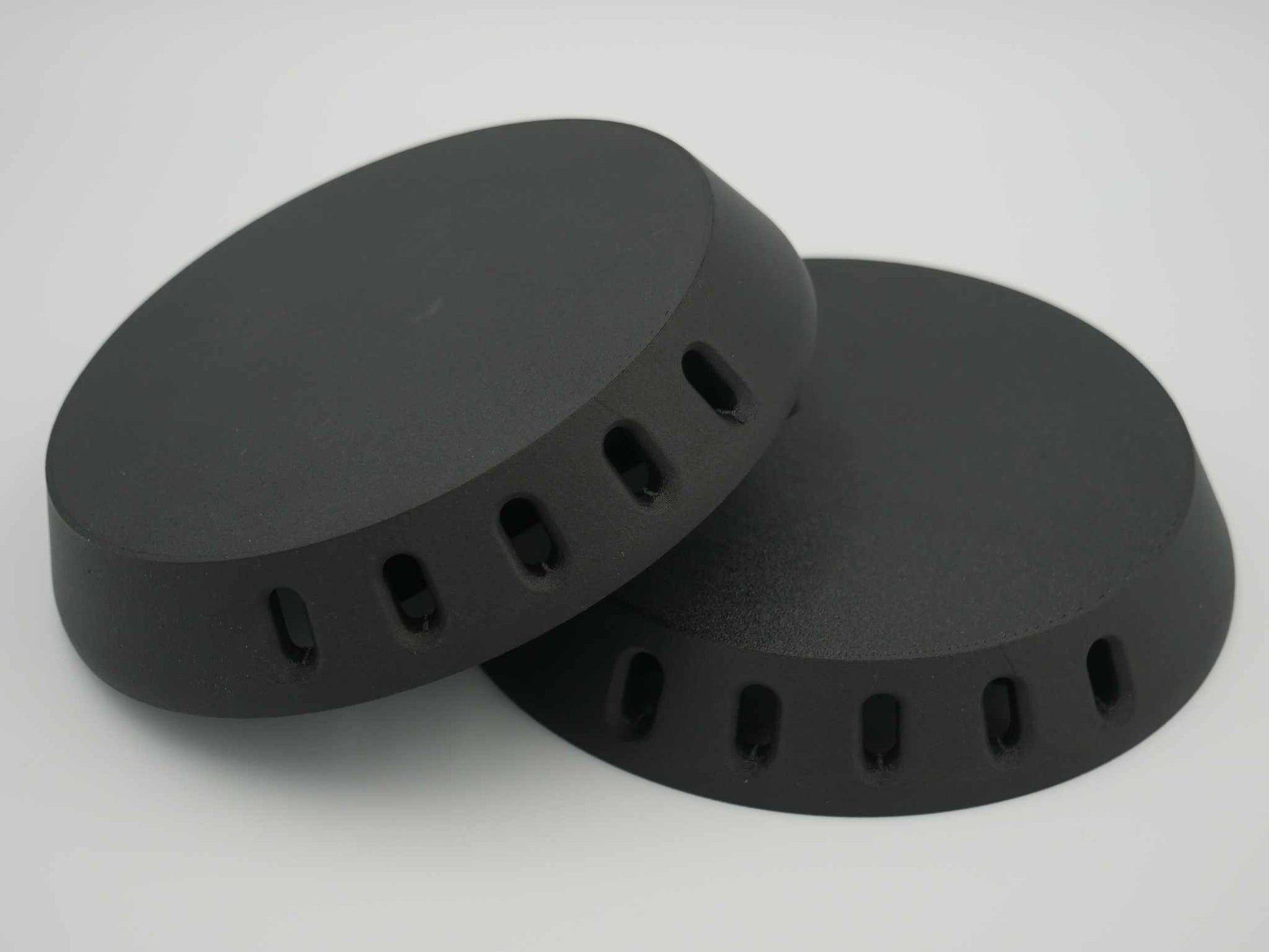

• Supplied as: a driver's side and passenger's side pair

What's included

• 1 pair (driver's side and passenger's side) air vents
• 2 x screen
• 2 x filter
• 2 x screen and filter housing
• 8 x stainless steel M5 bolts
• 1 x reversible template for hole marking, covering both sides
• Instructions

Fitting

A single reversible template is supplied — flip it over to mark the opposite side — so the 76 mm round cutout and the four 5 mm bolt holes can be marked accurately before you cut. A standard 76 mm hole saw suits the main opening. Printed instructions are included in the box.

Often bought with

• The Mini — rear-mount exhaust to complete the cross-flow
• The Original — the square-faced version of the same vent
• The Crossflow — intake and exhaust in one pair, for canopies with no rear wall space

Important to note

Any opening cut into a canopy has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What makes The Round One air vent different from other vehicle vents?

The Round One is a circular version of the original vertical mount air vent, designed specifically for Ute canopies to improve airflow and water drainage. Made from tough, UV-resistant ASA-Glass Fibre, it combines durability with a sleek, lightweight design suitable for harsh Australian conditions.

How easy is it to install The Round One air vent on my Ute canopy?

Installation is straightforward with the included templates, stainless steel M5 bolts, and detailed instructions. The kit also features removable screens and filters to maximise airflow and water drainage, ensuring a secure fit on both driver and passenger sides.

What is the main purpose of The Round One air vent?

The Round One air vent is designed for use on the sides of Ute canopies, allowing air to be forced in and water to drain out, helping to improve airflow and ventilation.

What materials are used in The Round One air vent?

The Round One air vent is made from tough, lightweight, and UV resistant ASA-Glass Fibre, ensuring durability and heat resistance in harsh conditions.

Does The Round One come with all necessary installation components?

Yes, it includes 2 screens, 2 filters, 2 screen and filter housings, 8 stainless steel M5 bolts, templates for hole marking, and installation instructions for easy setup.

Can I customise the colour of The Round One air vent?

The standard colour is black, but white is available upon request, providing options to match your vehicle's look.

Is there a cost for shipping The Round One air vent within Australia?

Shipping is free Australia-wide, making it convenient and affordable to purchase The Round One air vent.
