Single Anderson Mount

A tough, flush-mount housing for a 50 amp Anderson plug, to finish off a canopy, caravan or trailer build properly instead of leaving a plug dangling on a lead.

This price includes the 50 amp Anderson plug itself plus pins — one housing purchased comes with one Anderson plug.

Label options

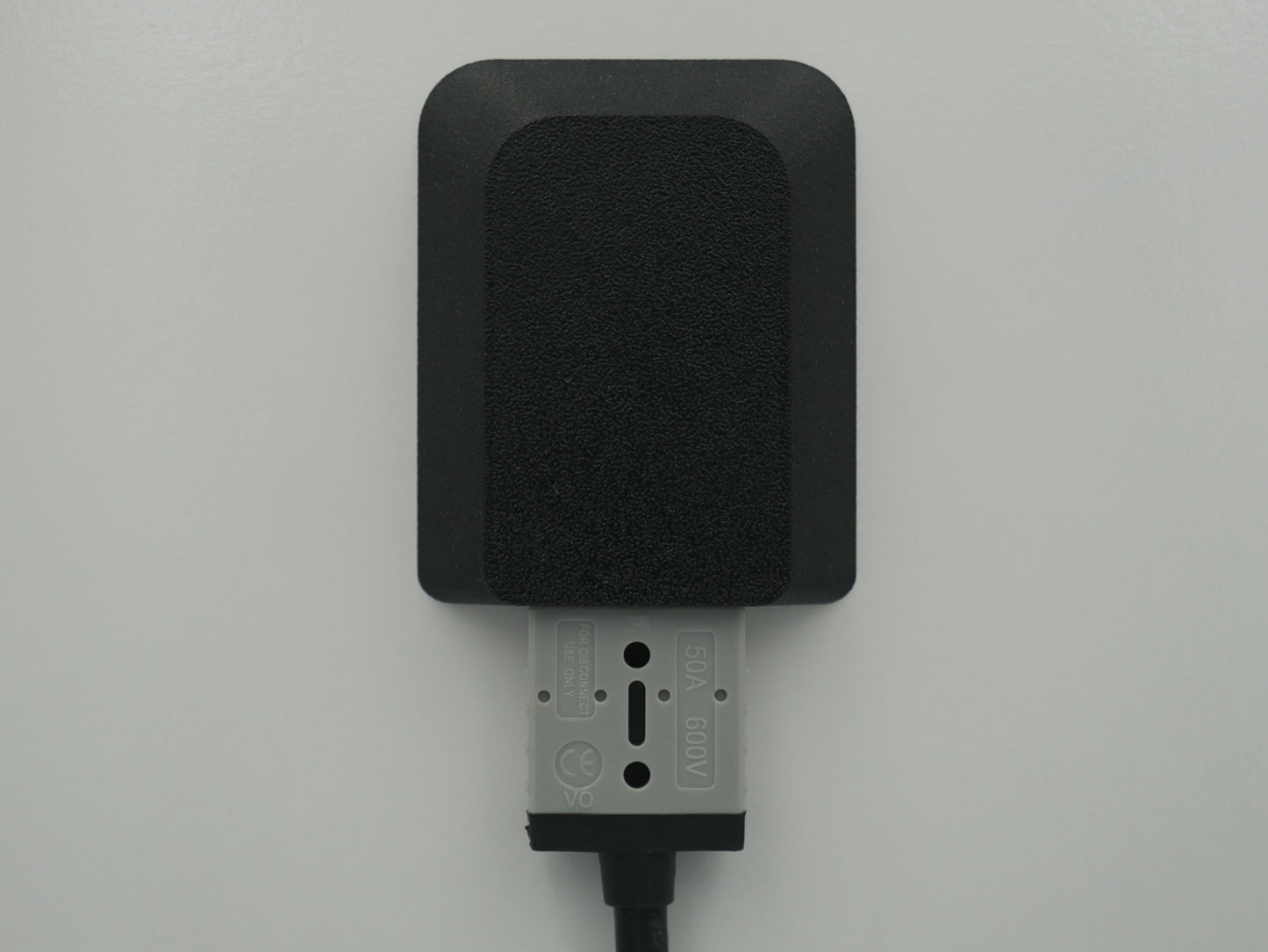

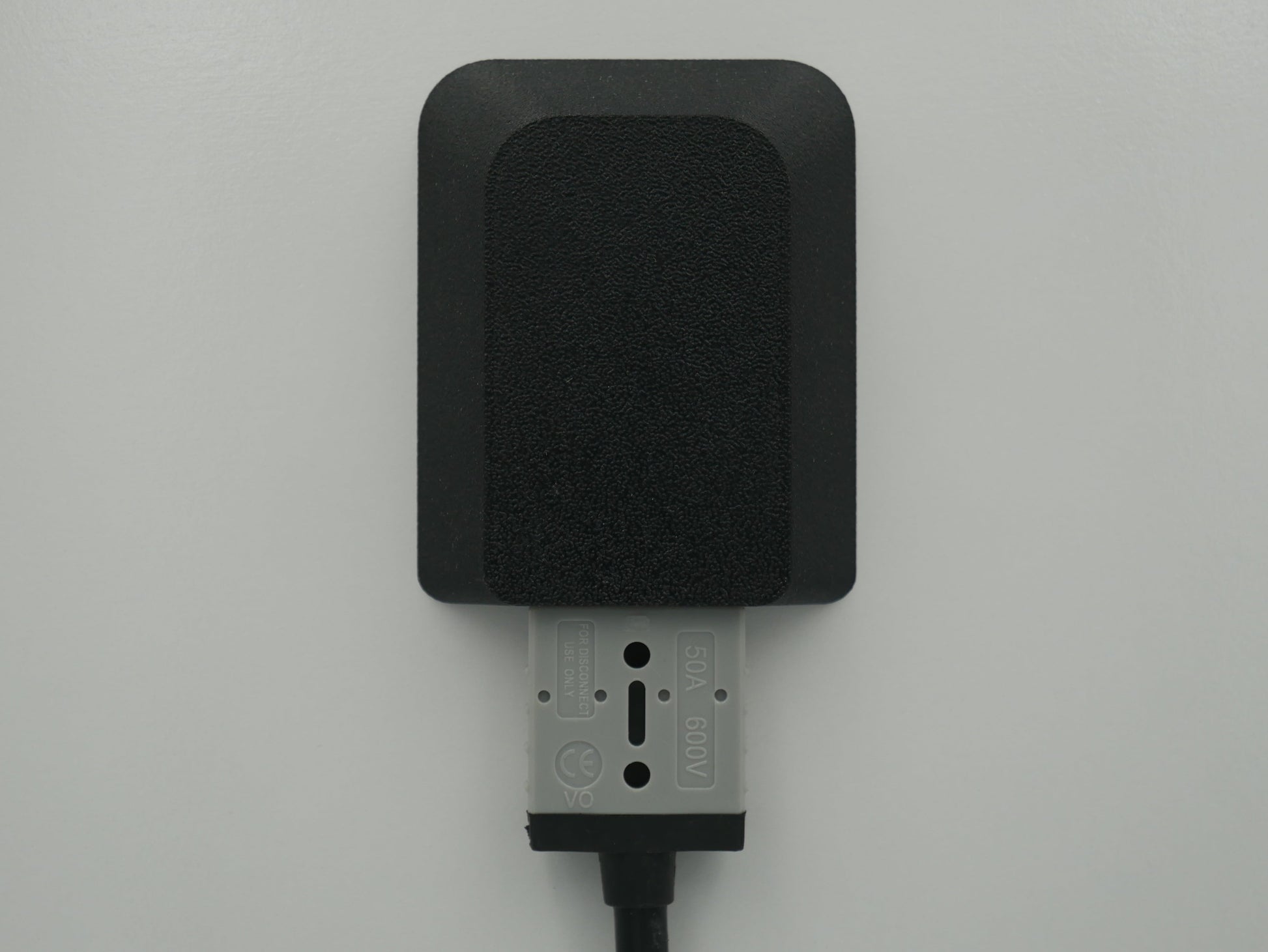

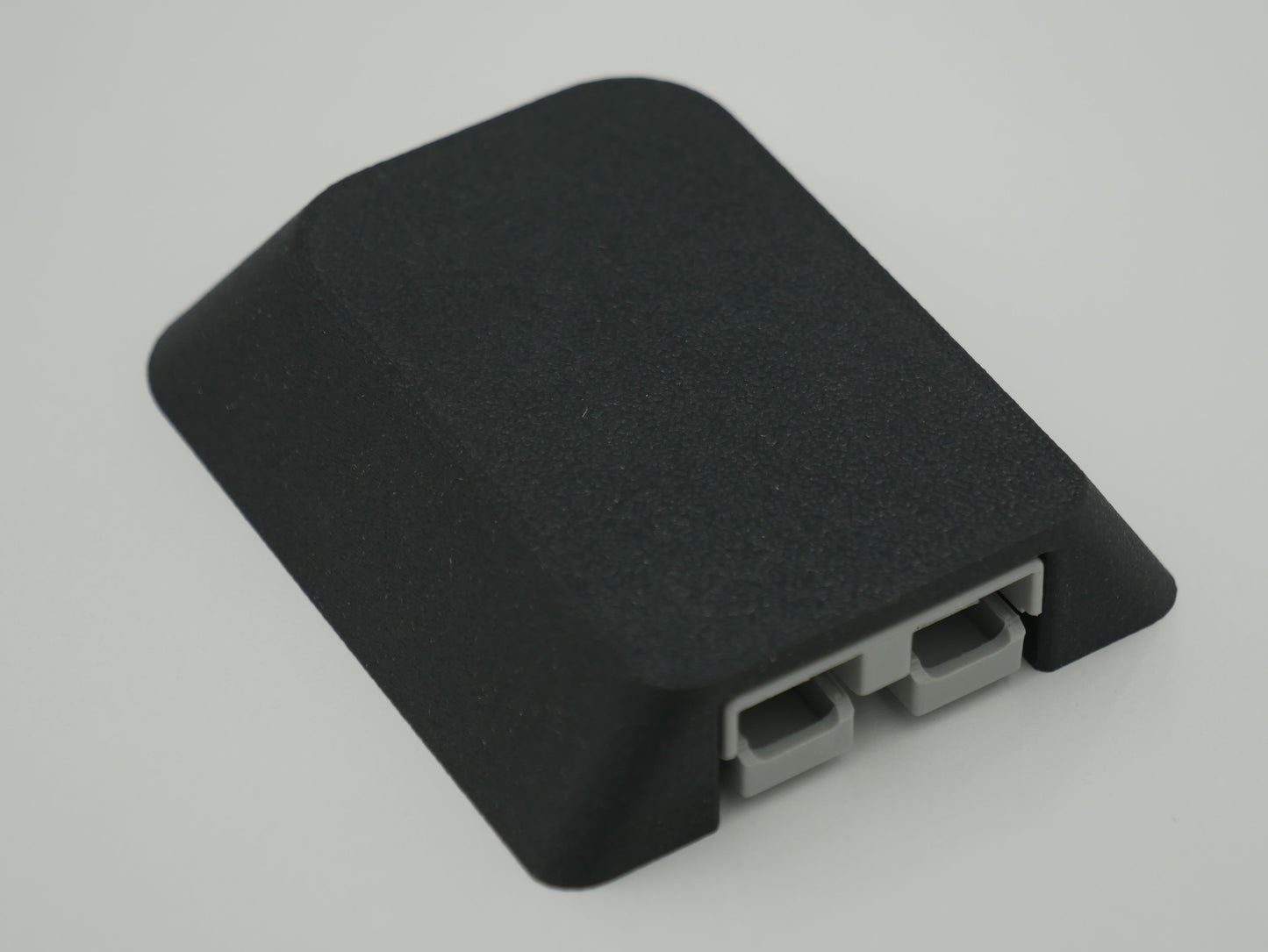

• Blank

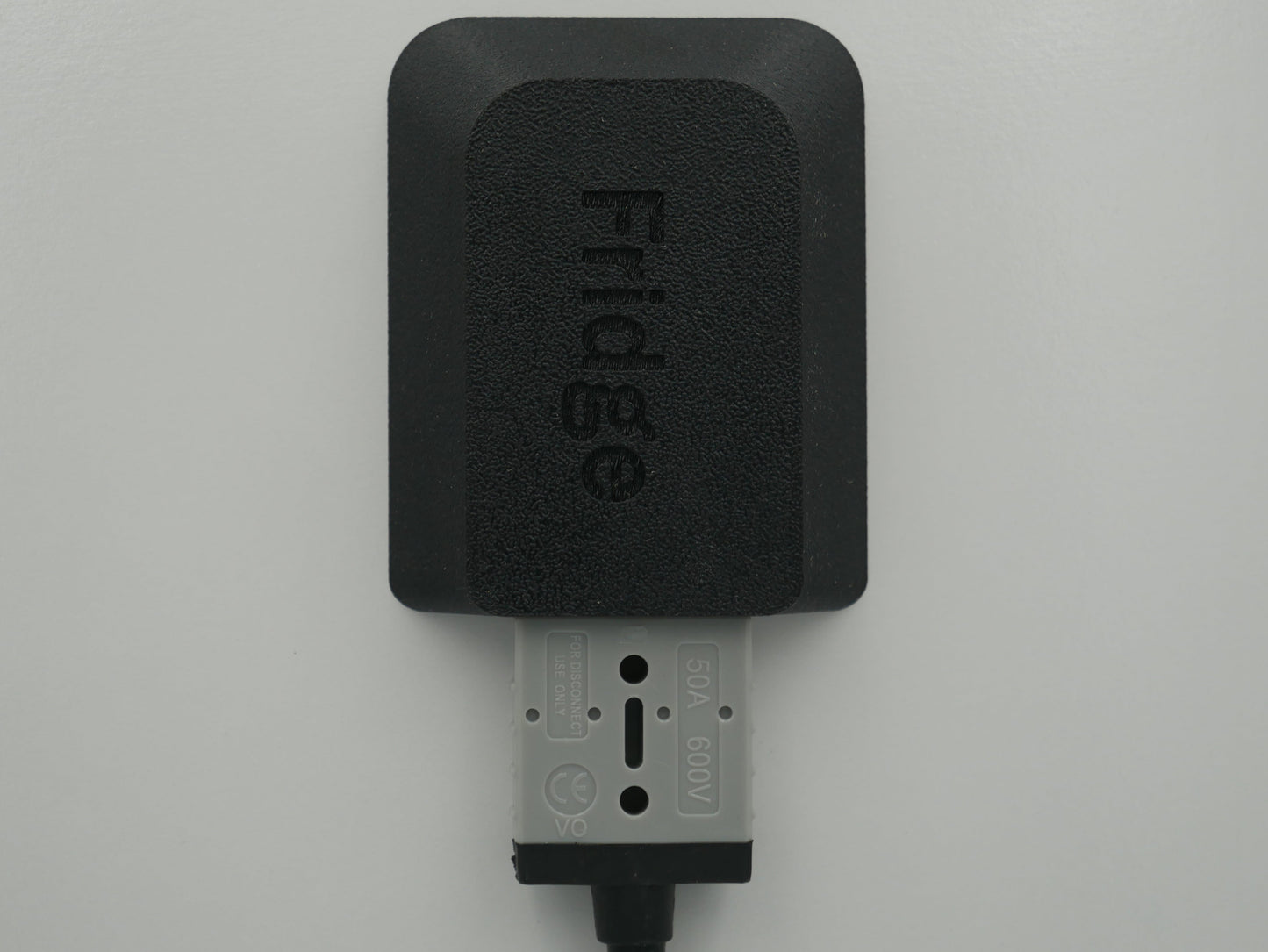

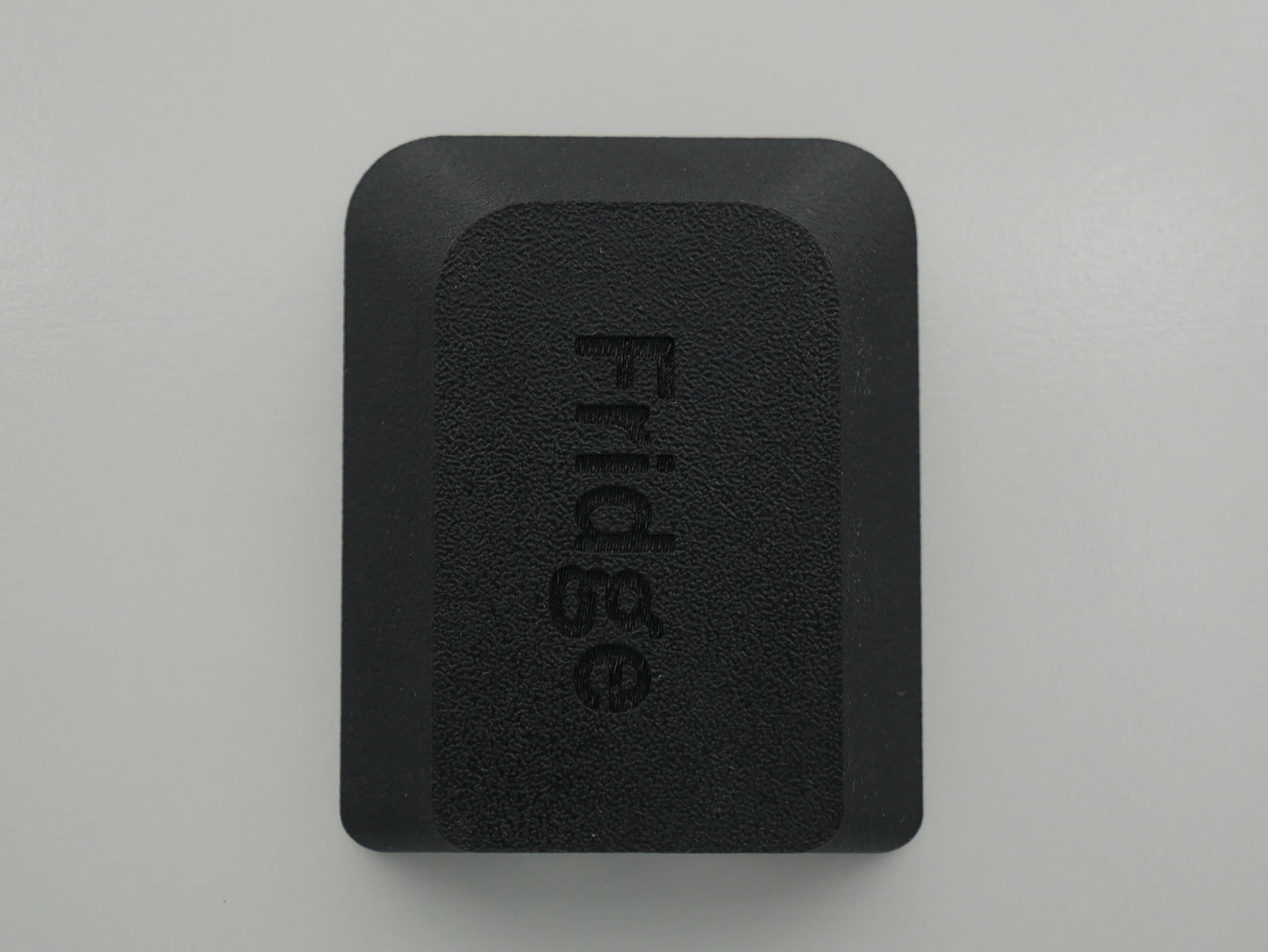

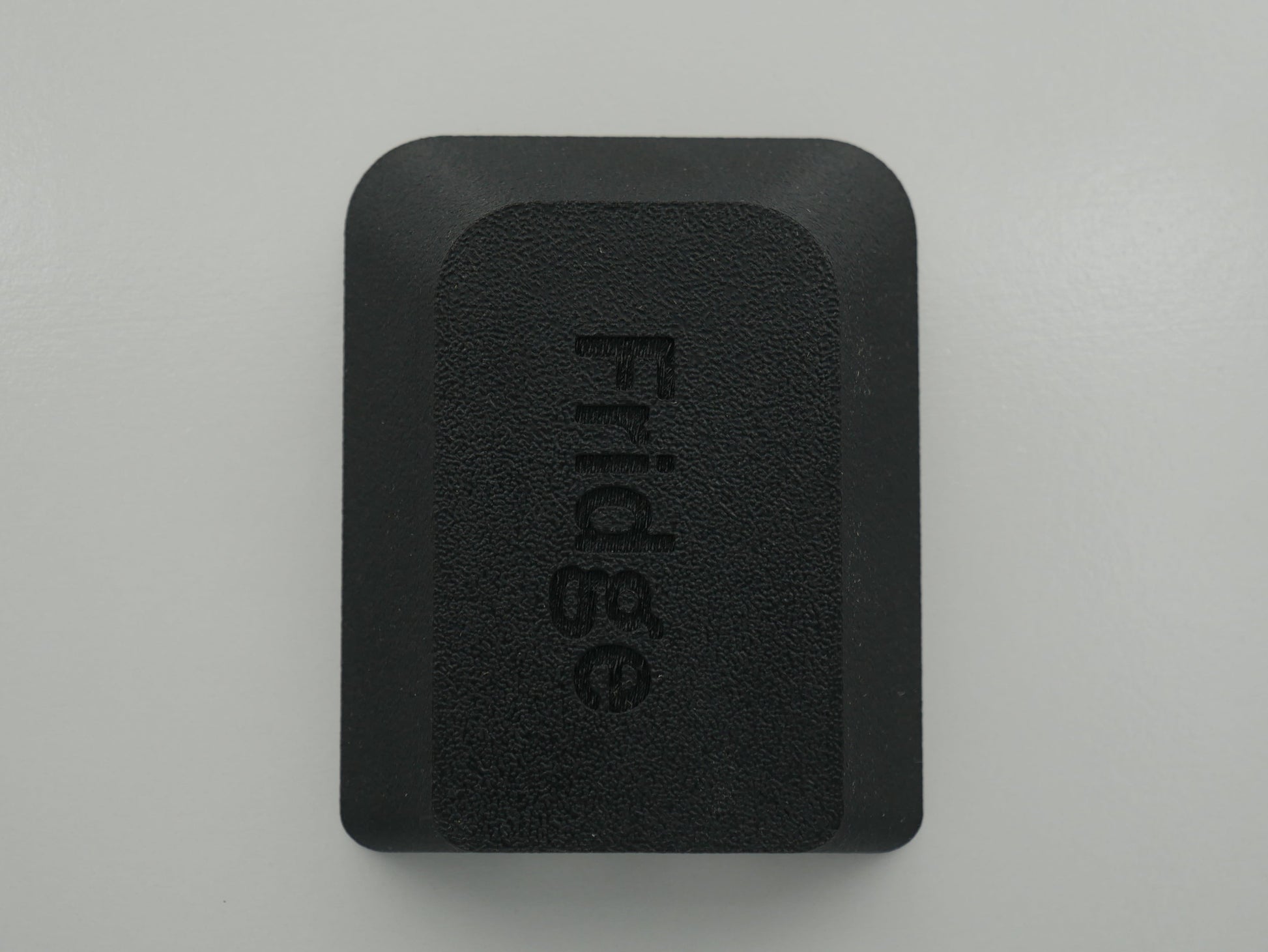

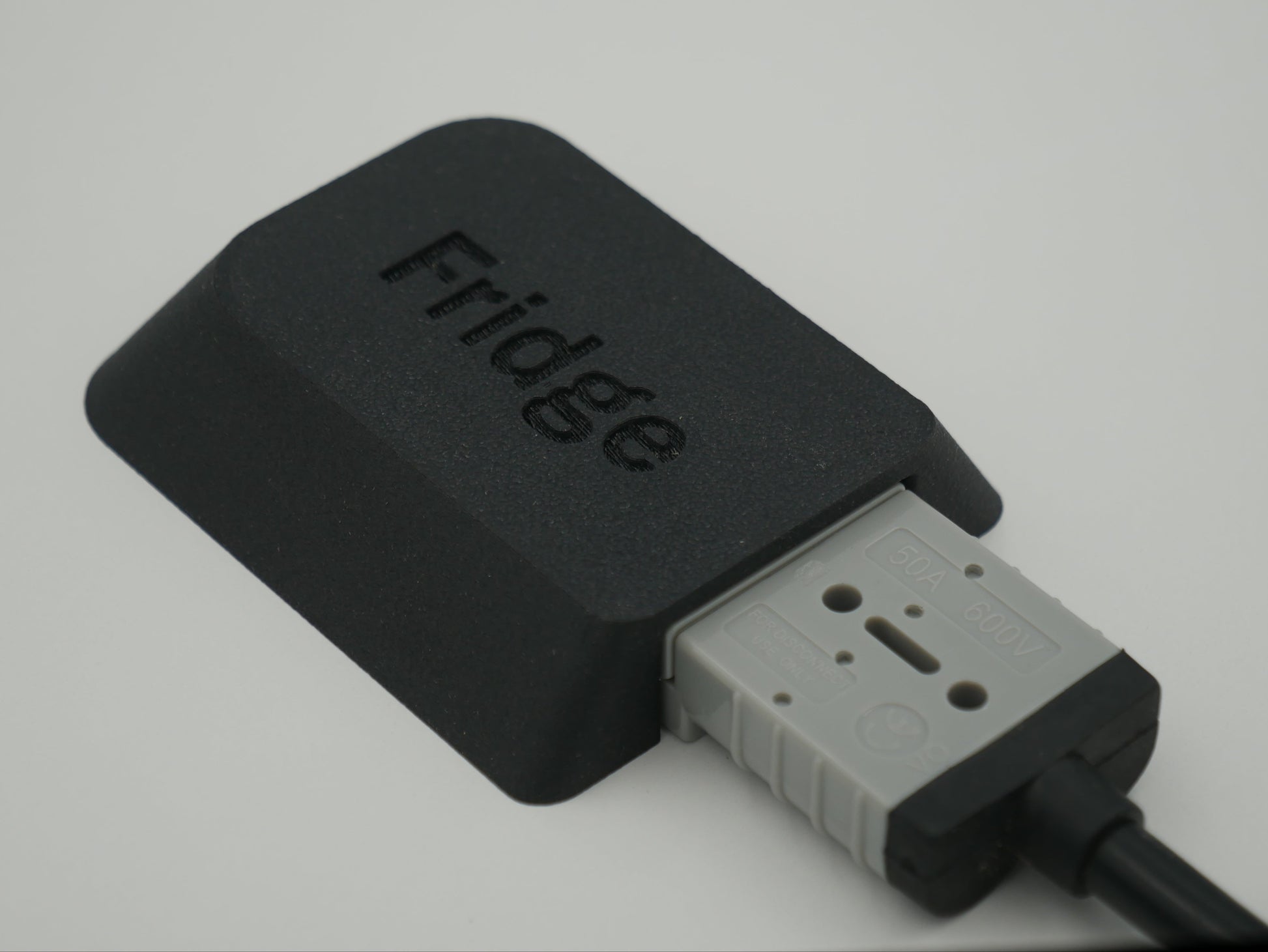

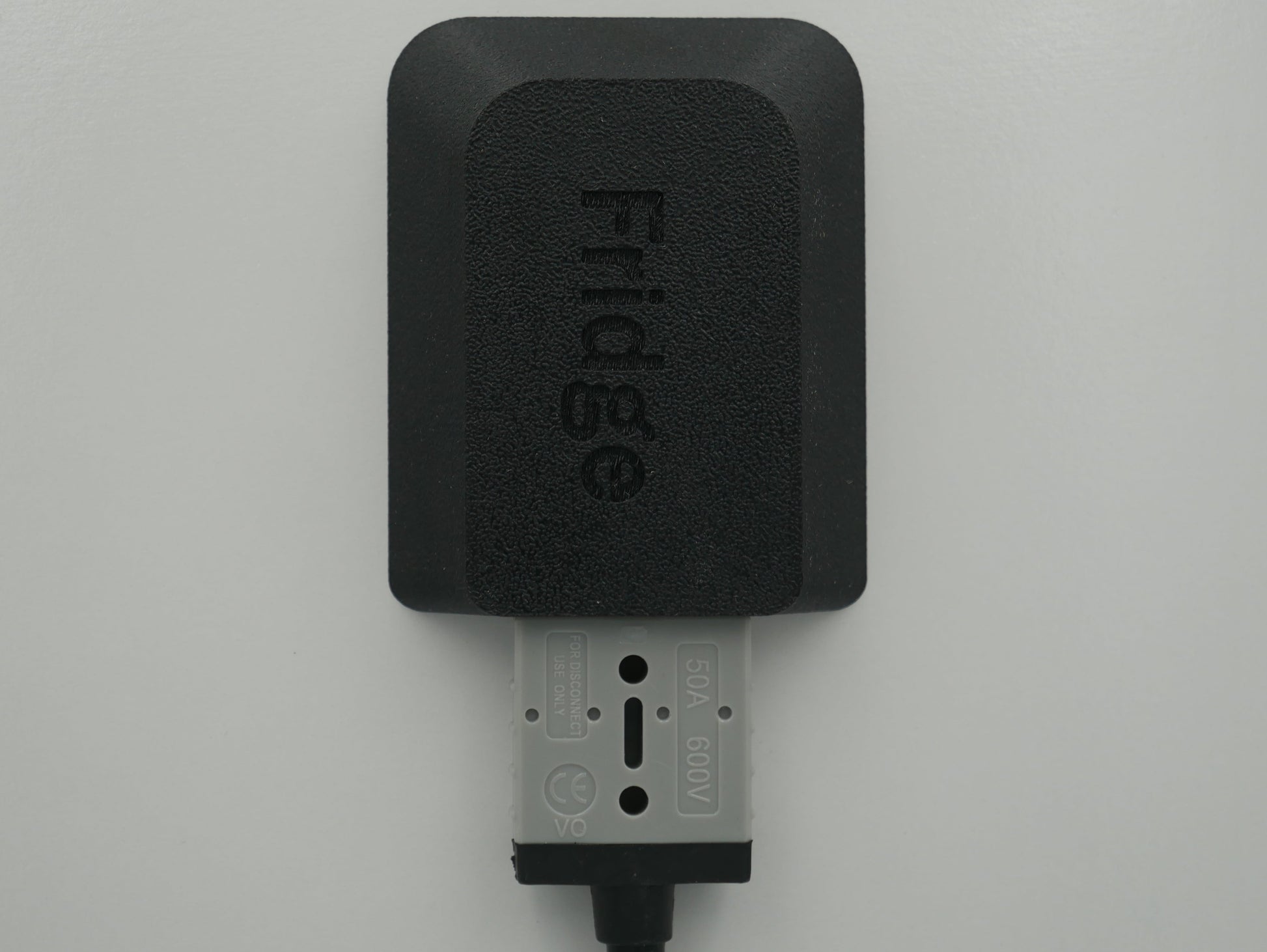

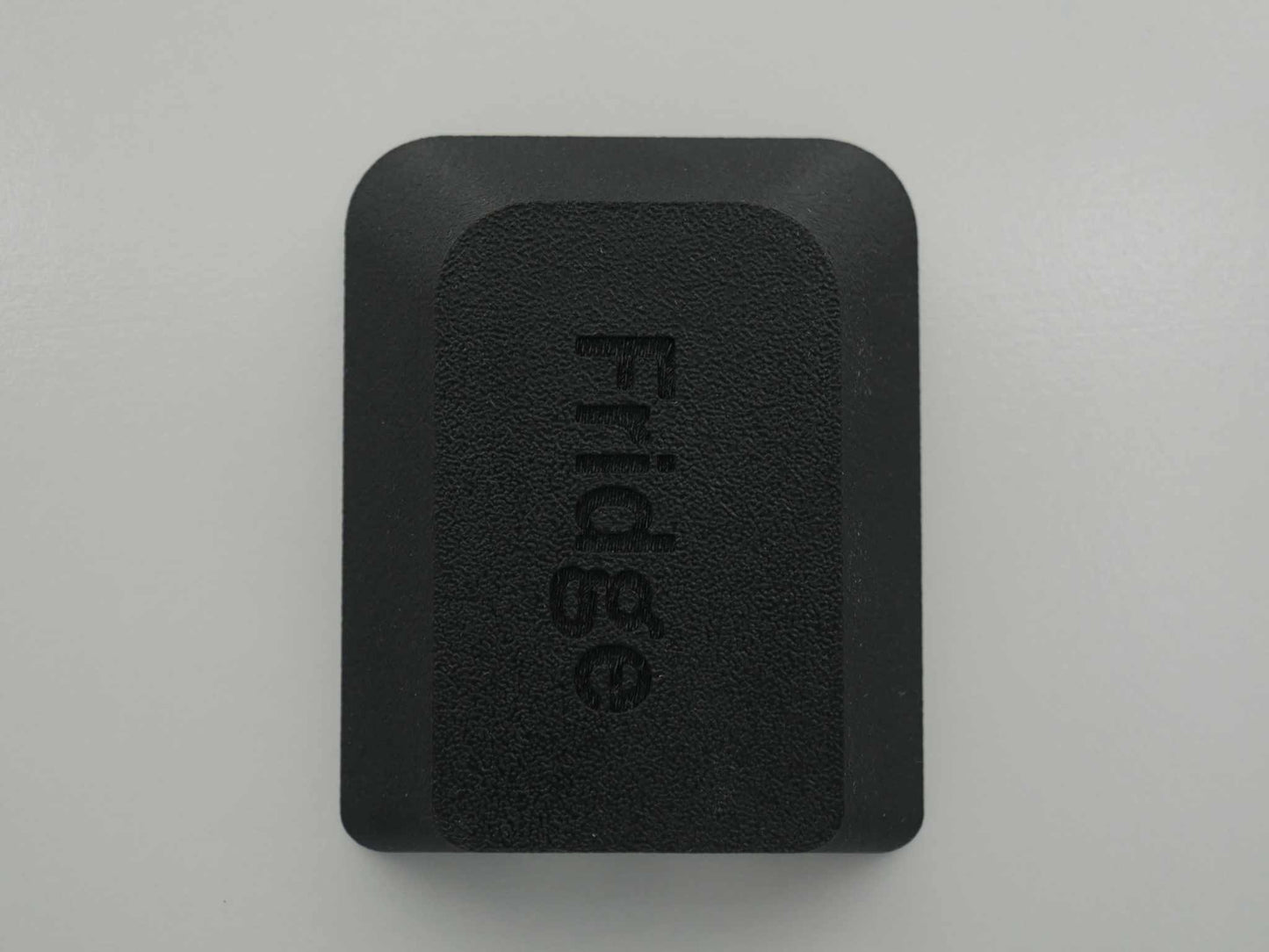

• Fridge

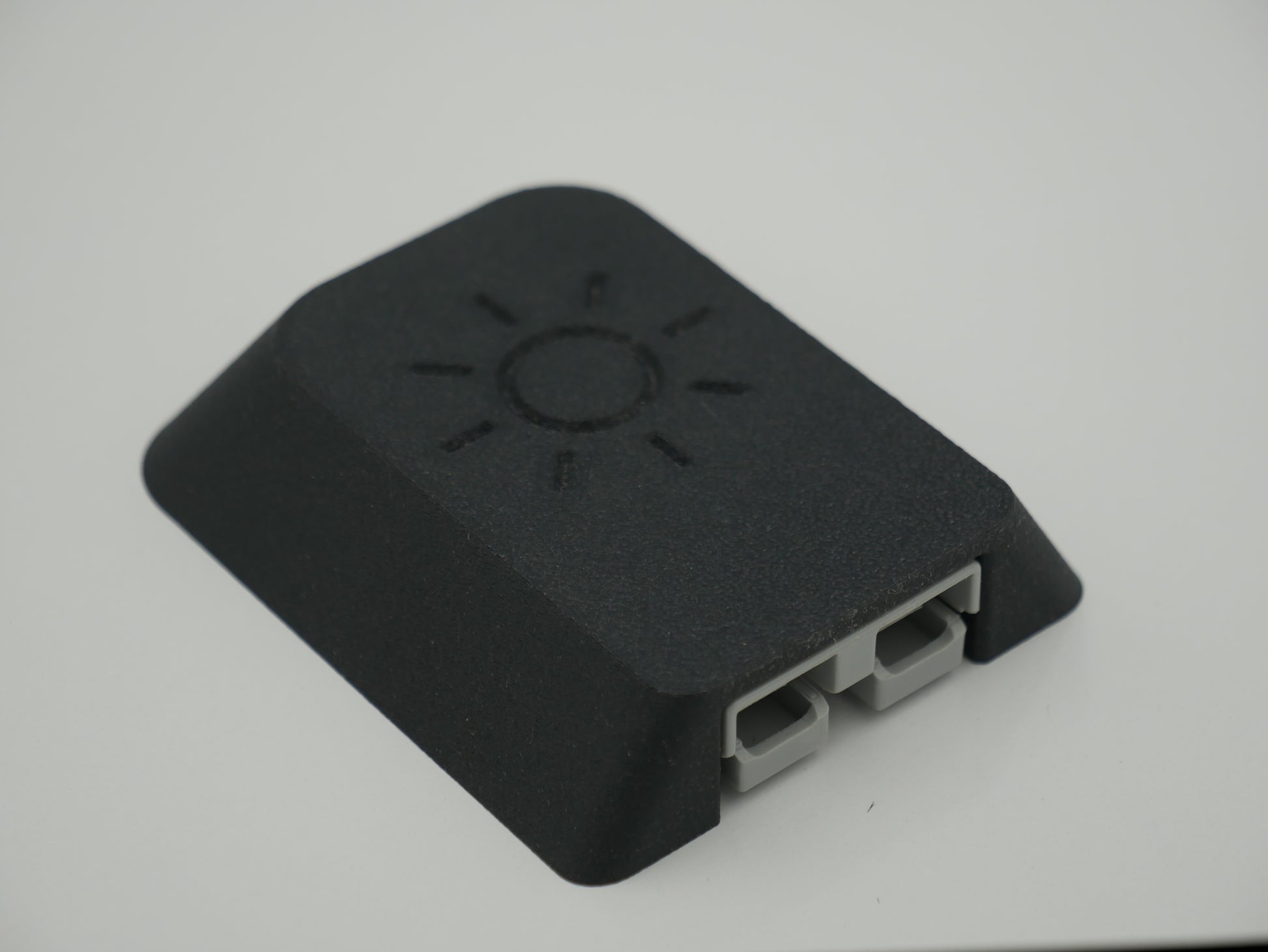

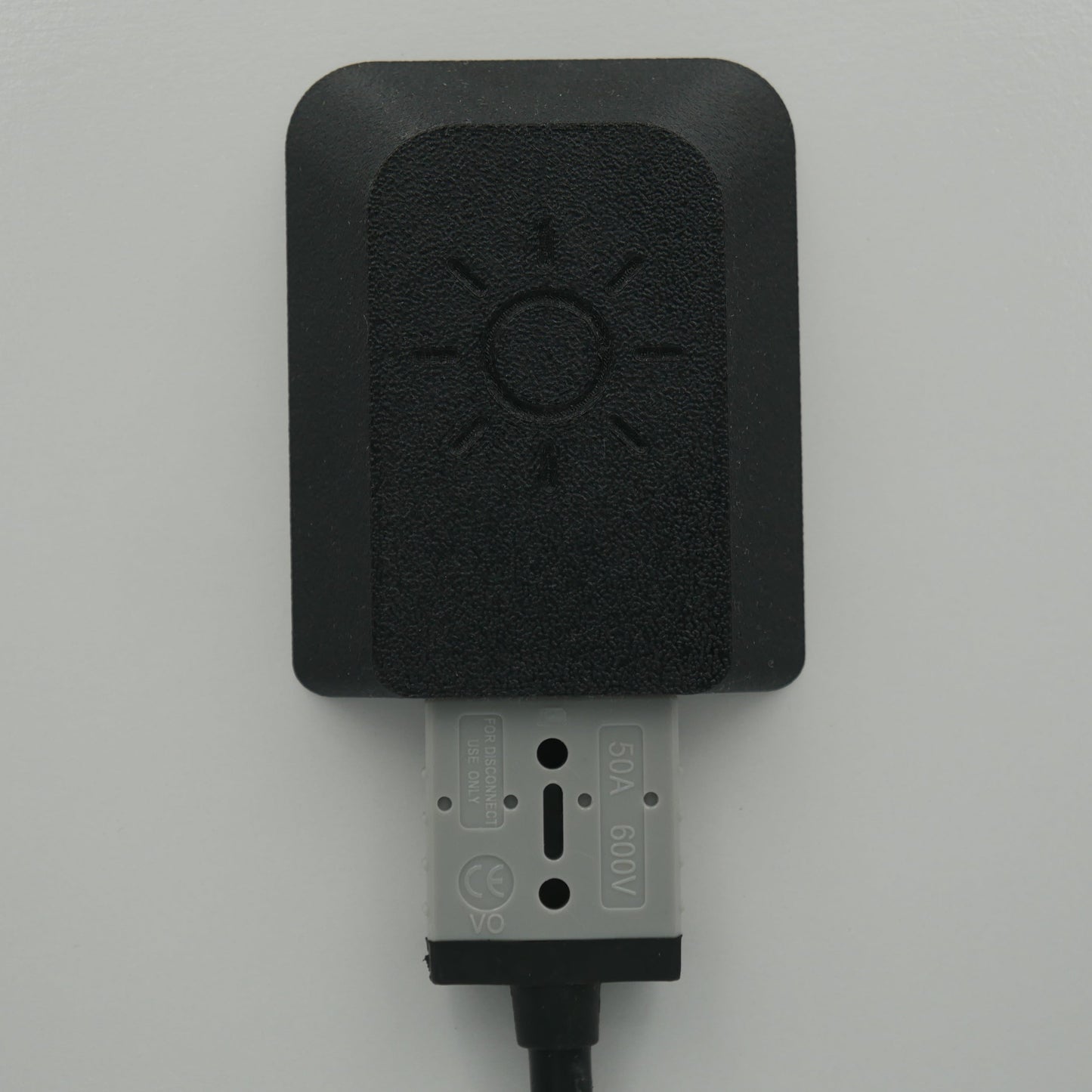

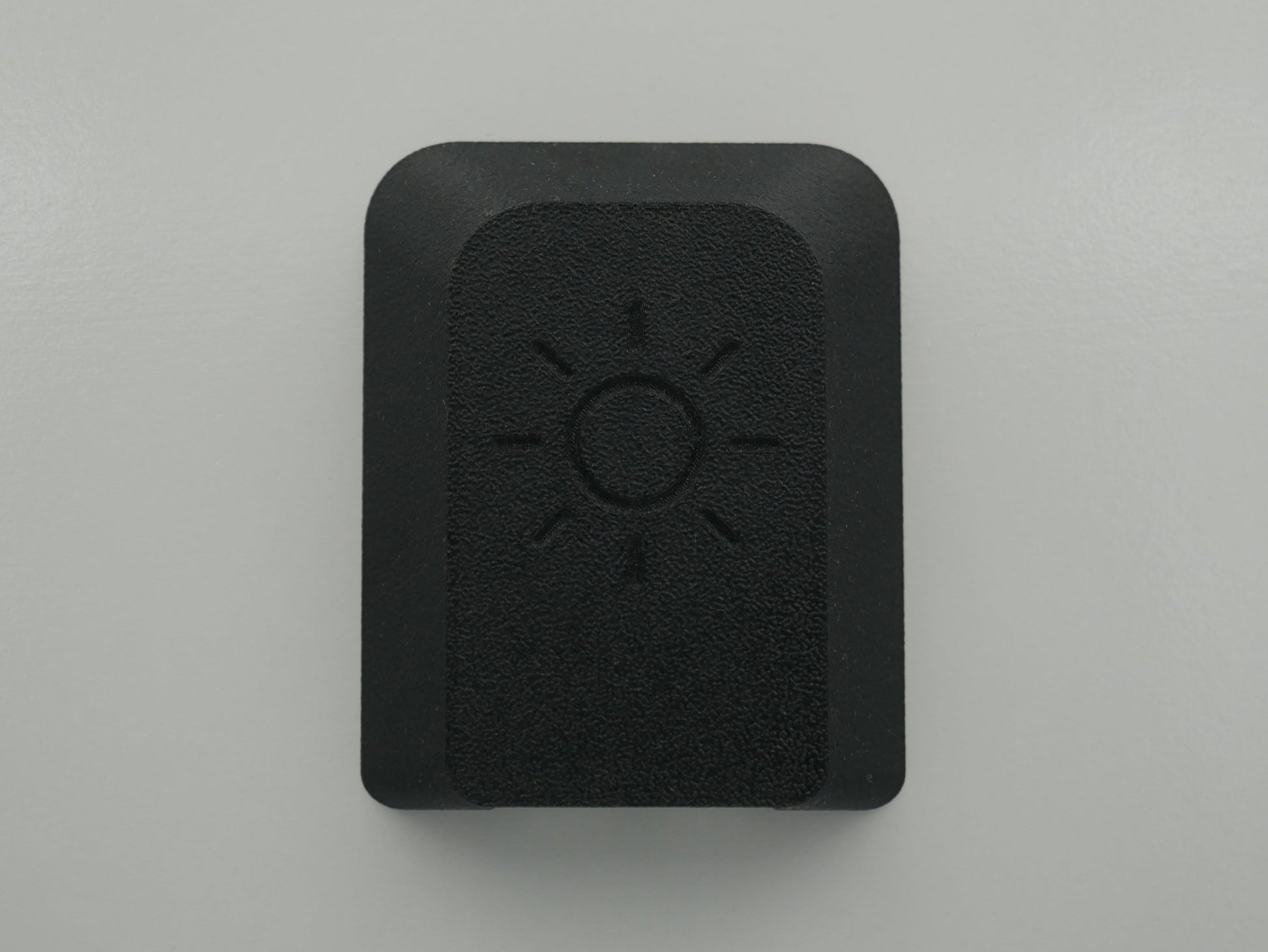

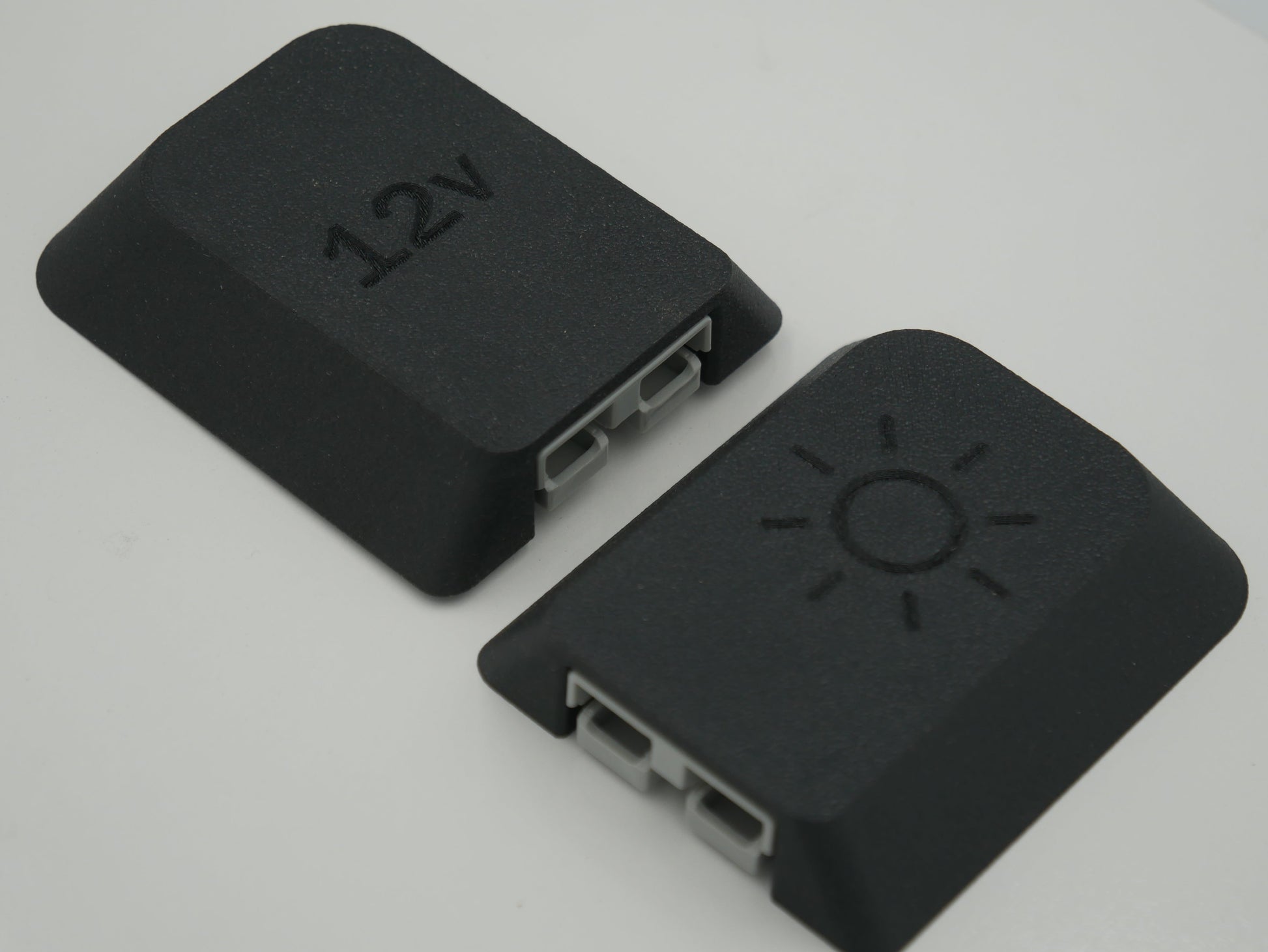

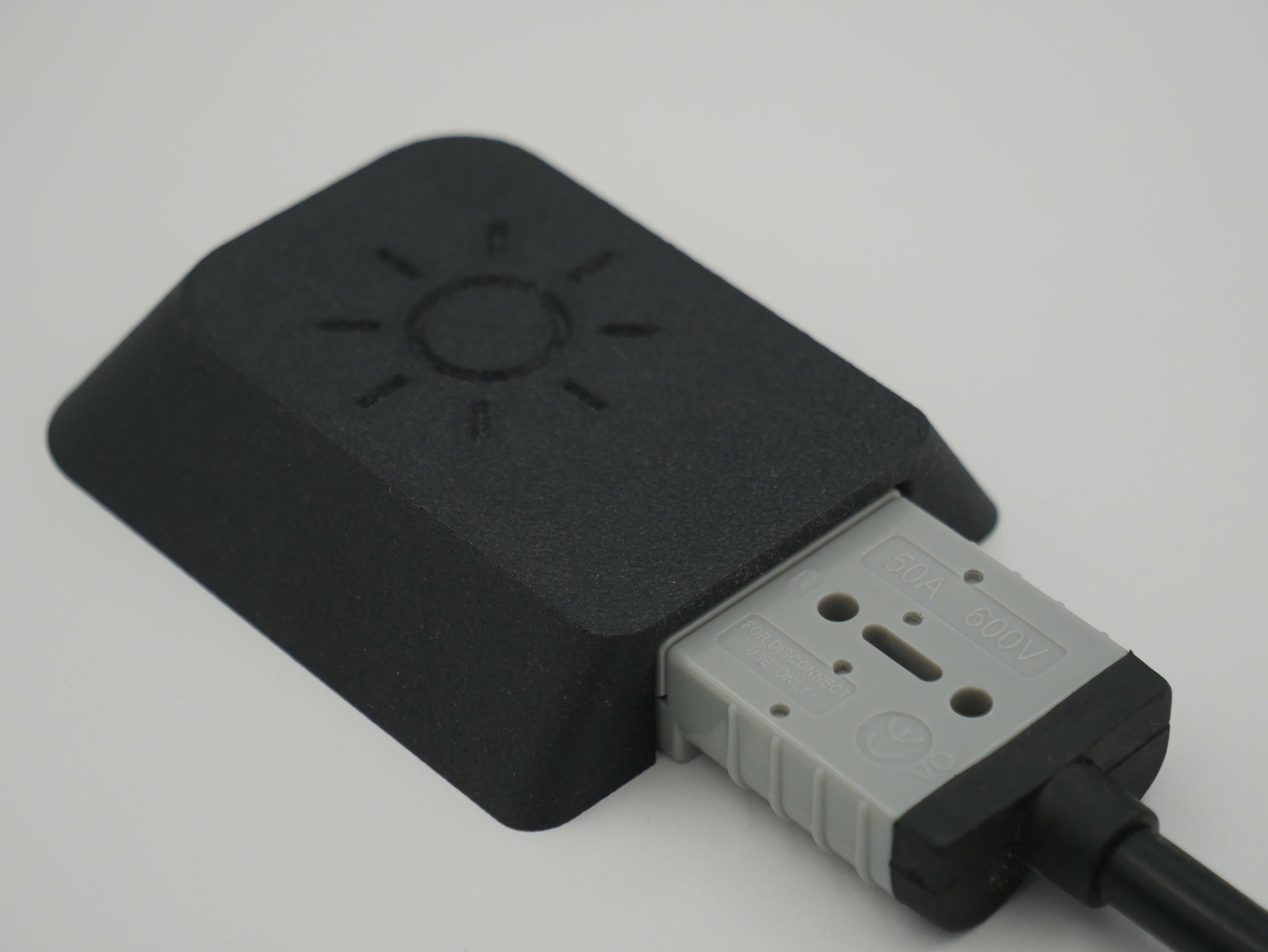

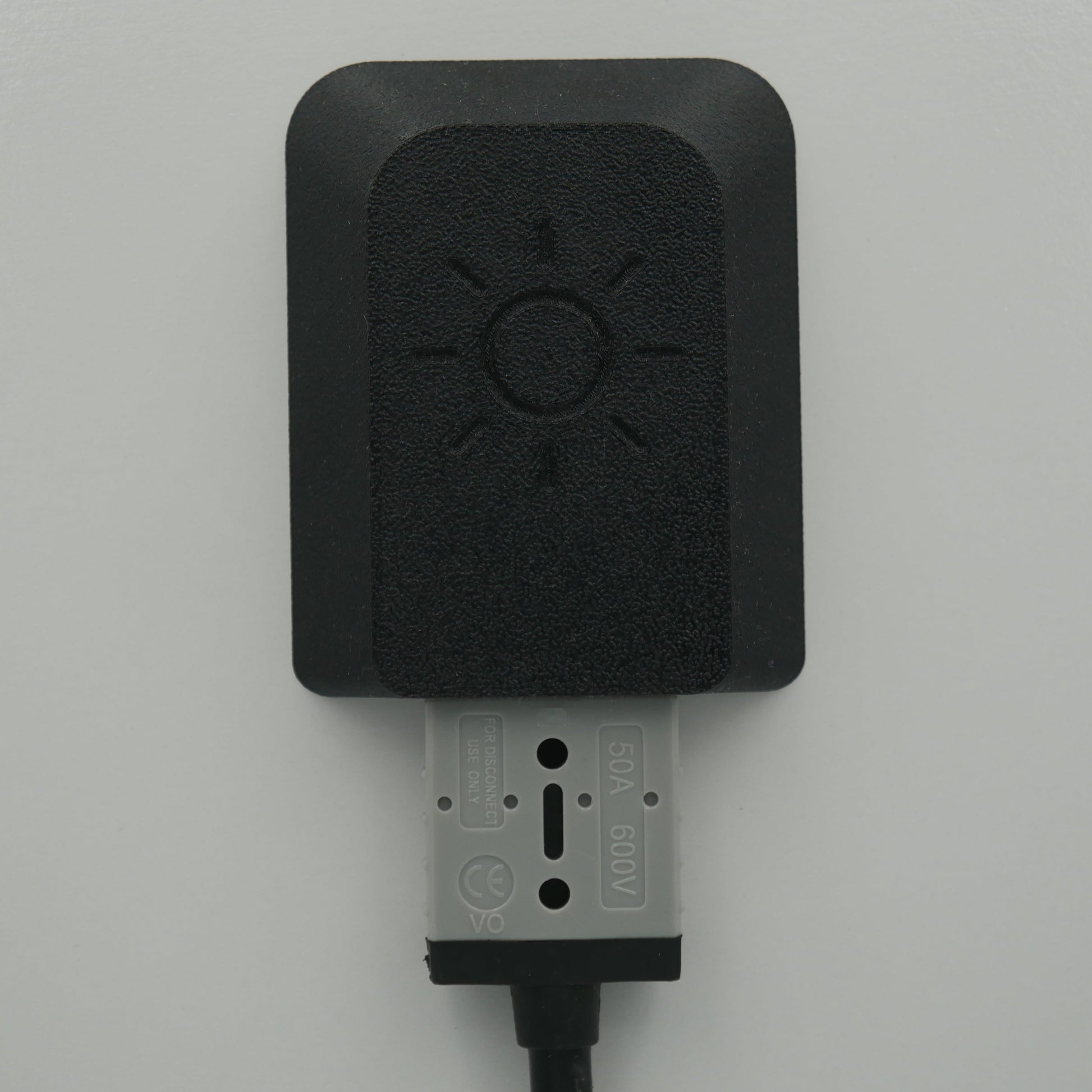

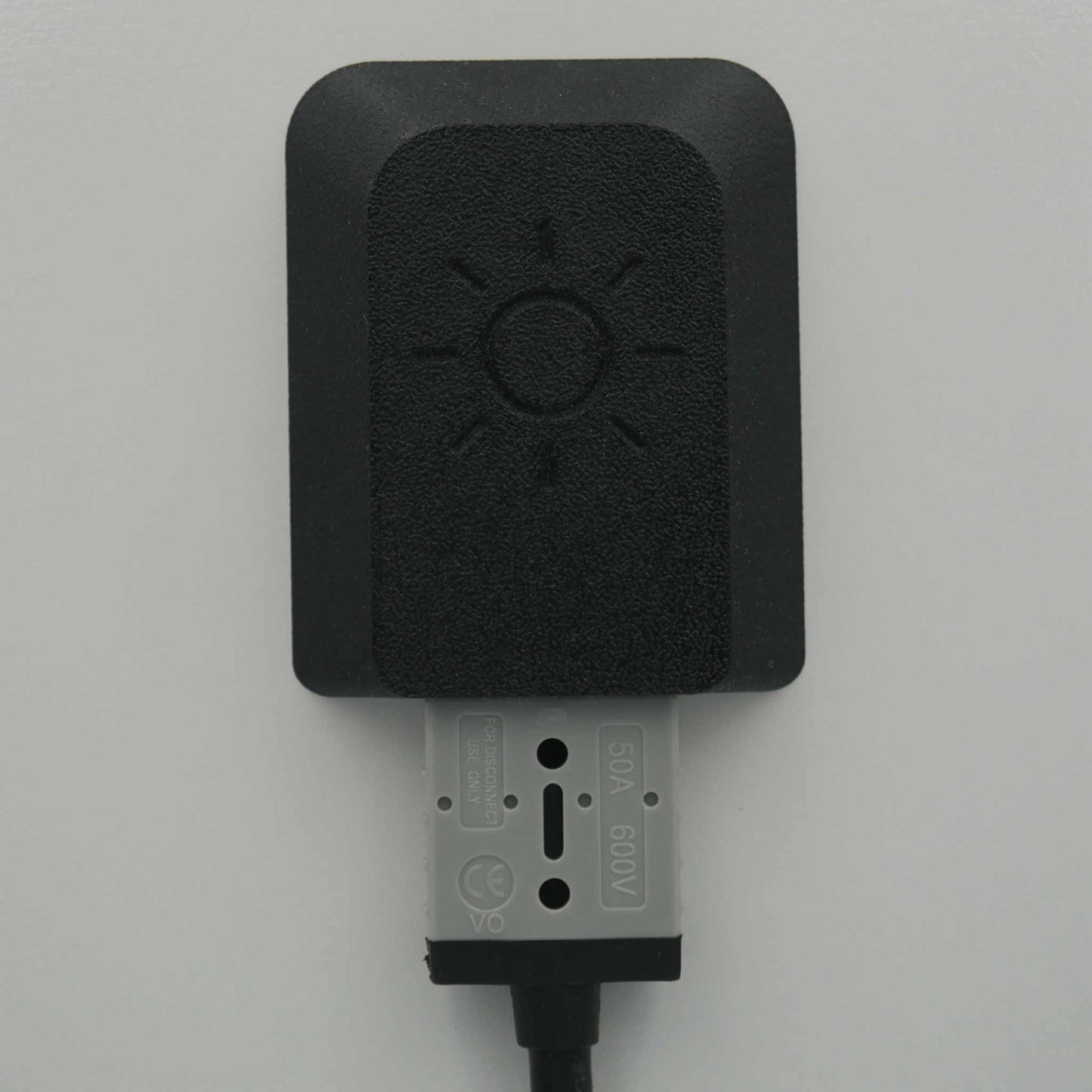

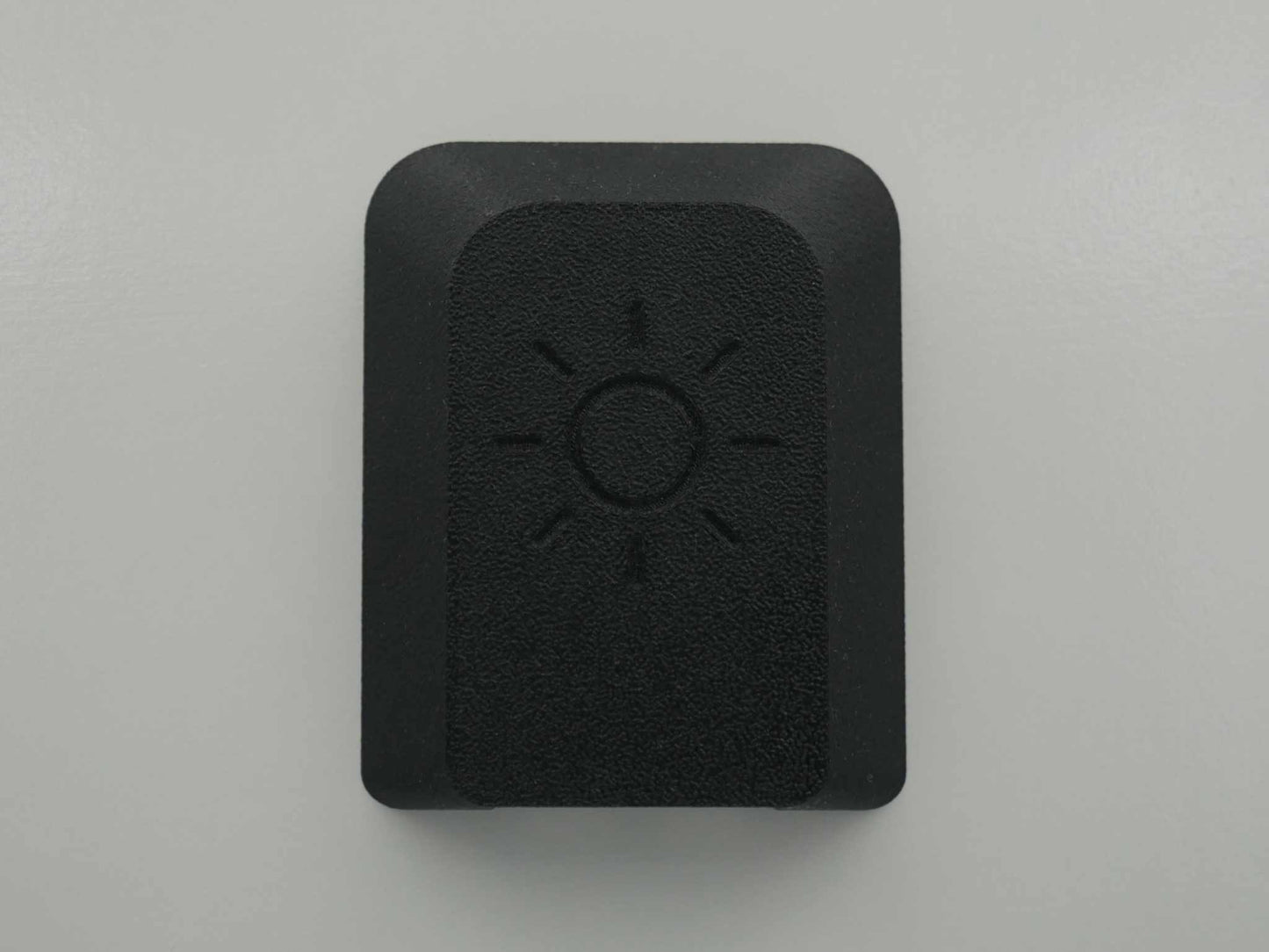

• Solar

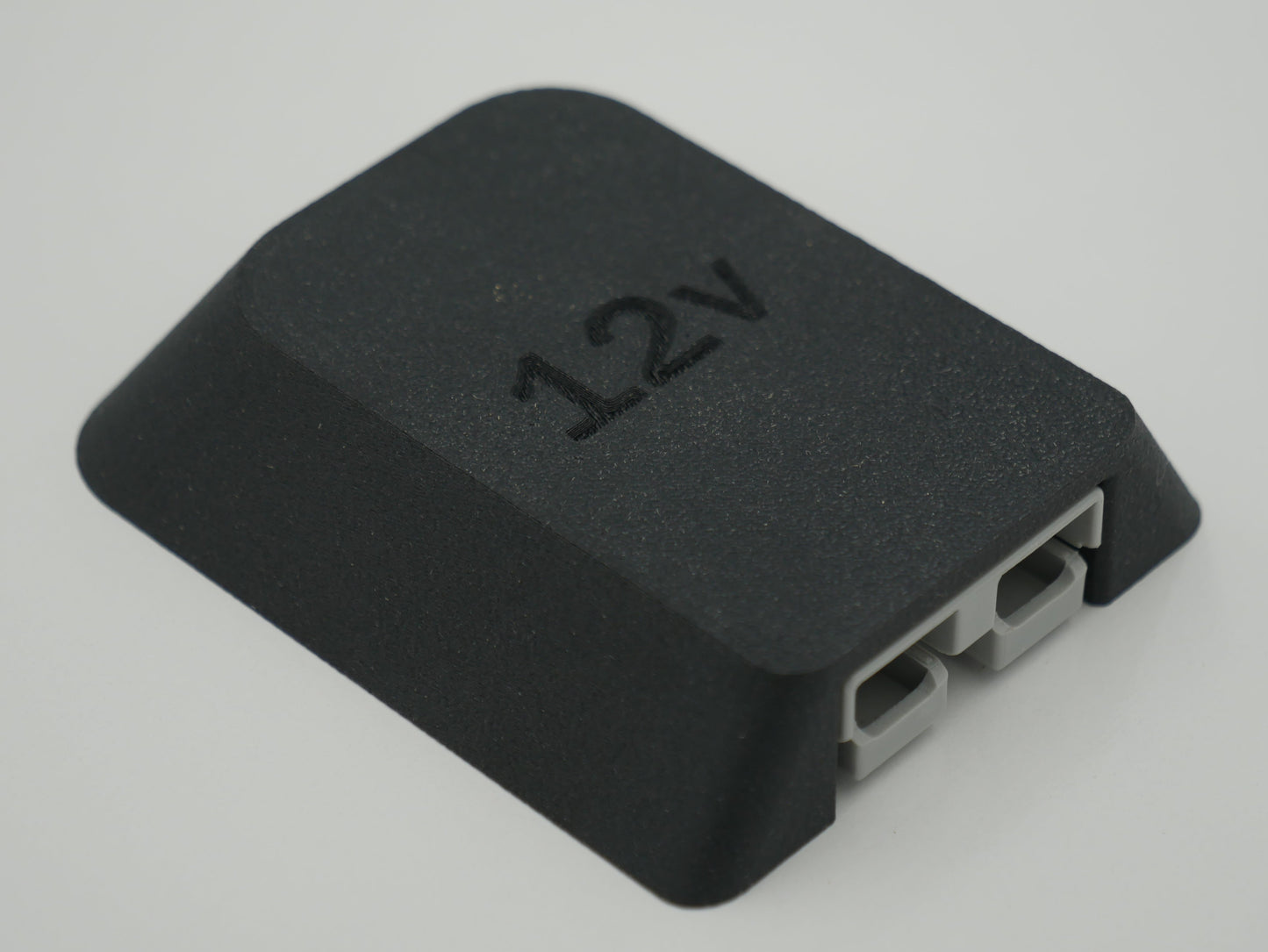

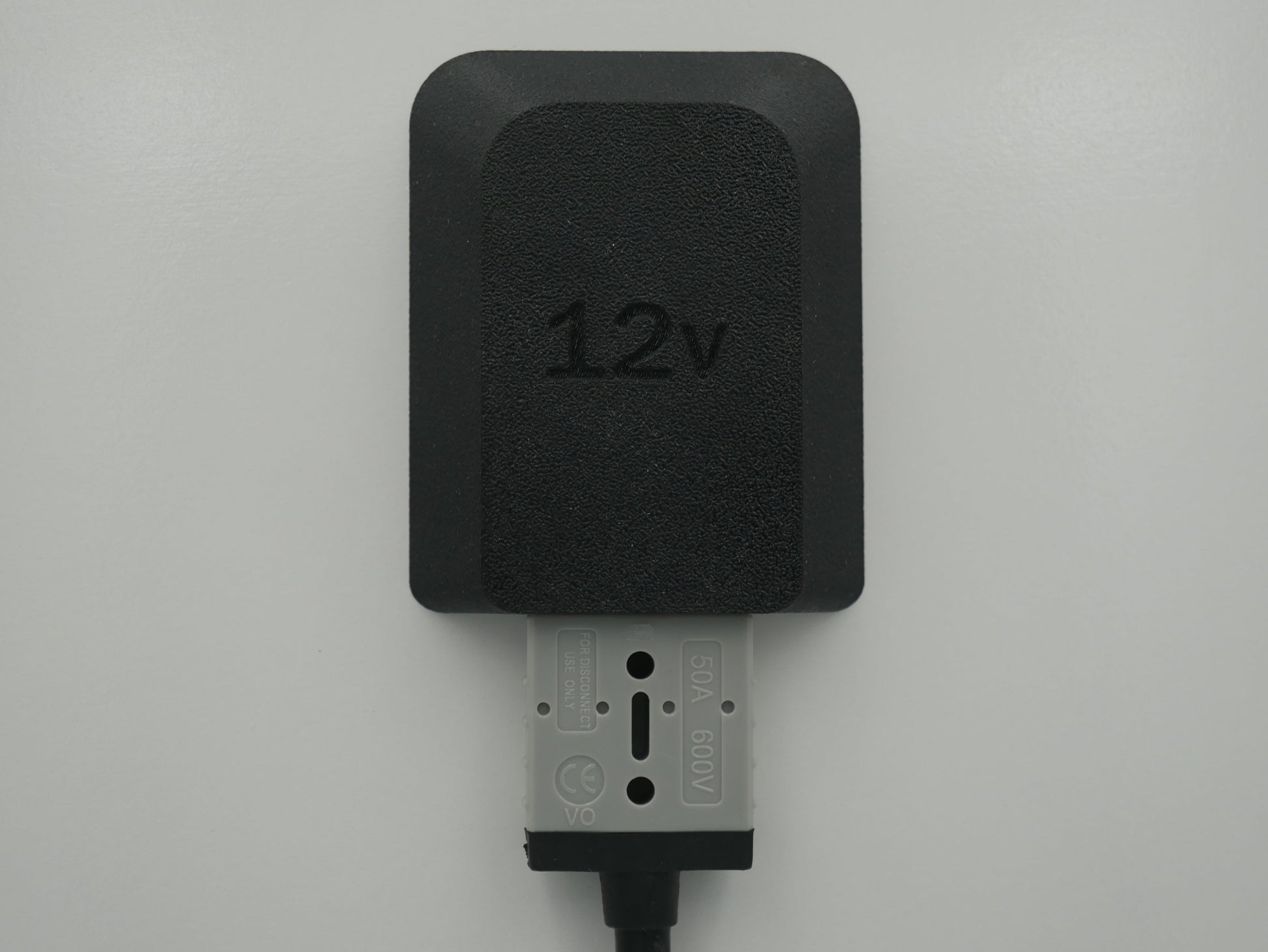

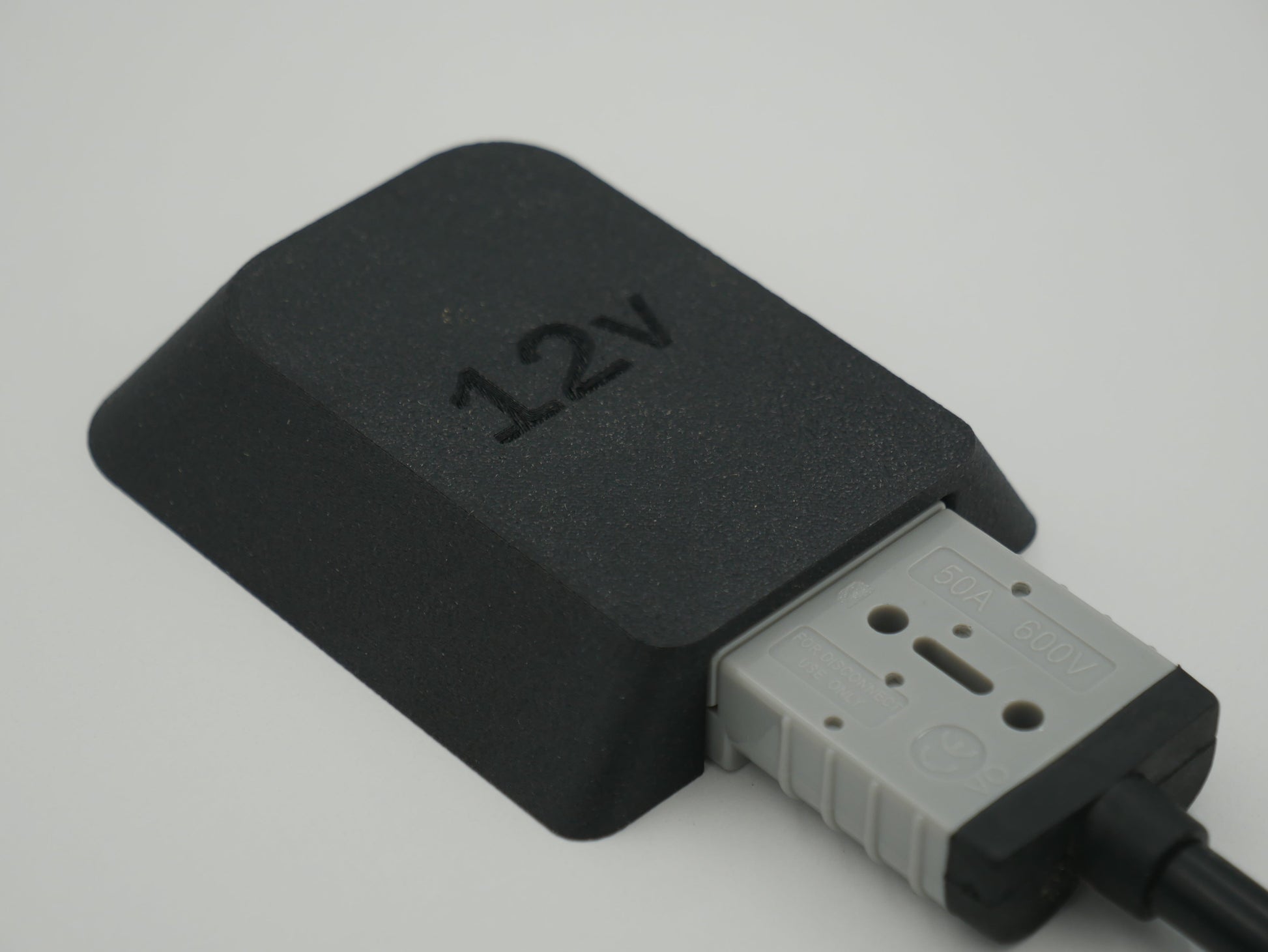

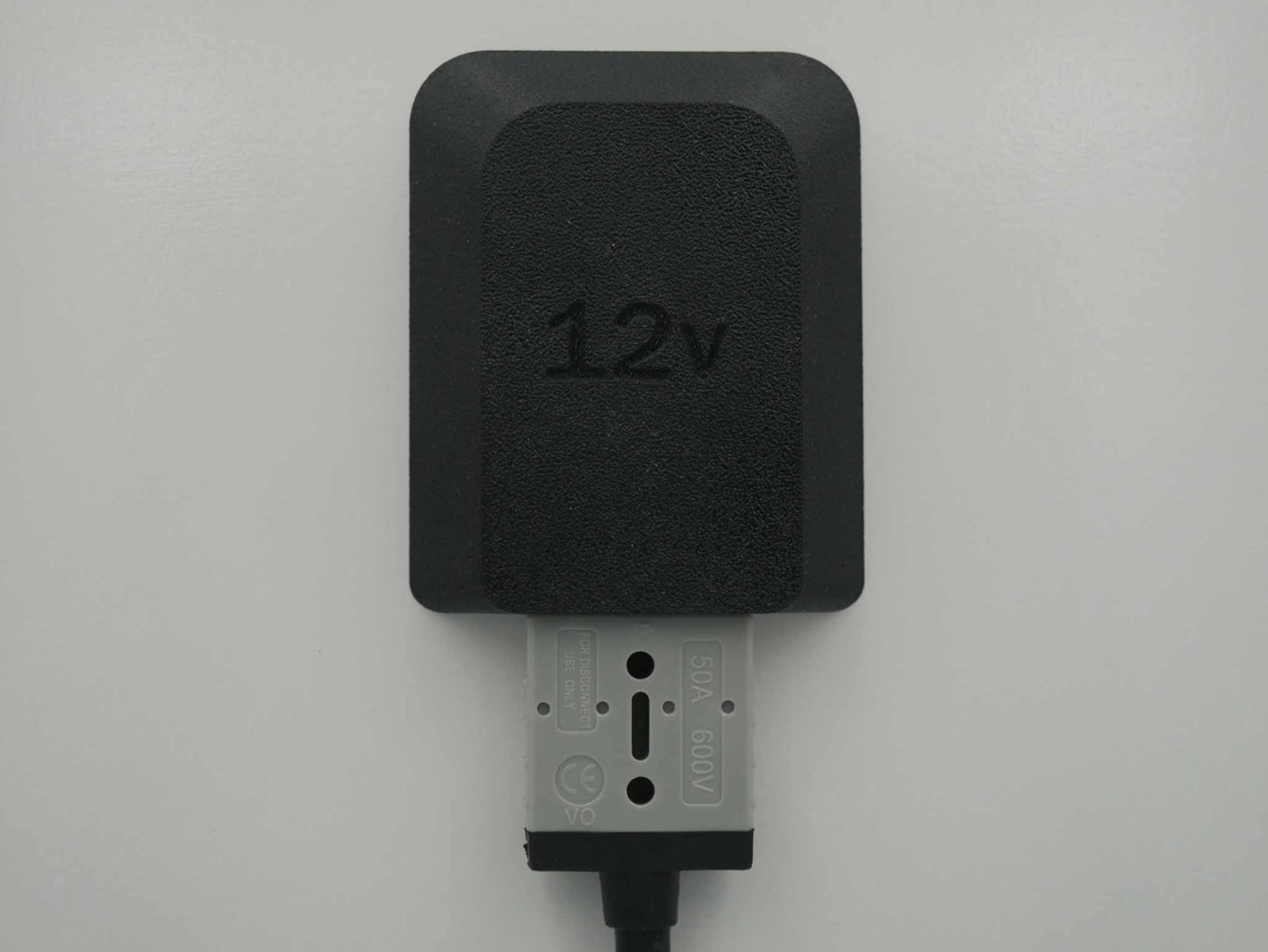

• 12v
• Custom text or logo — depending on the design, please get in touch

Buy 2 and your third Single Anderson Mount is 8% off — applied automatically at checkout!

Features

• Plug included — the 50 amp Anderson connector and pins come with the housing, not sold separately
• Labelled face so you know at a glance which circuit you're plugging into, rather than guessing between identical grey plugs

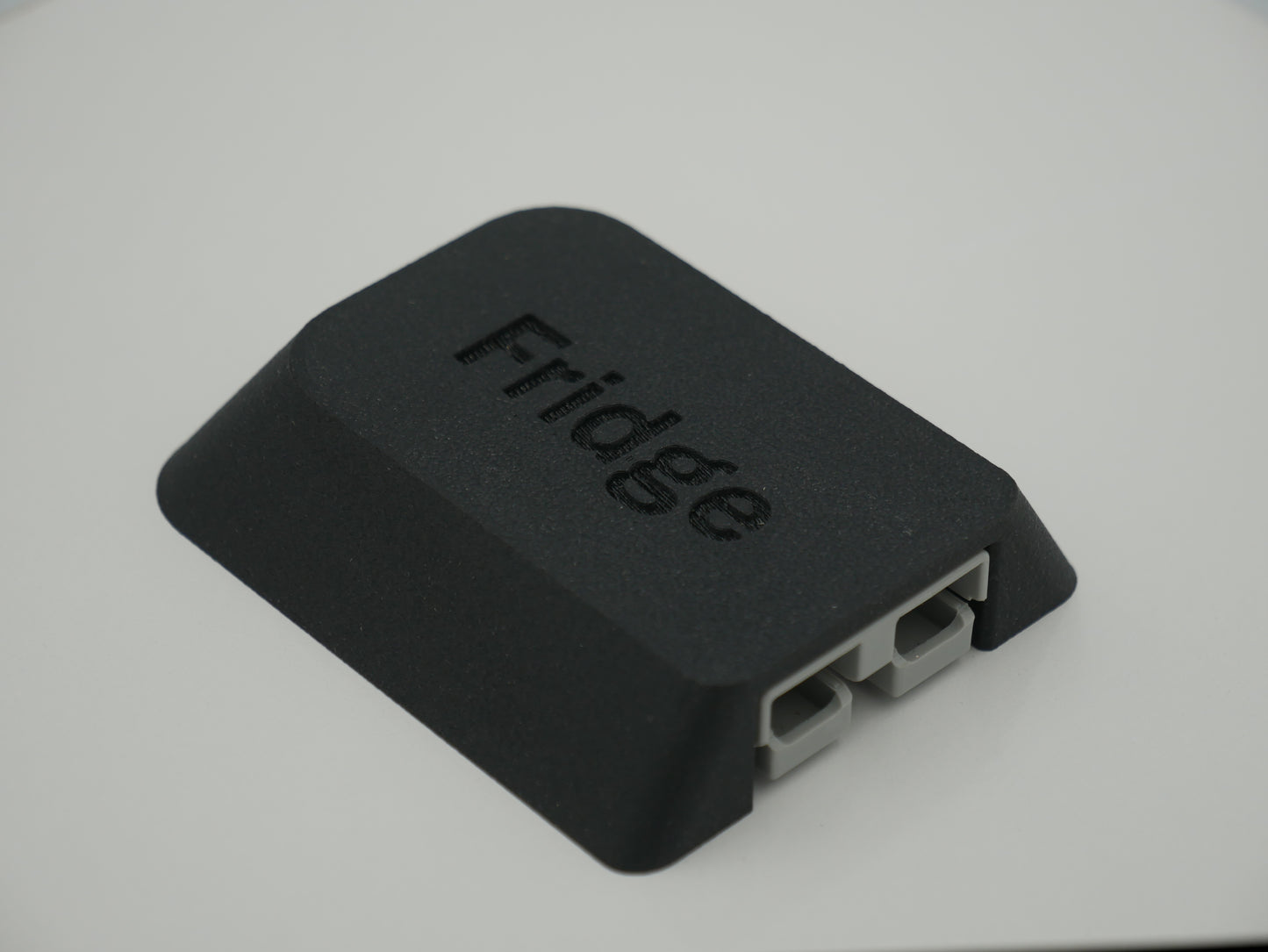

• Slanted profile — the face angles out from 78 mm to 90 mm, shedding water rather than letting it sit on the connector
• Light but tough — just 60 g complete, with the strength coming from glass fibre reinforced ASA rather than bulk
• Mounts inside or outside a canopy or structure
• Tough, UV-resistant ASA-Glass Fibre built for the Australian sun
• Only a 25 mm round cutout needed through the panel for the cable
• Australian made, with free postage Australia-wide

How it works

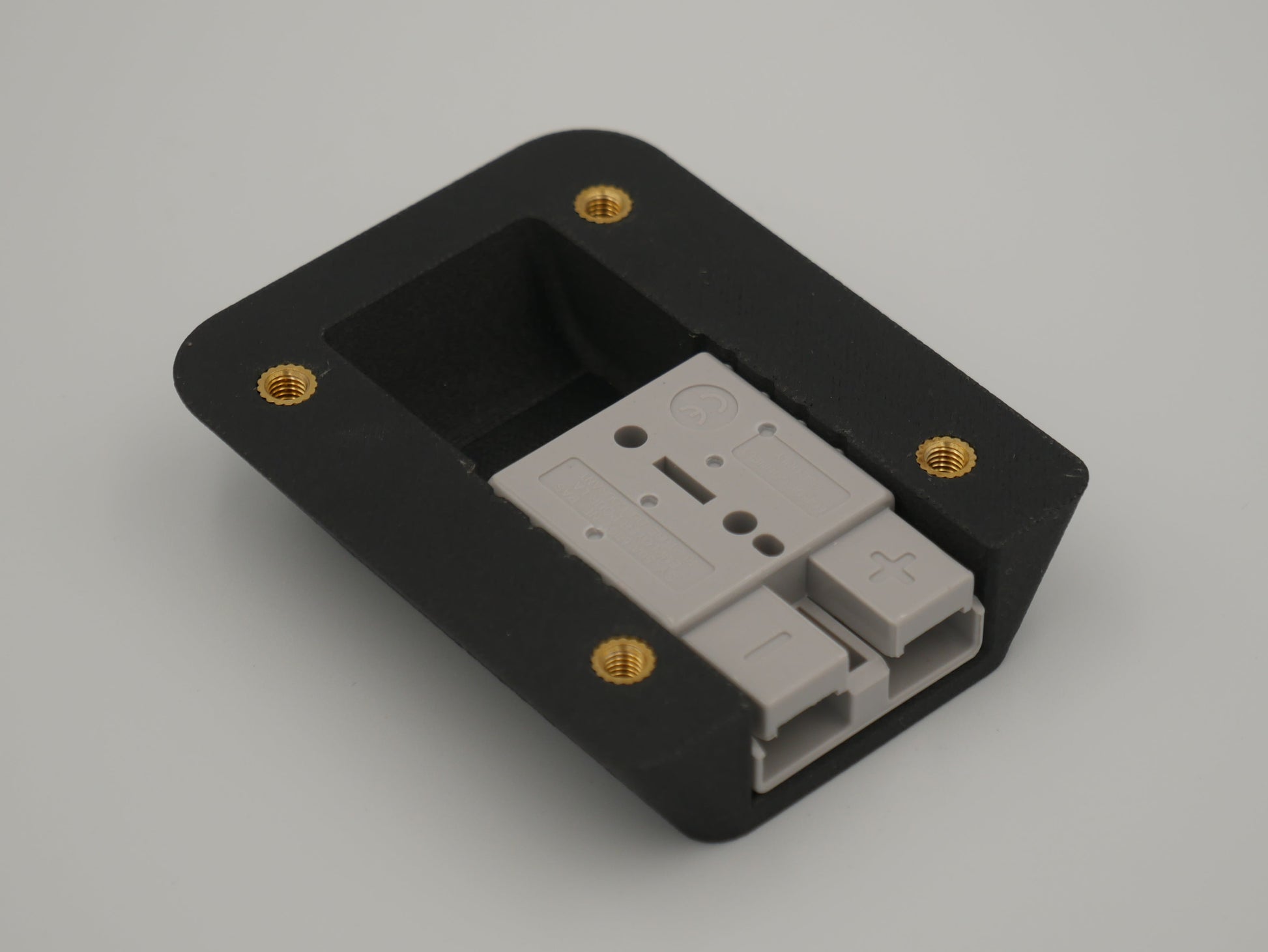

The housing recesses the Anderson plug into a moulded pocket so the connector sits flush with the panel instead of protruding. Four M5 bolts hold it down, and a single 25 mm round cutout through the panel behind it passes the cable through.

The angled face does two jobs: it sheds water off the connector, and it makes the plug easier to grab and release than a flat flush mount.

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black

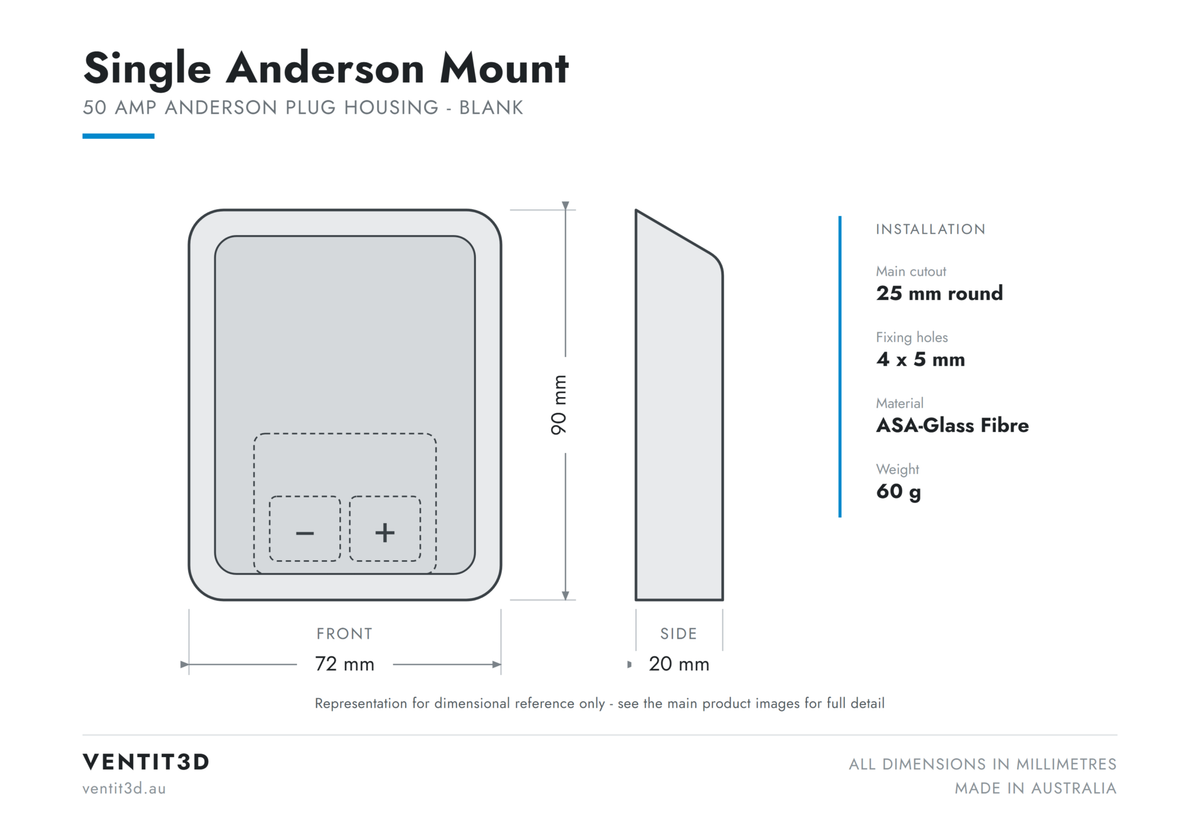

• External dimensions: 90 x 72 x 20 mm (face angles from 78 mm to 90 mm)
• Main cutout: 25 mm diameter, round (recommended)
• Fixing holes: 4 x 5 mm
• Weight: 60 g complete
• Connector: 1 x 50 amp Anderson plug, pins included
• Fixings: 4 x M5 bolts
• Labels: Blank, Fridge, Solar, 12v, or custom
• Mounting: internal or external

What's included

• 1 x Single Anderson housing in your chosen label
• 1 x 50 amp Anderson plug with pins
• 1 x template for hole marking

Fitting

A template is supplied to mark the four 5 mm bolt holes and the 25 mm round cutout accurately before you drill. Run the cable through, crimp your pins, seat the plug in the housing and bolt it down. Suits internal or external mounting.

Often bought with

• Dual Anderson Mount — two plugs in one housing, for solar plus fridge
• Triple Anderson Mount — positive, negative and a dedicated ignition wire
• Dual Cable Inlet — sealed pass-through where you don't need a plug at all

Important to note

Any opening cut into a canopy, caravan or structure has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. All 12V circuits should be correctly fused and installed to a suitable standard. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What is included when I buy a Single Anderson Mount?

The price includes the 50amp Anderson plug itself and its pins - one housing comes with one plug - plus a template for marking the mounting holes. Choose Blank, Fridge, Solar or 12v for the cover.

Can I have custom text or a logo on the cover?

Yes, custom text and logos can be done depending on the design. Get in touch before ordering so we can check it will come out cleanly at this size.

Can the mount be used outside the canopy?

Yes. It is printed in tough, UV-resistant ASA-Glass Fibre, which holds its colour and finish under permanent sun exposure instead of chalking or going brittle, so it handles being mounted inside or outside a canopy or structure.

How do I mount it?

It fixes with four M5 bolts, and a simple template is provided so you can mark and drill the holes accurately.

How do I get the cable through the canopy?

The rear of the housing has space provided for a single 25mm hole to be drilled through the canopy or structure for the cable to pass through.

Is there a discount for buying more than one?

Yes. Buy two Single Anderson Mounts and a third is 8% off, applied automatically at checkout.
