Dual Anderson Mount

A tough, flush-mount housing for two 50 amp Anderson plugs side by side — solar and fridge, or 12v and solar — so both circuits land in one tidy panel instead of two separate mounts.

This price includes the 50 amp Anderson plugs plus pins — one housing purchased comes with two Anderson plugs.

Label options

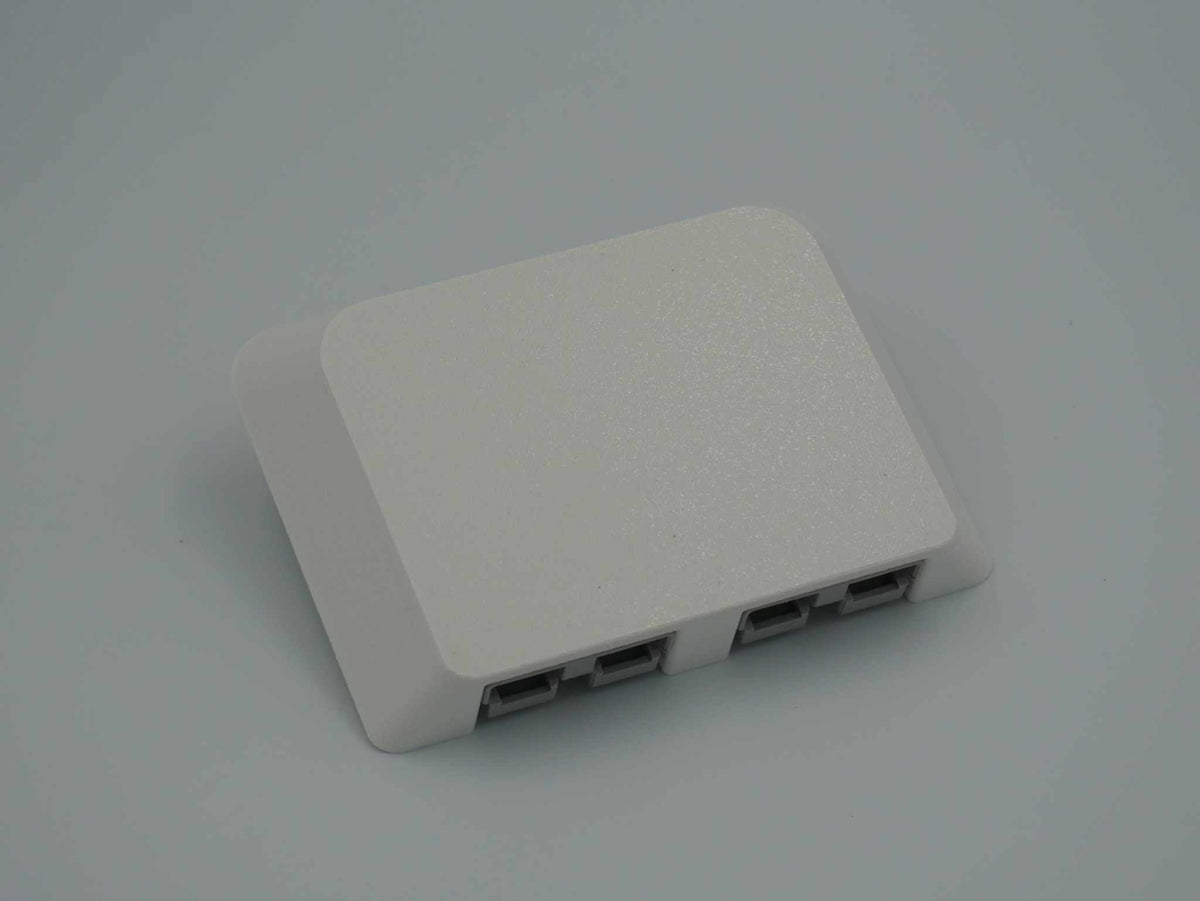

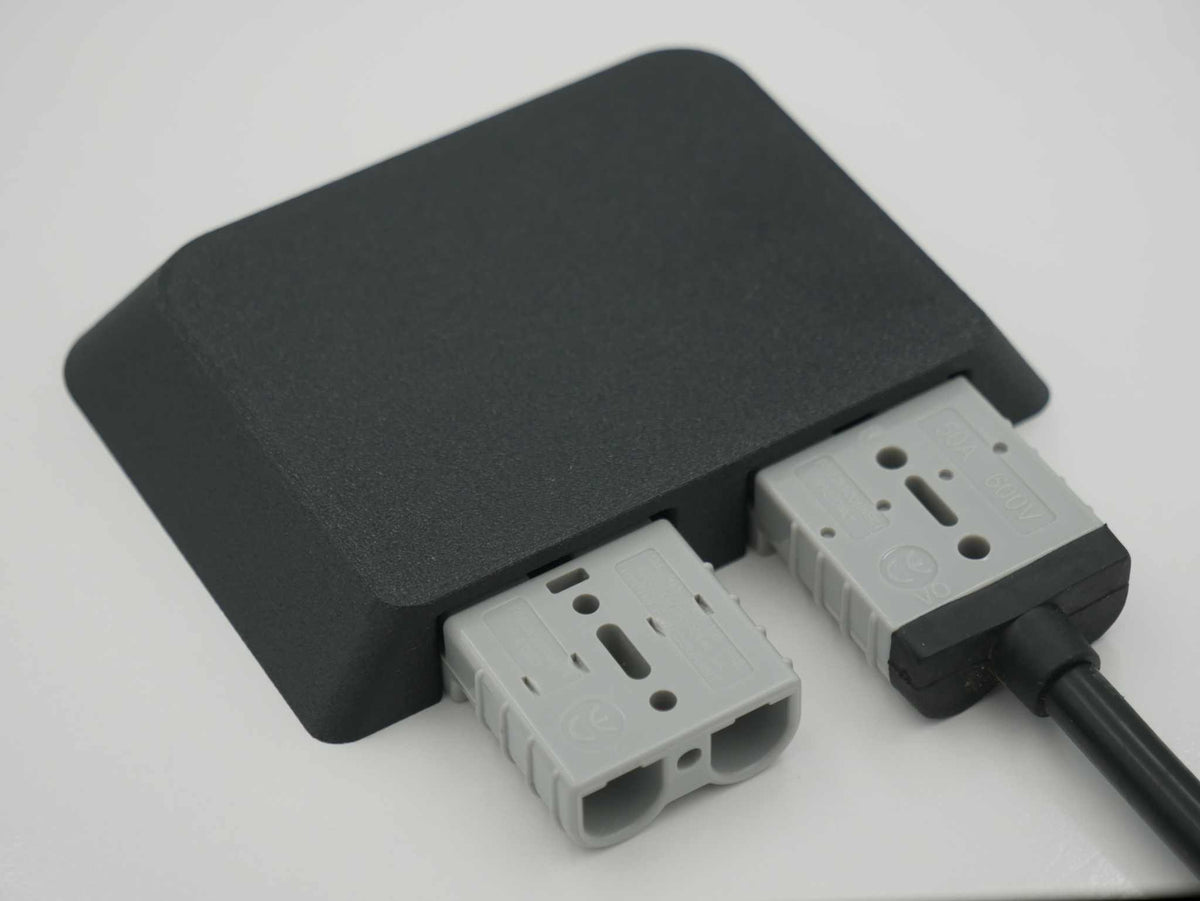

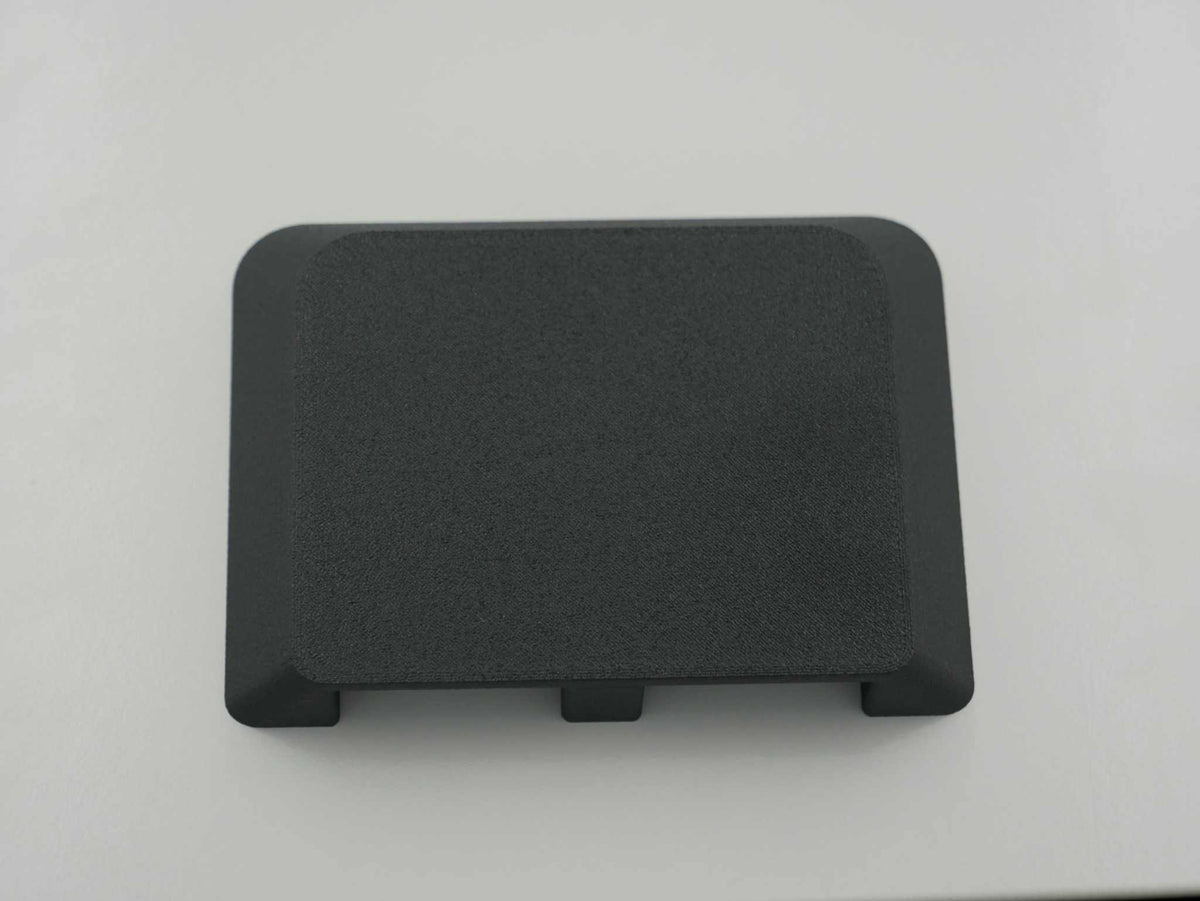

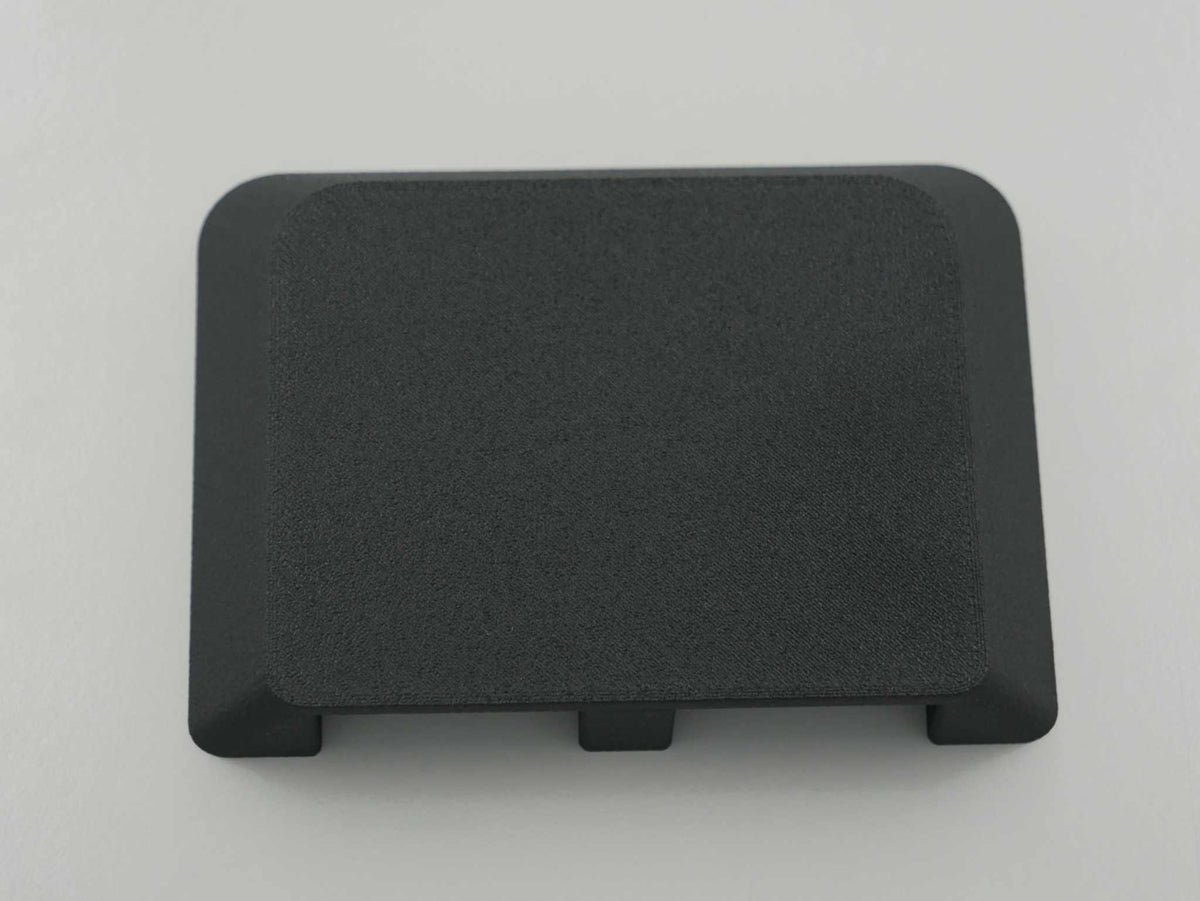

• Blank

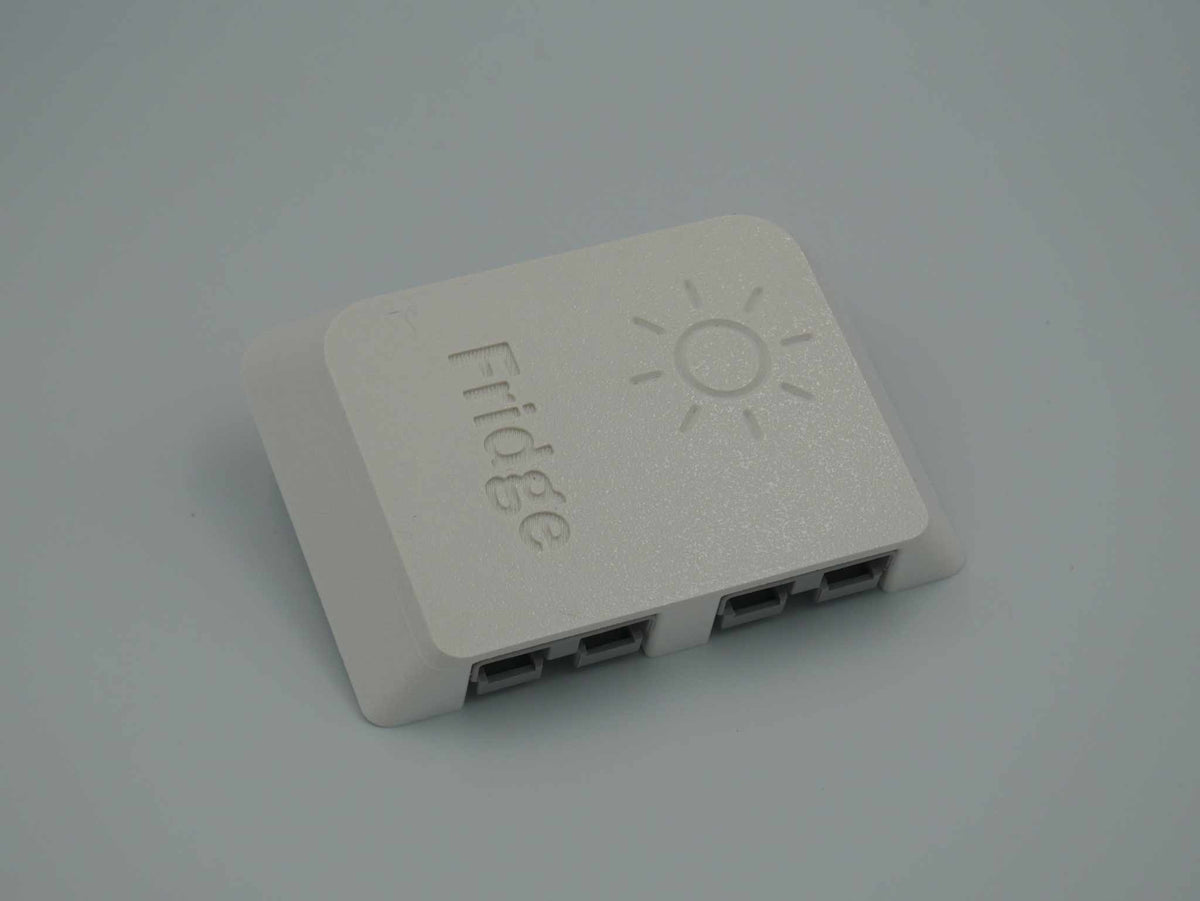

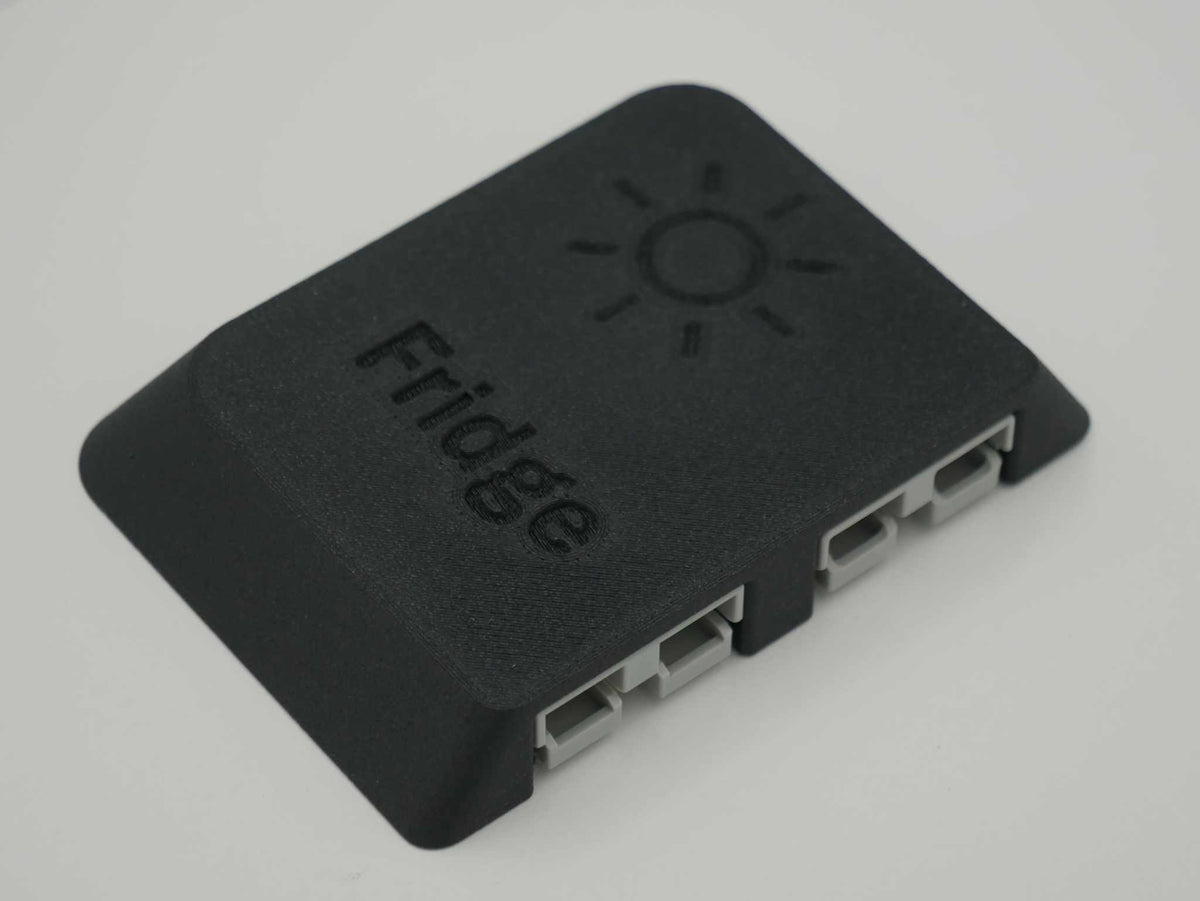

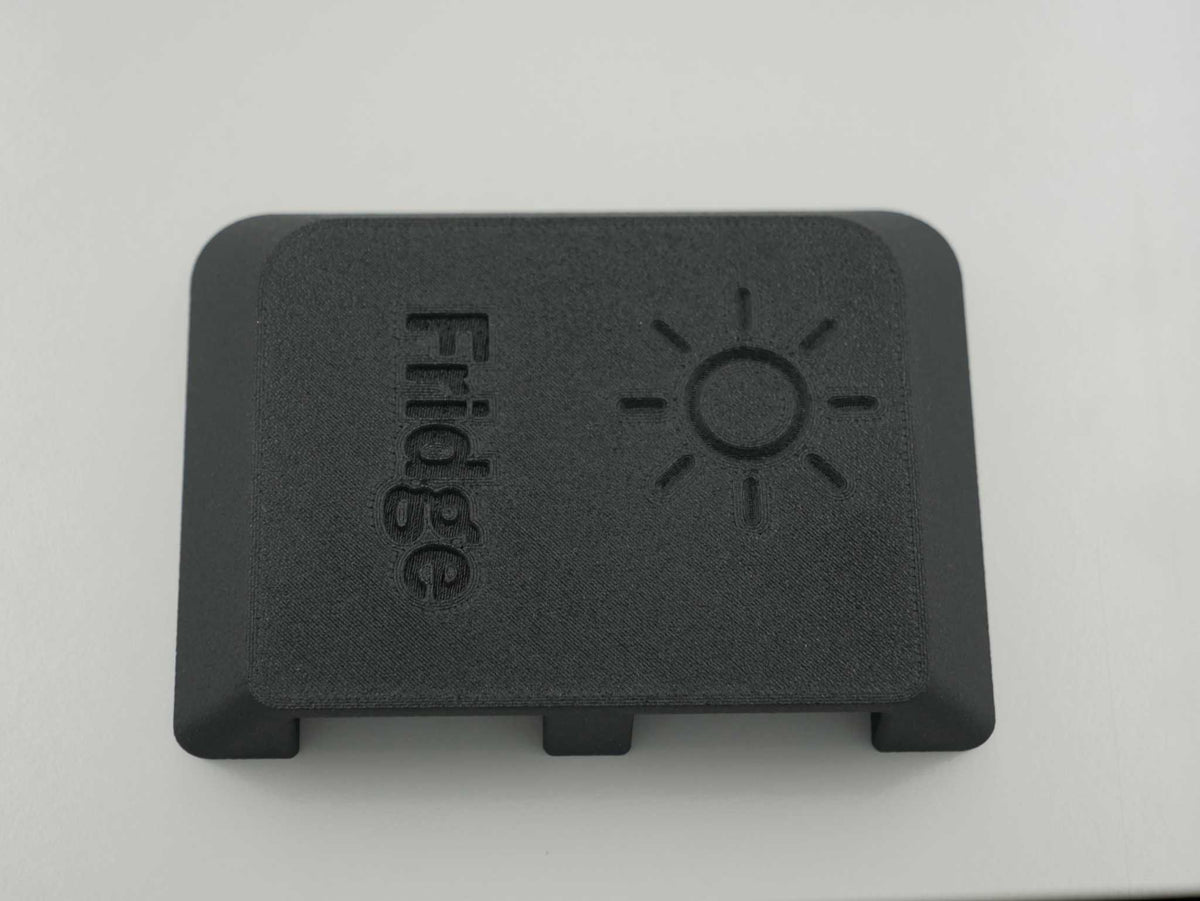

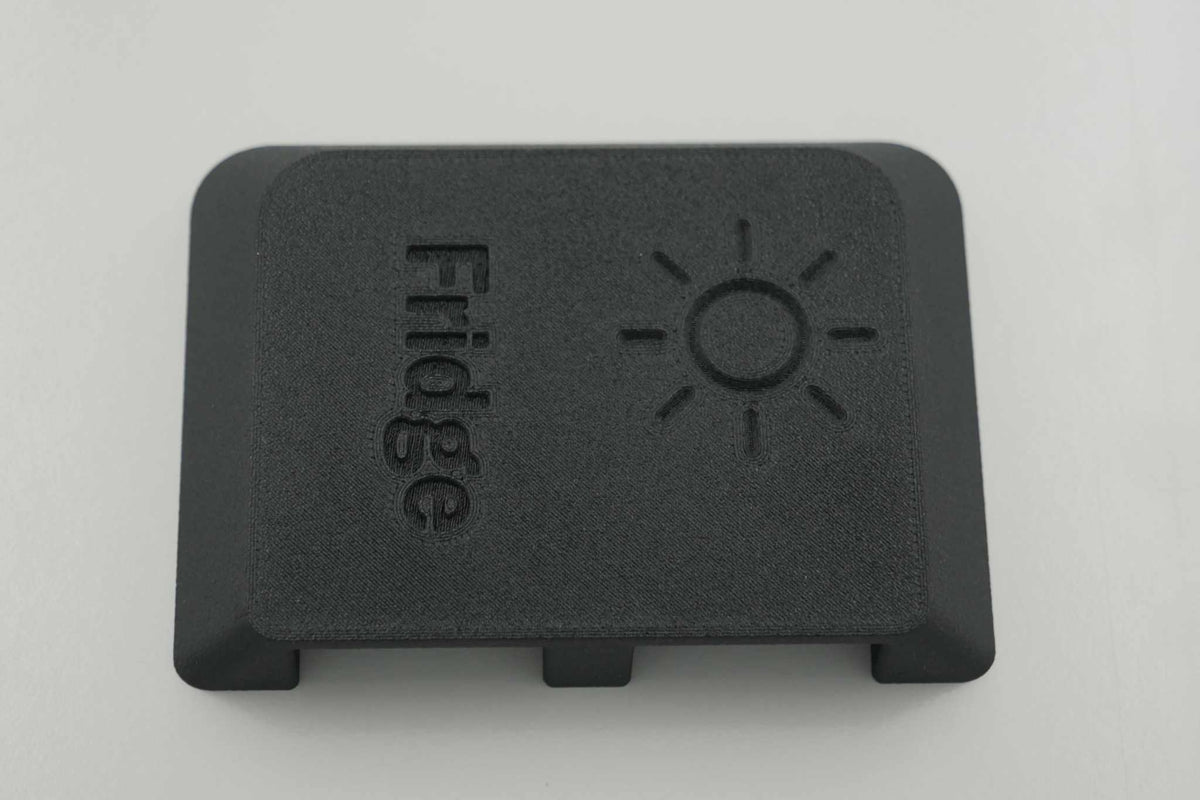

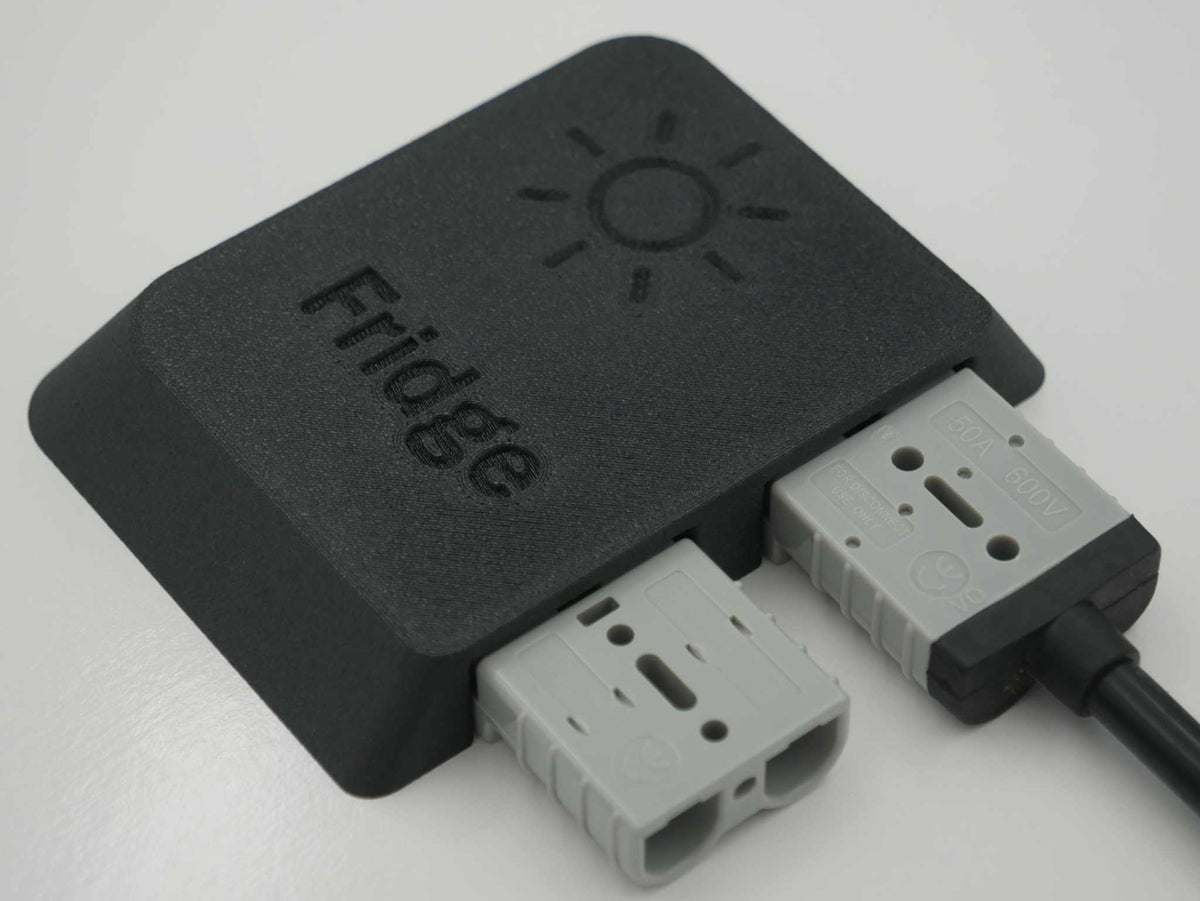

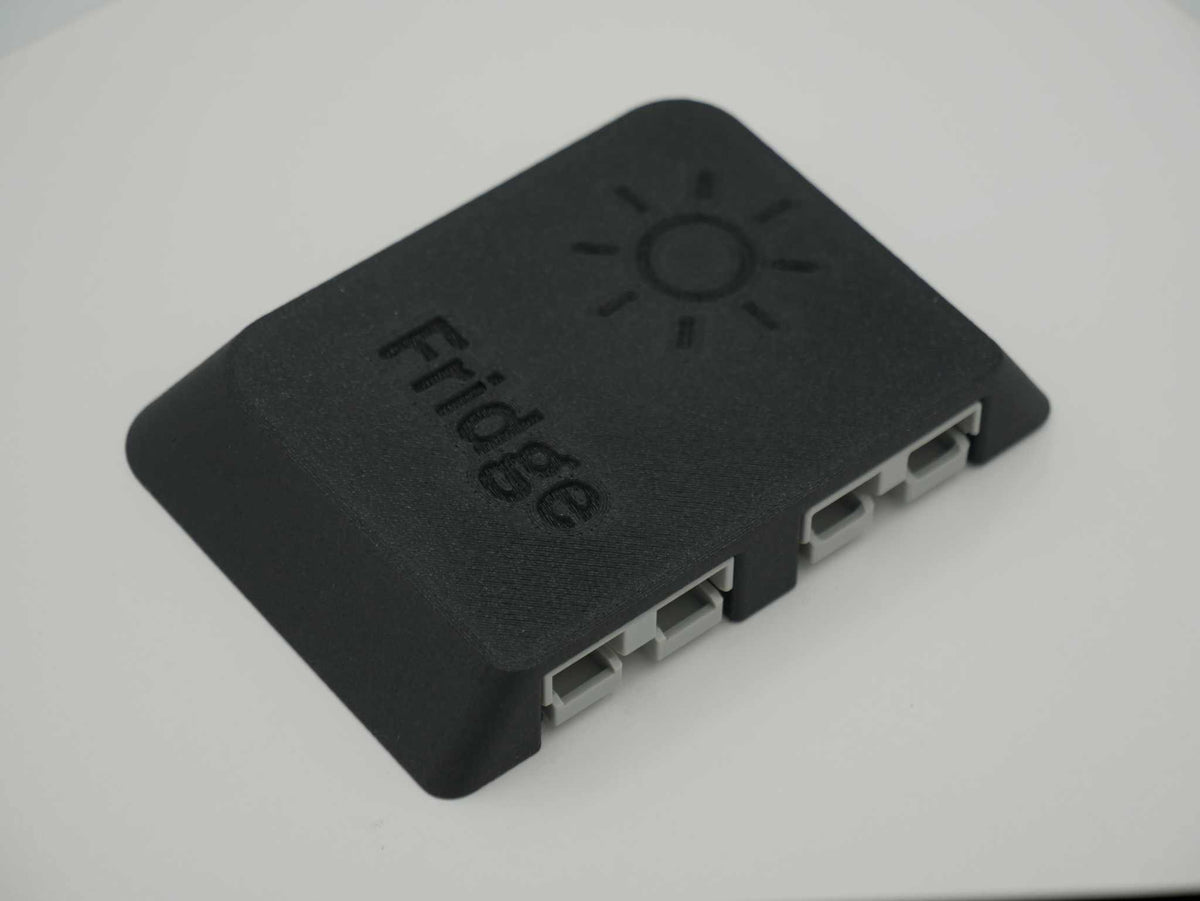

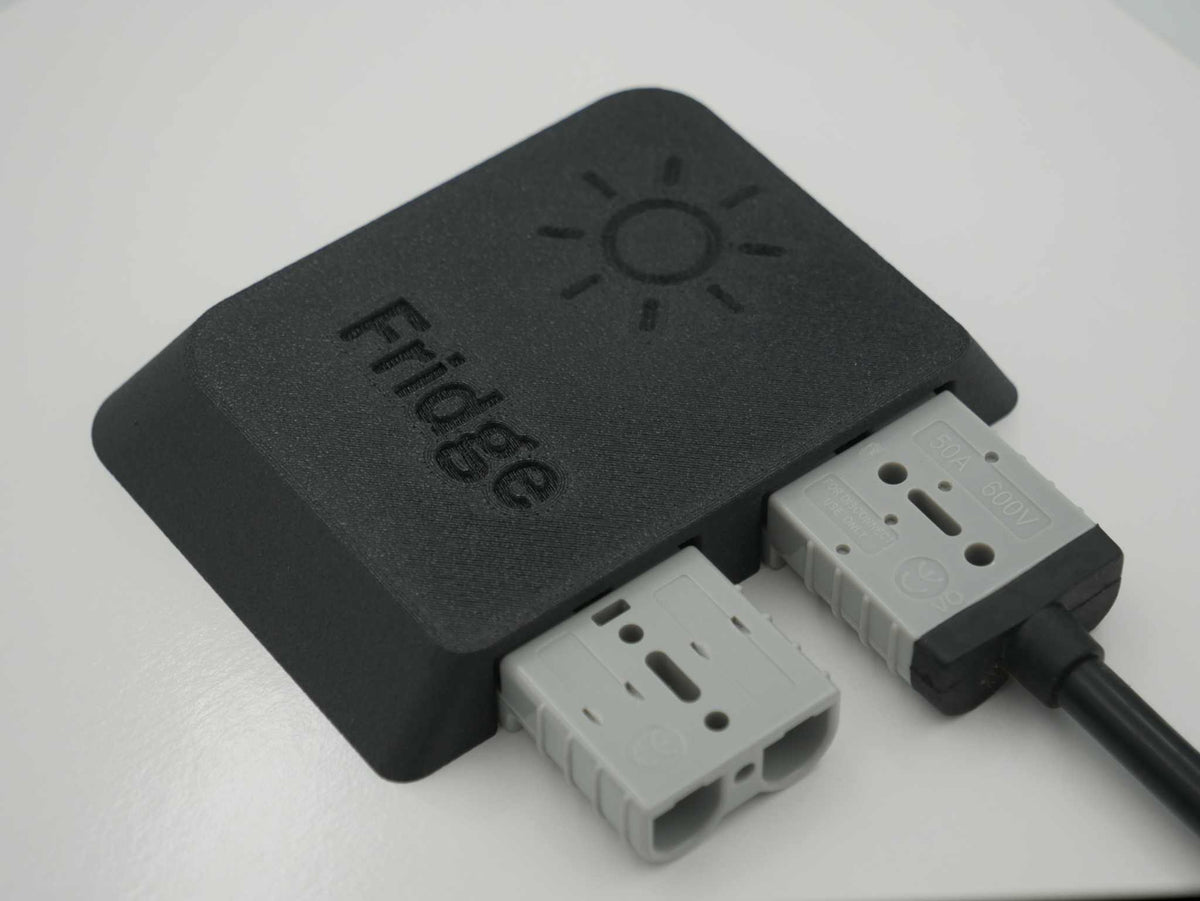

• Fridge + Solar

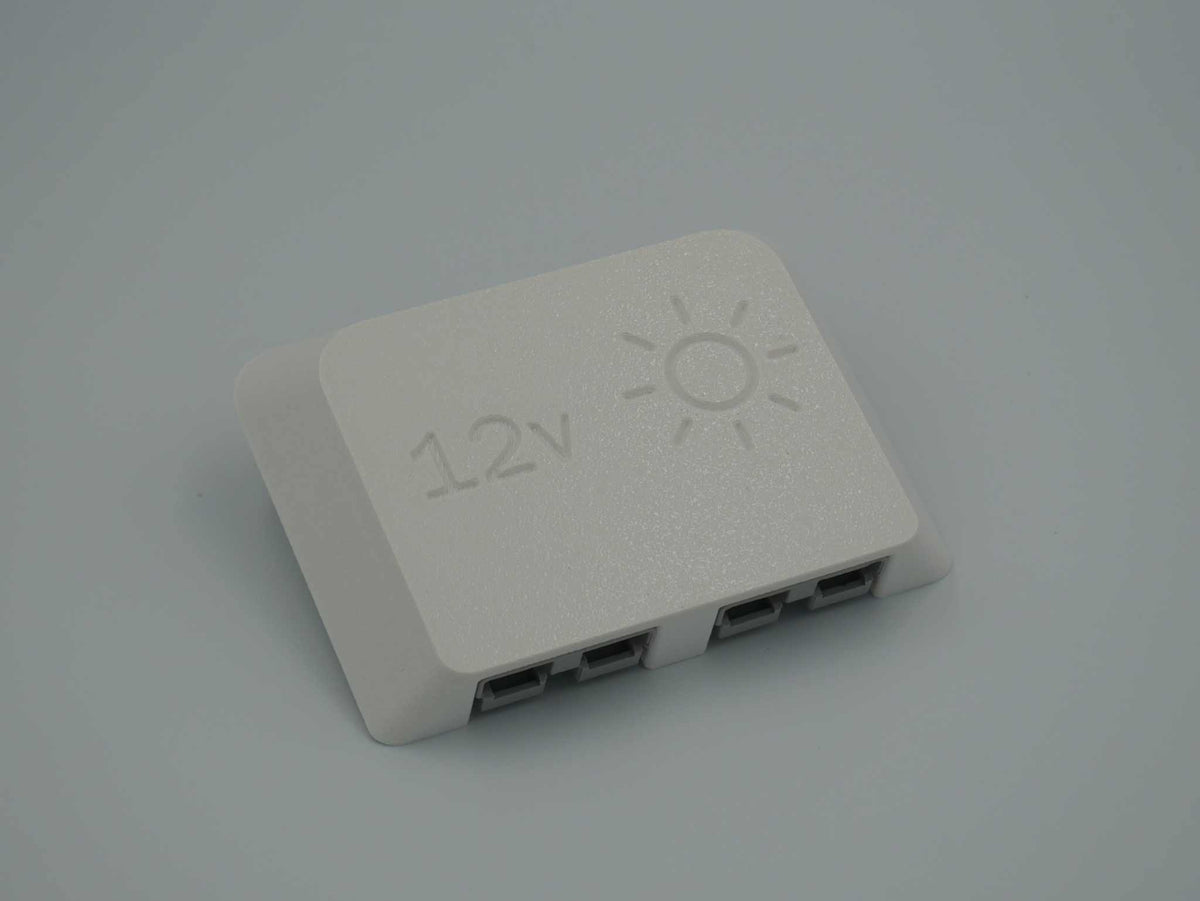

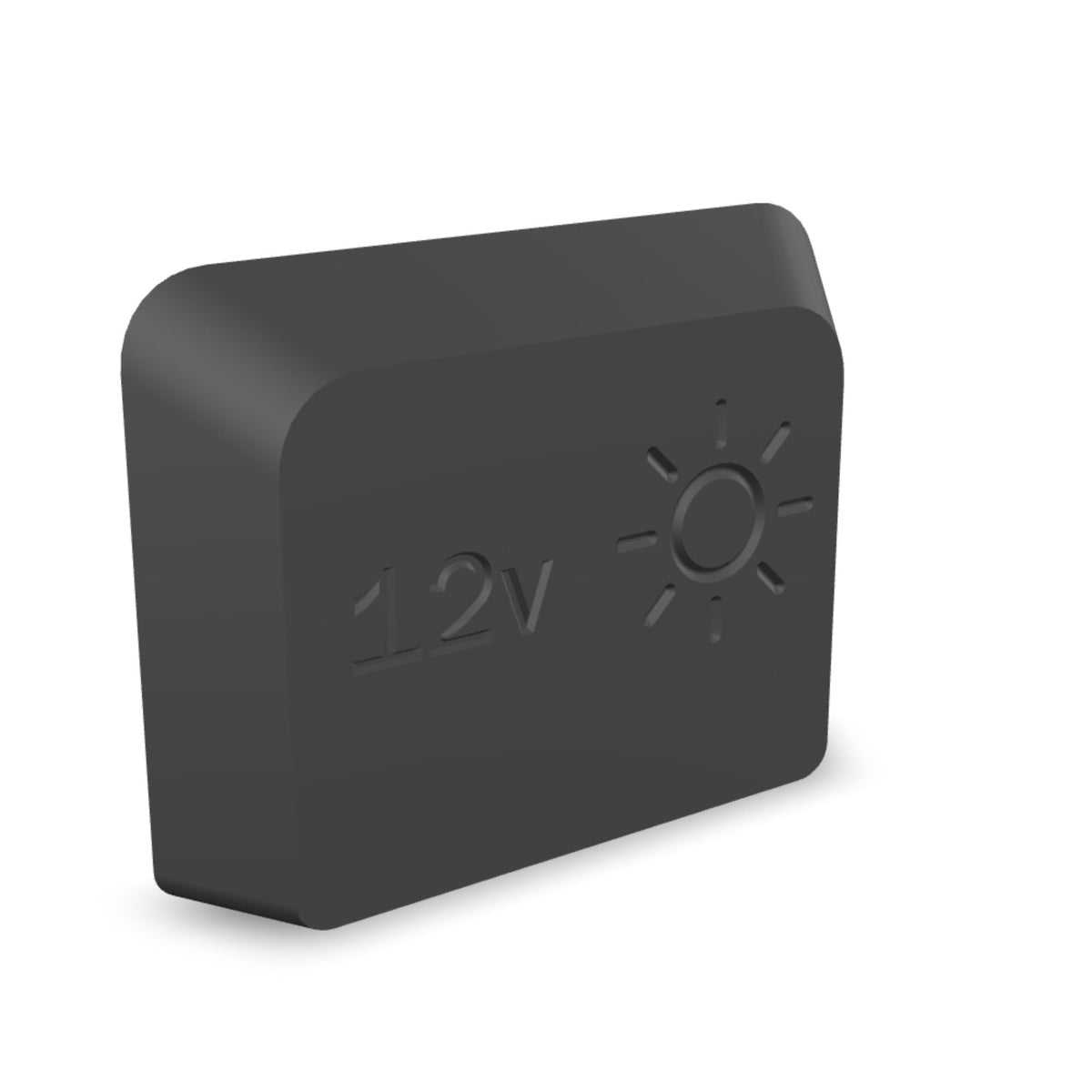

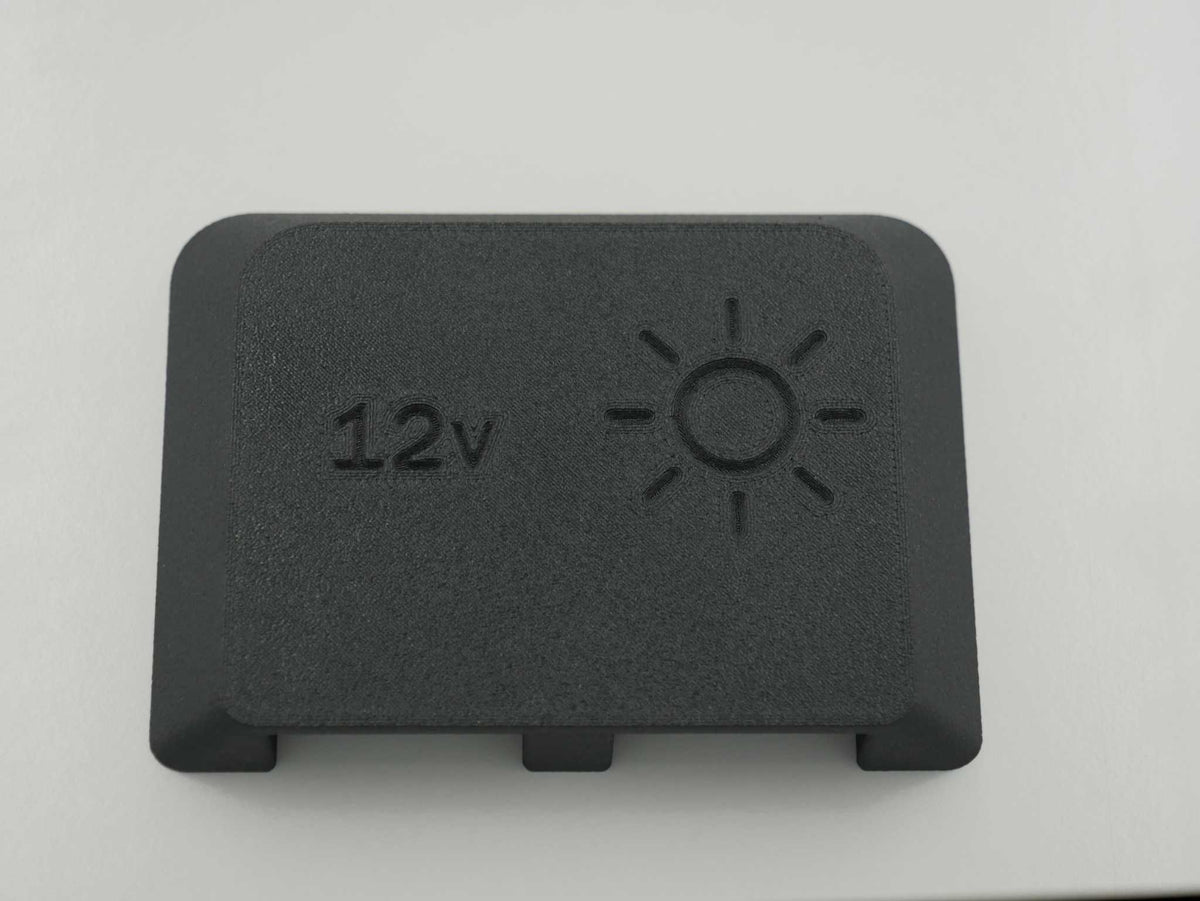

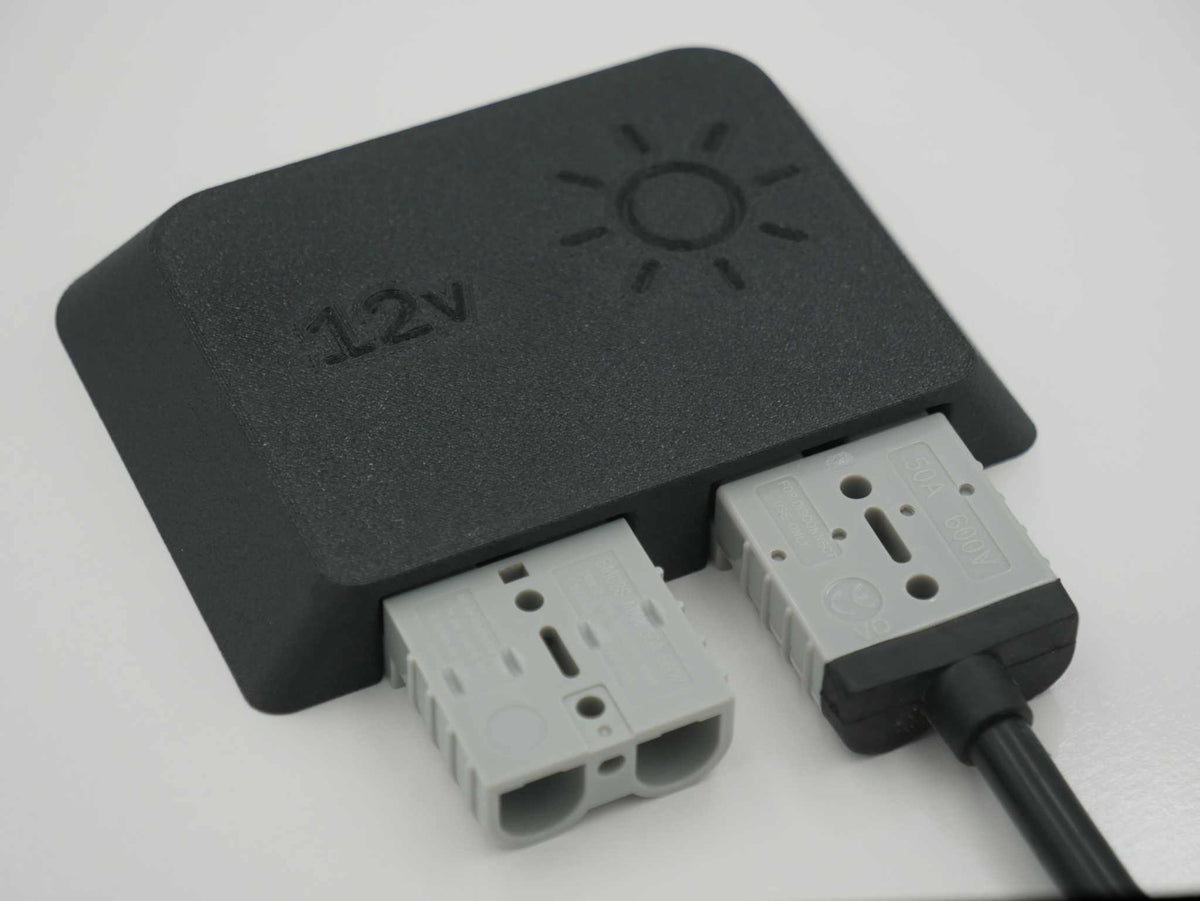

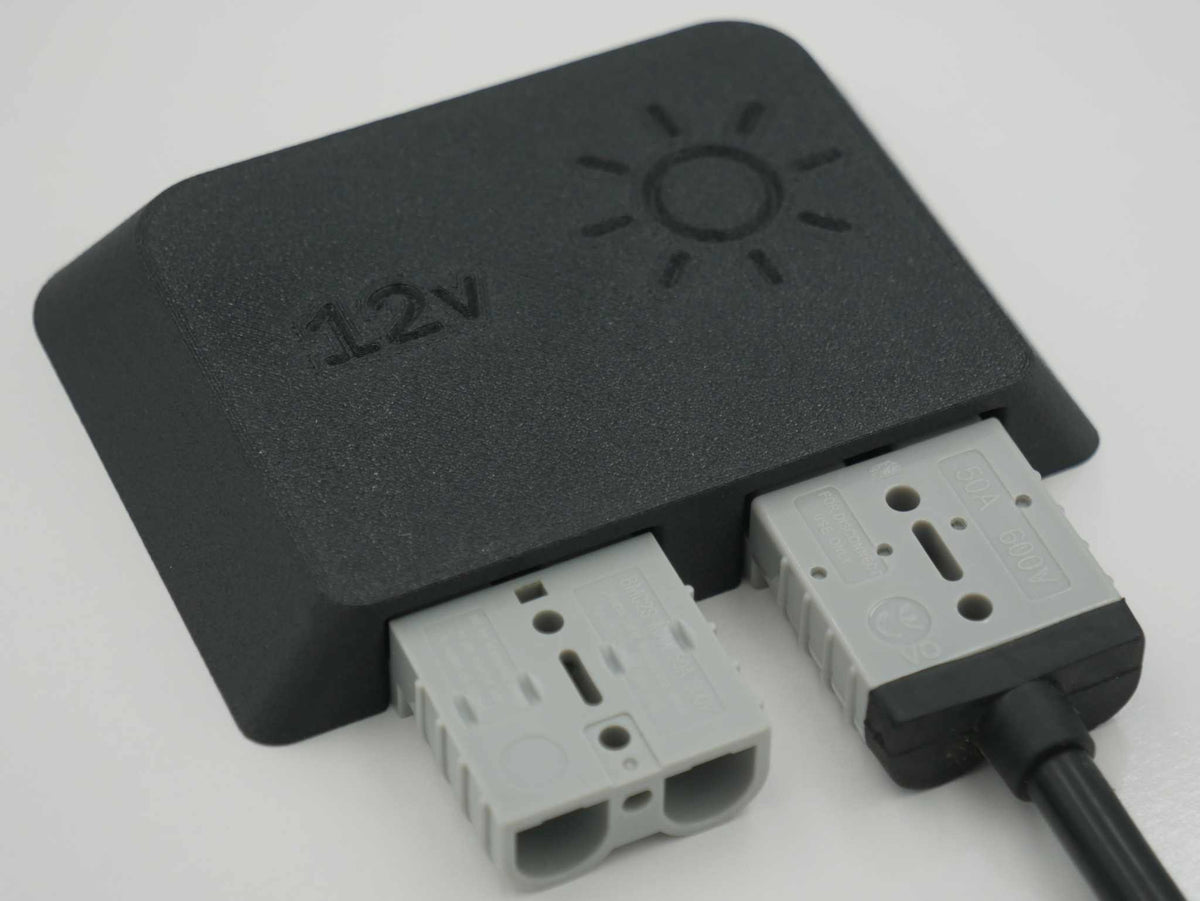

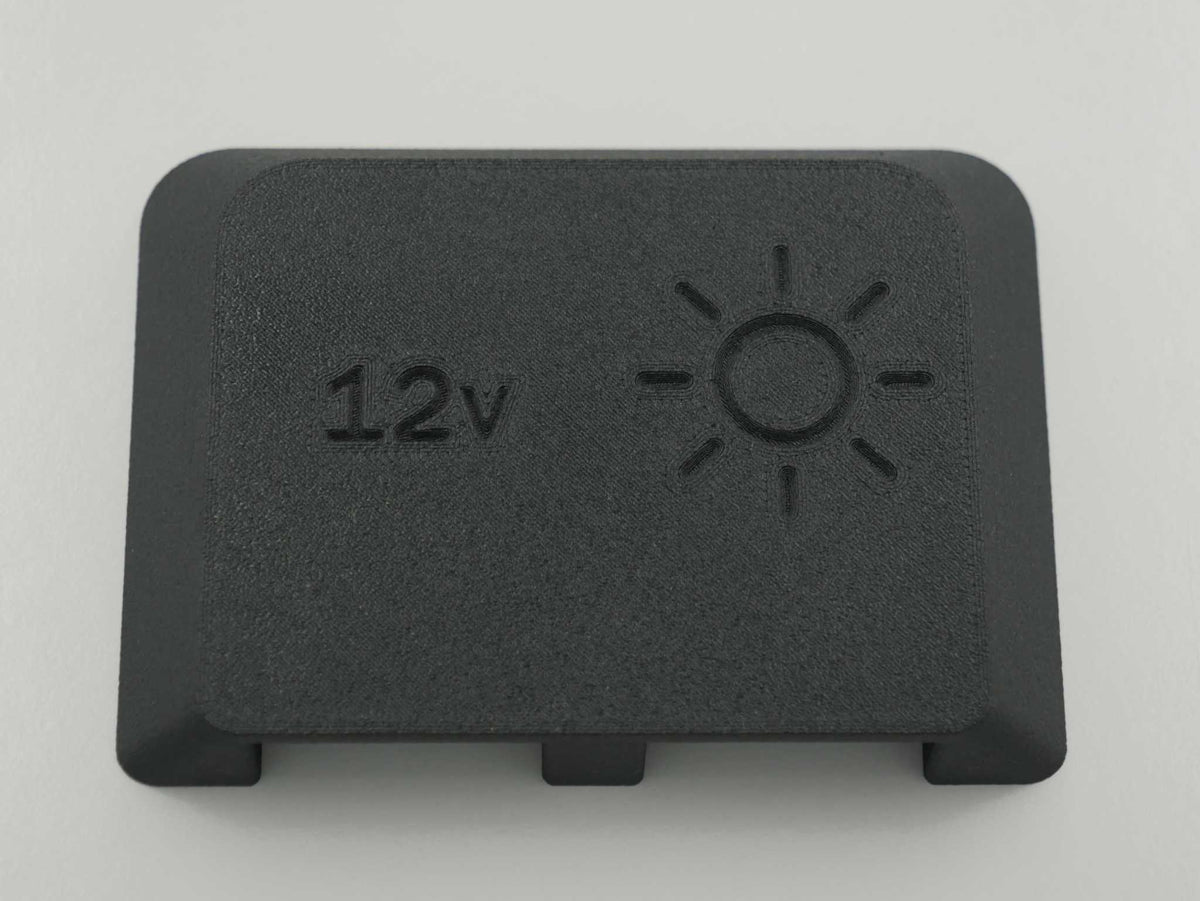

• 12v + Solar
• Custom text or logo — please get in touch

Buy 2 and your next Anderson mount, Single or Dual, is 9% off — applied automatically at checkout!

Features

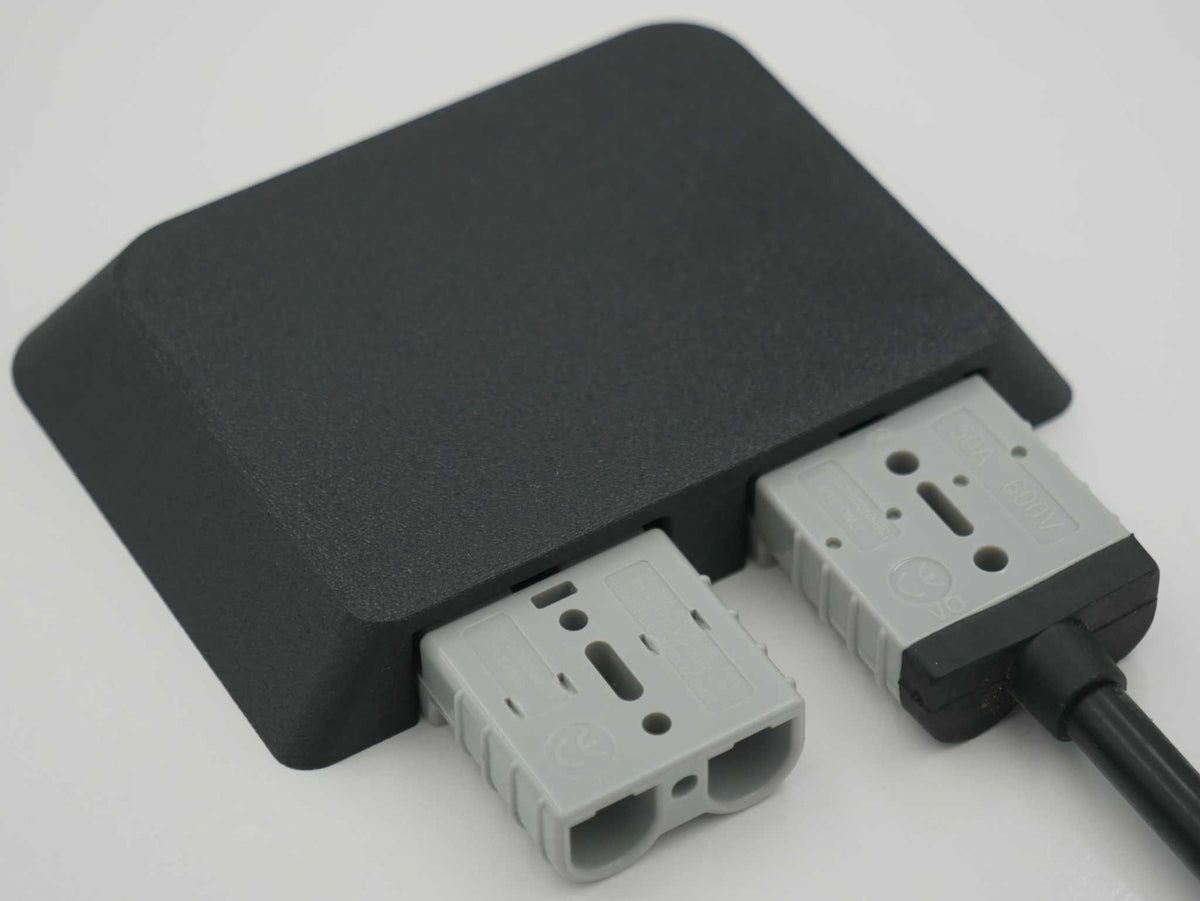

• Two plugs included — both 50 amp Anderson connectors and pins come with the housing
• Labelled face so you know at a glance which circuit is which, rather than guessing between identical grey plugs
• Slanted profile — the face angles out from 78 mm to 90 mm, shedding water rather than letting it sit on the connectors
• Light but tough — just 106 g complete, with the strength coming from glass fibre reinforced ASA rather than bulk
• Mounts inside or outside a canopy or structure
• Tough, UV-resistant ASA-Glass Fibre built for the Australian sun
• Choice of colour — black or white
• Two 25 mm round cutouts through the panel for the cables
• Australian made, with free postage Australia-wide

How it works

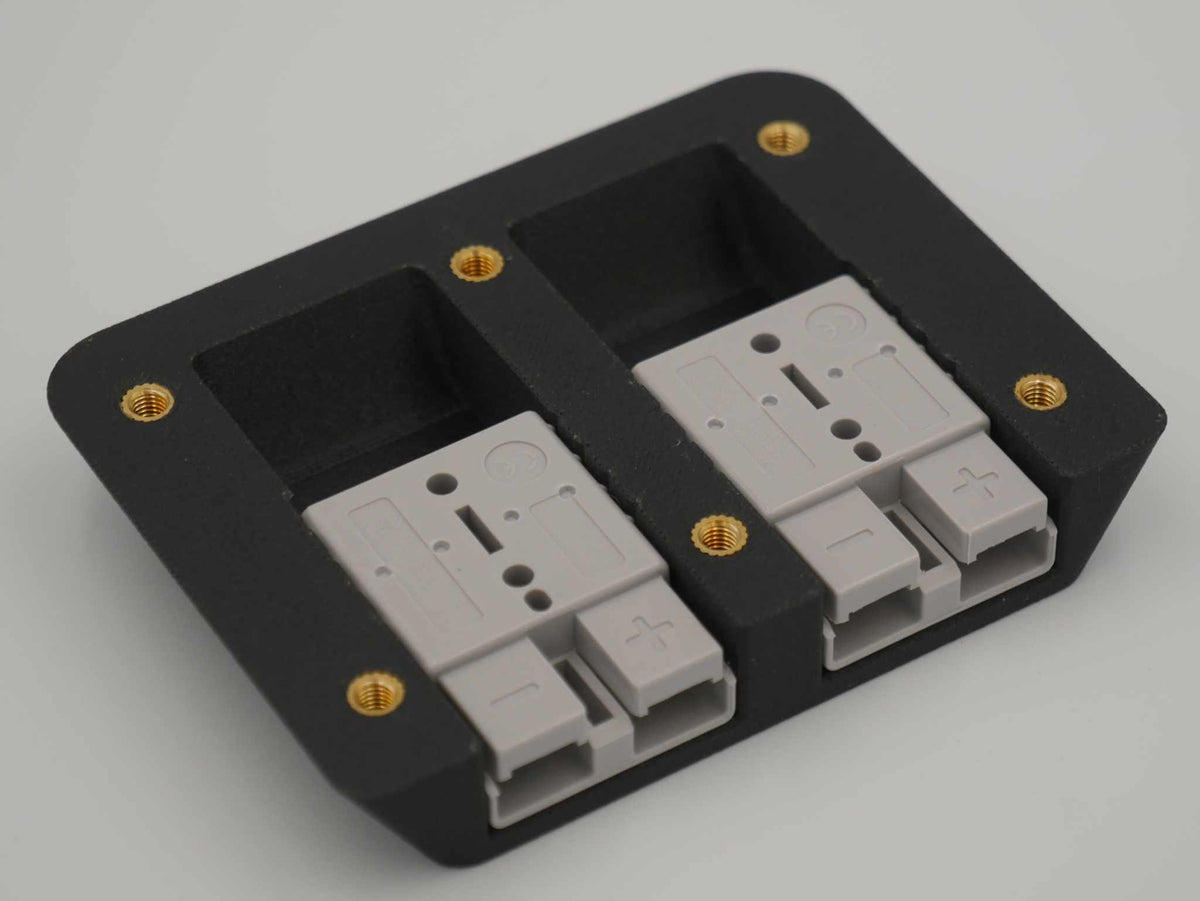

The housing recesses both Anderson plugs into moulded pockets so the connectors sit flush with the panel instead of protruding. Six stainless M5 bolts hold it down, and two 25 mm round cutouts through the panel behind it pass the cables through.

Stacking two circuits in one housing means one set of holes, one template and one tidy panel — and the labelled face means nobody plugs the fridge into the solar feed by mistake.

Specifications

• Brand: Ventit3D
• Material: ASA-Glass Fibre
• Colour: Black or White

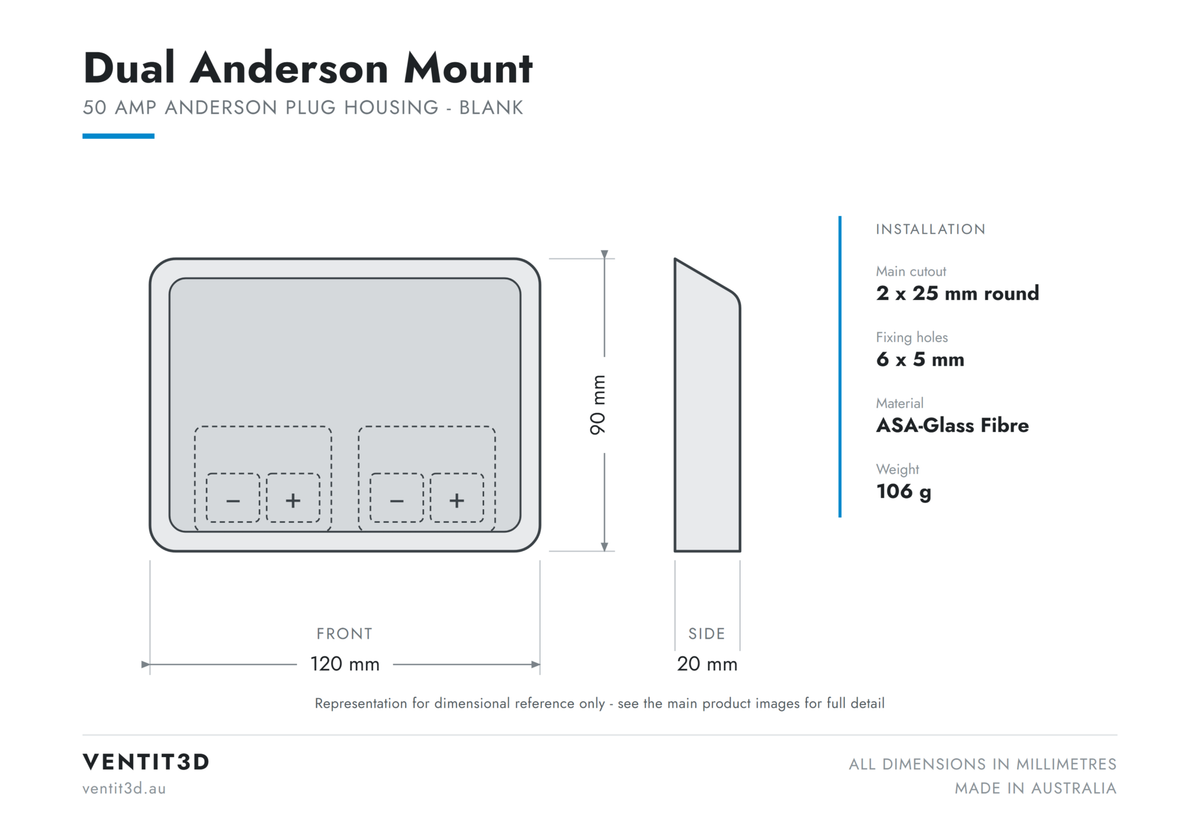

• External dimensions: 120 x 90 x 20 mm (face angles from 78 mm to 90 mm)
• Main cutouts: 2 x 25 mm diameter, round (recommended)
• Fixing holes: 6 x 5 mm
• Weight: 106 g complete
• Connectors: 2 x 50 amp Anderson plugs, pins included
• Fixings: 6 x stainless steel M5 bolts
• Labels: Blank, Fridge + Solar, 12v + Solar, or custom
• Mounting: internal or external

What's included

• 1 x Dual Anderson housing in your chosen label and colour
• 2 x 50 amp Anderson plugs with pins
• 1 x template for hole marking

Fitting

A template is supplied to mark the six 5 mm bolt holes and the two 25 mm round cutouts accurately before you drill. Run the cables through, crimp your pins, seat the plugs in the housing and bolt it down. Suits internal or external mounting.

Often bought with

• Single Anderson Mount — one plug, for a third circuit elsewhere on the build
• Triple Anderson Mount — positive, negative and a dedicated ignition wire
• Dual Cable Inlet — sealed pass-through where you don't need a plug at all

Important to note

Any opening cut into a canopy, caravan or structure has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. All 12V circuits should be correctly fused and installed to a suitable standard. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What is included when I buy a Dual Anderson Mount?

The price includes the 50amp Anderson plugs and pins - one housing comes with two plugs - plus a template for marking the mounting holes. Choose Blank, Fridge + Solar, 12v + Solar, or a custom text or logo.

What is it made from and will it handle the weather?

It is printed in tough, UV-resistant ASA-Glass Fibre. ASA holds its colour and finish under permanent sun exposure rather than chalking or going brittle, and the glass fibre reinforcement keeps it stiff through heat and vibration.

Can it be mounted inside as well as outside?

Yes, no problem at all. It is equally suited to either, so mount it wherever it makes sense for your build.

Can I have custom text or a logo on the cover?

Yes, custom text and logos can be done depending on the design. Get in touch before ordering so we can check it will come out cleanly at this size.

How do I install it?

It fixes with six stainless steel M5 bolts, and a simple template is provided so you can mark and drill the holes accurately.

How do I get the cables through the canopy?

The rear of the housing has space provided for two 25mm holes to be drilled through the canopy or structure for the cables to pass through.

Is there a discount for buying more than one?

Yes. Buy two Dual Anderson Mounts and your next Anderson mount, Single or Dual, is 9% off, applied automatically at checkout.
