Dual 120mm 12V Powered Ute Canopy Vent

The Dual 120mm 12V Powered Canopy Vent — "The Big Spinner" — is a twin-fan filtered powered exhaust vent for 4x4 canopies, caravans, camper trailers, vans, trailers and fixed structures. Two 120 mm fans in one housing, with variable speed, for spaces the single can't keep up with.

This is an exhaust vent. It works best with an intake elsewhere, so air has somewhere to come from — see The Original. A powered exhaust drawing against a passive intake gives you a genuine push-pull cross-flow rather than just stirring the air.

Features

• Two 120 mm fans — roughly double the extraction of the single, in one housing and one power feed
• Variable speed — the hotter it gets, the faster it spins, rather than simply cycling on and off
• Two temperature modes — an adjustable thermostat, or a fixed 30°C trigger
• Plug and play — built-in 5.5 x 2.1 mm DC power jack, no wiring loom to make up
• Low profile — 40 mm deep despite carrying two fans

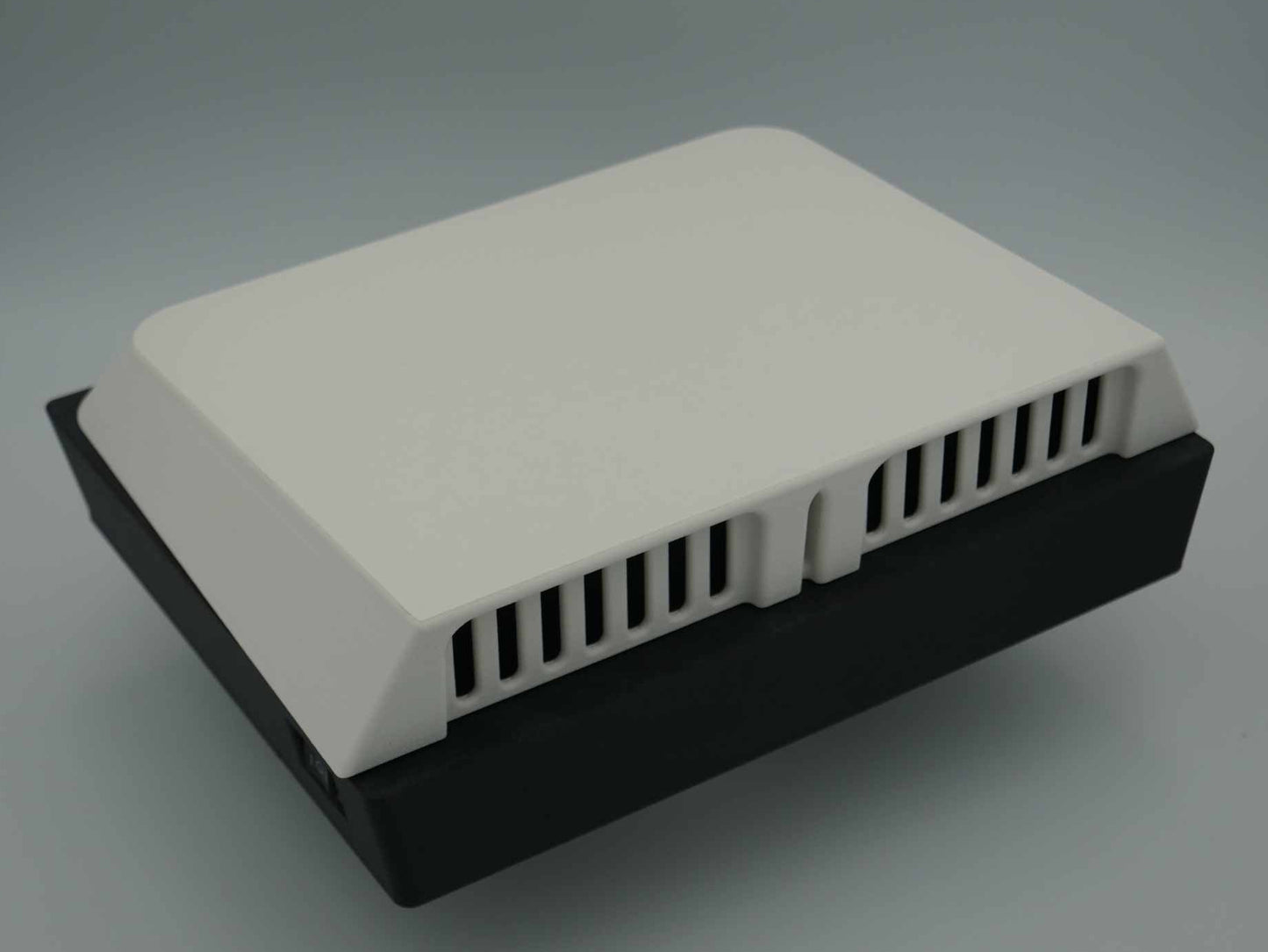

• Downward-facing louvres on the outer housing, so rain and dust are not driven straight into the openings
• Light but tough — just 985 g for both housings, with the strength coming from glass fibre reinforced ASA rather than bulk
• Tough, UV-resistant ASA-Glass Fibre — glass-reinforced, UV stable, and heat resistant enough not to warp inside a closed space in summer
• Choice of colour — black or white
• Two 105–108 mm round cutouts — both are standard hole saw sizes
• Australian made, with free postage Australia-wide

How it works

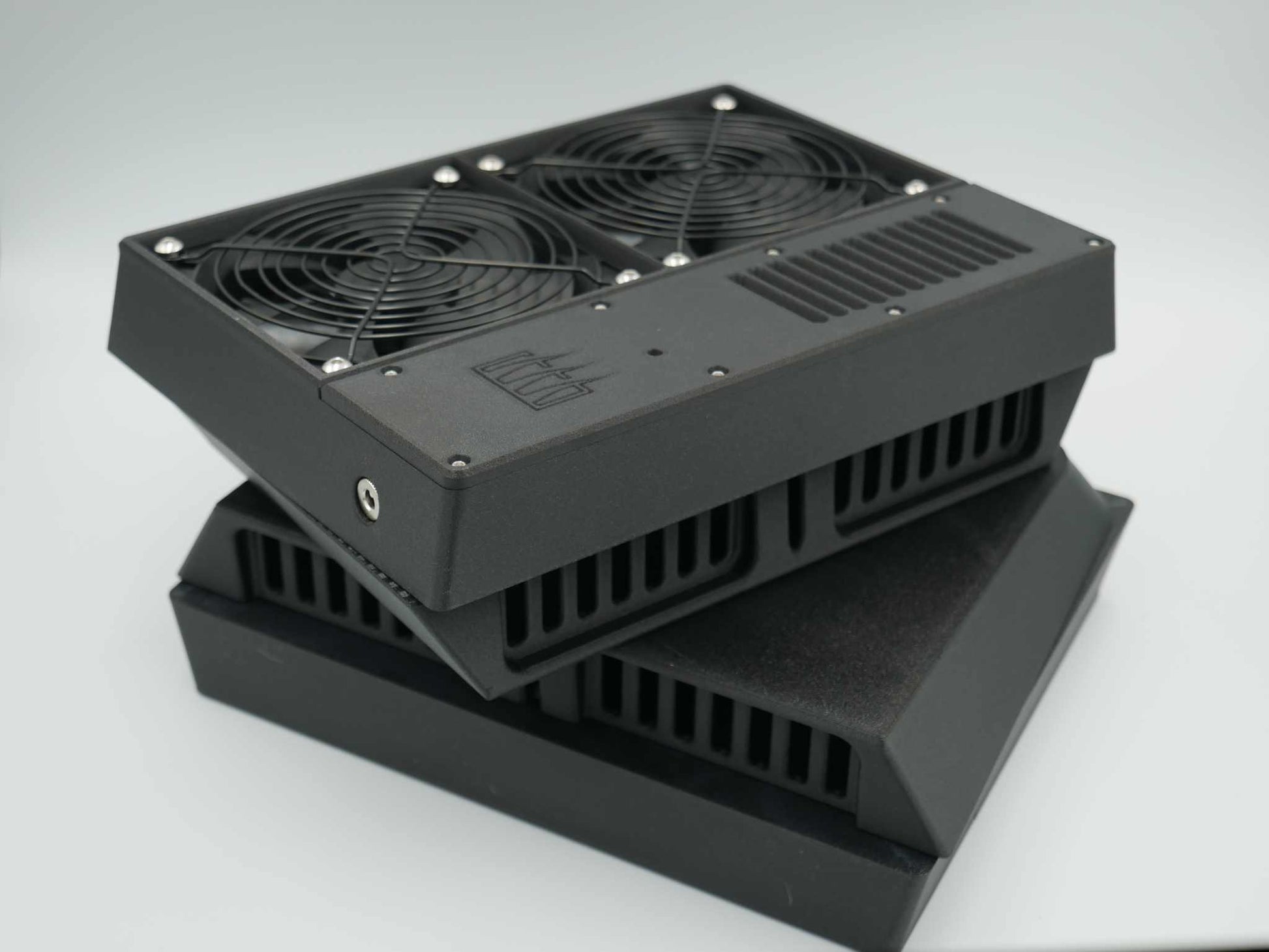

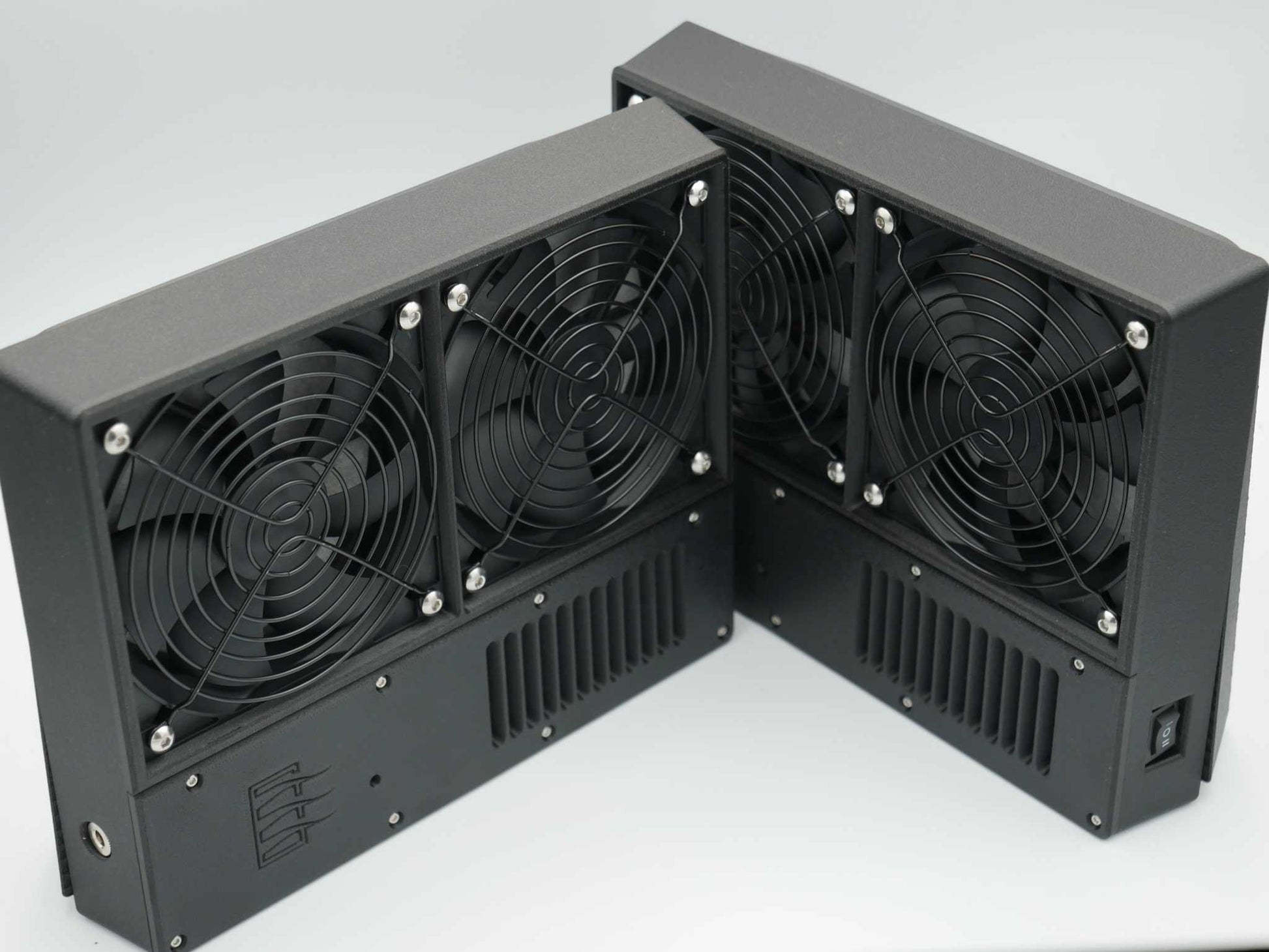

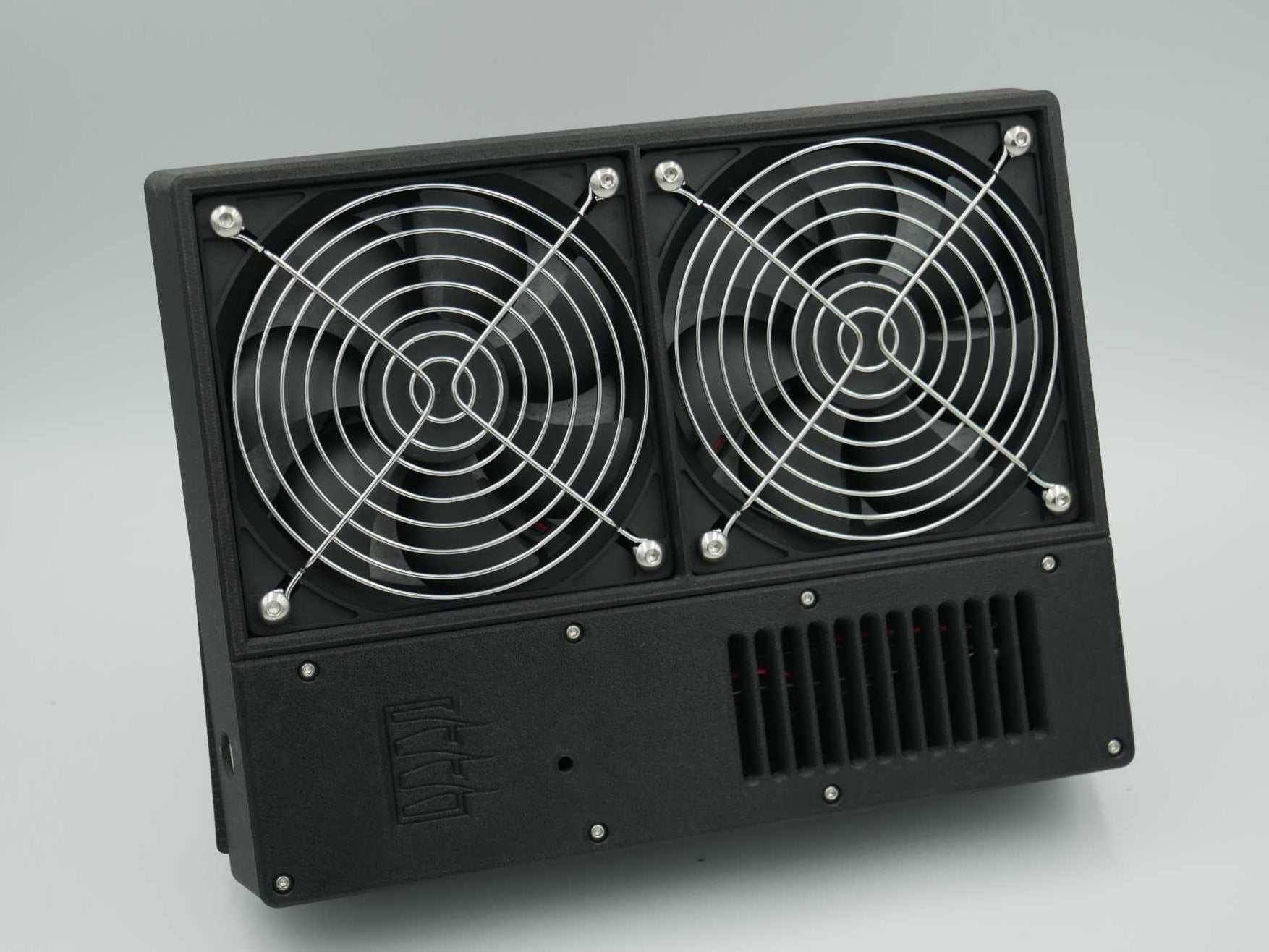

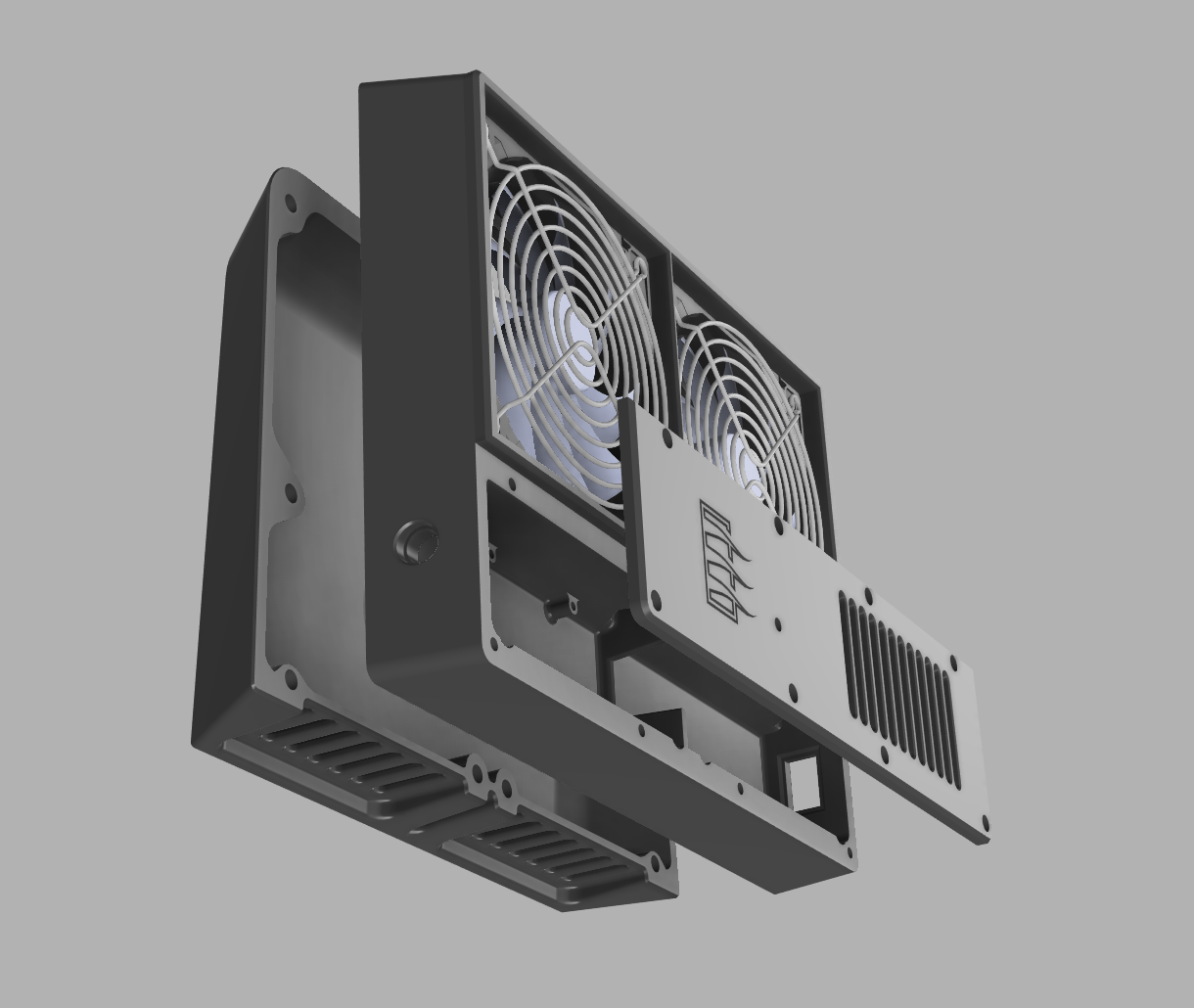

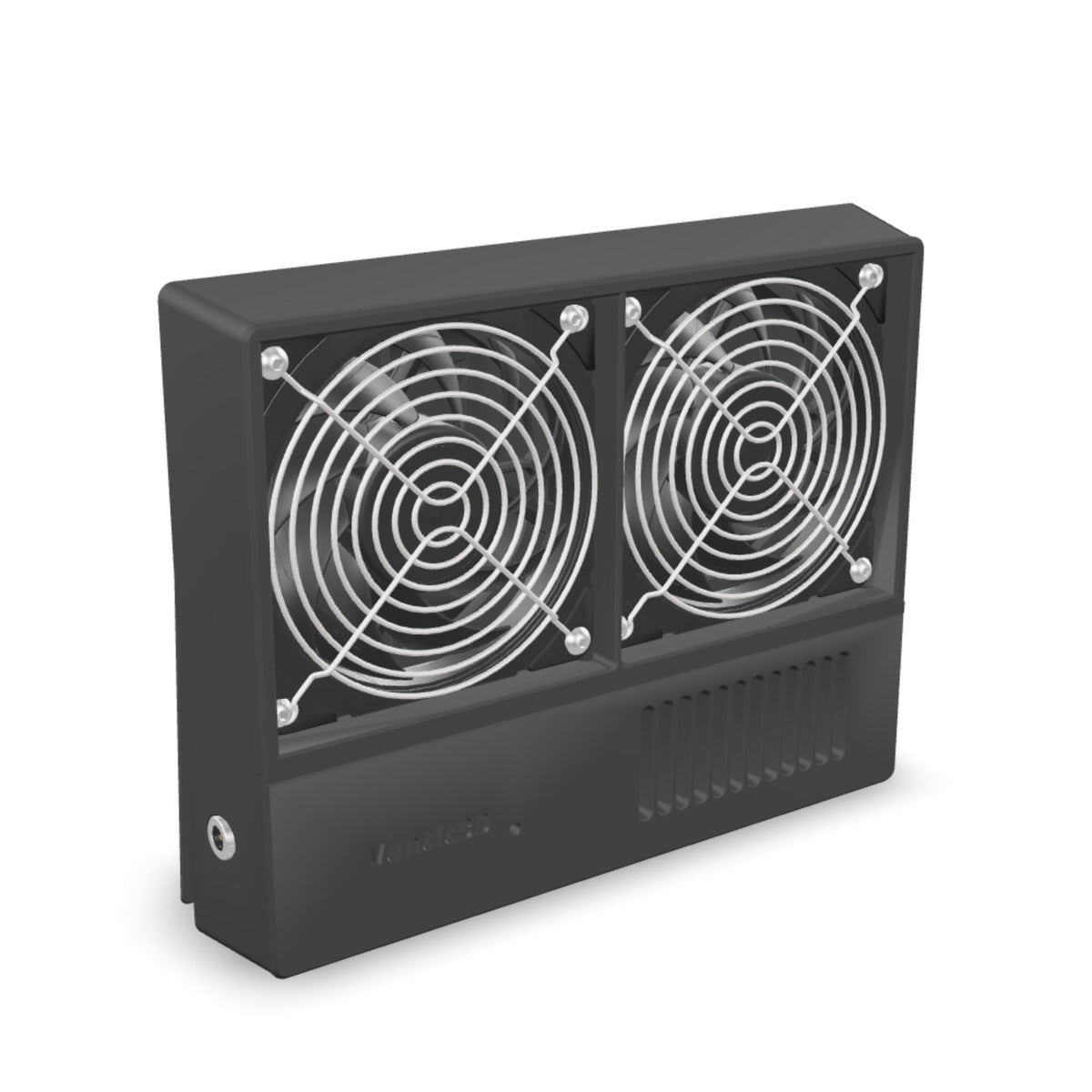

The assembly is in two parts. The fan housing mounts inside and carries both 120 mm fans, the filtration and the control electronics. The outer housing sits on the outside of the panel and stays flush and low-profile.

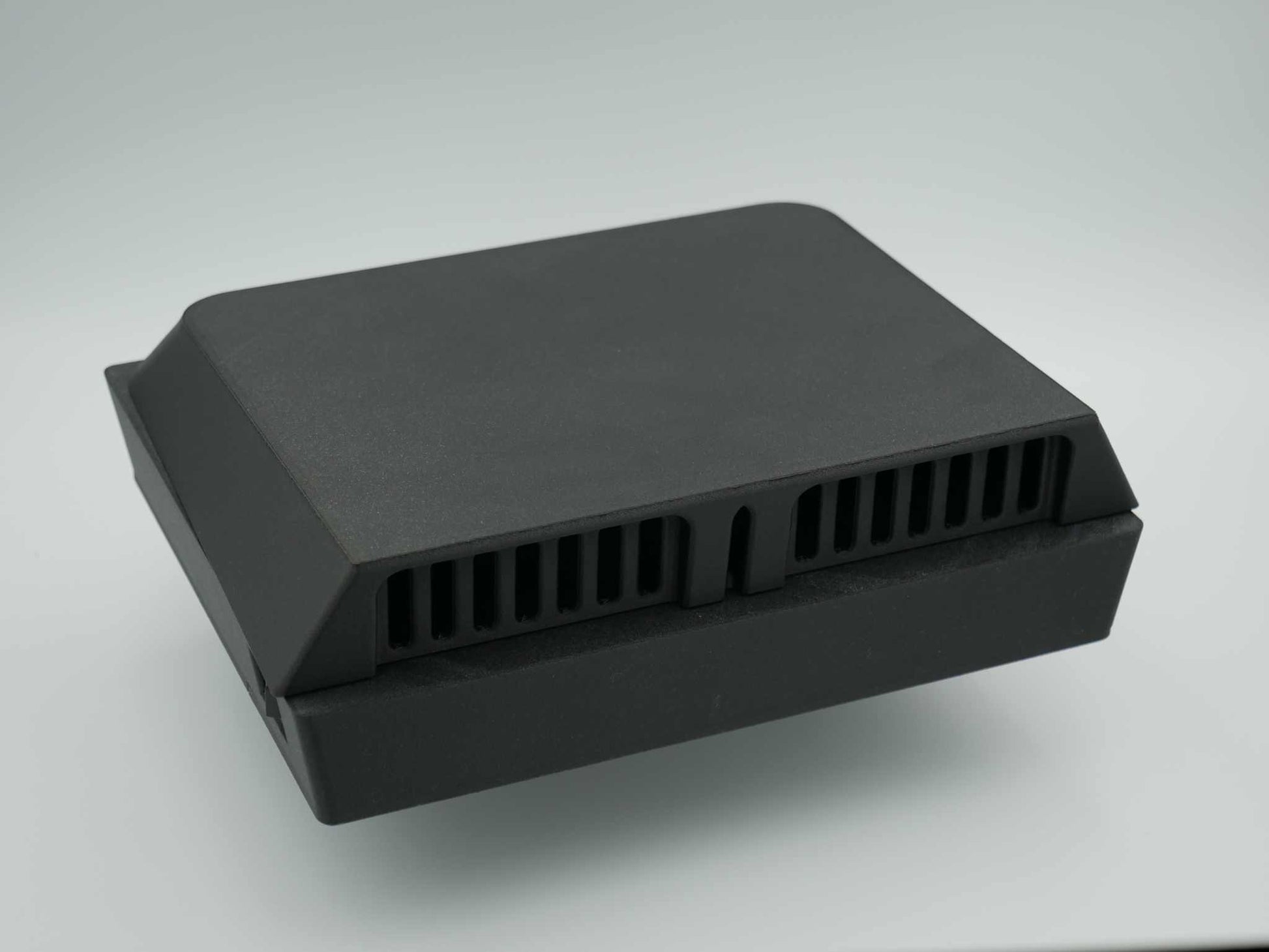

The fans draw air out and push it through the outer housing. Because its louvres face downward, water running down the panel and dust thrown up off the road are far less likely to be driven into the openings than they would be with forward or side-facing holes.

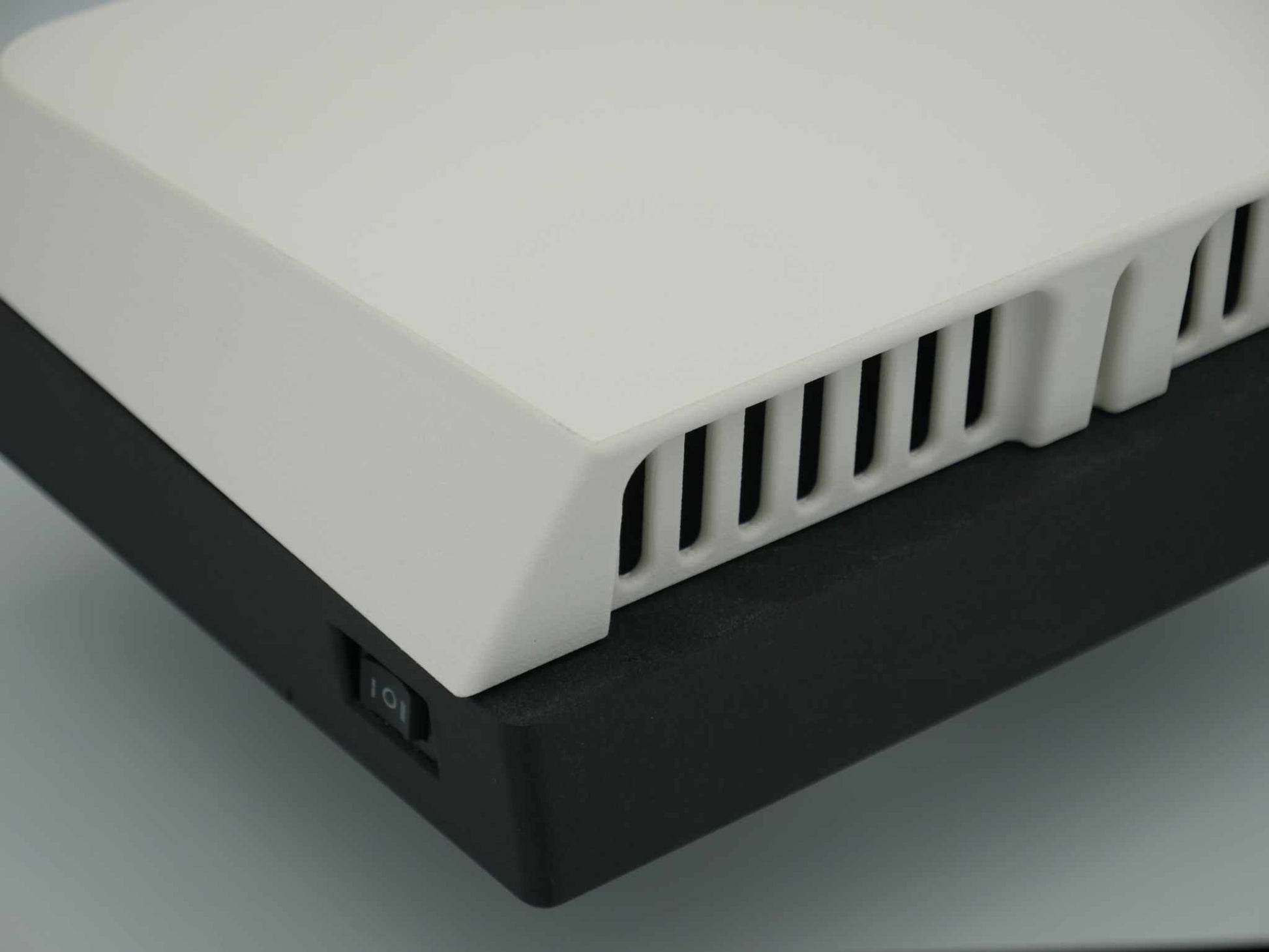

Control is a three-way switch, with a second switch inside the housing that selects how the temperature mode behaves:

• Always on — both fans run constantly for maximum airflow
• Temperature activated, variable speed — the adjustable thermostat brings the fans in as things heat up, and the hotter it gets the faster they spin
• Fixed 30°C — the fans trigger at a preset 30°C, independent of the adjustable setting

Variable speed matters more than it sounds. A fan that only switches on and off runs flat out or not at all; one that scales with temperature draws less current on a mild day and still has headroom when everything is baking.

Who it's for

The Dual is the answer when one fan isn't enough:

• Caravans and camper trailers — more internal volume than a ute canopy, and storage tunnels, boots and front boxes that trap heat and stale air all day
• Long or high canopies, and van fit-outs, where a single fan is working across too much space
• Heavily loaded builds — fridge, batteries, tooling and gear all giving off or holding heat at once
• Anyone who wants the fan to scale with the temperature rather than run flat out or not at all

Specifications

Feature	Specification
Brand	Ventit3D
Product type	Dual 120mm filtered powered exhaust vent
Material	ASA-Glass Fibre — Black or White
Fans	2 x 120 mm
Operating voltage	12V DC
Power connection	5.5 x 2.1 mm DC power jack (right-angle)
Control	Three-way switch, plus a second internal switch for temperature mode
Modes	Always on / temperature activated with variable speed / fixed 30°C

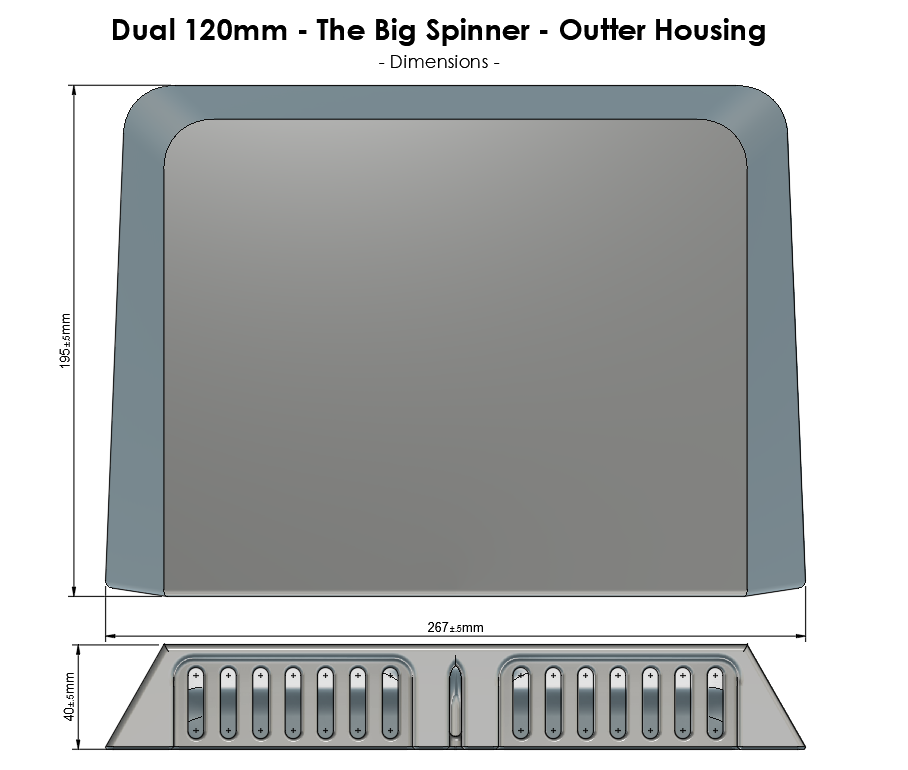

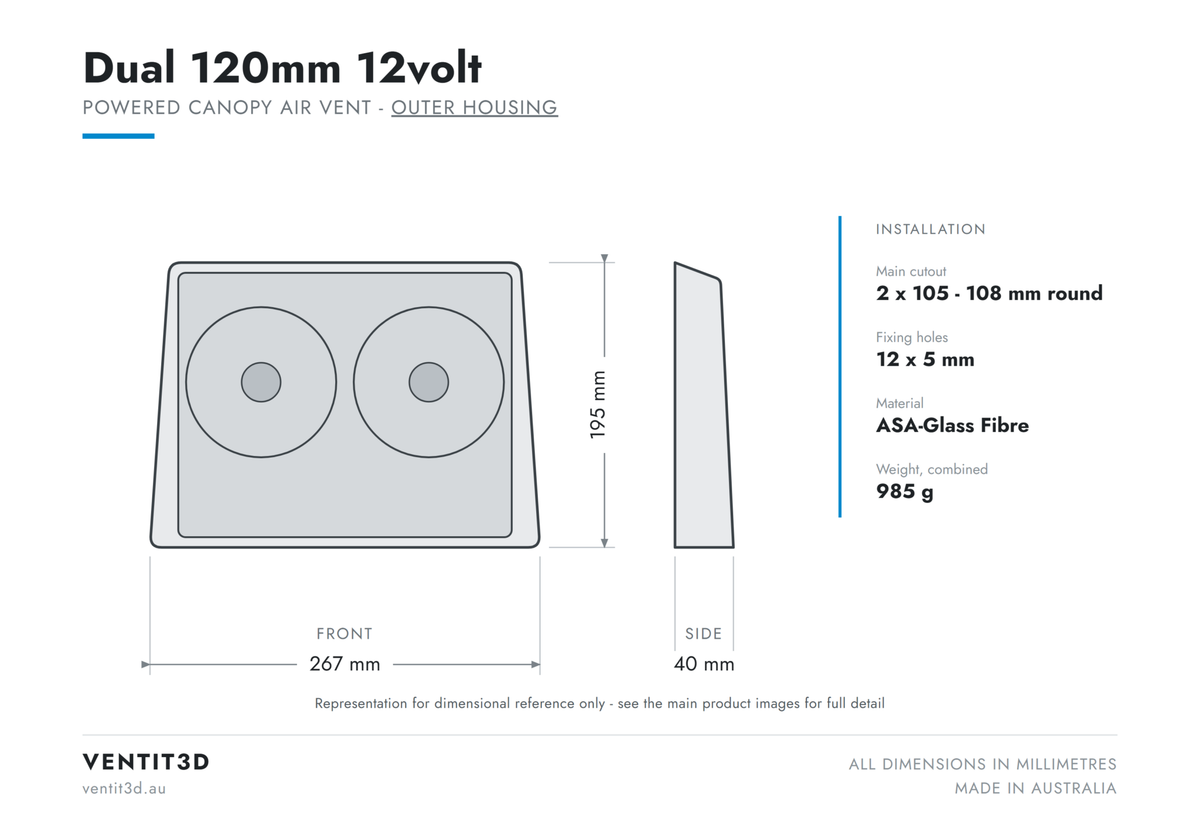

Outer housing	195 x 267 x 40 mm

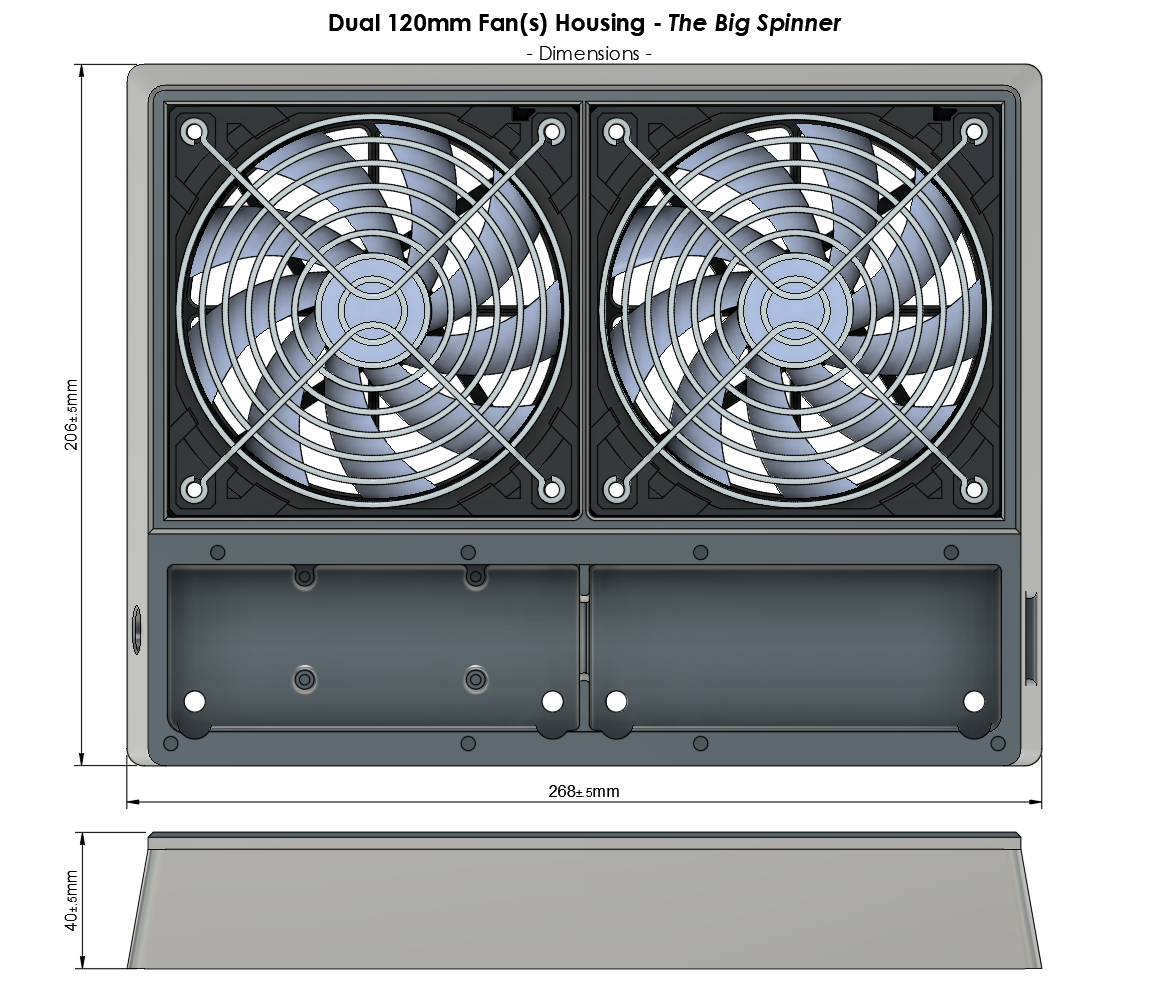

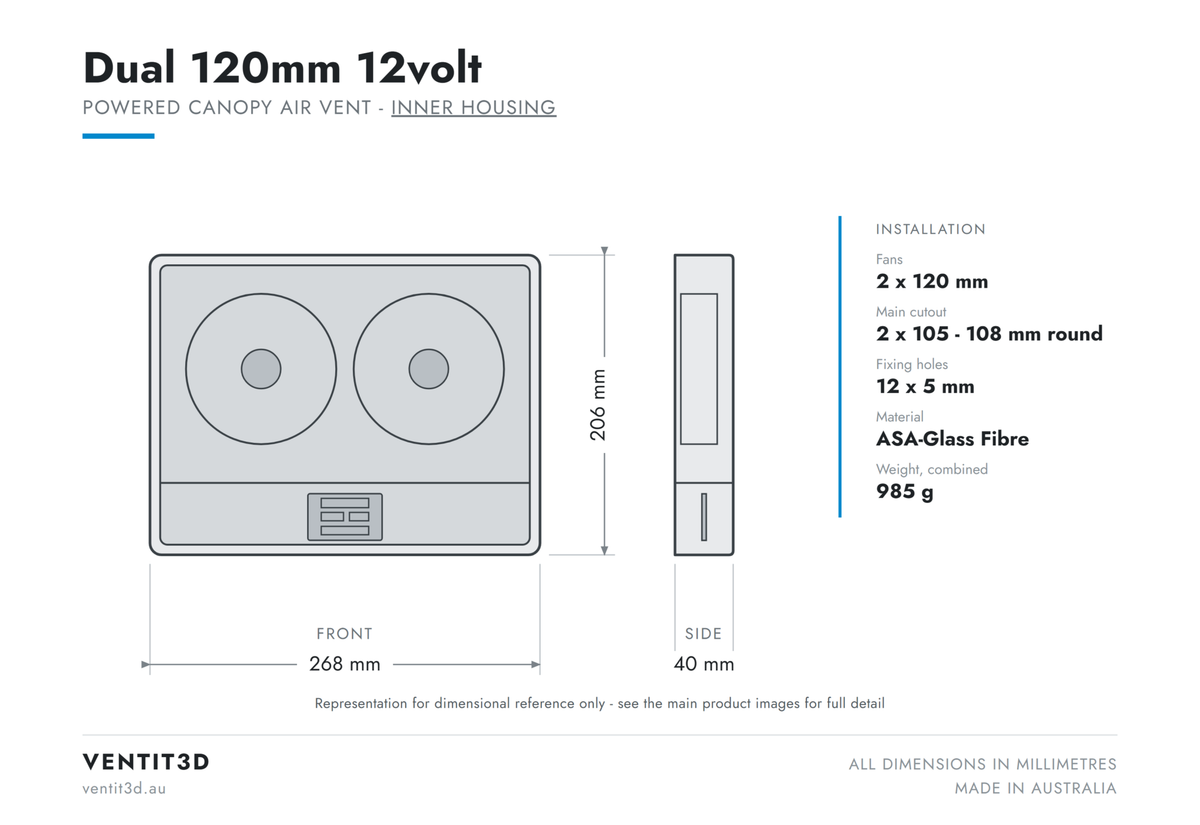

Inner fan housing	206 x 268 x 40 mm
Main cutouts	2 x 105–108 mm diameter, round
Fixing holes	12 x 5 mm
Weight	985 g, inner and outer housings combined
Louvre orientation	Downward facing
Suits	4x4 canopies, caravans, camper trailers, vans, trailers, structures
Primary use	Rear canopy exhaust

What's included

• 1 x Ventit3D Dual 120mm 12V powered vent (inner fan housing and outer housing)
• 1 x right-angle DC power connector
• 1 x set of stainless steel mounting bolts
• 1 x installation and temperature adjustment guide

Fitting

Two 105–108 mm round cutouts and twelve 5 mm bolt holes, so either a 105 mm or a 108 mm hole saw will do. Mount the fan housing inside and the outer housing outside, with the louvres facing downward — fitting the outer housing the wrong way up will let water in.

Power is plug and play through the DC jack. As with every electrical component in a canopy or caravan, fuse it. A full installation and temperature adjustment guide is included in the box.

Often bought with

• The Original — side-mount intake pair, for a true push-pull cross-flow
• Single 120mm 12volt — after something smaller? One fan, one cutout
• Dual Cable Inlet — weatherproof cable pass-through for the power feed

Important to note

Any opening cut into a canopy, caravan or structure has the potential to leak if it is incorrectly installed, not properly sealed, submerged, or exposed to high-pressure water such as a pressure washer or car wash. You are responsible for correct installation, sealing, and periodic inspection for wear, damage and seal integrity.

Frequently asked questions

What are the main features of the Dual 120mm 12V Canopy Air Vent?

The Dual 120mm 12V Canopy Air Vent features adjustable fan speeds, a built-in 2-way switch, and multiple activation modes including always-on, temperature-activated, and fixed temperature trigger, providing customisable airflow control for your canopy or trailer.

Is the exterior housing of the Dual 120mm 12V vent durable and UV resistant?

Yes, the exterior housing is made from ultra-tough, UV-resistant ASA-Glass Fibre, ensuring durability and a sleek, low-profile appearance even in harsh outdoor environments.

How do I install and set up the Dual 120mm 12V Canopy Vent?

Installation is straightforward with a built-in 5.5x2.1mm DC power jack, included stainless steel bolts, and a comprehensive guide. Simply mount securely inside your canopy and connect to power for immediate use.

Can the Dual 120mm 12V Canopy Vent be used as a continuous exhaust or only with temperature activation?

The Dual 120mm 12V Canopy Vent can operate continuously or activate based on temperature, thanks to its versatile control options, allowing you to choose constant airflow or temperature-responsive ventilation.

What makes the Dual 120mm 12V Canopy Vent a better choice compared to smaller or alternative ventilation options?

The Dual 120mm 12V has a sleek, low-profile design with easy installation, variable speed control, and works alongside additional airflow systems like the Original vents, giving superior extraction over smaller or single-fan options.

What makes the Dual 120mm 12V Canopy Air Vent suitable for my vehicle or structure?

The Dual 120mm 12V Canopy Air Vent is a purpose-built filtered ventilation solution designed specifically for canopies, vans, trailers, and caravans, providing efficient exhaust airflow and durability.

How does the variable fan speed feature work on the Big Spinner vent?

The built-in 2-way switch allows you to set the fan to always on, or activate temperature-dependent operation where the fan speeds up as the temperature increases, giving you complete control over airflow based on your needs.

What is included with the installation of the Dual 120mm 12V Canopy Vent?

The kit includes stainless steel bolts, a built-in standard 5.5x2.1mm DC power jack with a right-angle connector, and a comprehensive guide for easy installation and temperature adjustment.
